Oil Pan, Engine

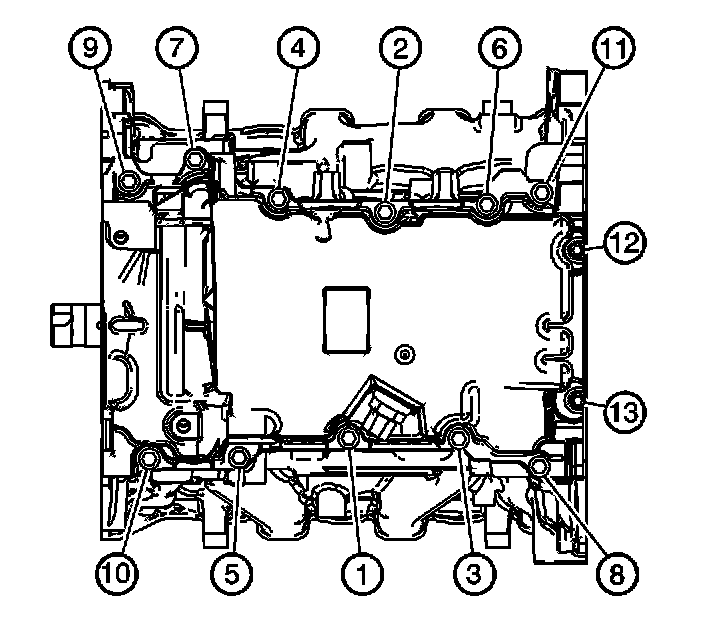

Oil Pan
Bolt
8 MM Bolt (1-11)
23 Nm (17 ft. lbs.)
6 MM Bolt (12, 13)
10 Nm (89 inch lbs.)
