Home >> Buick >> 2005 >> Allure (CANADA) V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Amplifier, Sound System
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Amplifier, Sound System

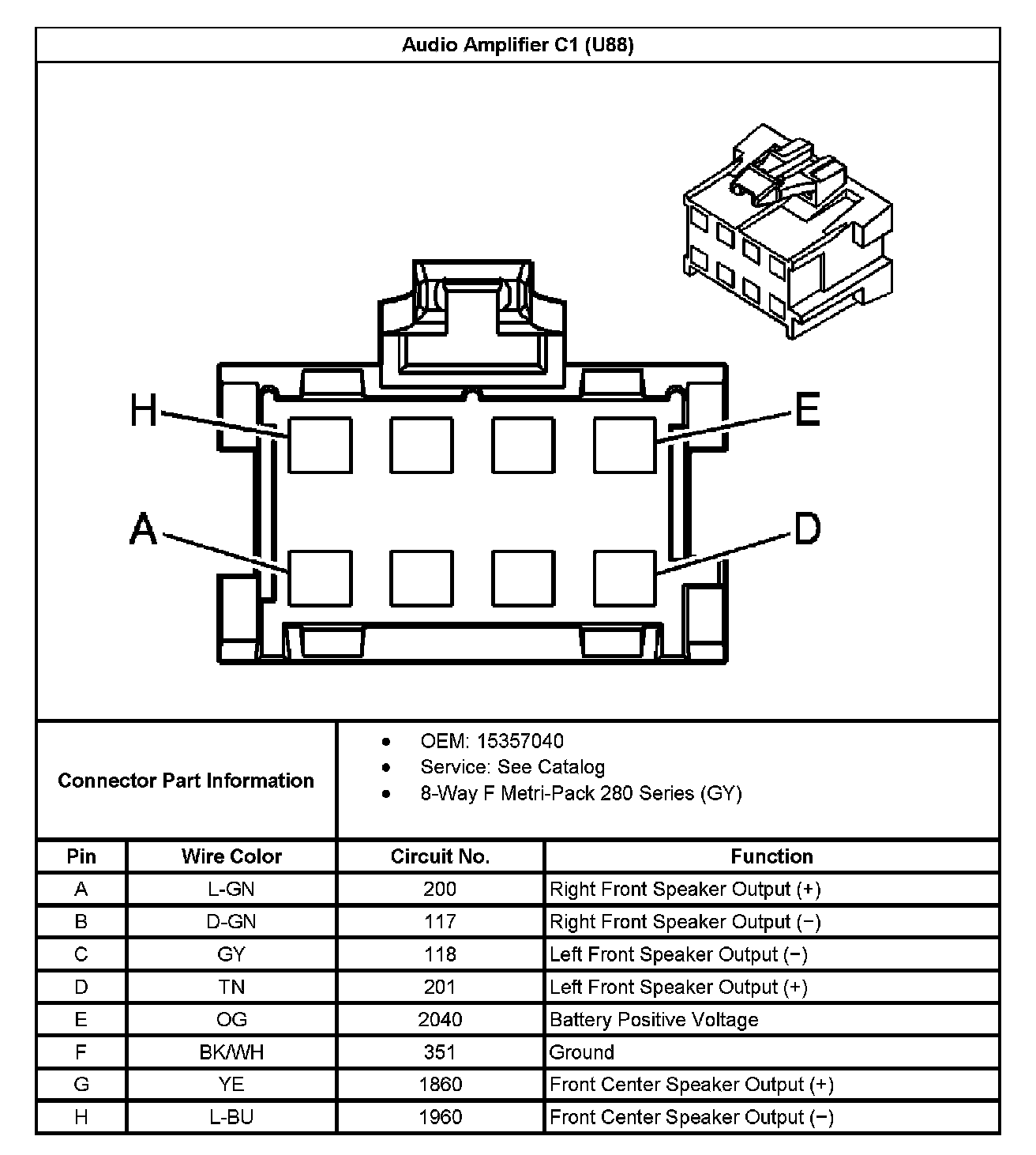

Audio Amplifier C1 (With RPO Code U88):

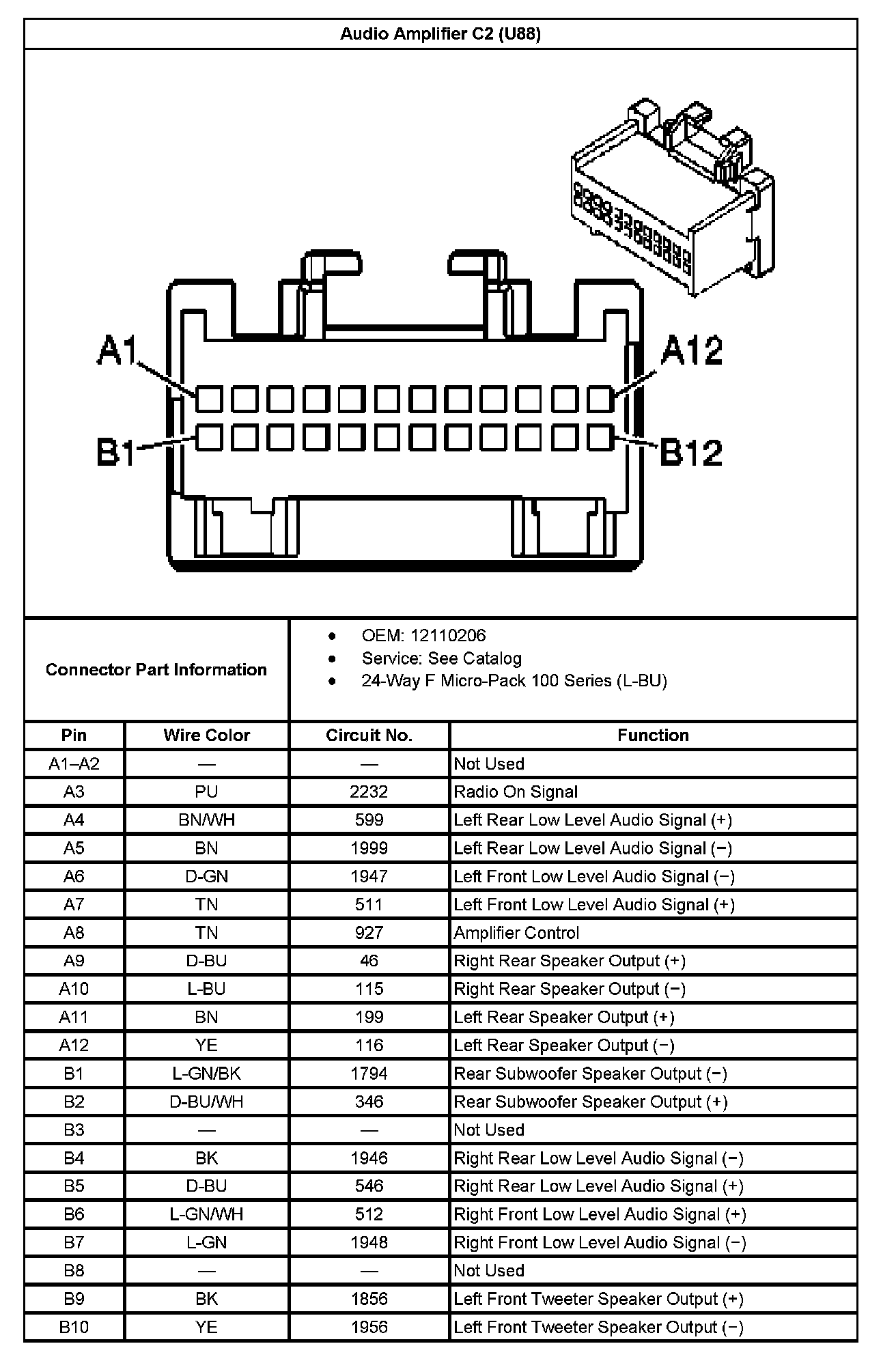

Audio Amplifier C2 (With RPO Code U88) Part 1:



Audio Amplifier C2 (With RPO Code U88) Part 2:
