Fuse Block - I/P - C2

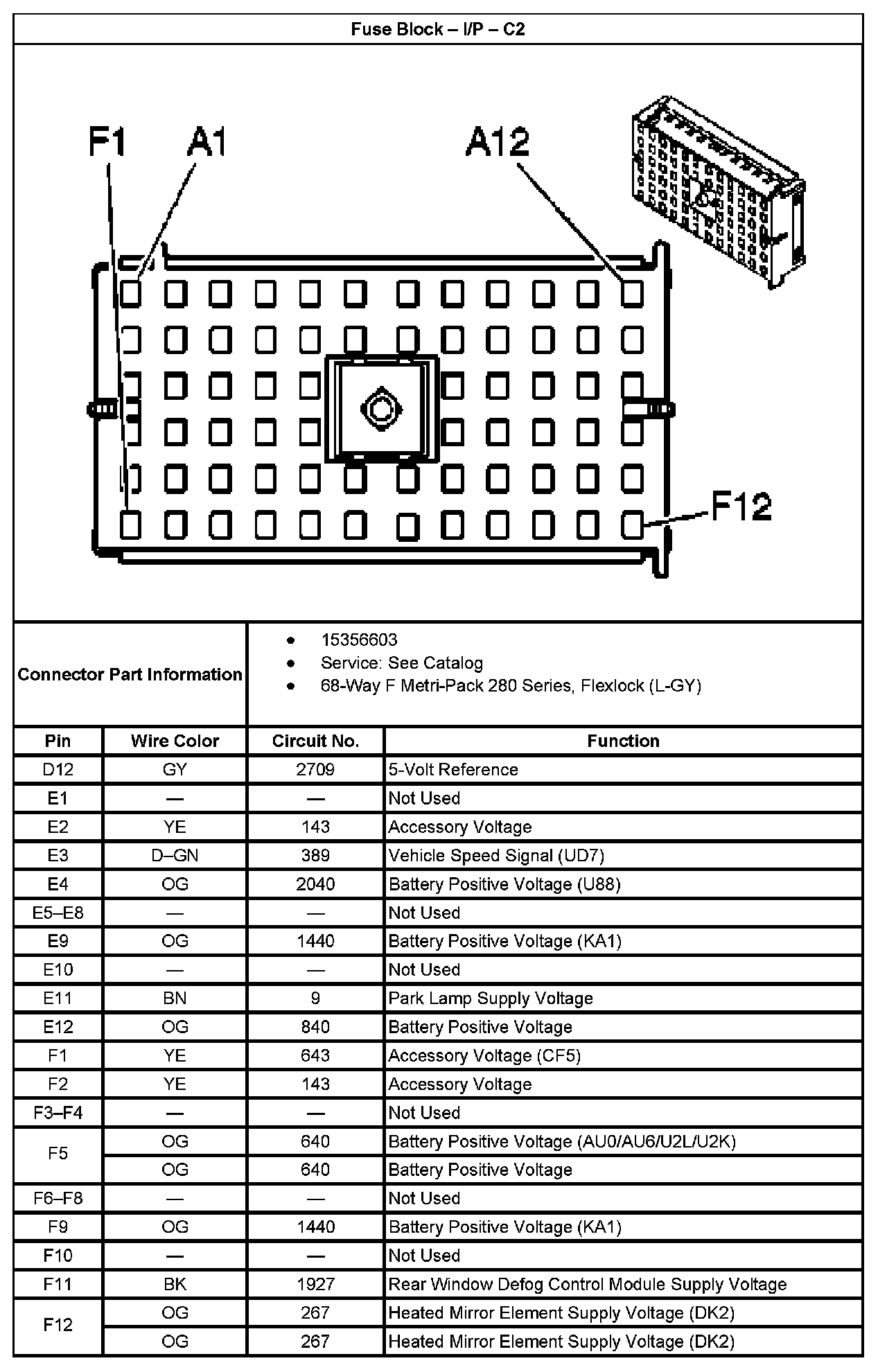

Fuse Block - I/P - C2 Part 1:

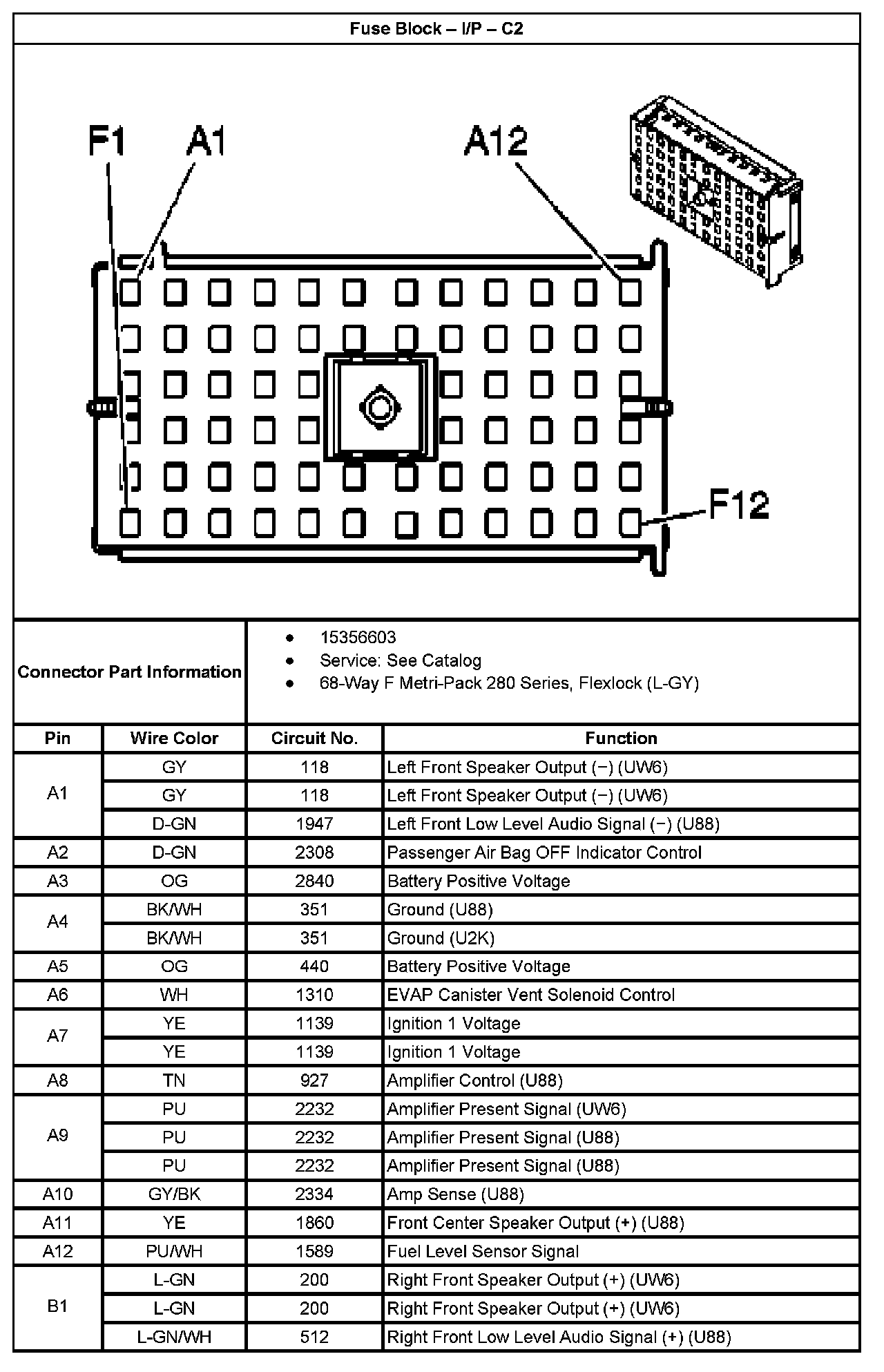

Fuse Block - I/P - C2 Part 2:

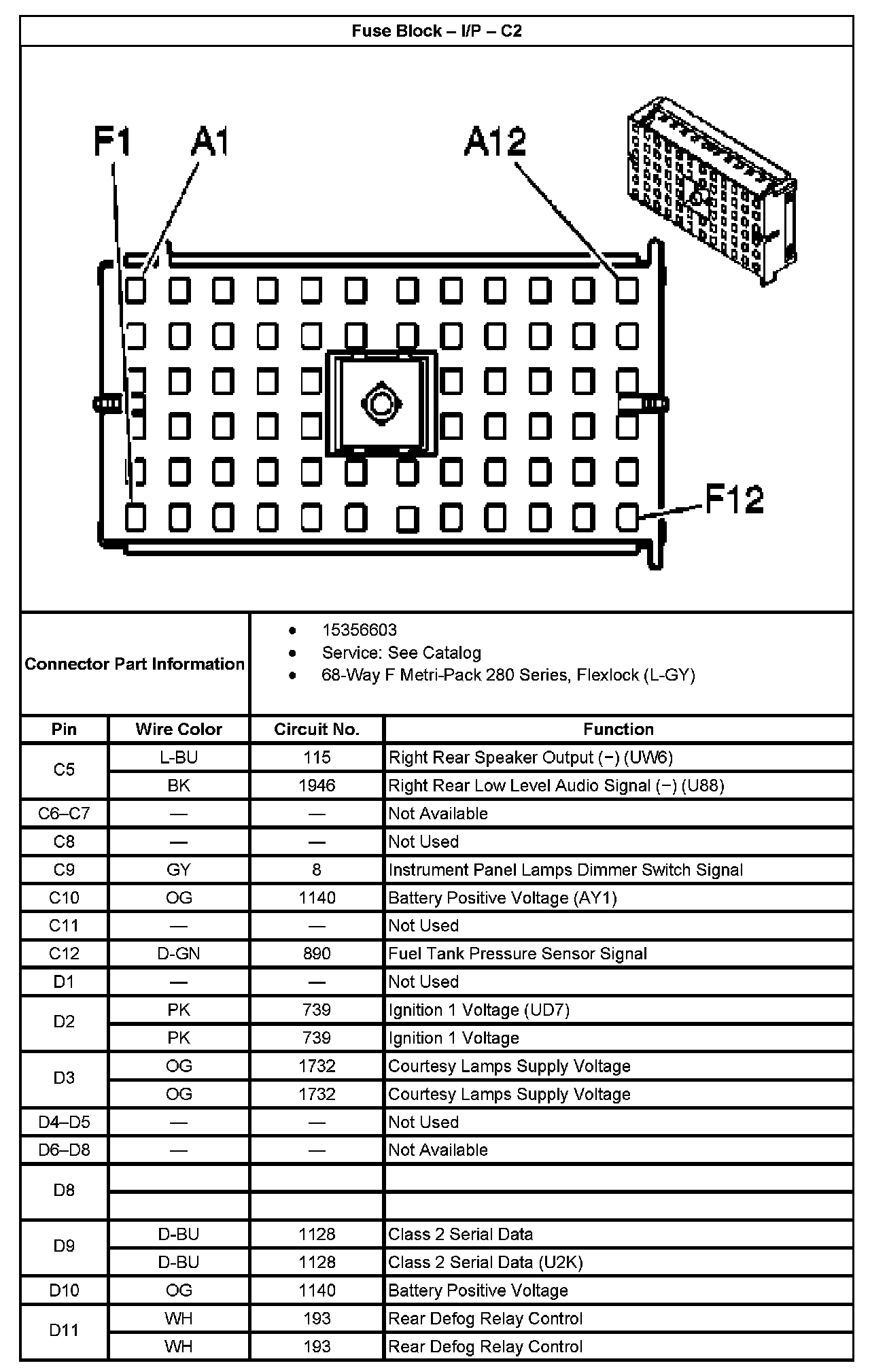

Fuse Block - I/P - C2 Part 3:

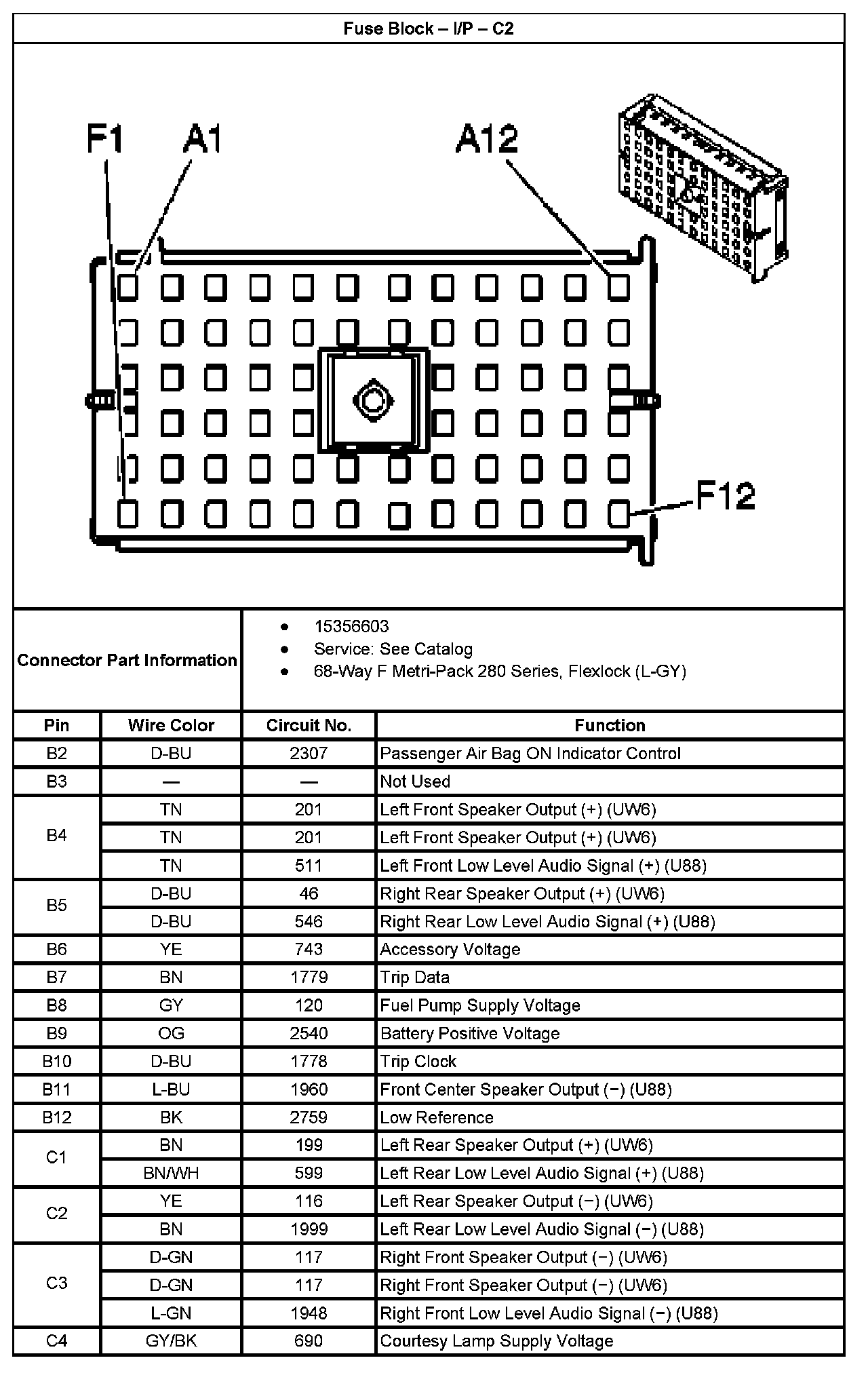

Fuse Block - I/P - C2 Part 4:
