A/T Inline 20-Way Connector End View

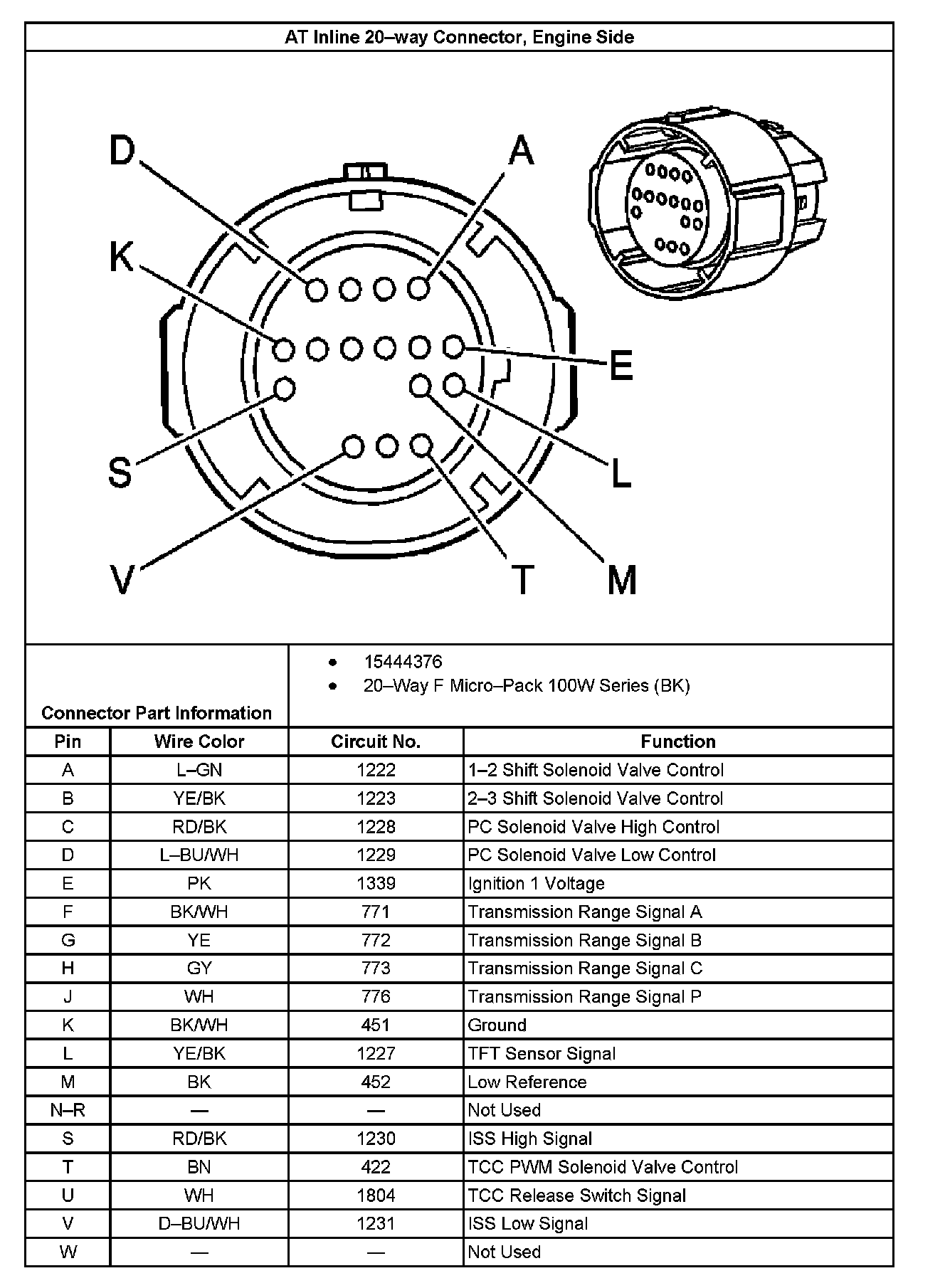

AT Inline 20-Way Connector End View, Engine Side (3.8L):






AT Inline 20-way Connector End View, Engine Side (3.8L)

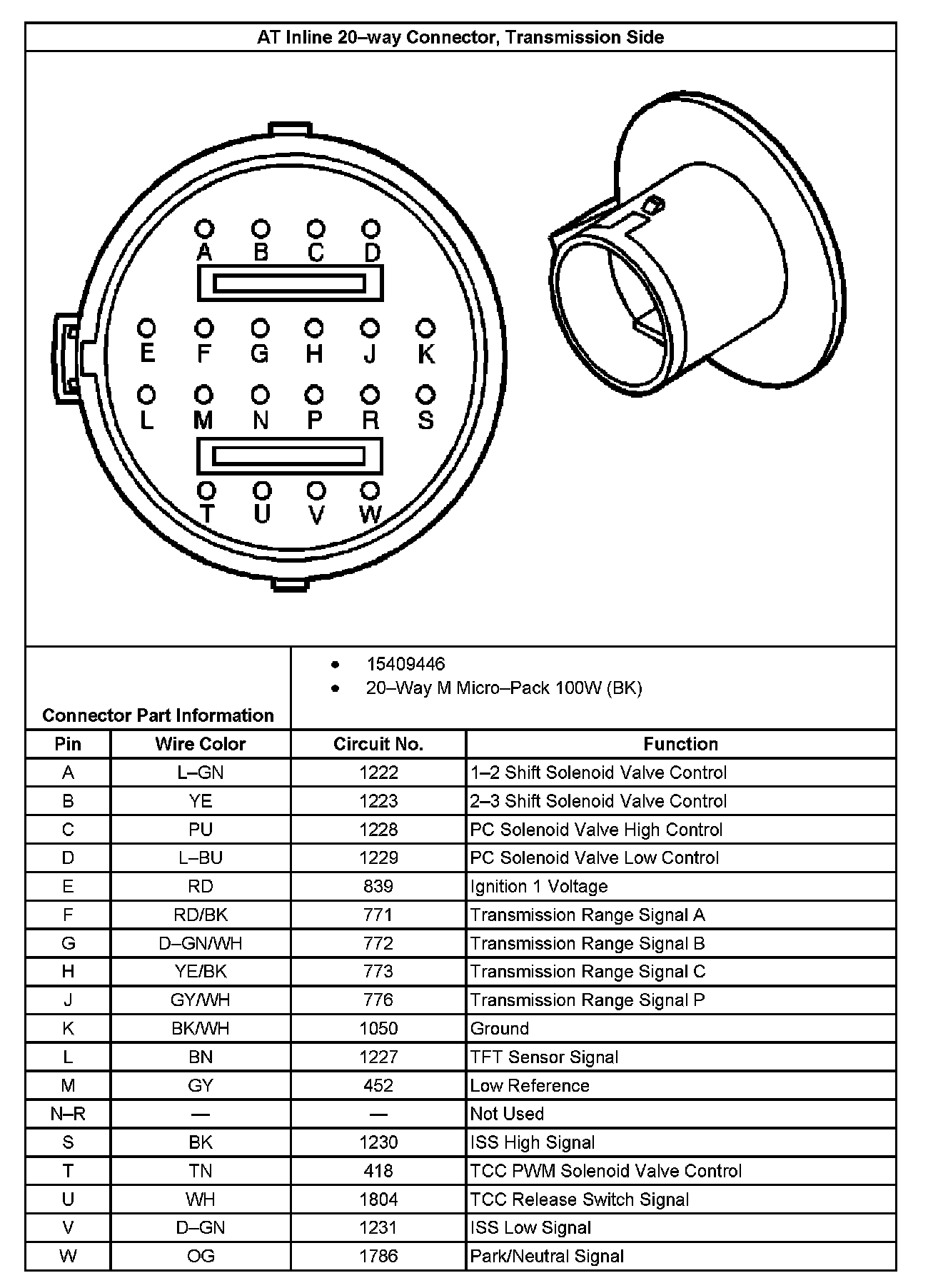

AT Inline 20-Way Connector End View, Transmission Side (3.8L):






AT Inline 20-way Connector End View, Transmission Side (3.8L)
