Cruise Control Schematics

WARNING: This page is about a different car, the 2004 Buick Regal and 2004 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

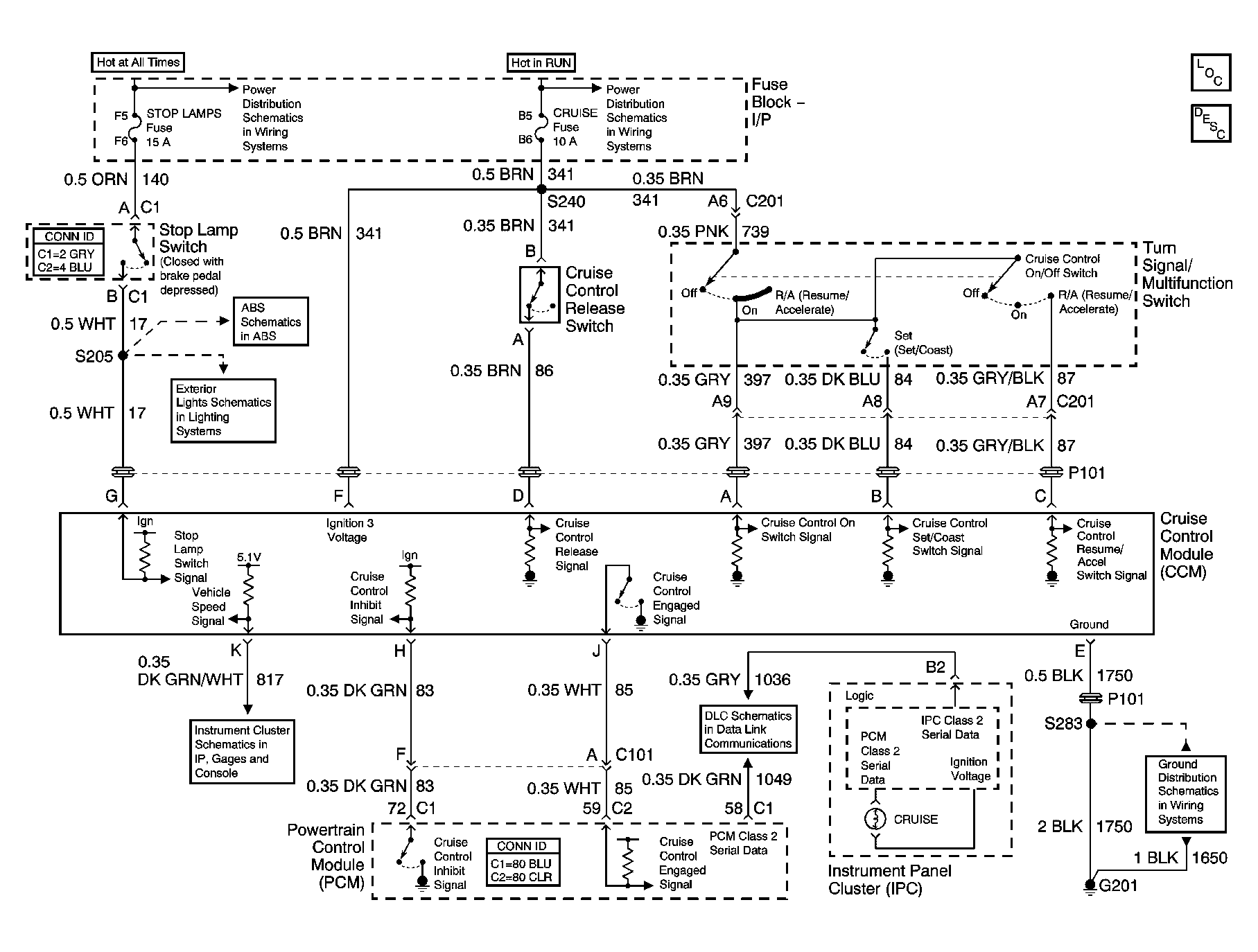

Fig 1: Cruise Control Schematic
GM1224658Courtesy of GENERAL MOTORS CORP.
