Power Door Systems Component Views

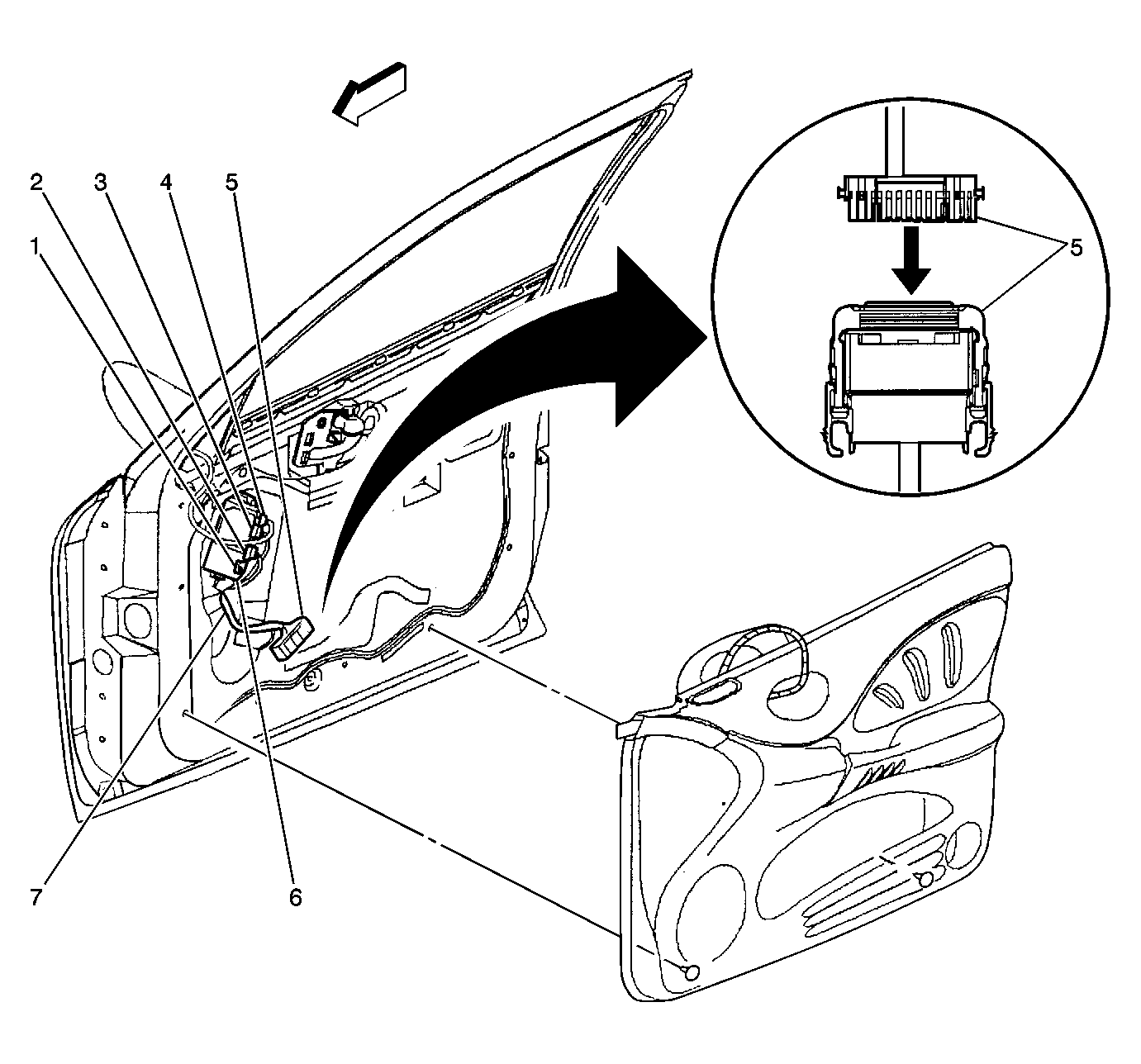

Fig 1: Right Front Door Module Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Door Module (RFDM) (C3) (Left Similar)
2	Right Front Door Module (RFDM) (C1) (Left Similar)
3	Right Front Door Module (RFDM) (C2) (LH Similar)
4	Right Front Door Module (RFDM) (C4) Outside Power Mirror Pigtail (Left Similar)
5	C503(LH) C603(RH)
6	Right Front Door Module (RFDM) (Left Similar)
7	S500(LH) S602 (RH)

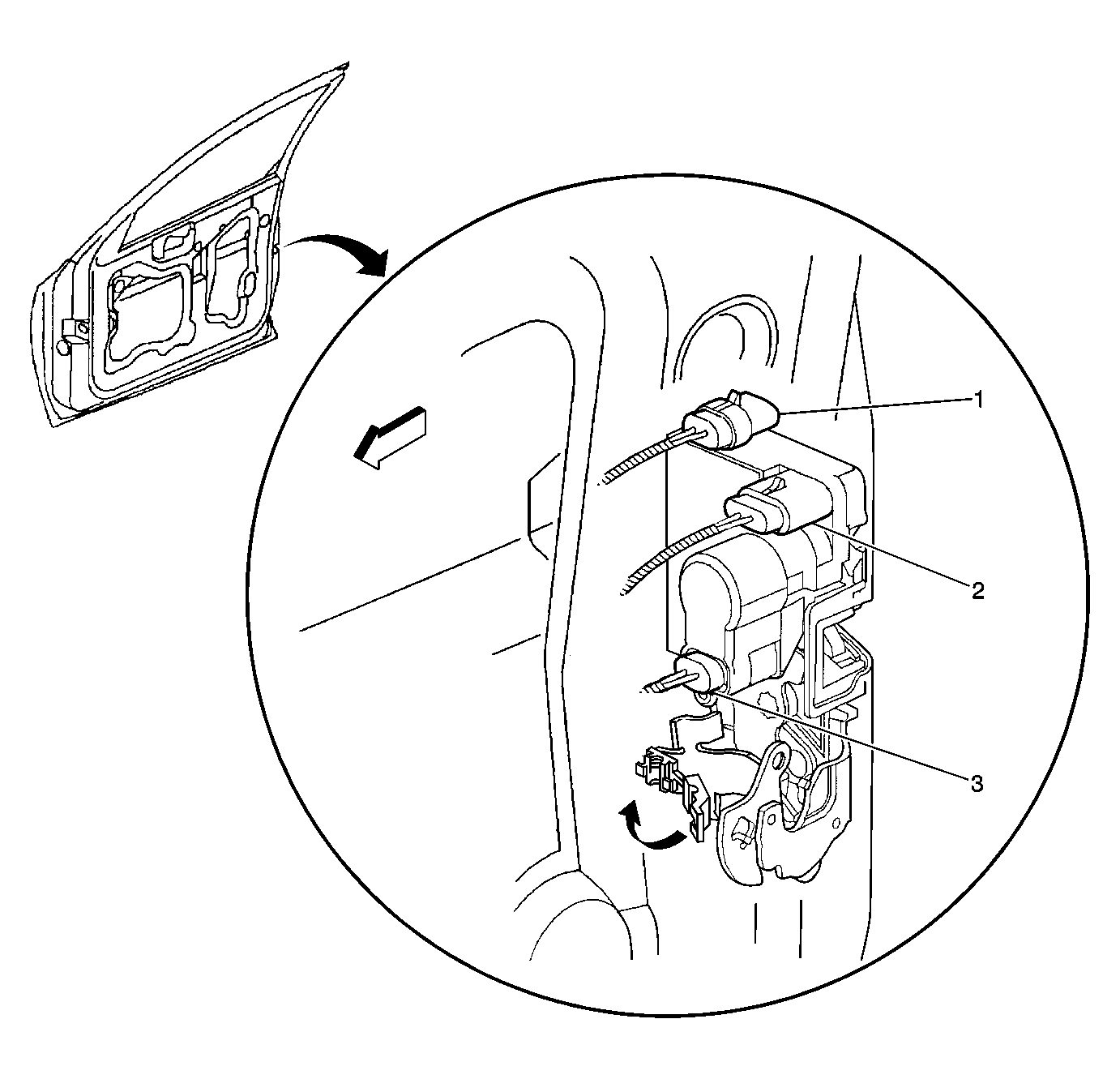

Fig 2: Right Front Door Latch Assembly Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Cylinder Switch - Front Passenger (Driver Similar)
2	Door Lock Actuator- Front Passenger (C1) (Driver Similar)
3	Door Lock Actuator - Front Passenger (C2) (Driver Similar)

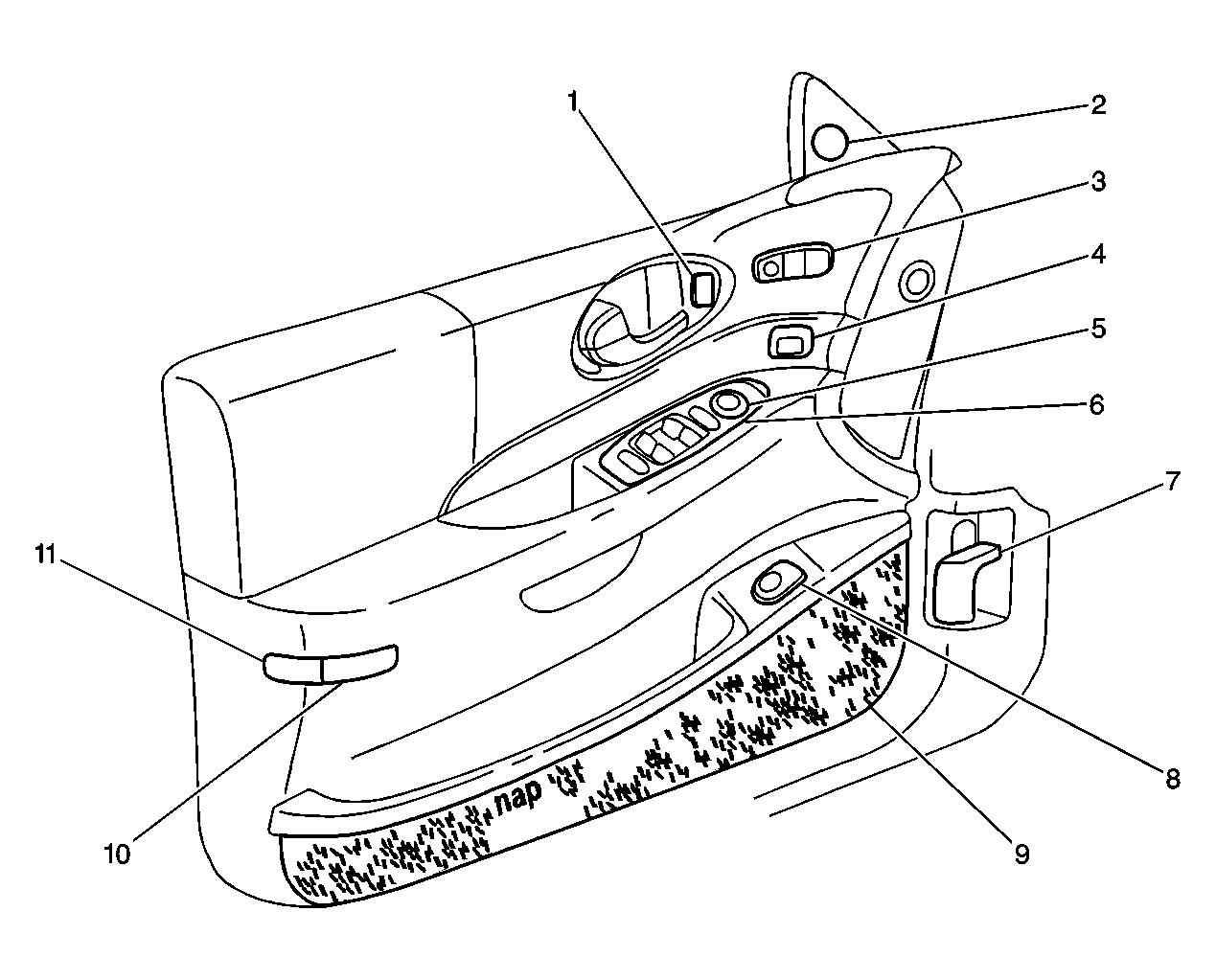

Fig 3: Left Front Door Trim Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver
2	Speaker - LF Door Tweeter (UW6) (RF Similar)
3	Memory Seat Switches (A45)
4	Heated Seat Switch - Driver (KA1) (Right Door Similar)
5	Outside Rearview Mirror Switch
6	Window Switch - Driver
7	Hood Release
8	Trunk Lock Out Switch
9	Speaker - LF Door
10	Courtesy Lamp - Left Front Door
11	Door Courtesy Lamp - LF

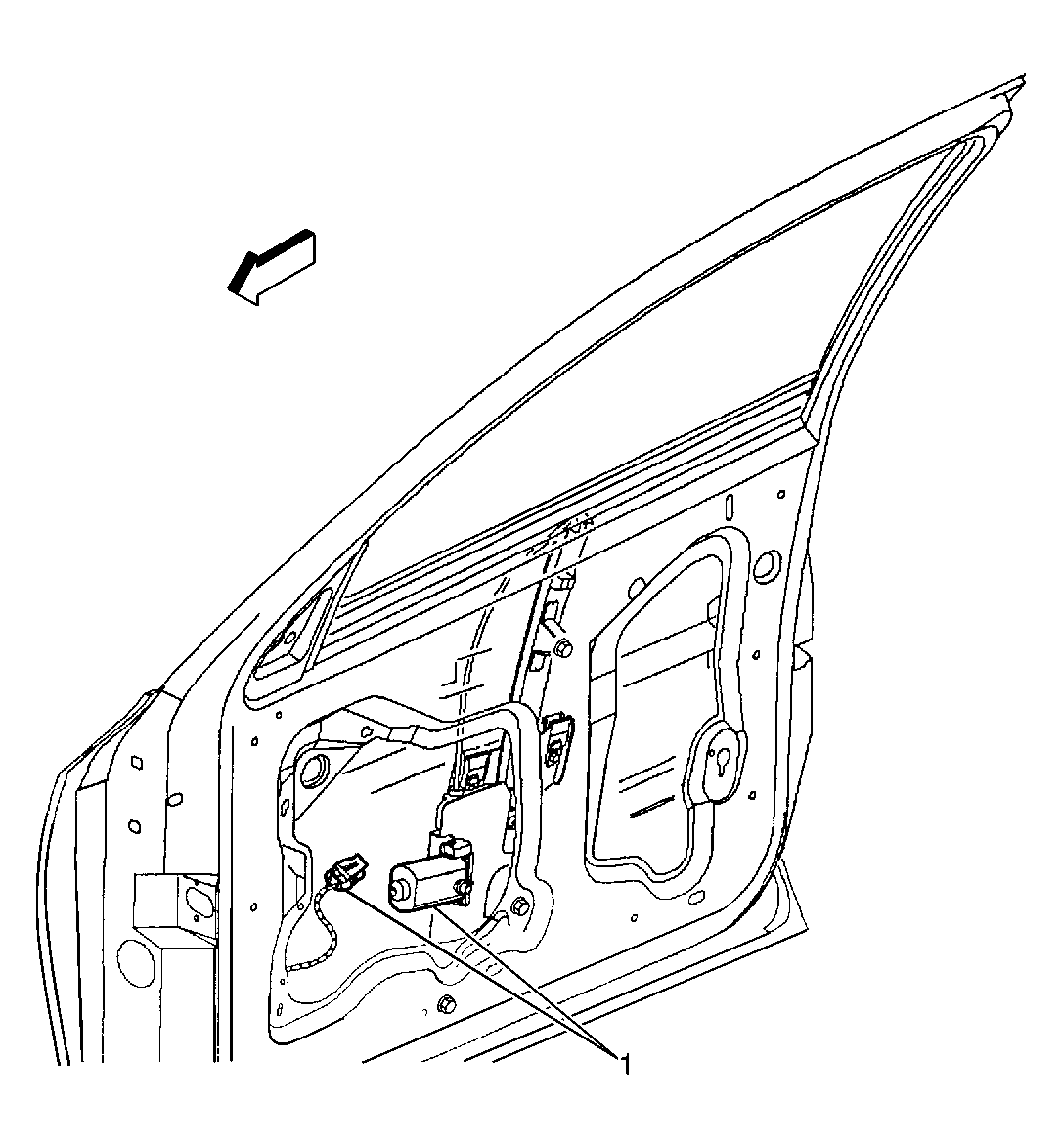

Fig 4: Right Front Door Window Motor Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - Front Passenger (Driver Similar)

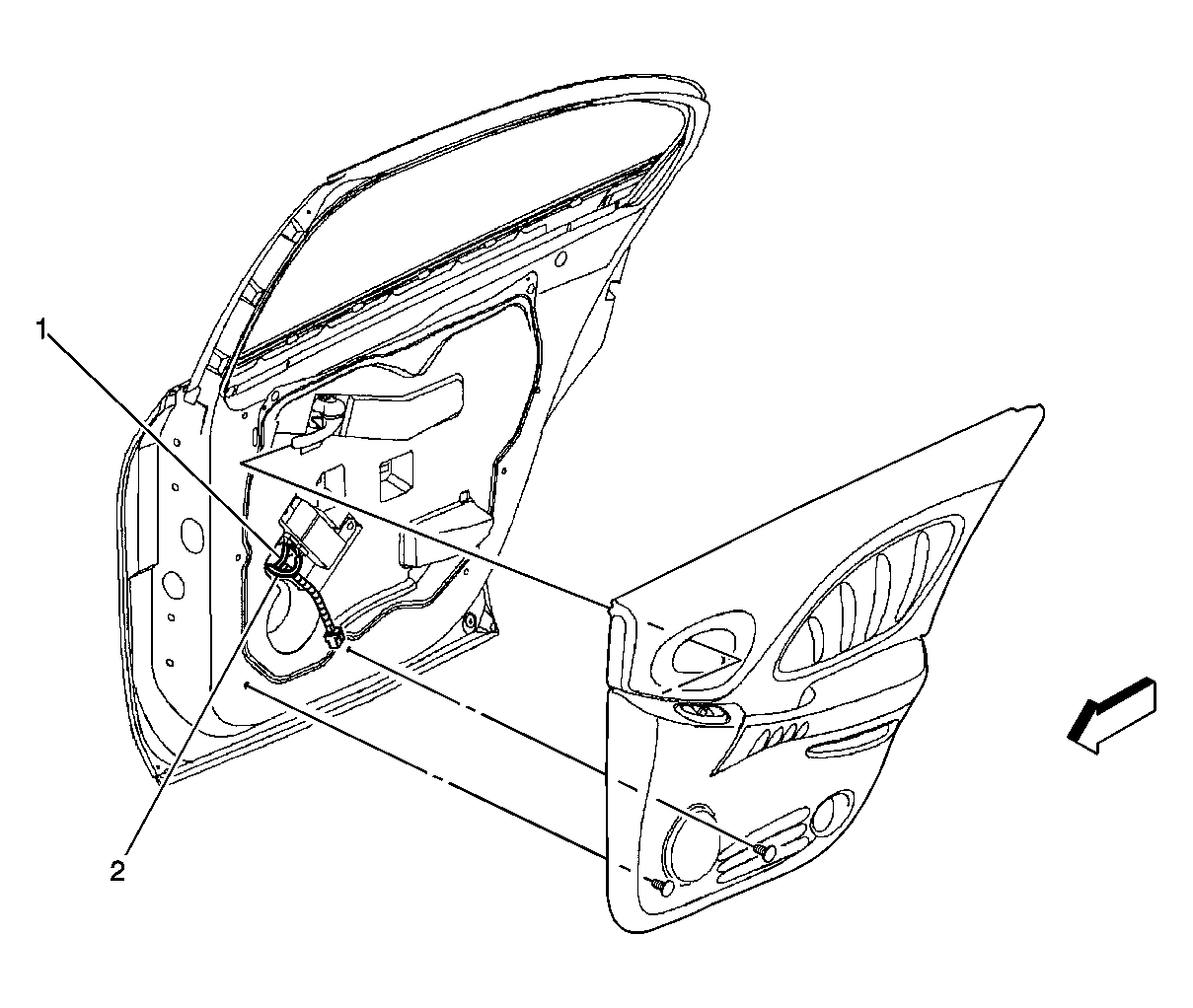

Fig 5: Right Rear Door Module (RRDM) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Rear Door Module (RRDM) C1 (Left Similar)
2	Right Rear Door Module (RRDM) C2 (Left Similar)

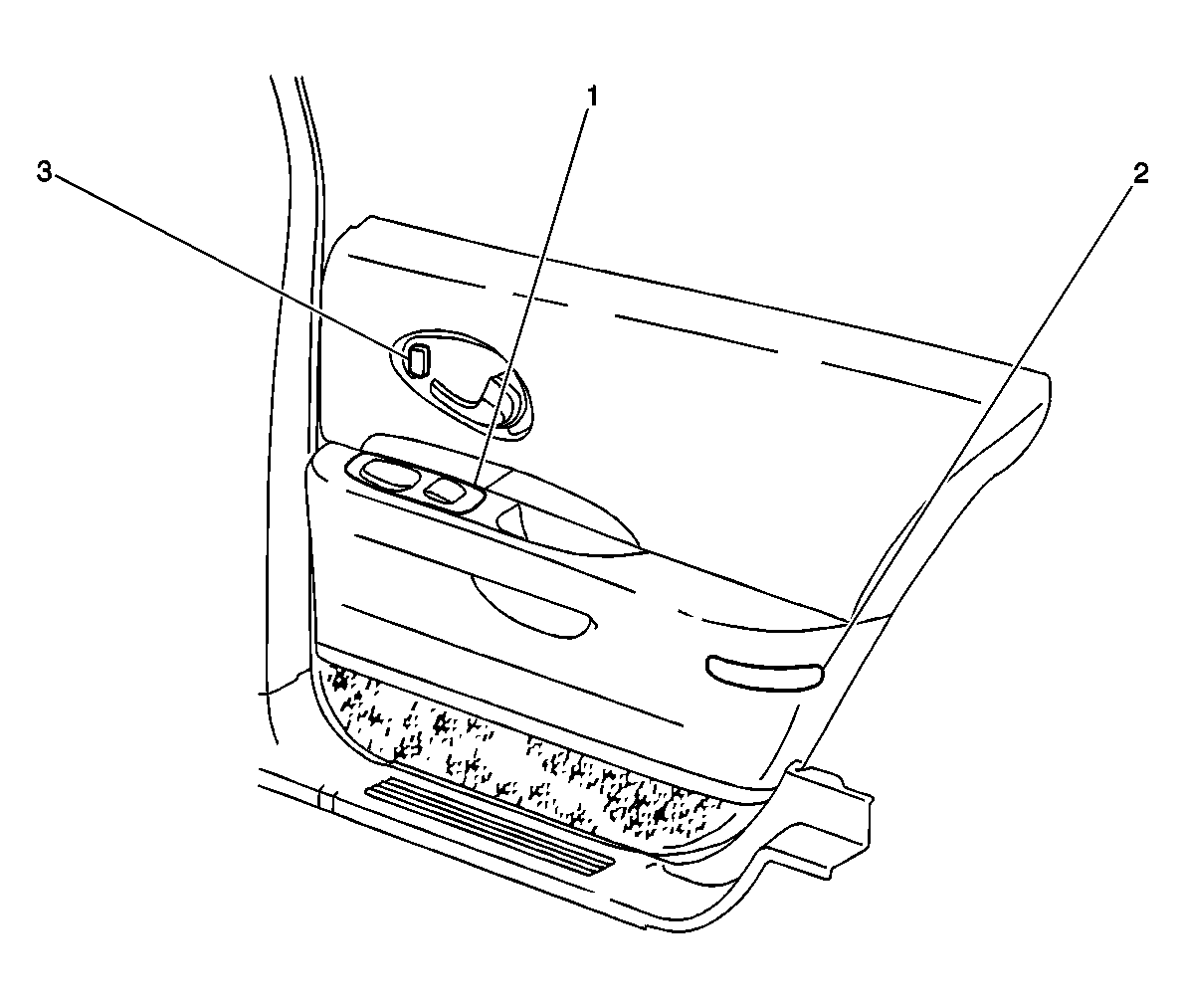

Fig 6: Right Rear Door Trim Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - RR (LR Similar)
2	Door Courtesy Lamp - RR (LR Similar)
3	Door Lock Switch - RR (LR Similar)

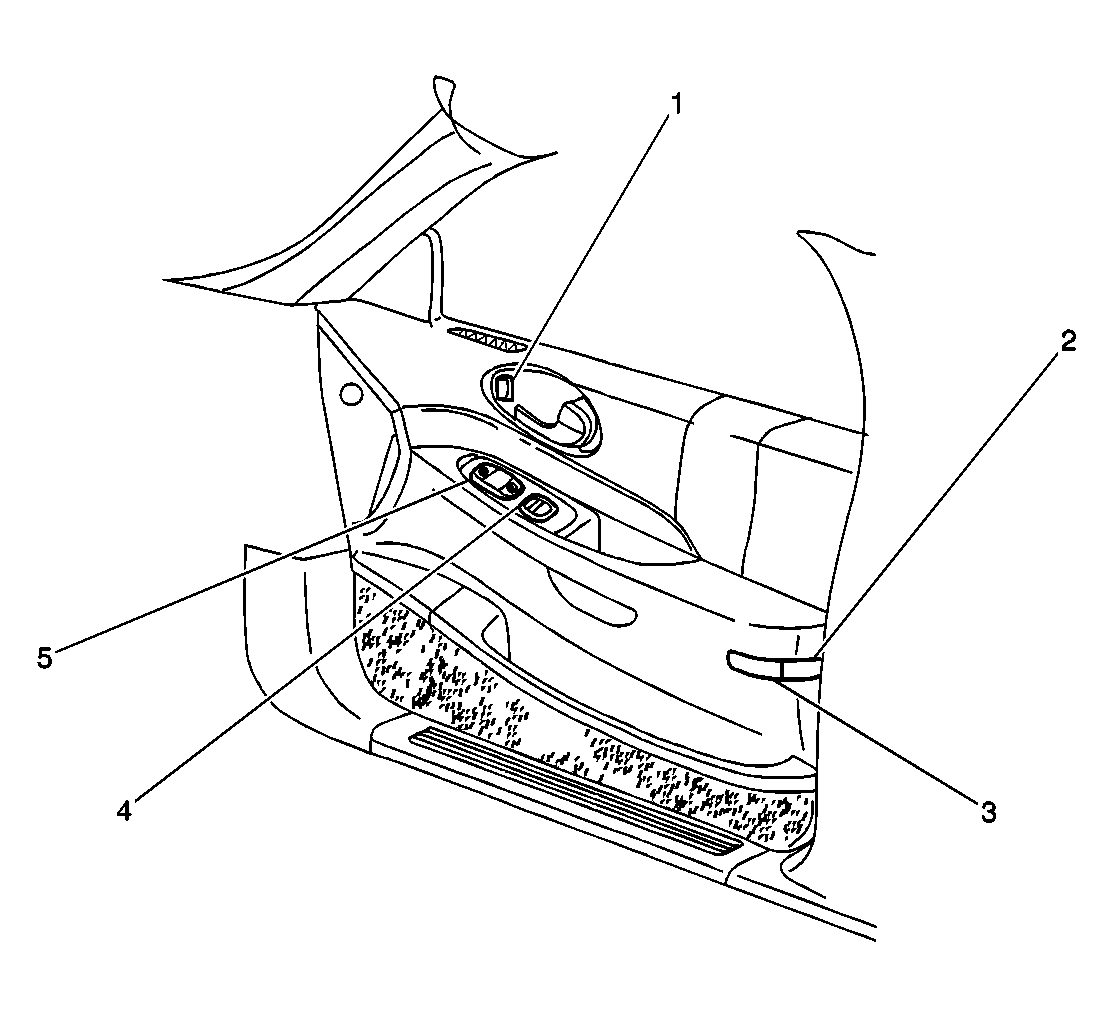

Fig 7: Right Front Door Trim Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock - Front Passenger
2	Courtesy Lamp - Left Front Door
3	Door Courtesy Lamp - RF
4	Window Switch - Front Passenger
5	HVAC Air Temperature Switch Assembly - Right
