Door Control Module Schematics

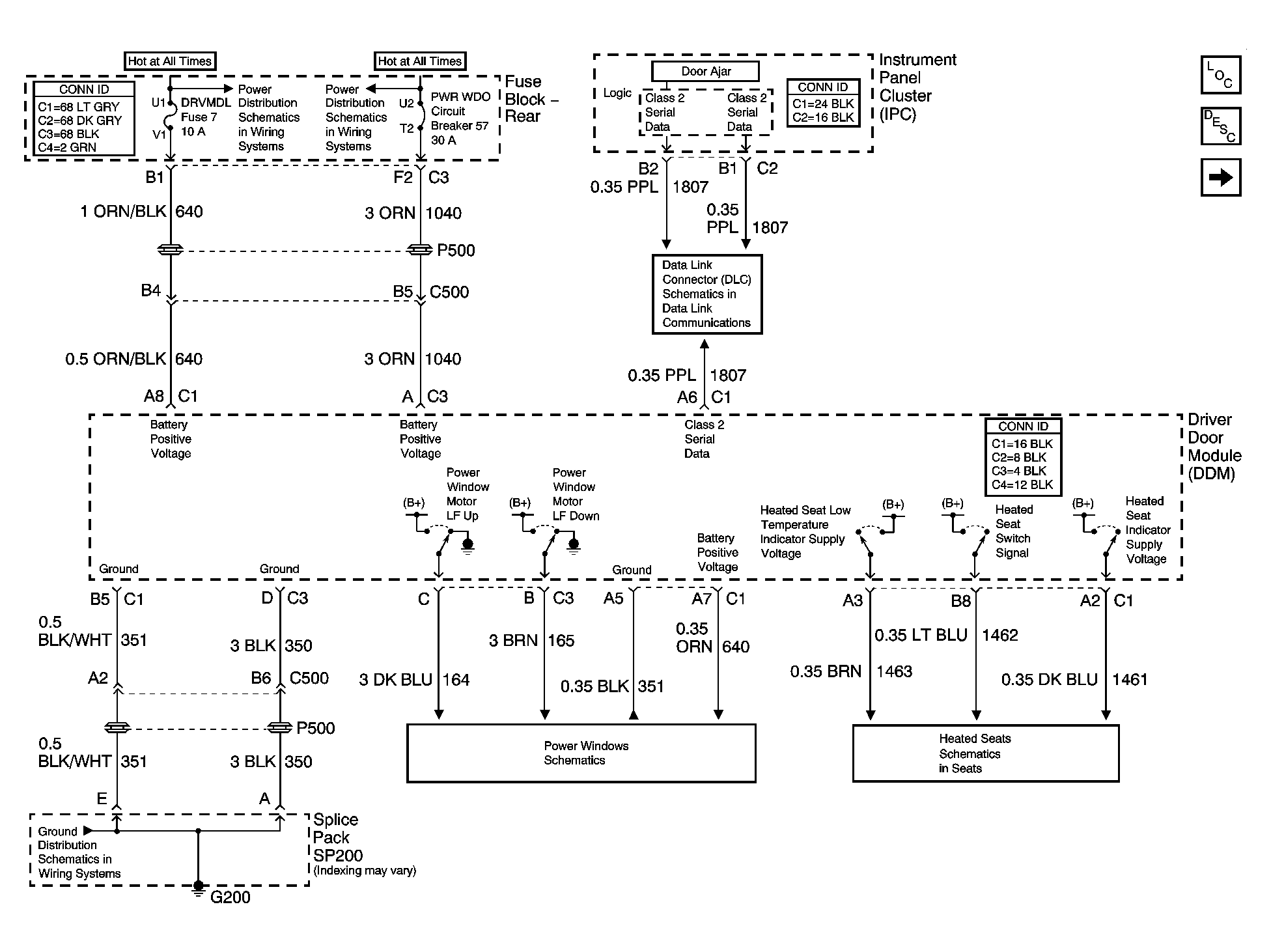

Fig 1: Driver Door Module (DDM) Power and Ground

Courtesy of GENERAL MOTORS CORP.

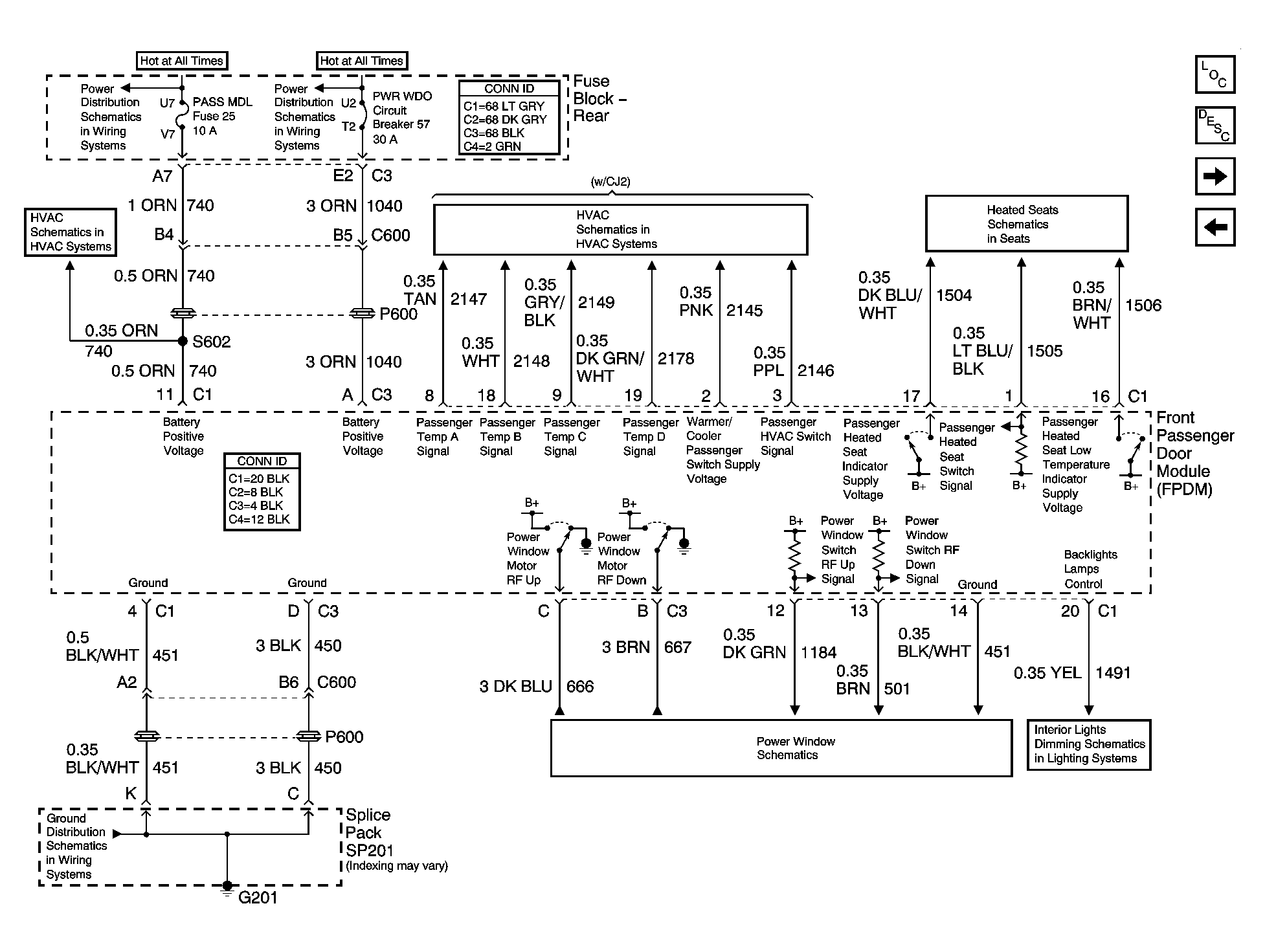

Fig 2: Front Passenger Door Module (FPDM) Power and Ground

Courtesy of GENERAL MOTORS CORP.

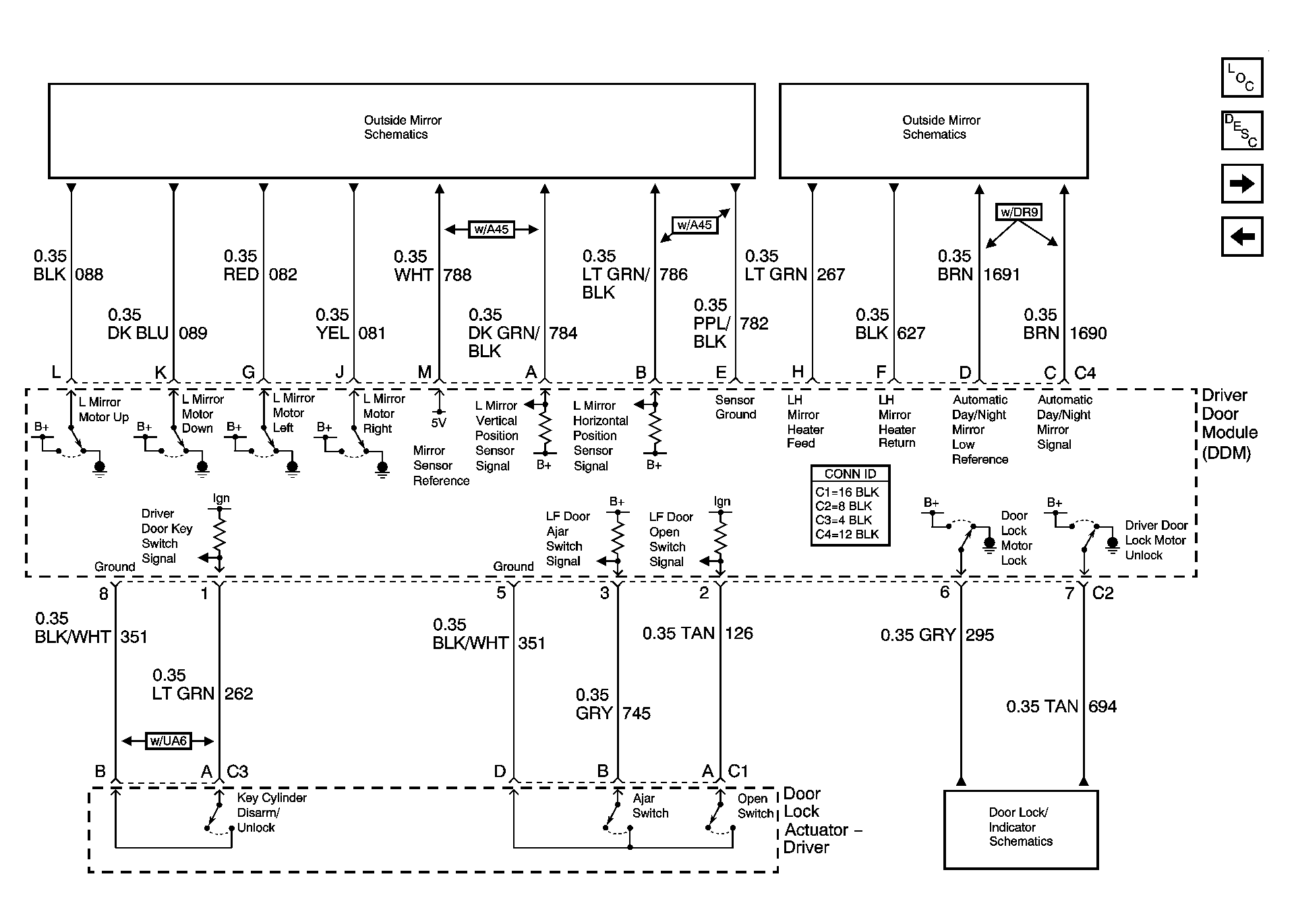

Fig 3: Driver Door Module (DDM) Inputs/Outputs Schematics

Courtesy of GENERAL MOTORS CORP.

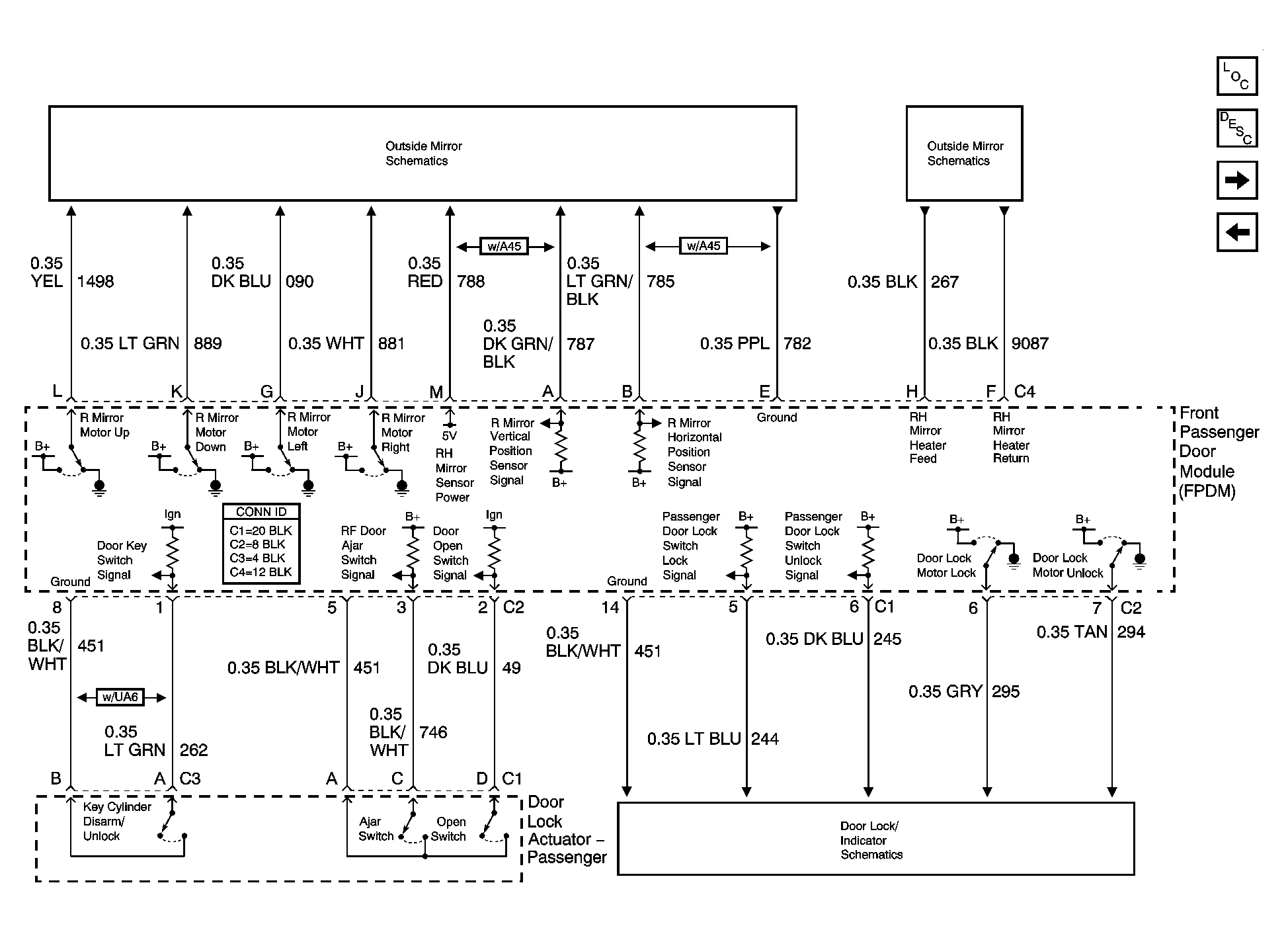

Fig 4: Front Passenger Door Module (FPDM) Inputs/Outputs Schematics

Courtesy of GENERAL MOTORS CORP.

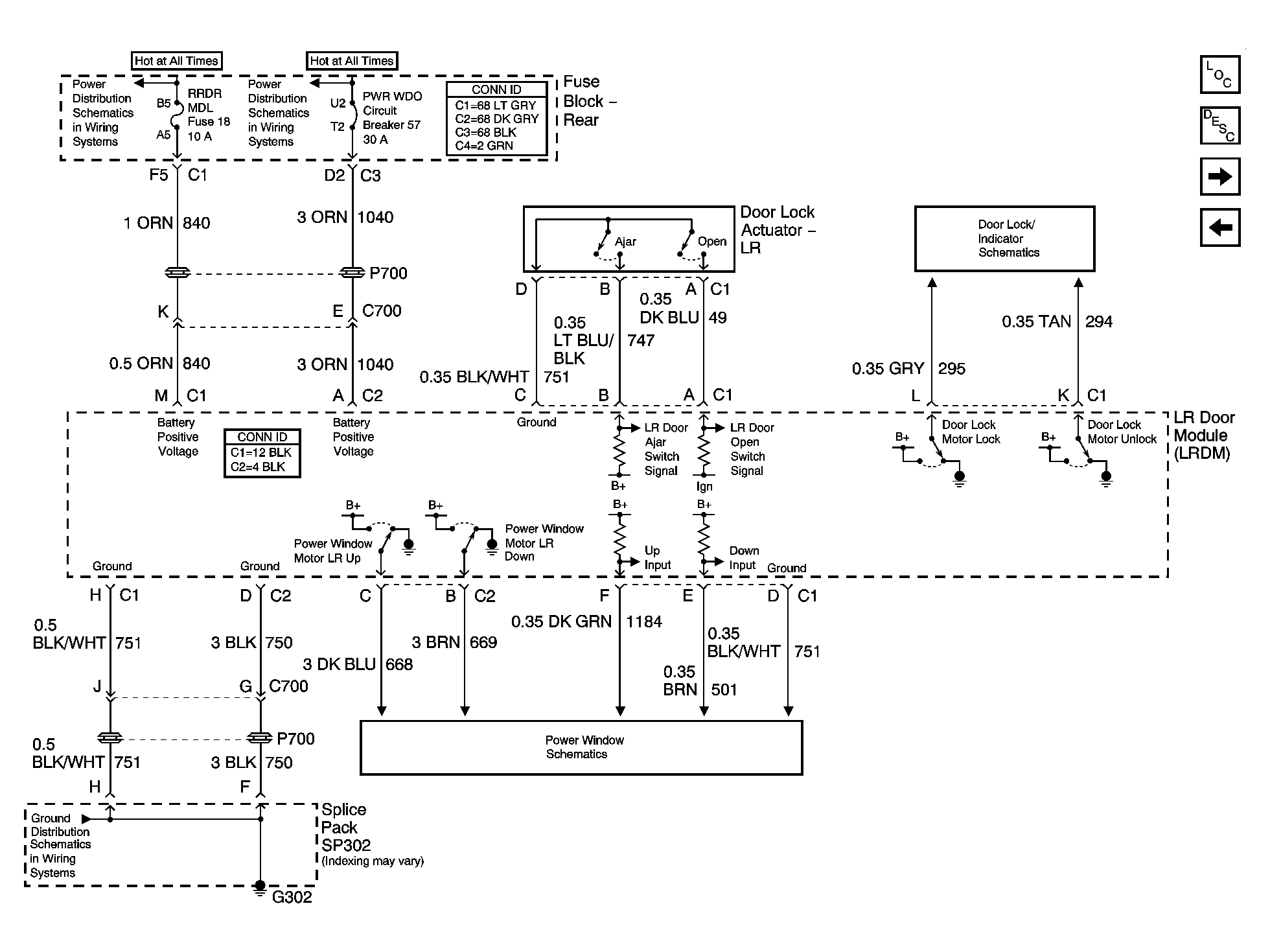

Fig 5: Left Rear Door Module (LRDM) Schematics

Courtesy of GENERAL MOTORS CORP.

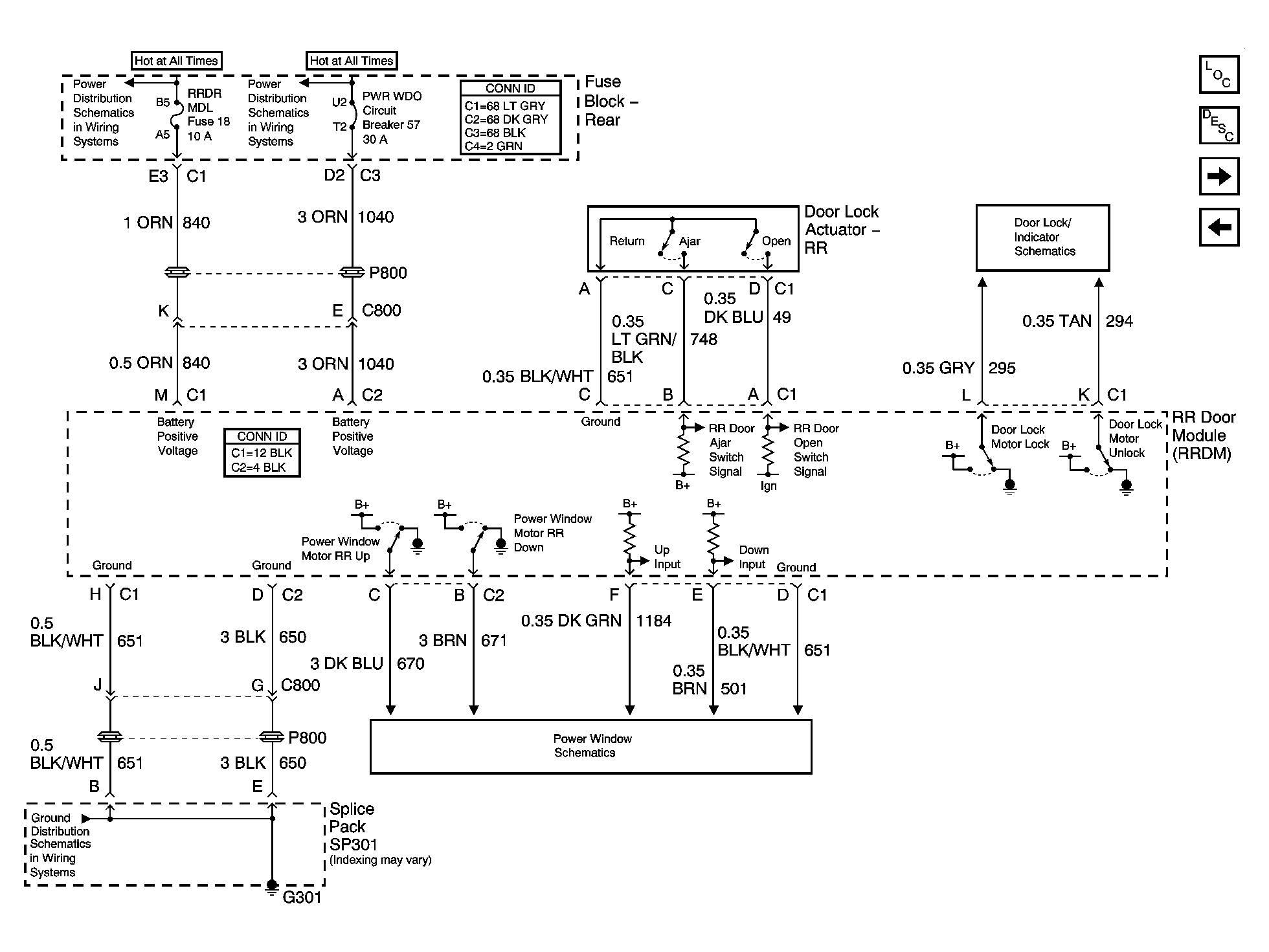

Fig 6: Right Rear Door Module (RRDM) Schematics

Courtesy of GENERAL MOTORS CORP.

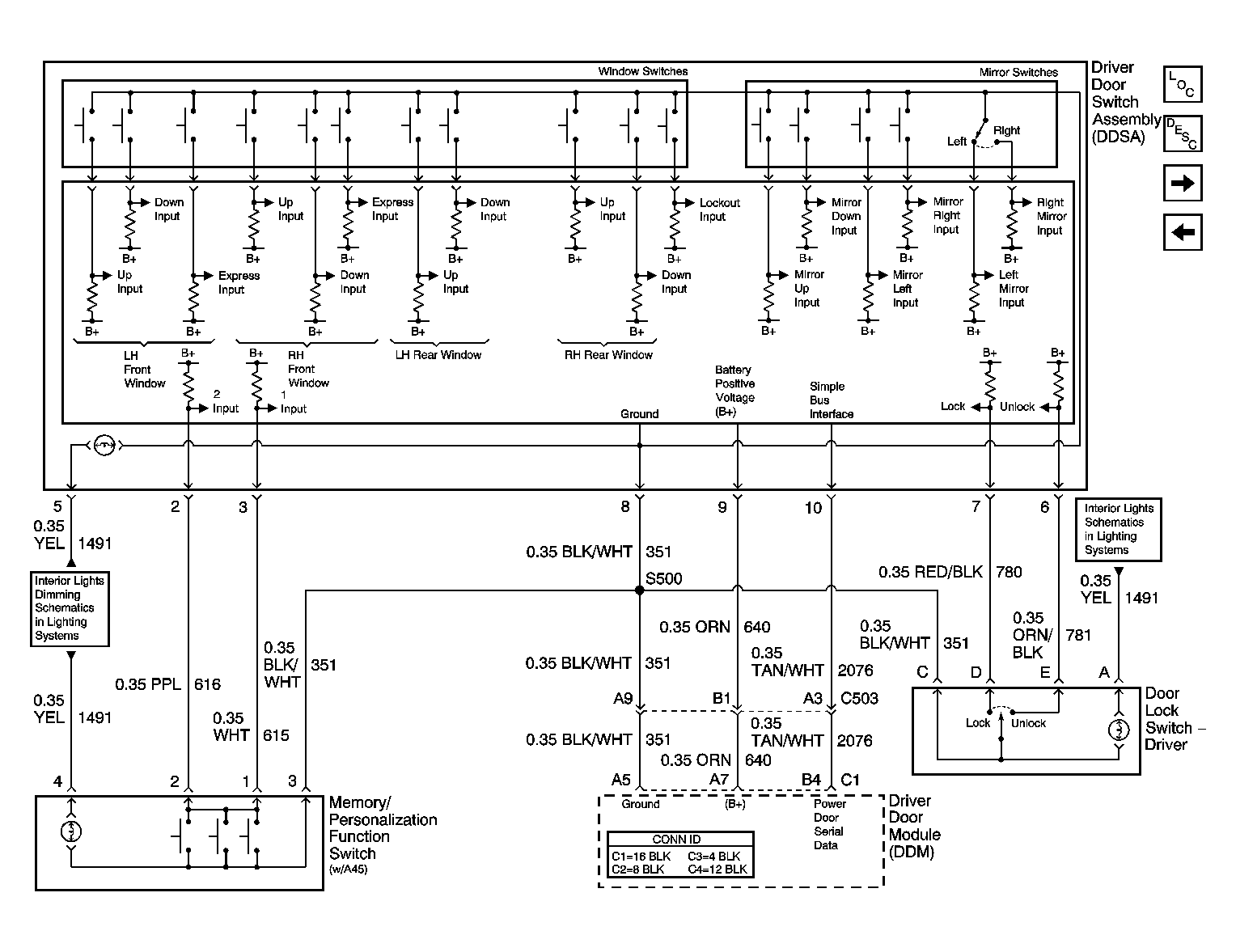

Fig 7: Driver Door Switch Assembly (DDSA) Schematic

Courtesy of GENERAL MOTORS CORP.

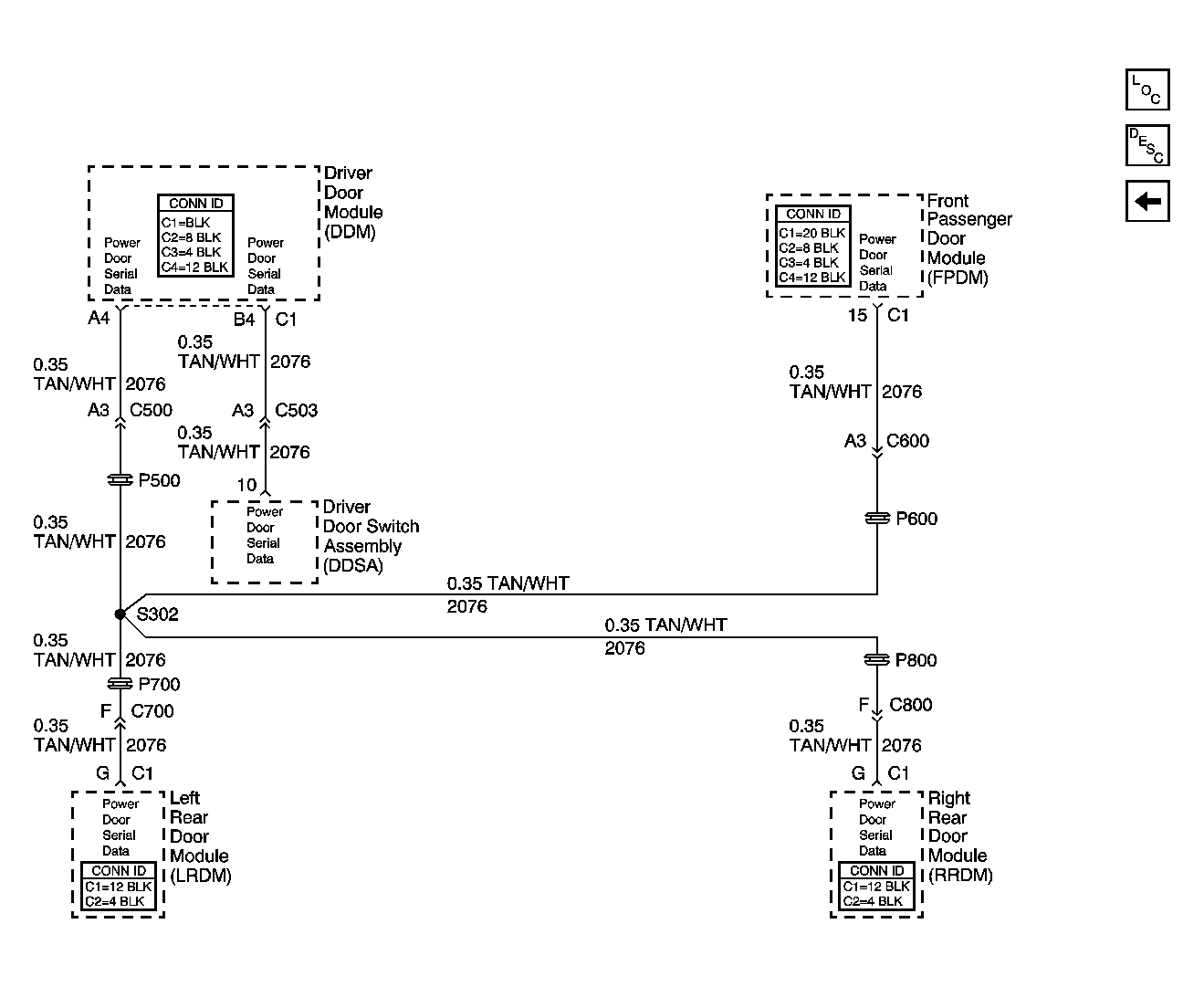

Fig 8: Power Door Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.
