ABS Component Views

Fig 1: Identifying Components - EBCM/BPMV (Left Front Corner of Engine Compartment, on Frame Rail)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Secondary Air Injection Air Pump
2	Electronic Brake Control Module (EBCM)
3	Brake Pressure Modulator Valve

Fig 2: Front Wheel Speed Sensor (Under Left Front Of Vehicle)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - LF (Right Similar)

Fig 3: Steering Wheel Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Steering Wheel Position Sensor

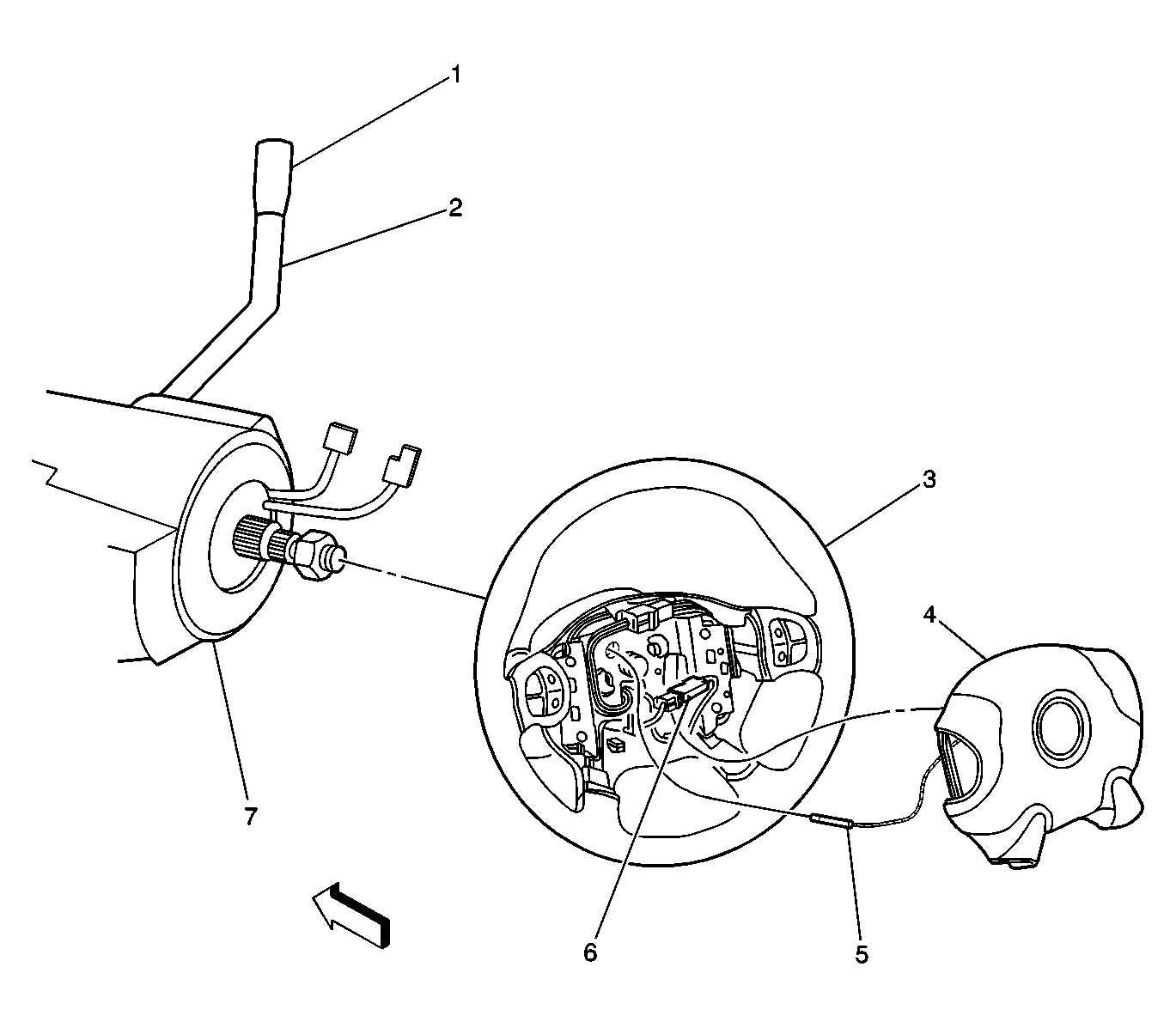

Fig 4: Steering Wheel & Inflator Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch (w/NW9)
2	Gear Shift Lever
3	Steering Wheel
4	Inflatable Restraint Steering Wheel Module
5	Horn Switch Contact
6	Inflatable Restraint Steering Wheel Module Connector
7	Inflatable Restraint Steering Wheel Module Coil

Fig 5: Lateral Accelerator Sensor (Under Rear Seat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lateral Accelerometer Sensor
2	Fuse Block - Rear

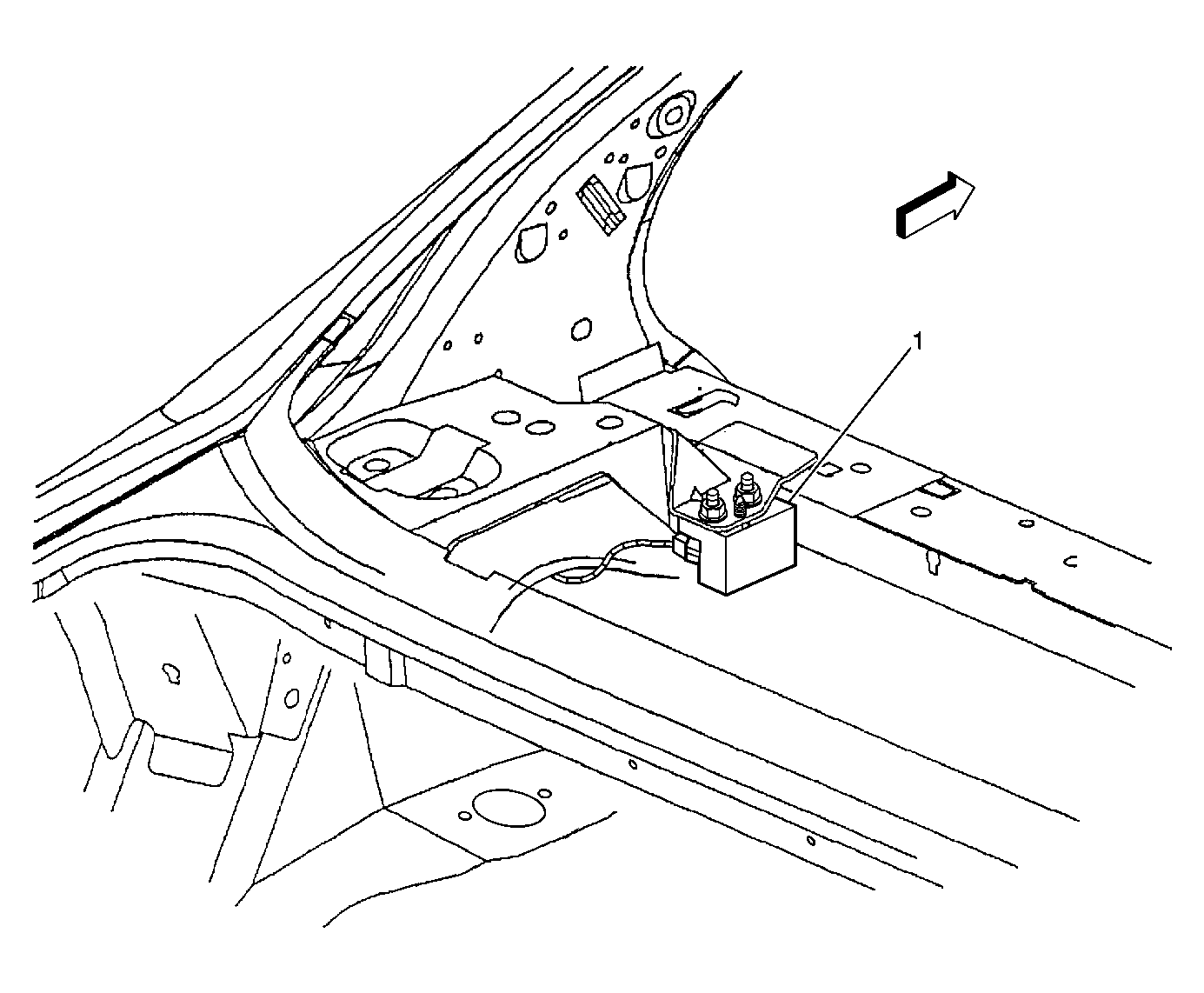

Fig 6: Yaw Rate Sensor (In Rear Shelf)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Yaw Rate Sensor

Fig 7: Right Rear Wheel Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - RR (Left Similar)
