Engine Electrical Component Views

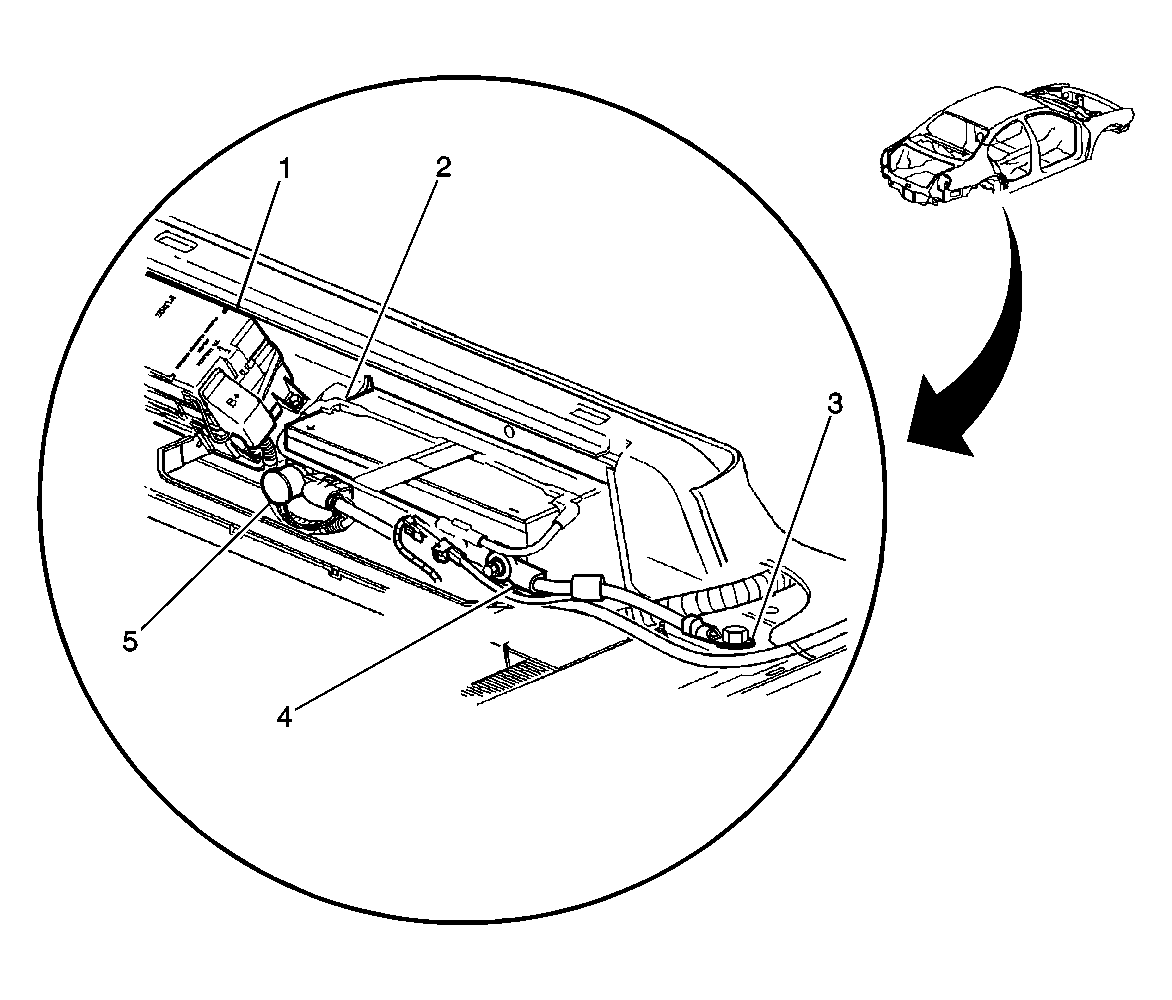

Fig 1: Battery Component Views
GM538450Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Rear
2 Battery
3 G305
4 Negative Battery Cable
5 Positive Battery Cable

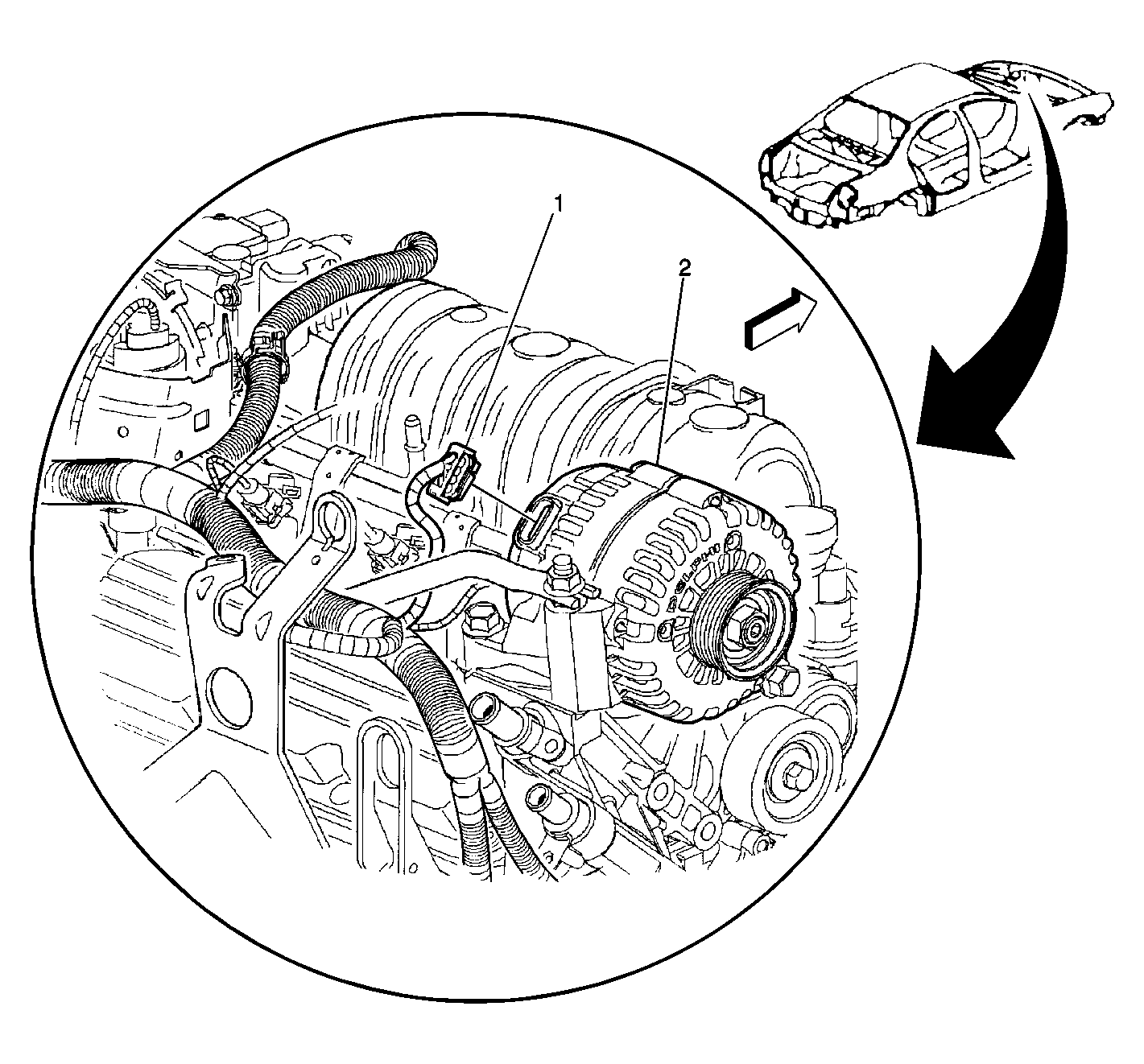

Fig 2: Generator (VIN K) Component Views
GM460299Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator Connector
2 Generator
Fig 3: Lower Front of Engine Component Views
GM460459Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Knock Sensor
2 Starter Solenoid
