Installation Procedure

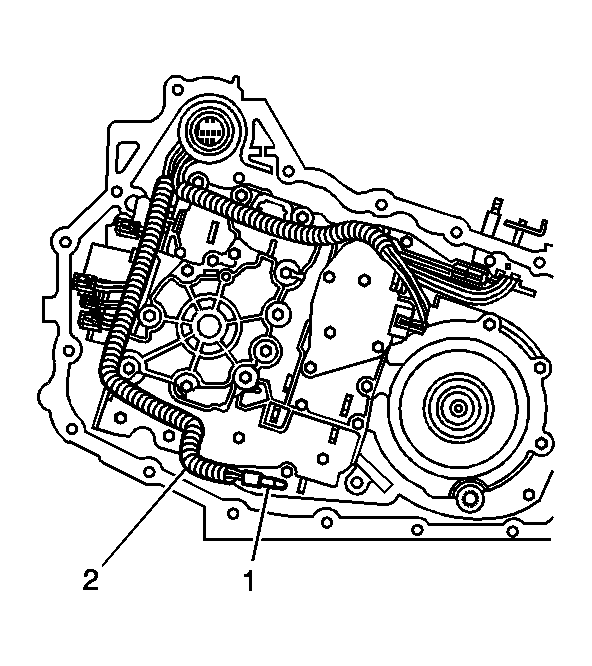

- Connect the wiring harness connector to the fluid temperature sensor (1).
- Install the wiring harness (2) and fluid temperature sensor (1) into the retaining clip.
- Install the case side cover. Refer to Case Side Cover Replacement .
- Fill the transaxle to the proper level. Refer to Fluid Capacity Specifications .
- Inspect the transaxle fluid level. Refer to Transmission Fluid Checking Procedure .
- Inspect for fluid leaks.
