Driver Door Module (DDM)

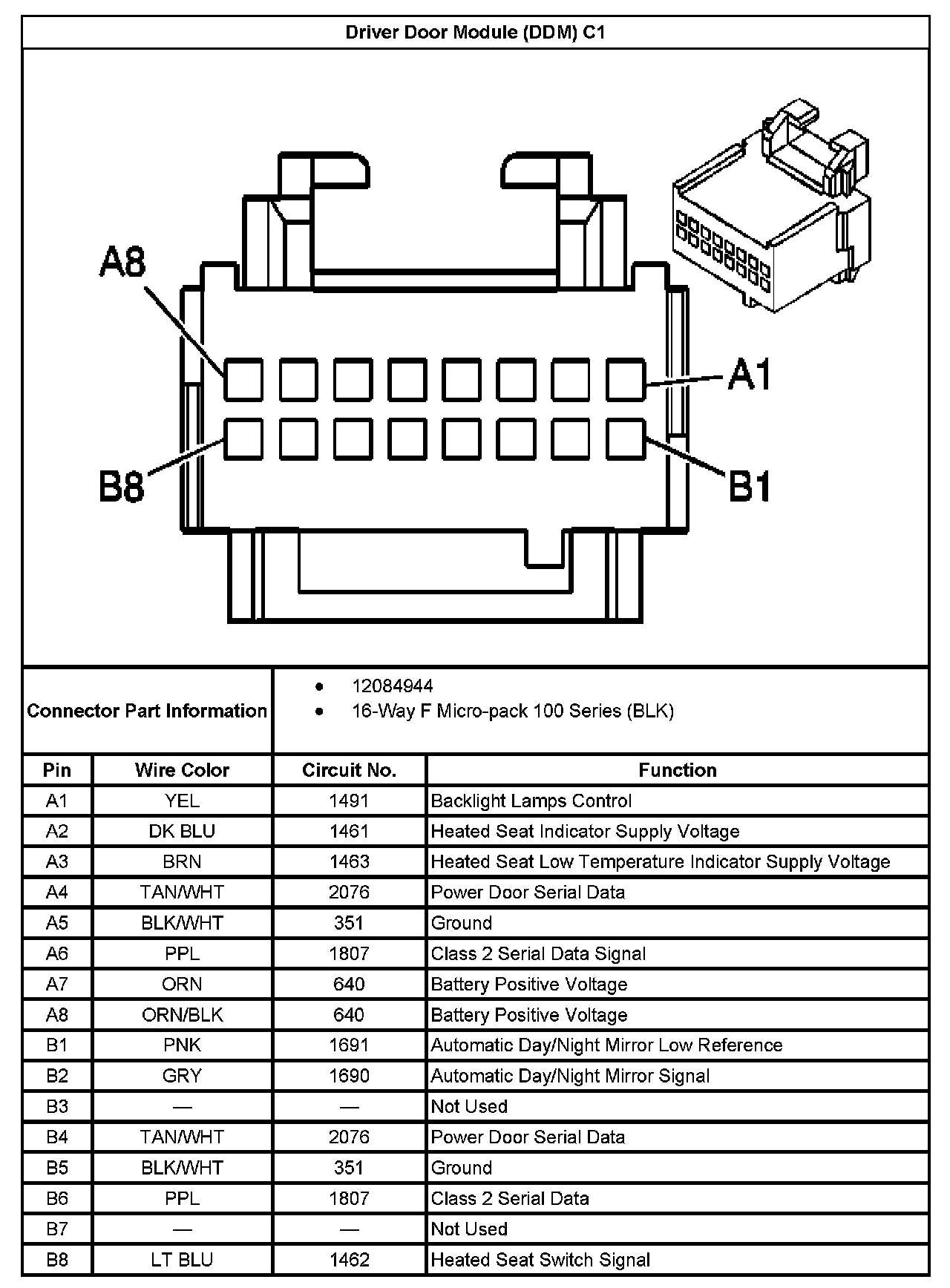

Driver Door Module (DDM) C1:

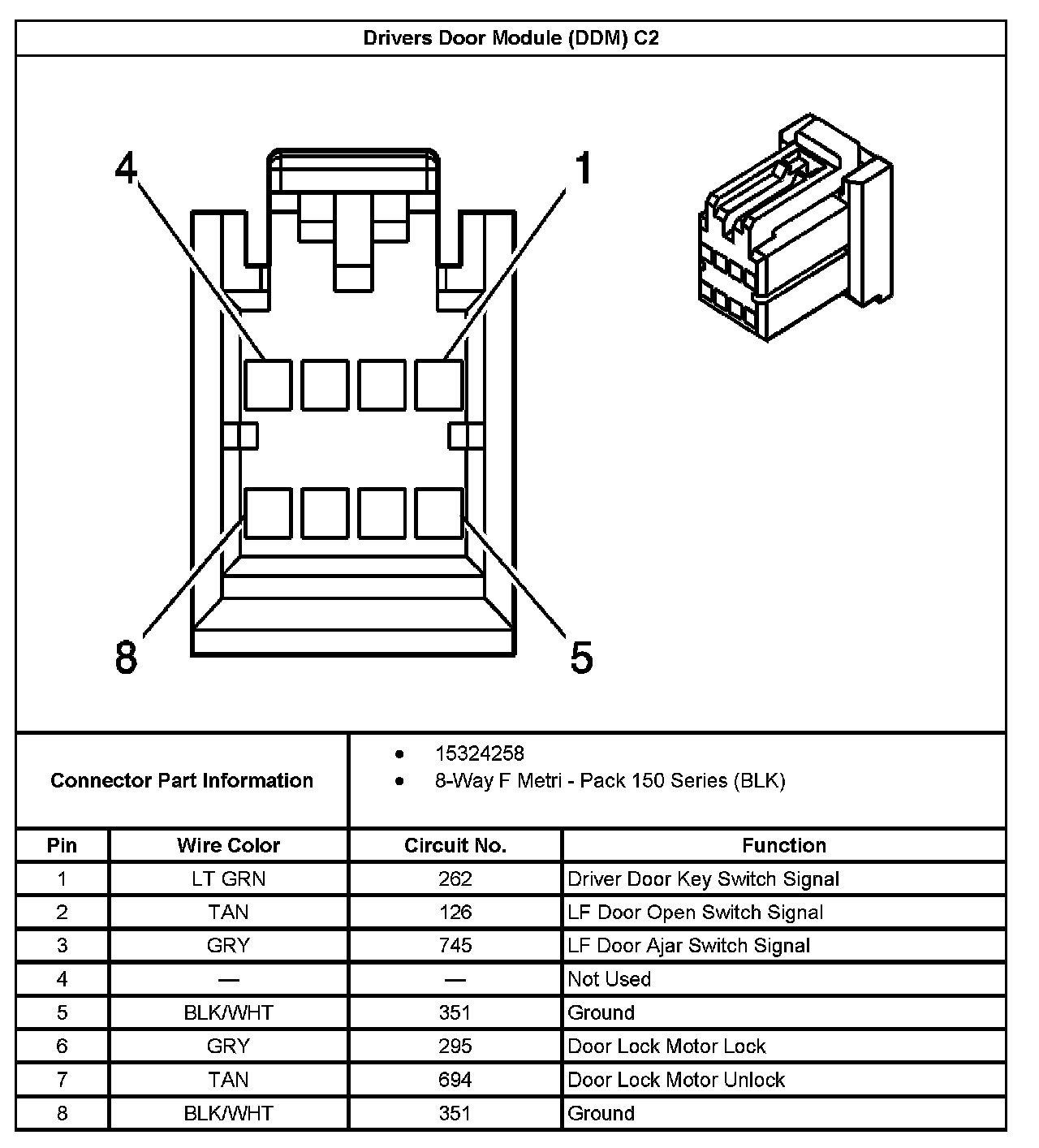

Driver Door Module (DDM) C2:



Driver Door Module (DDM) C3:

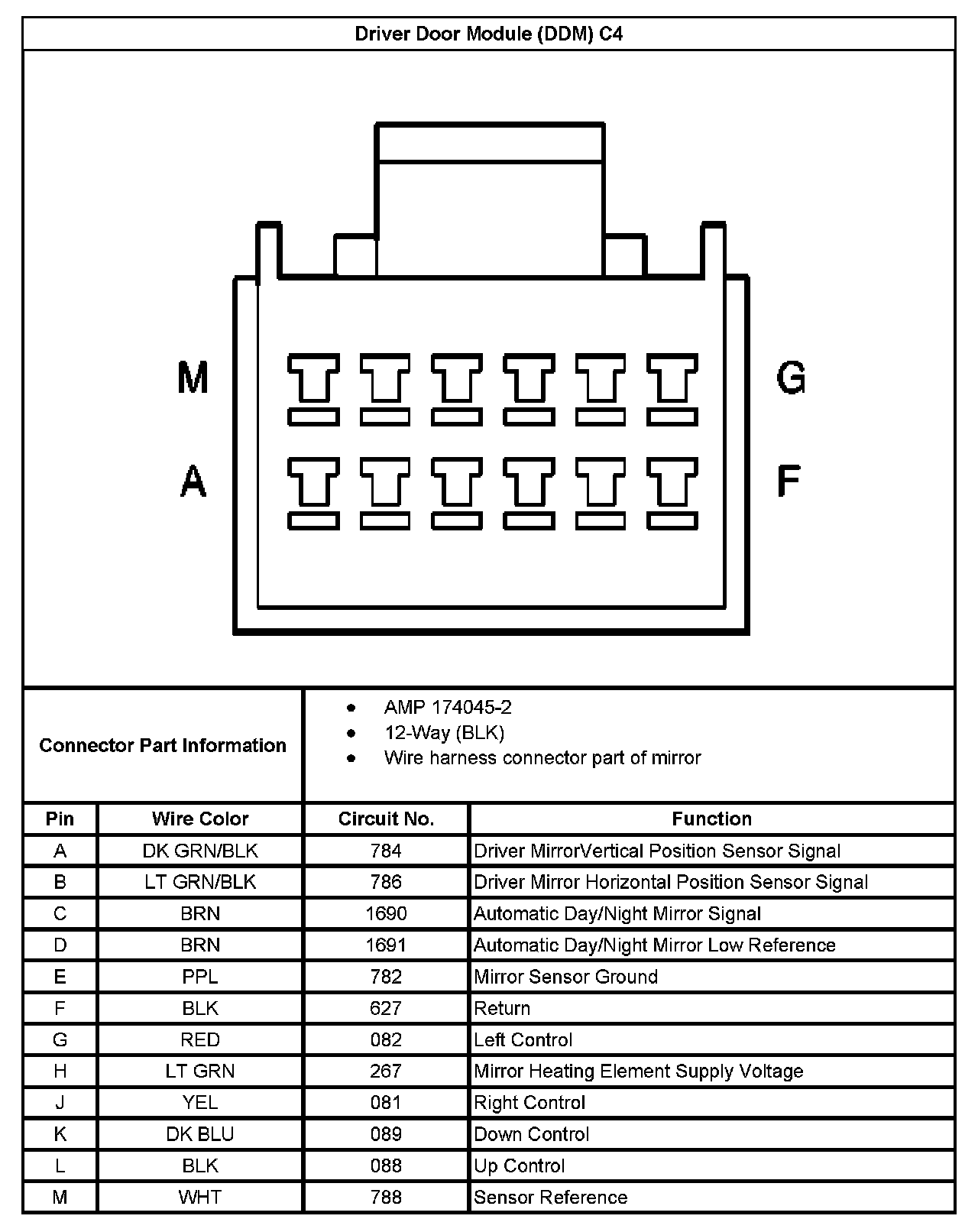

Driver Door Module (DDM) C4:
