Front Passenger Door Module (FPDM)

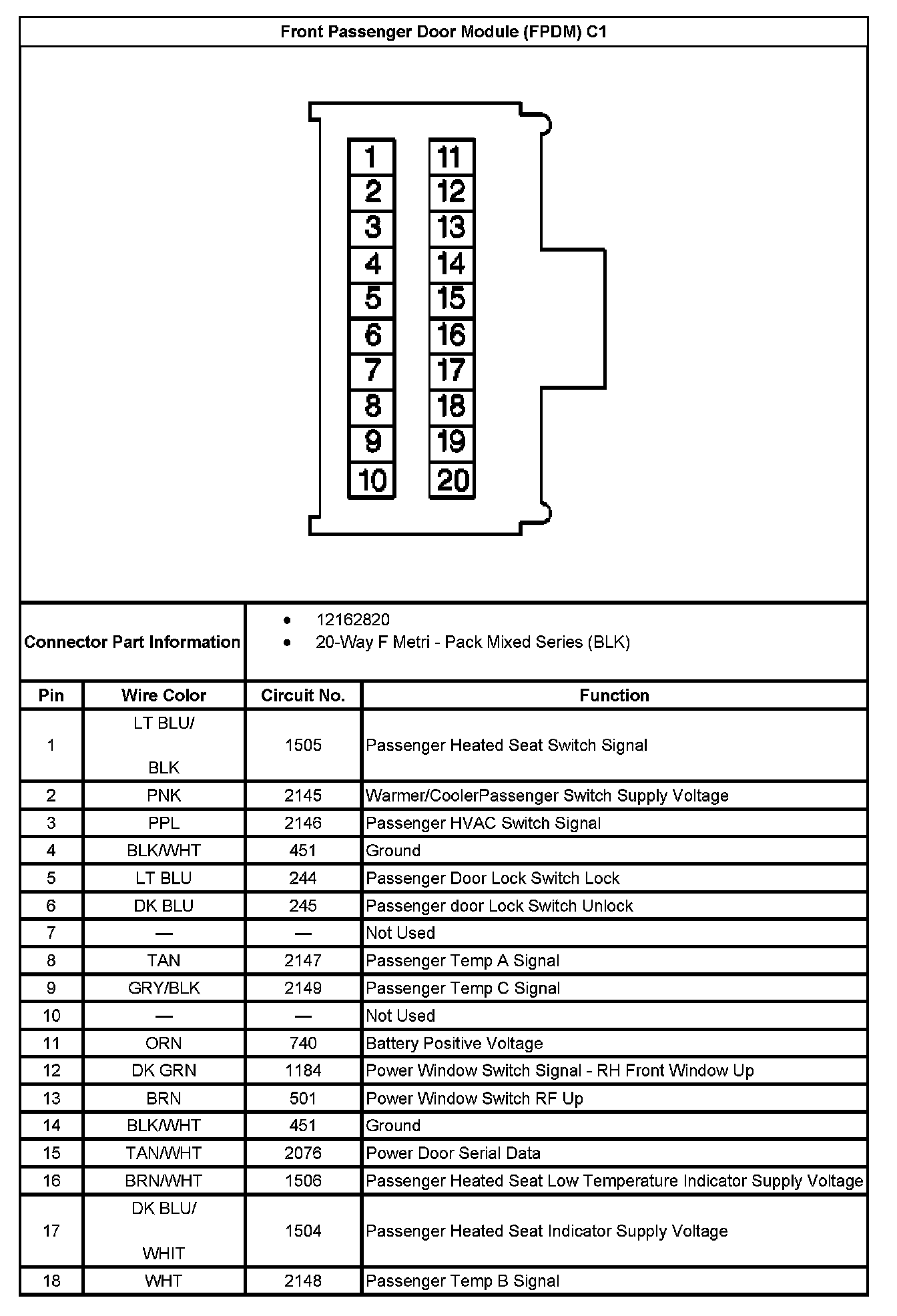

Front Passenger Door Module (FPDM) C1 Part 1:



Front Passenger Door Module (FPDM) C1 Part 2:

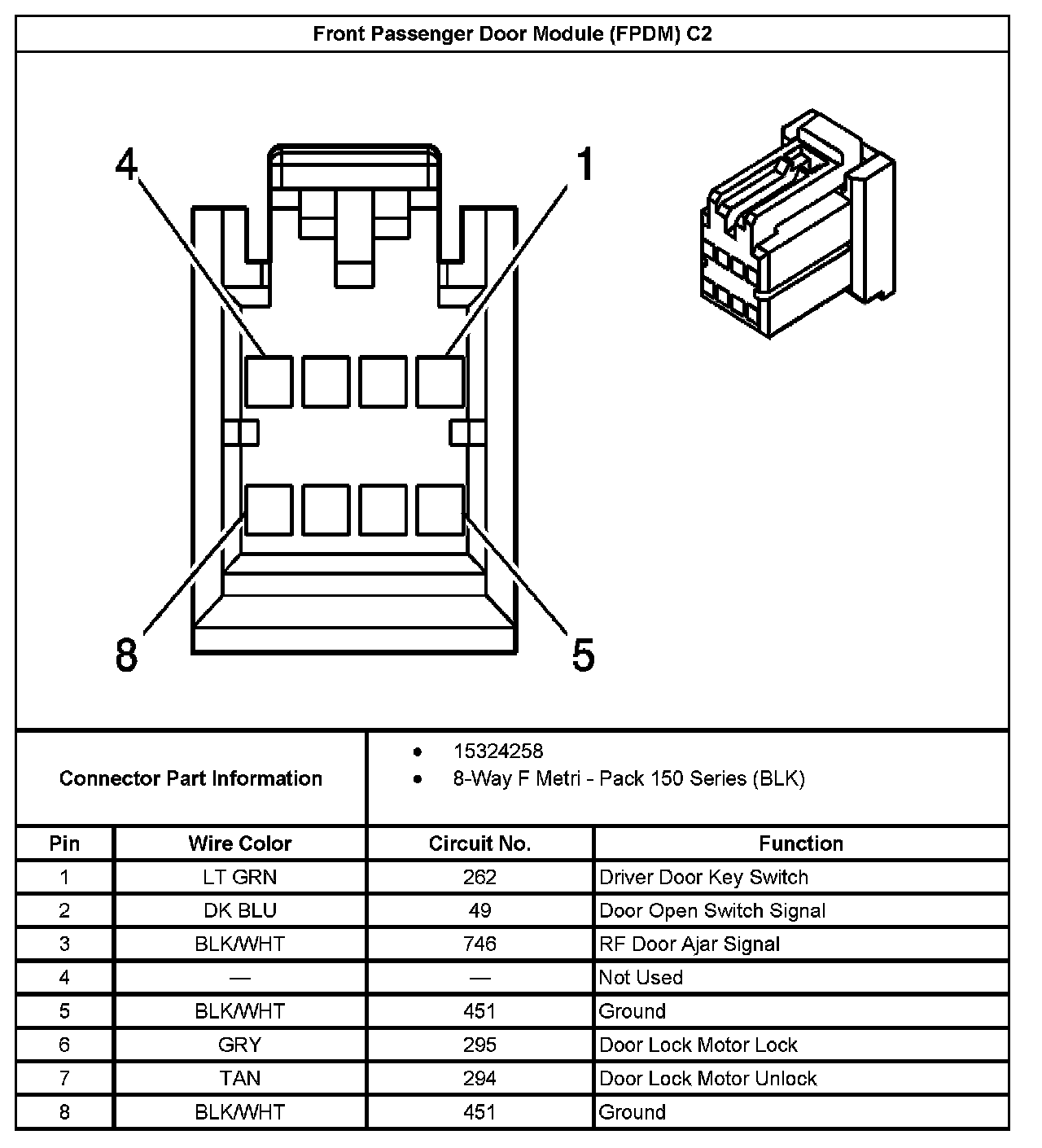

Front Passenger Door Module (FPDM) C2:



Front Passenger Door Module (FPDM) C3:



Passenger Door Module C4:
