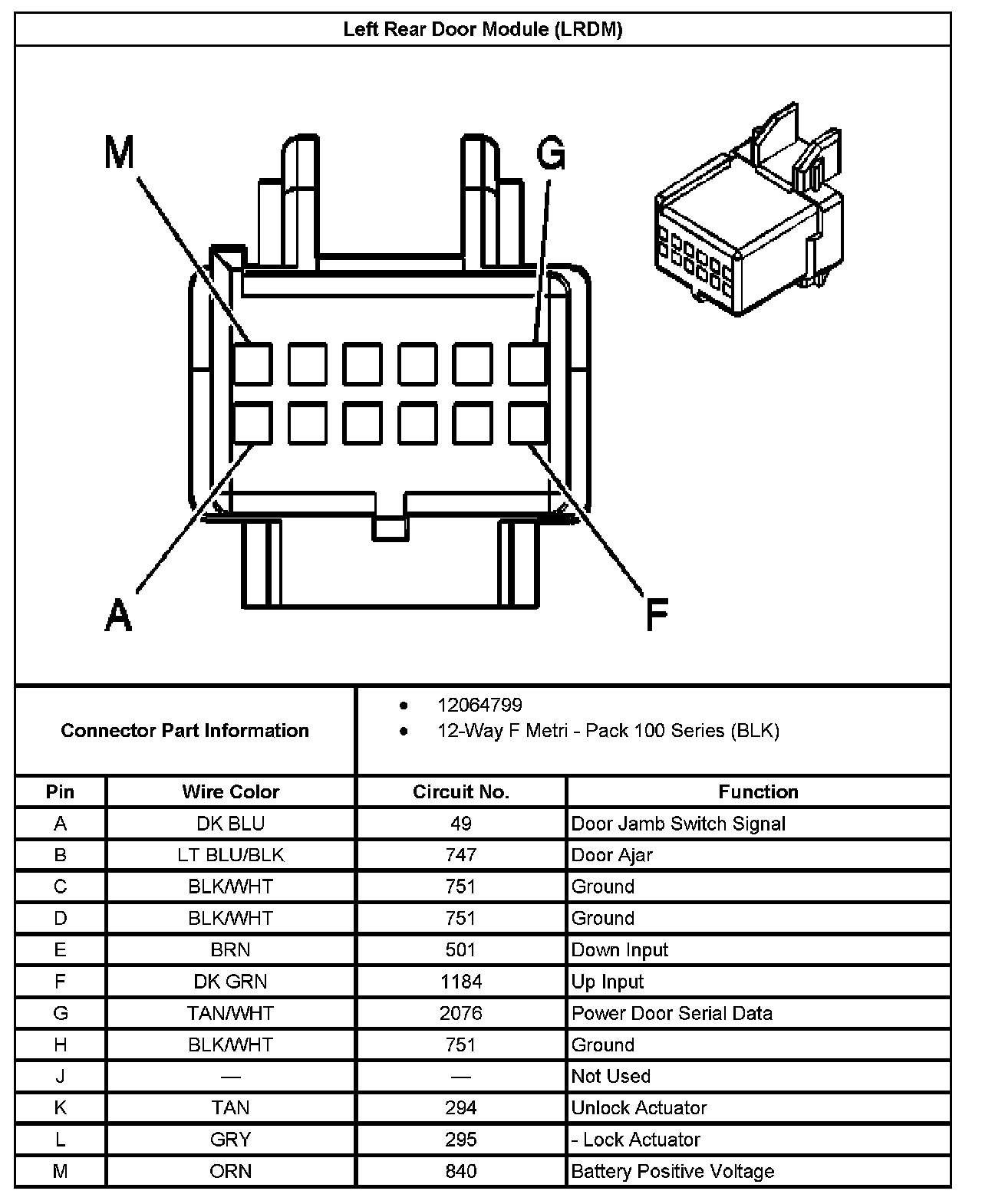

Left Rear Door Module (LRDM)

Left Rear Door Module (LRDM) Part 1:



Left Rear Door Module (LRDM) Part 2:
