Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

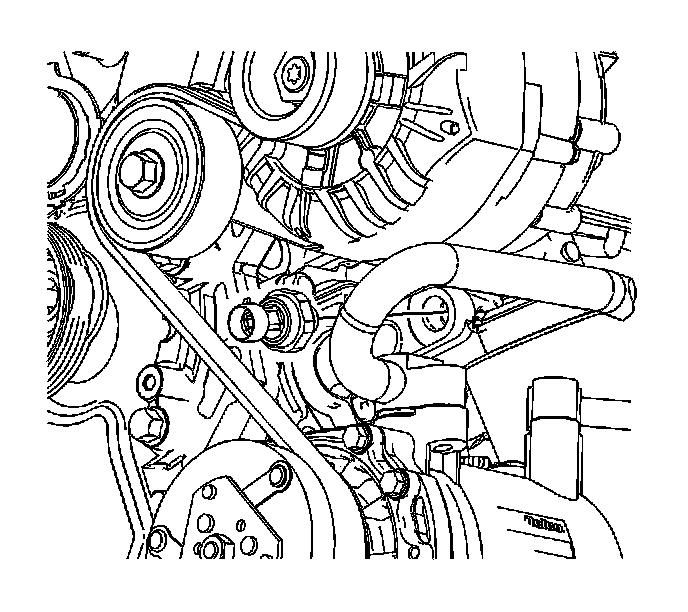

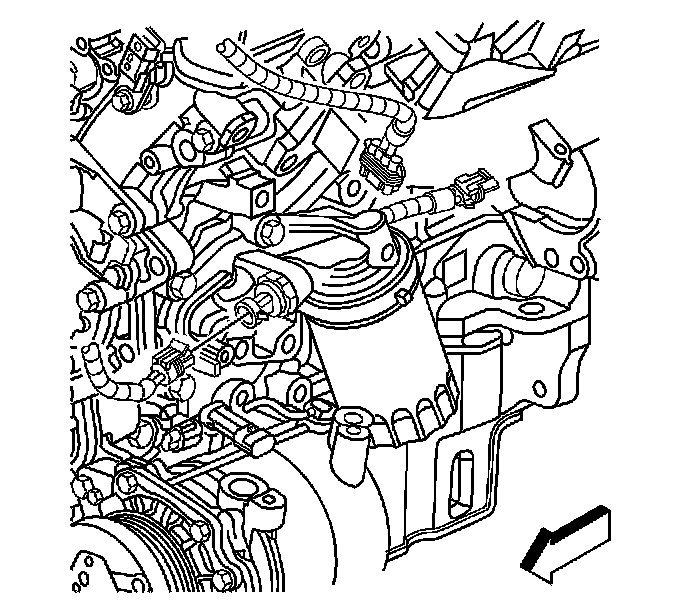

Removal Procedure
1. Turn the ignition OFF.





2. Disconnect the oil pressure sensor electrical connector.





3. Remove the oil pressure sensor.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the oil pressure sensor.
^ Tighten the oil pressure sensor to 20 Nm (15 ft. lbs.).





2. Connect the oil pressure sensor electrical connector.
