Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

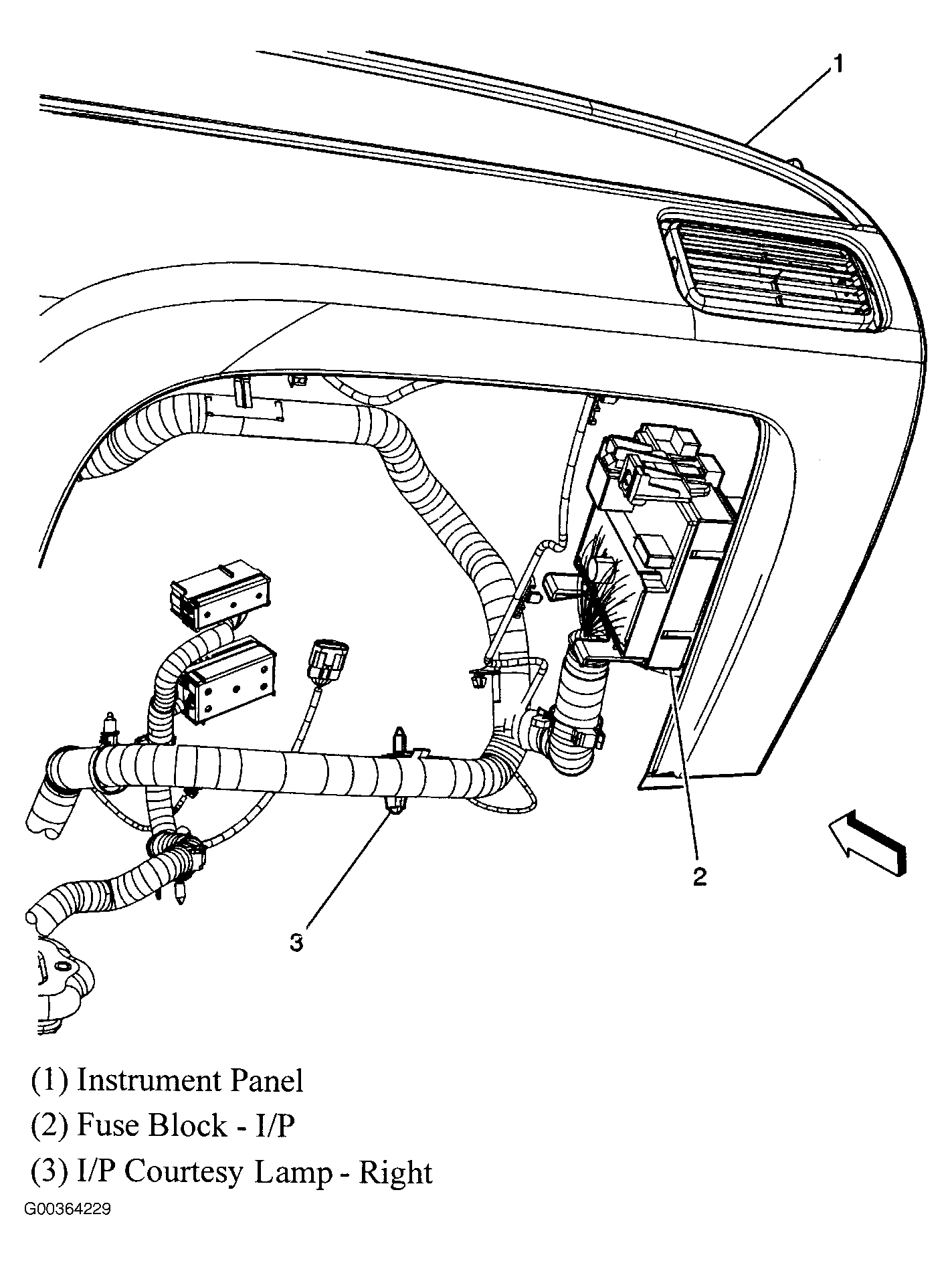

Fuse Block - I/P Behind right side of dash. See Figure.

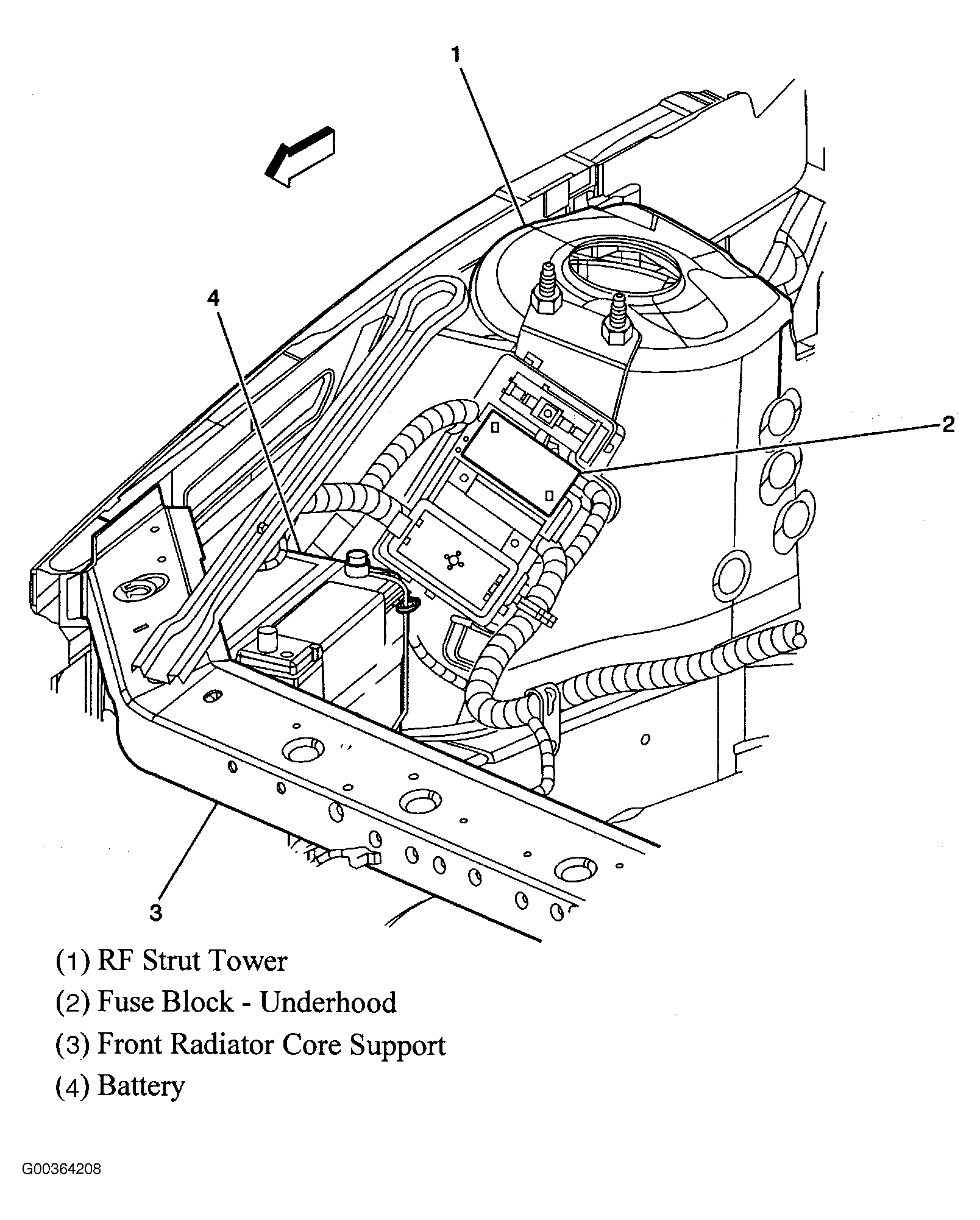

Underhood Fuse Block Mounted to right strut tower. See Figure.
