ABS Schematics

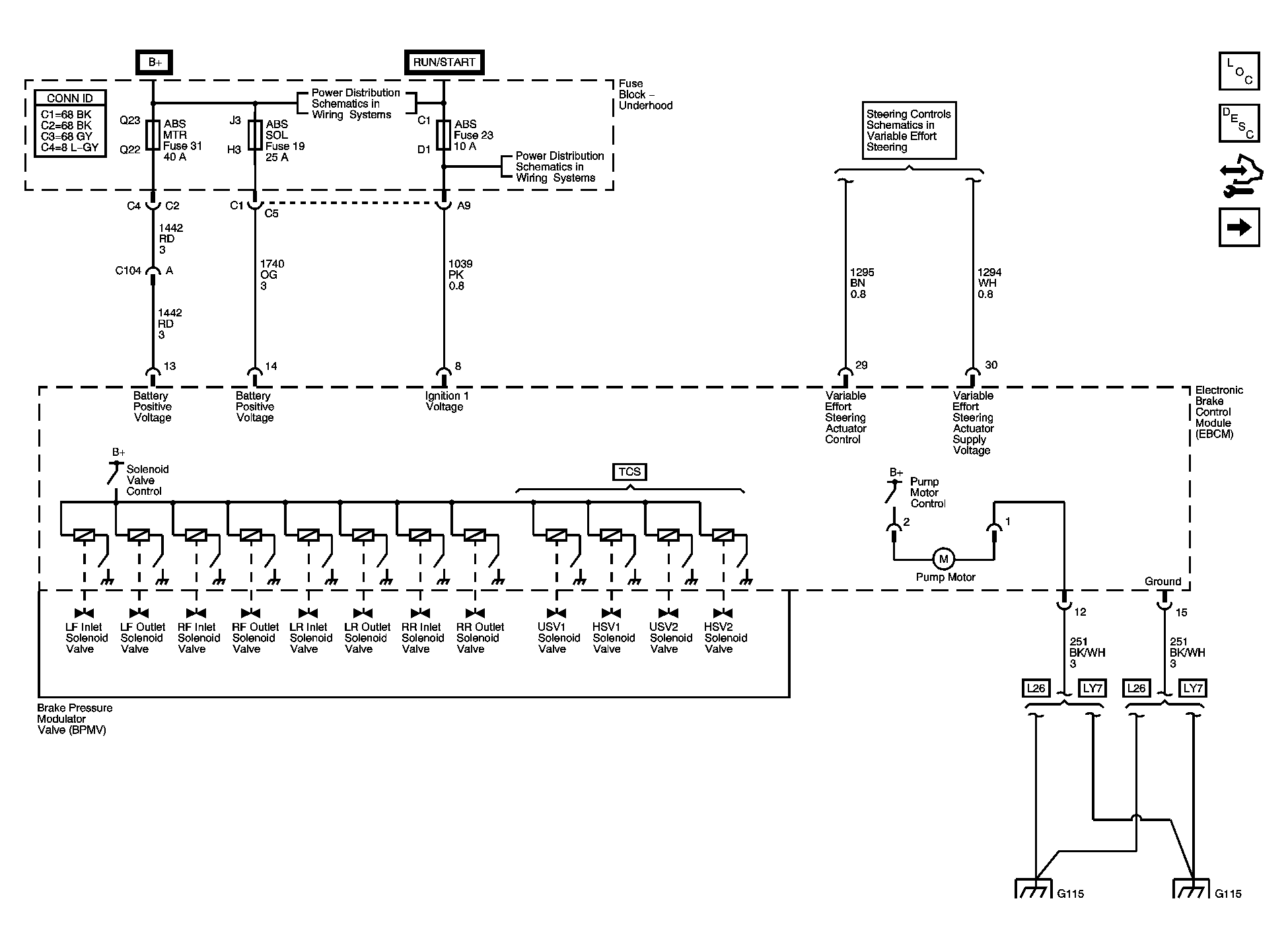

Fig 1: Power, Ground and Brake Pressure Modulator Valves
Courtesy of GENERAL MOTORS CORP.

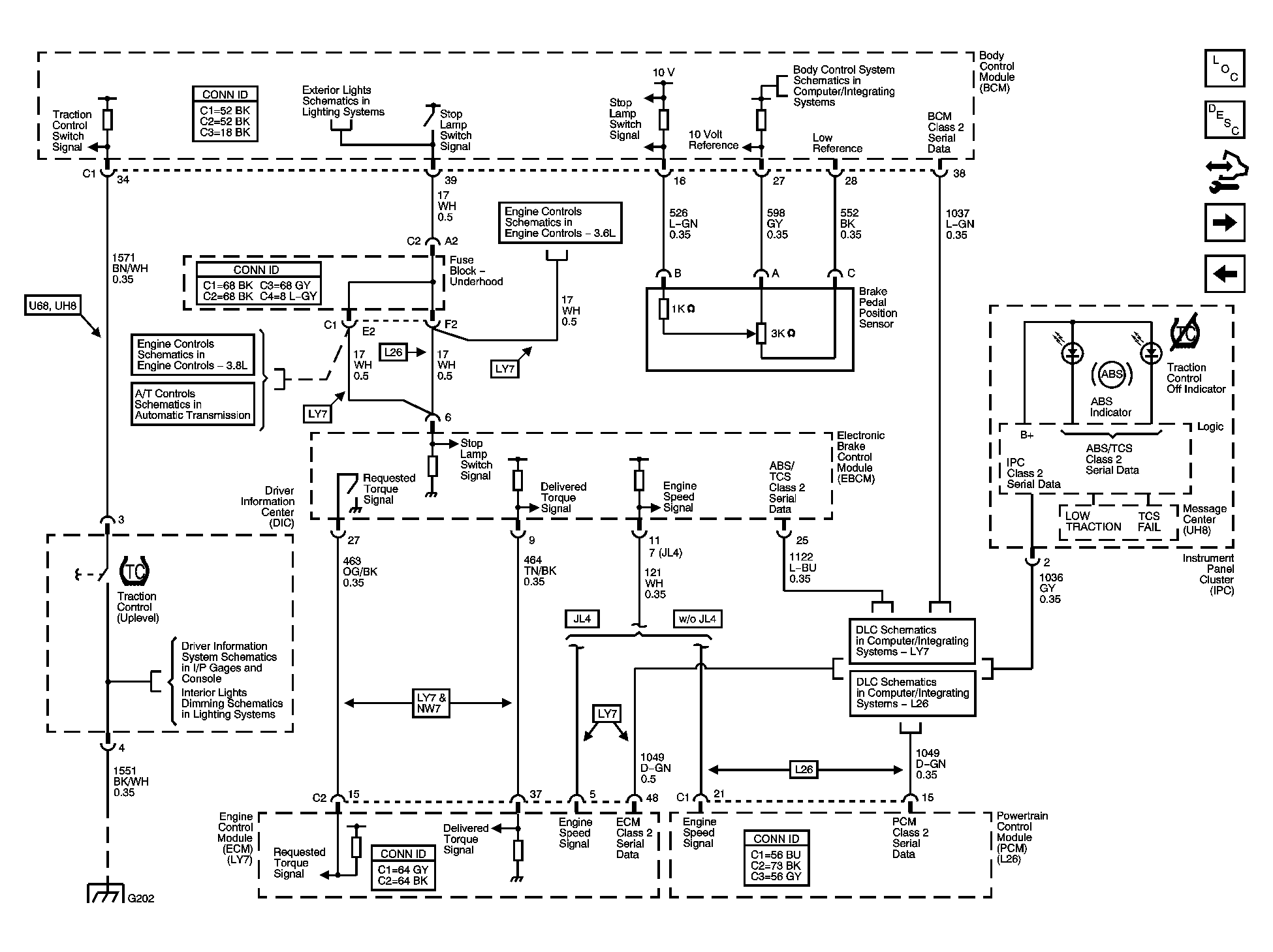

Fig 2: Indicators, Stop Lamp, Traction Controls and Serial Data
Courtesy of GENERAL MOTORS CORP.

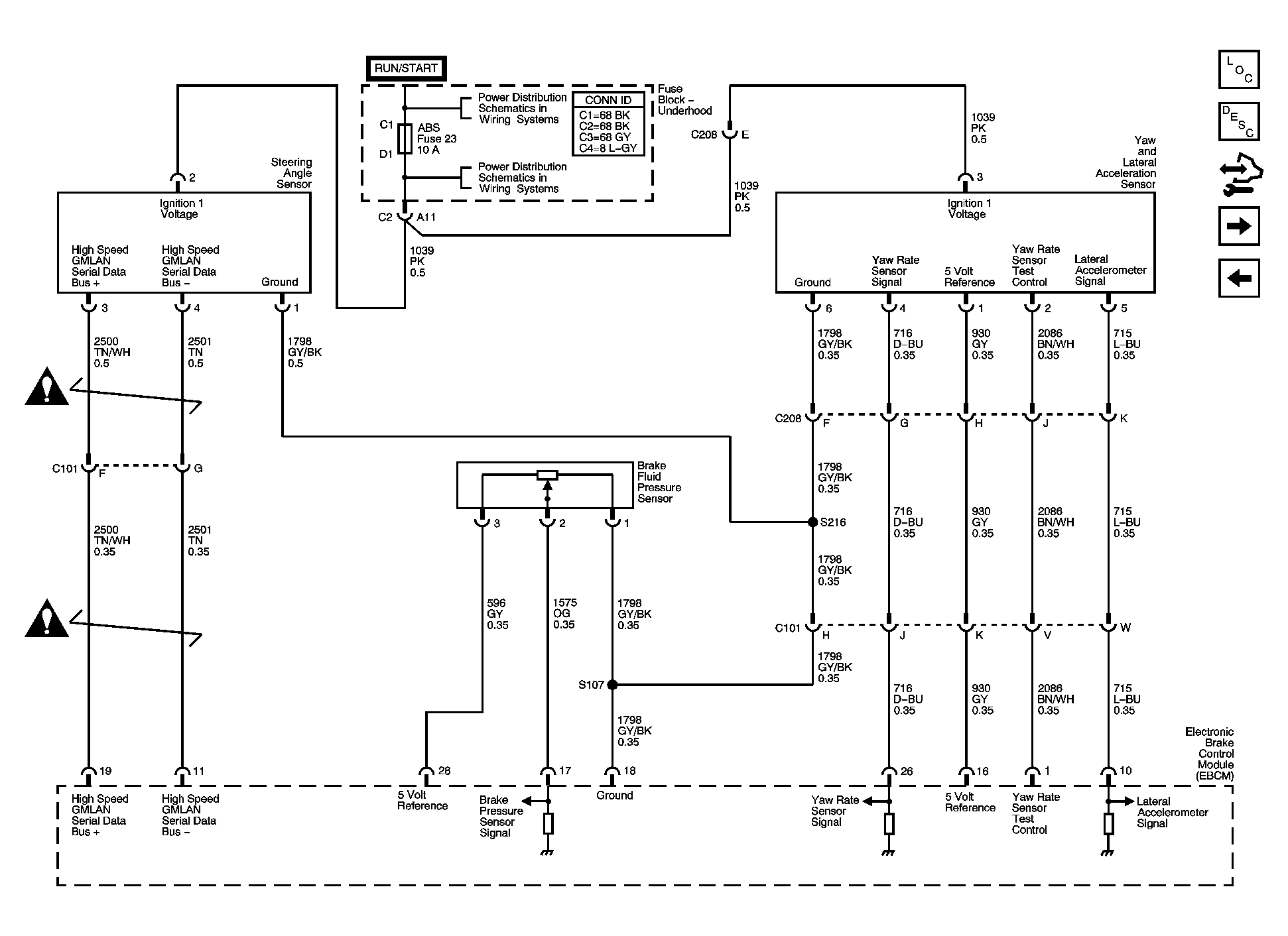

Fig 3: Active Brake and Stability Controls (JL4)
Courtesy of GENERAL MOTORS CORP.

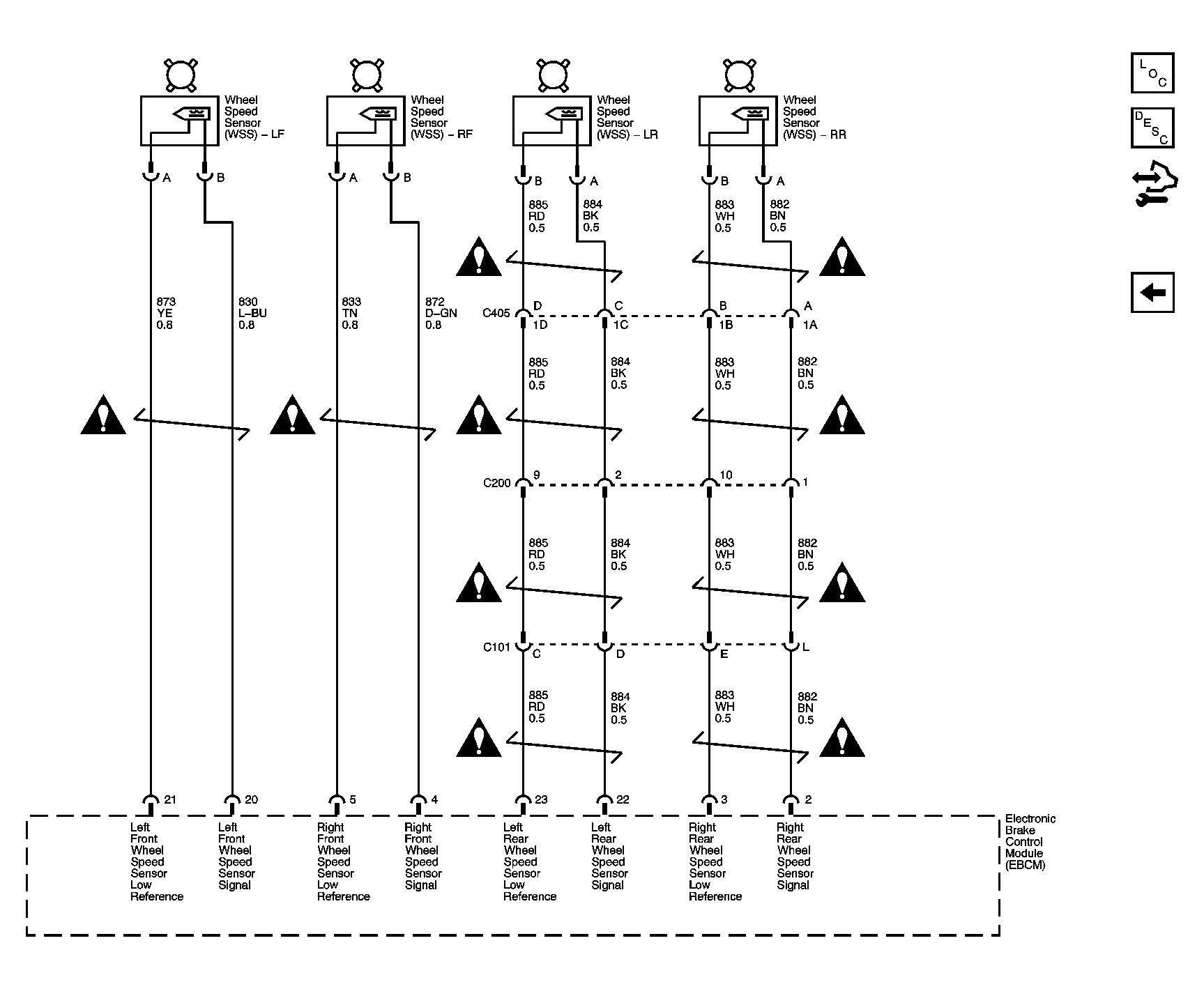

Fig 4: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
