Sunroof Switch Replacement
WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Sunroof Switch Replacement

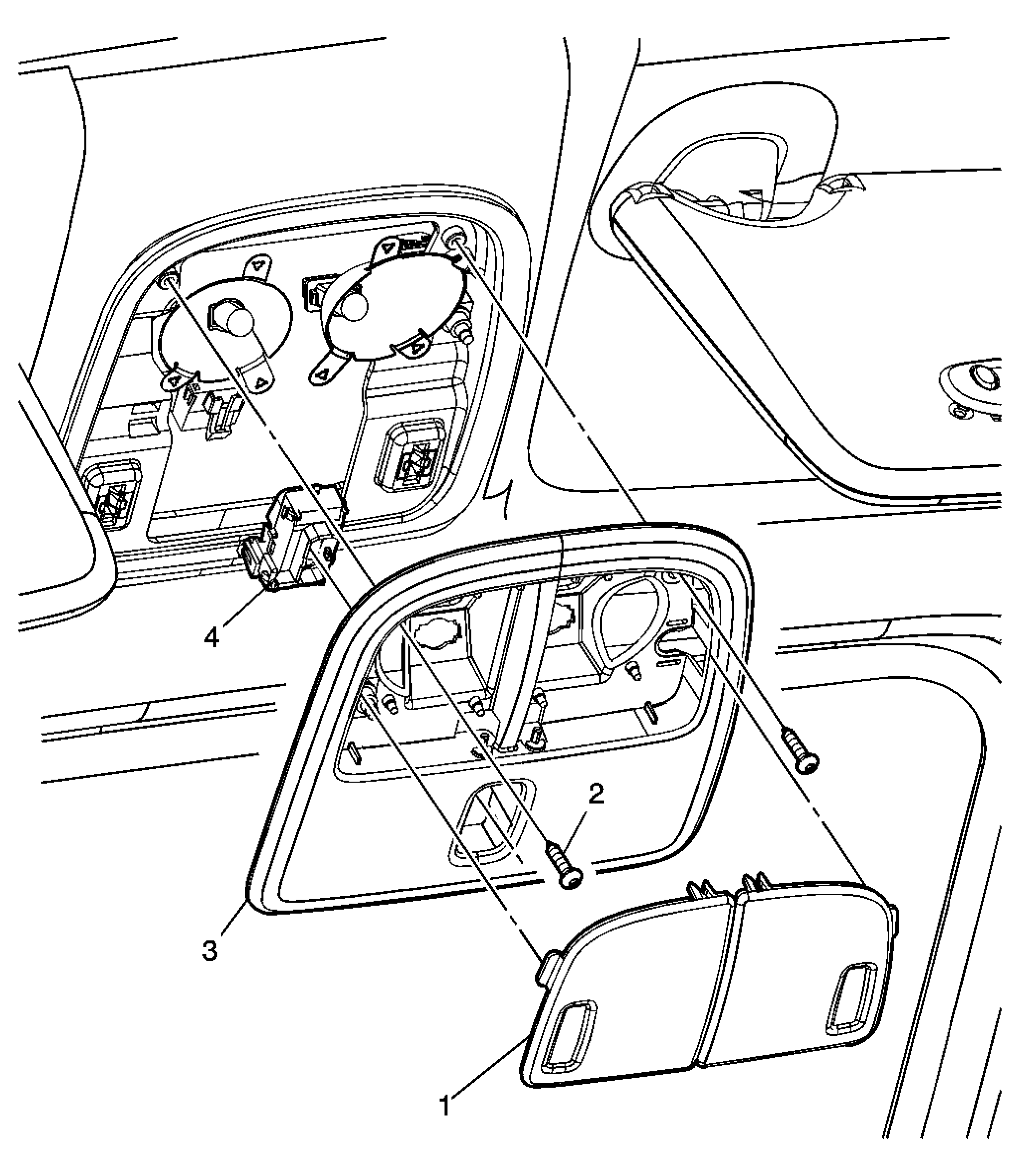

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Lens, Overhead Console Lamp Lens |
| 2 | Screws, Overhead Console Bezel (Qty: 2) Tighten: 3 N.m (40 lb in) |
| 3 | Bezel, Overhead Console |
| 4 | Switch, Sunroof Position Tip: Disconnect the electrical connector. |
