Rear Window Inside Sunshade Control Module Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

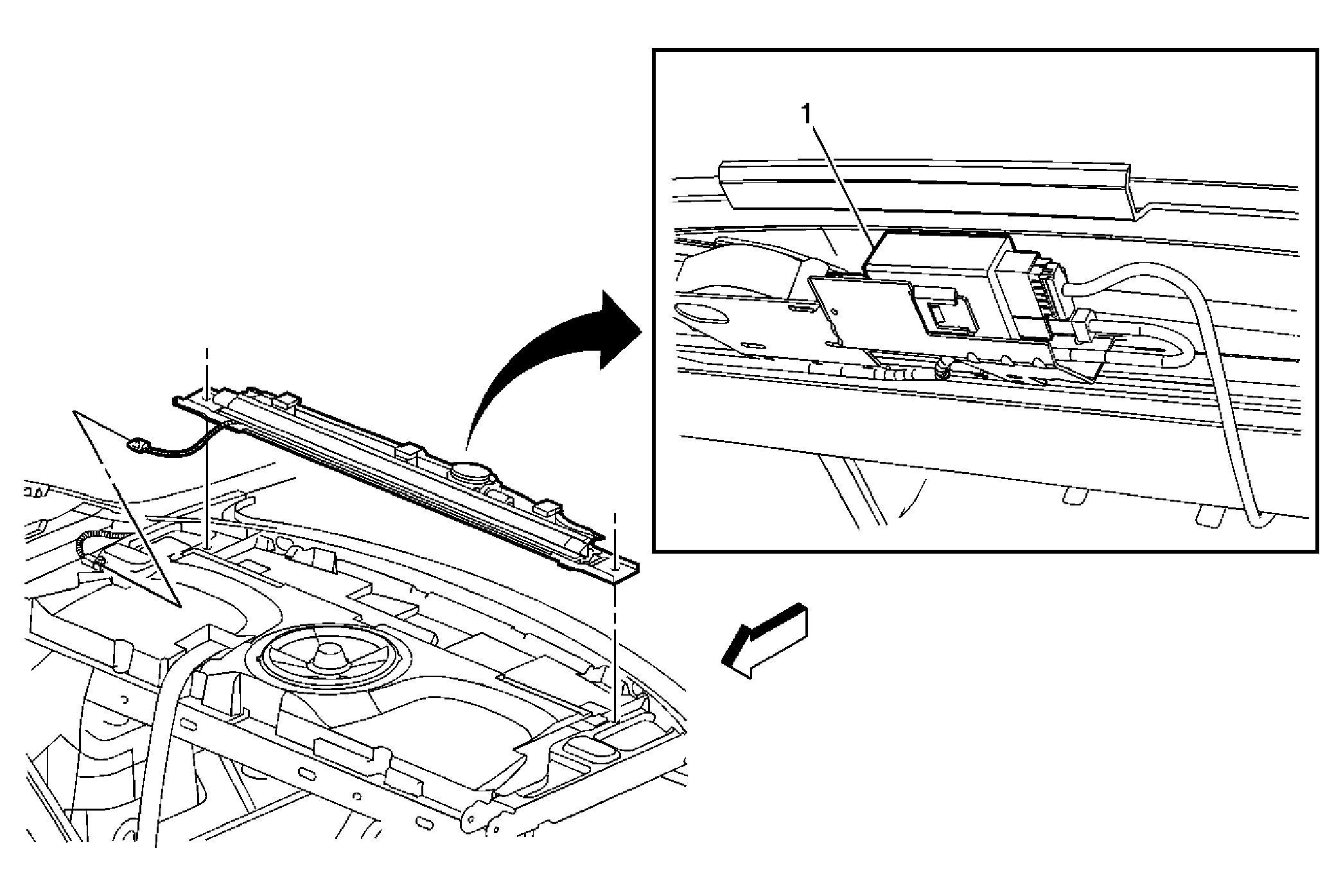

Fig 1: Rear Window Inside Sunshade Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the rear sunshade. Refer to Rear Sunshade Replacement . Refer to Control Module References for replacement and setup information.
1	Sunshade Control Module Rear Tip: Disconnect the electrical connector.
