Power Outlet Component Views

WARNING: This page is about a different car, the 2007 Pontiac Torrent and 2007 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

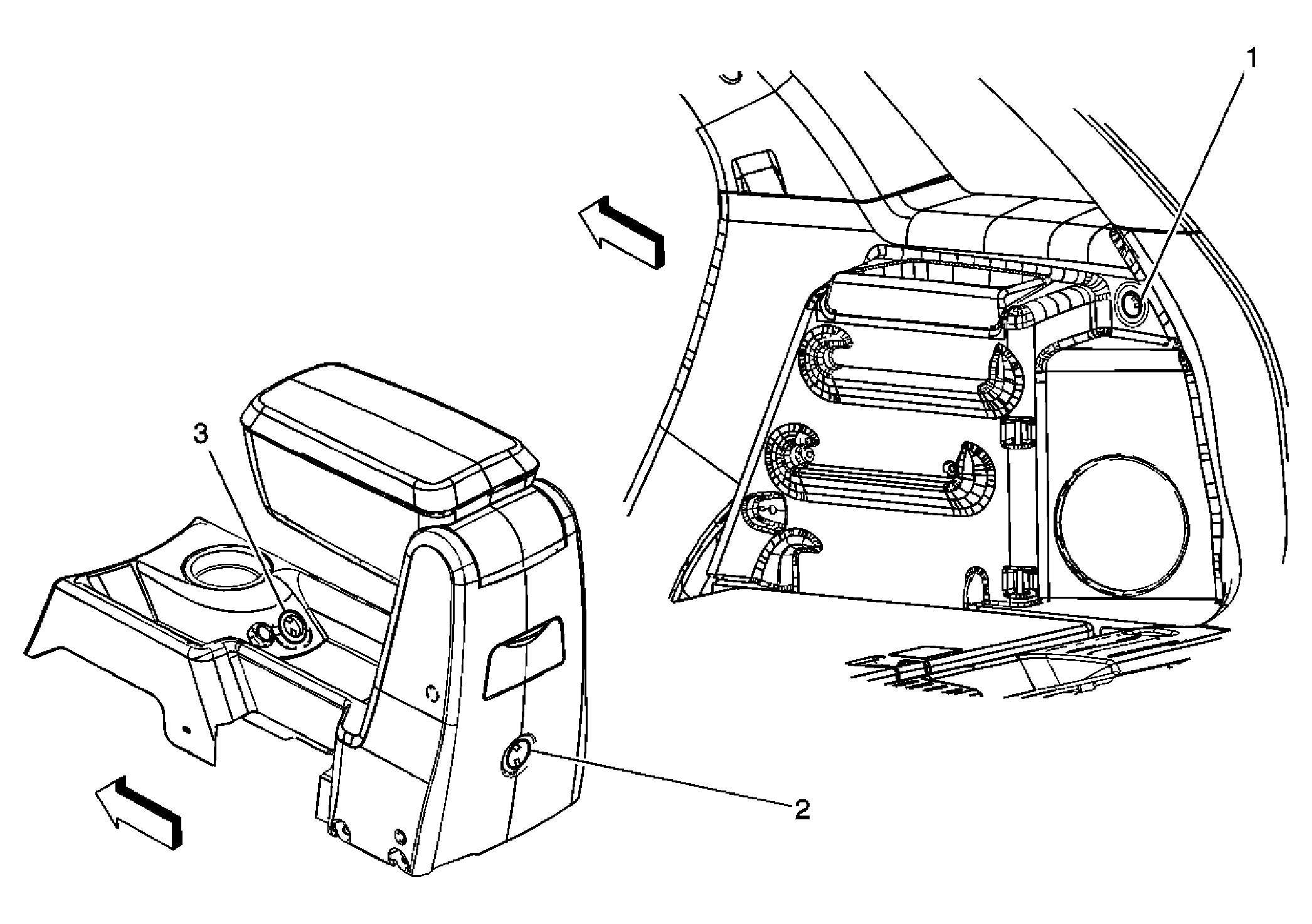

Fig 1: Power Outlets Components View
GM1414808Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Power Outlet - Rear
2 Auxiliary Power Outlet - Front
3 Cigar Lighter
