Connector Views



Automatic Transmission Inline 20-Way Connector End View (3.5L)

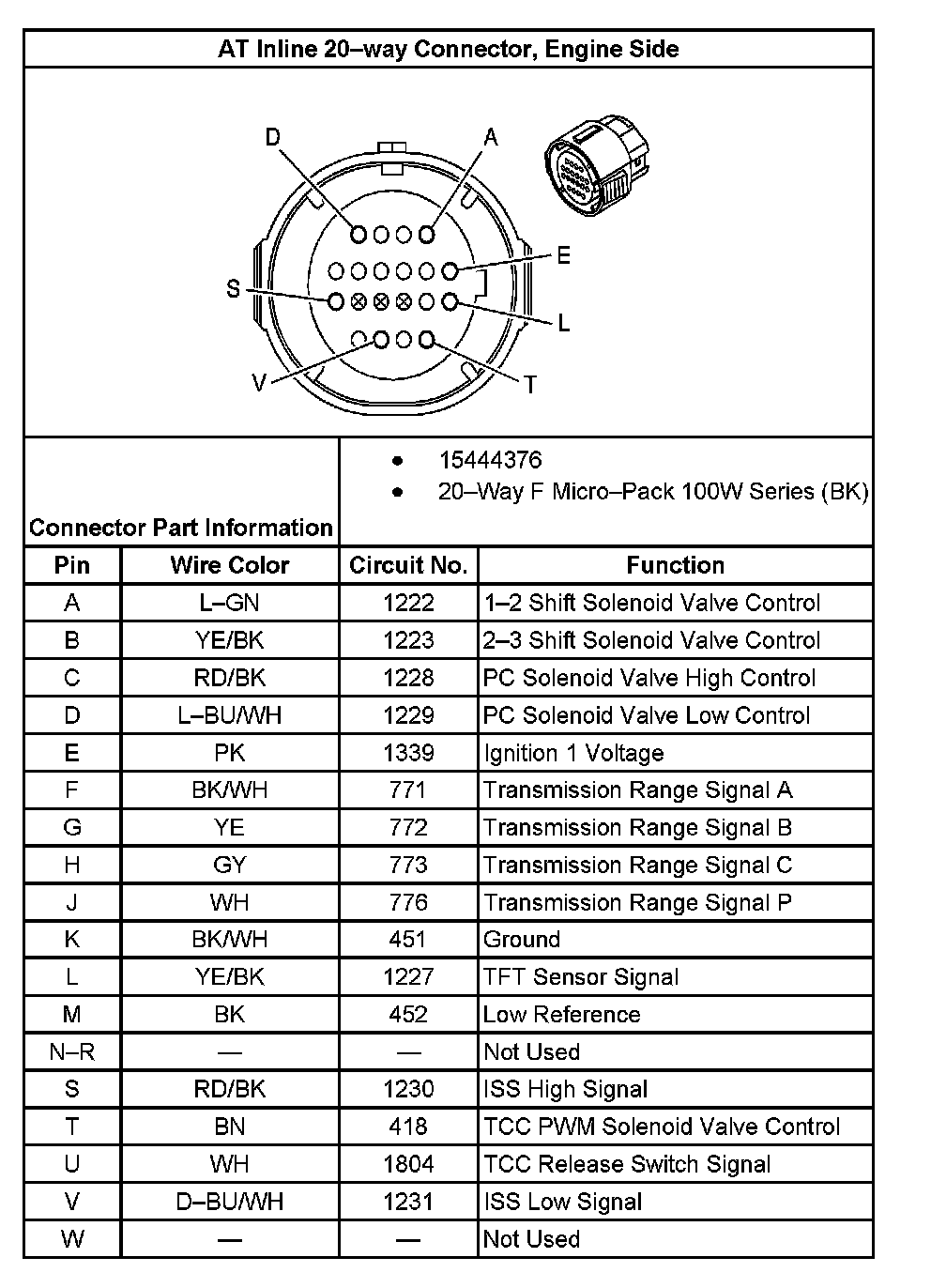

AT Inline 20-way Connector, Engine Side:

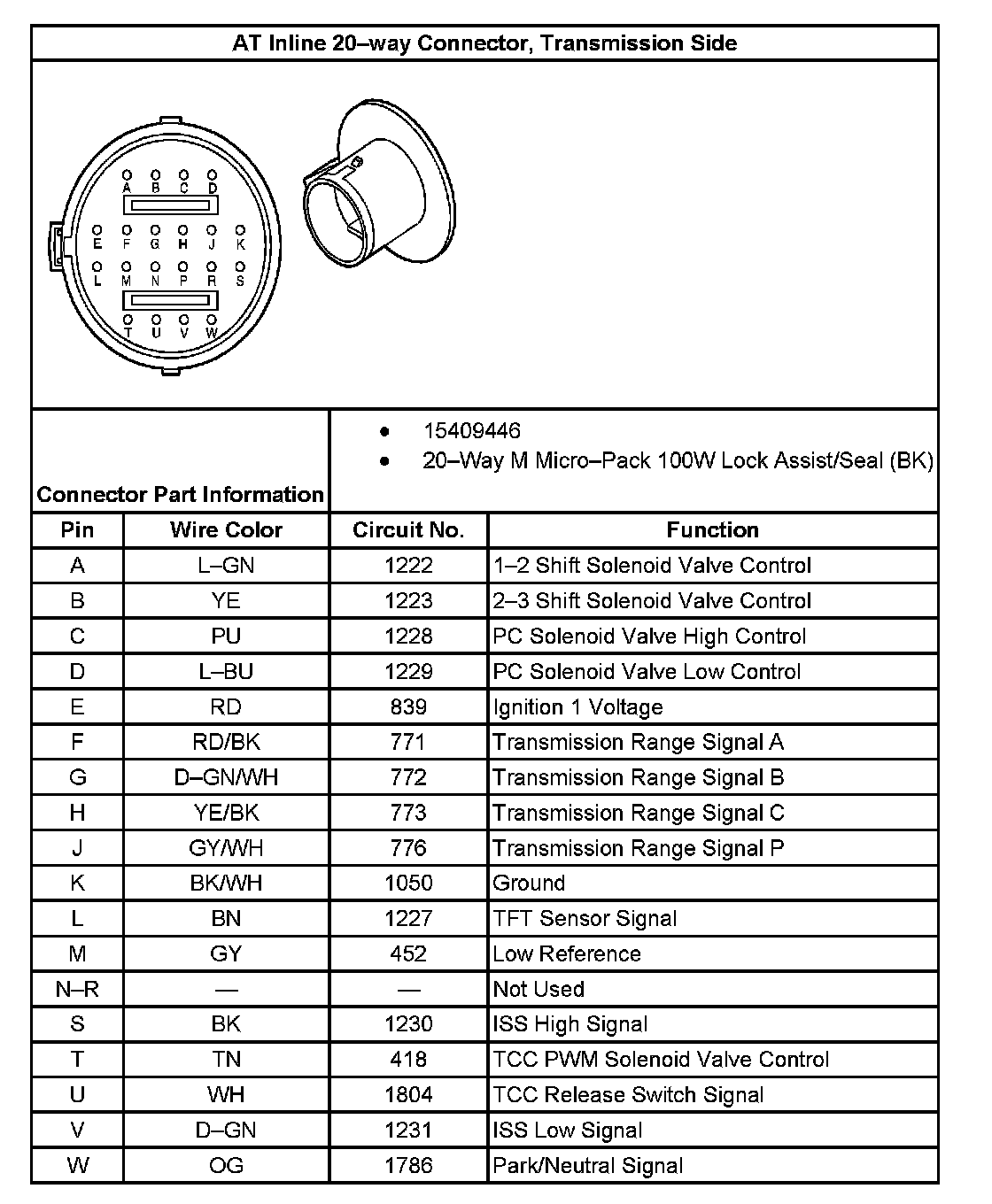

AT Inline 20-way Connector, Transmission Side:
