Locks: Locations

Vehicle Access Component Views

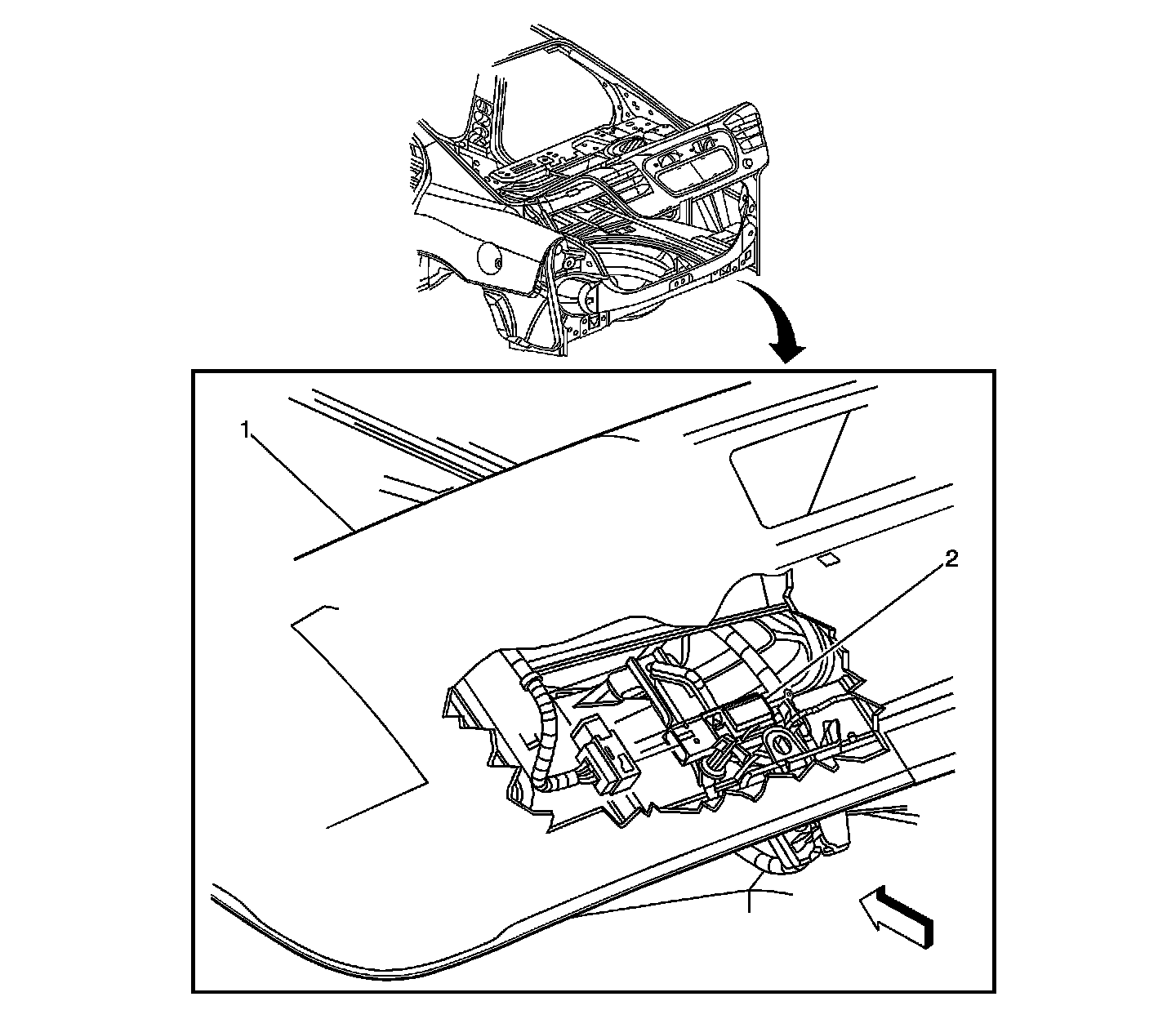

Decklid




1 - Rear Compartment Lid Latch
2 - Rear Compartment Courtesy Lamp

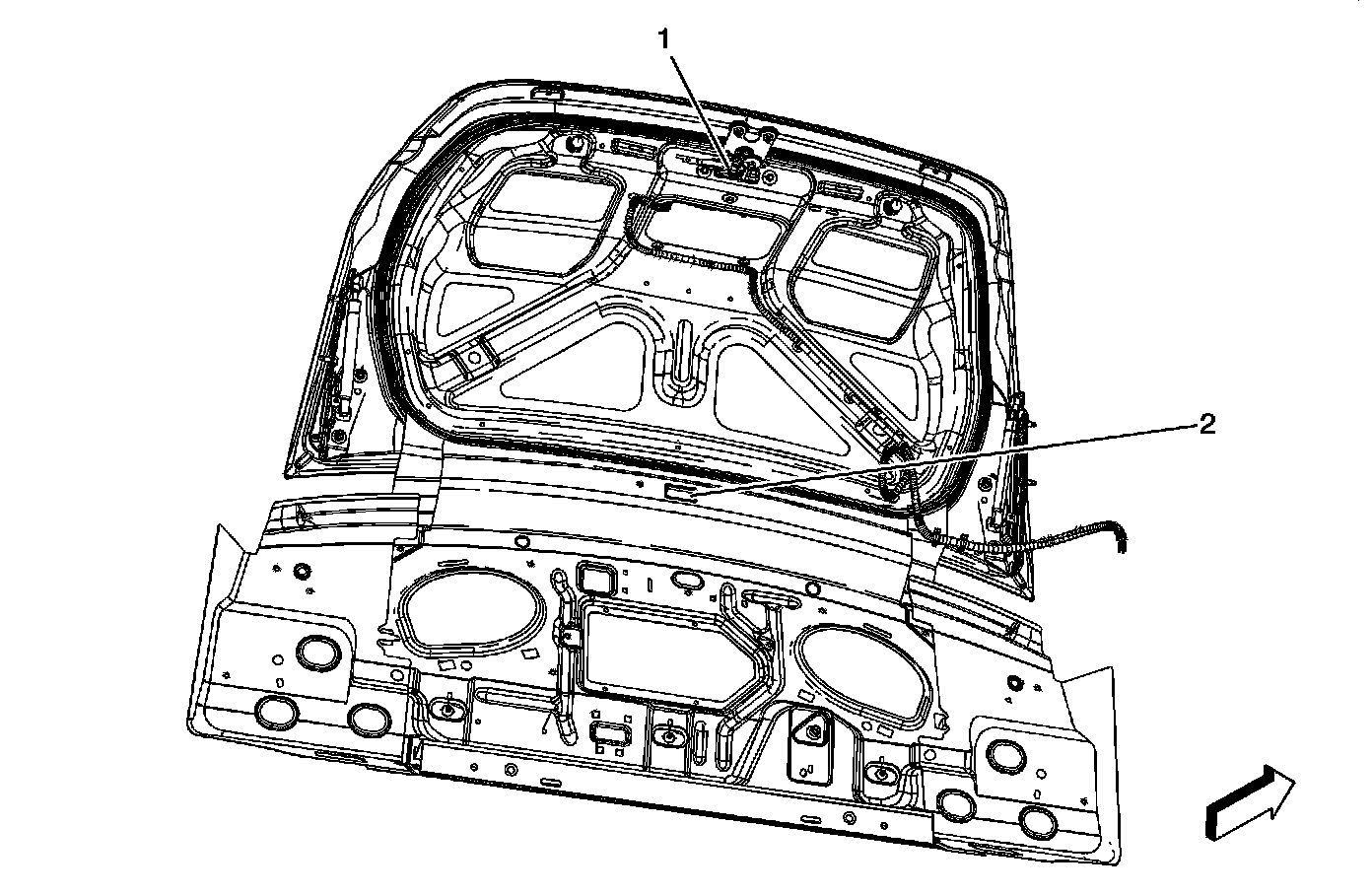

Rear Compartment Lid




1 - Rear Compartment Lid
2 - Rear Compartment Lid Ajar Switch

Driver Door




1 - Door Frame
2 - Outside Rearview Mirror - Driver
3 - Door Lock / Window Switch - Driver
4 - Outside Rearview Mirror Switch
5 - Window Motor - Driver
6 - Inflatable Restraint Side Impact Sensor - Left (AY1)
7 - Door Lock - Driver

Passenger Door




1 - Outside Rearview Mirror - Front Passenger
2 - Door Frame
3 - Door Lock - Front Passenger
4 - Inflatable Restraint Side Impact Sensor - Right (AY1)
5 - Door Lock Switch - Front Passenger
6 - Window Switch - Front Passenger
7 - Window Motor - Front Passenger

LR Door




1 - Door Frame
2 - Window Switch - LR
3 - Window Motor - LR
4 - Door Lock - LR

RR Door




1 - Window Switch - RR
2 - Door Frame
3 - Door Lock - RR
4 - Window Motor - RR
