Control Assembly: Locations

HVAC Component Views

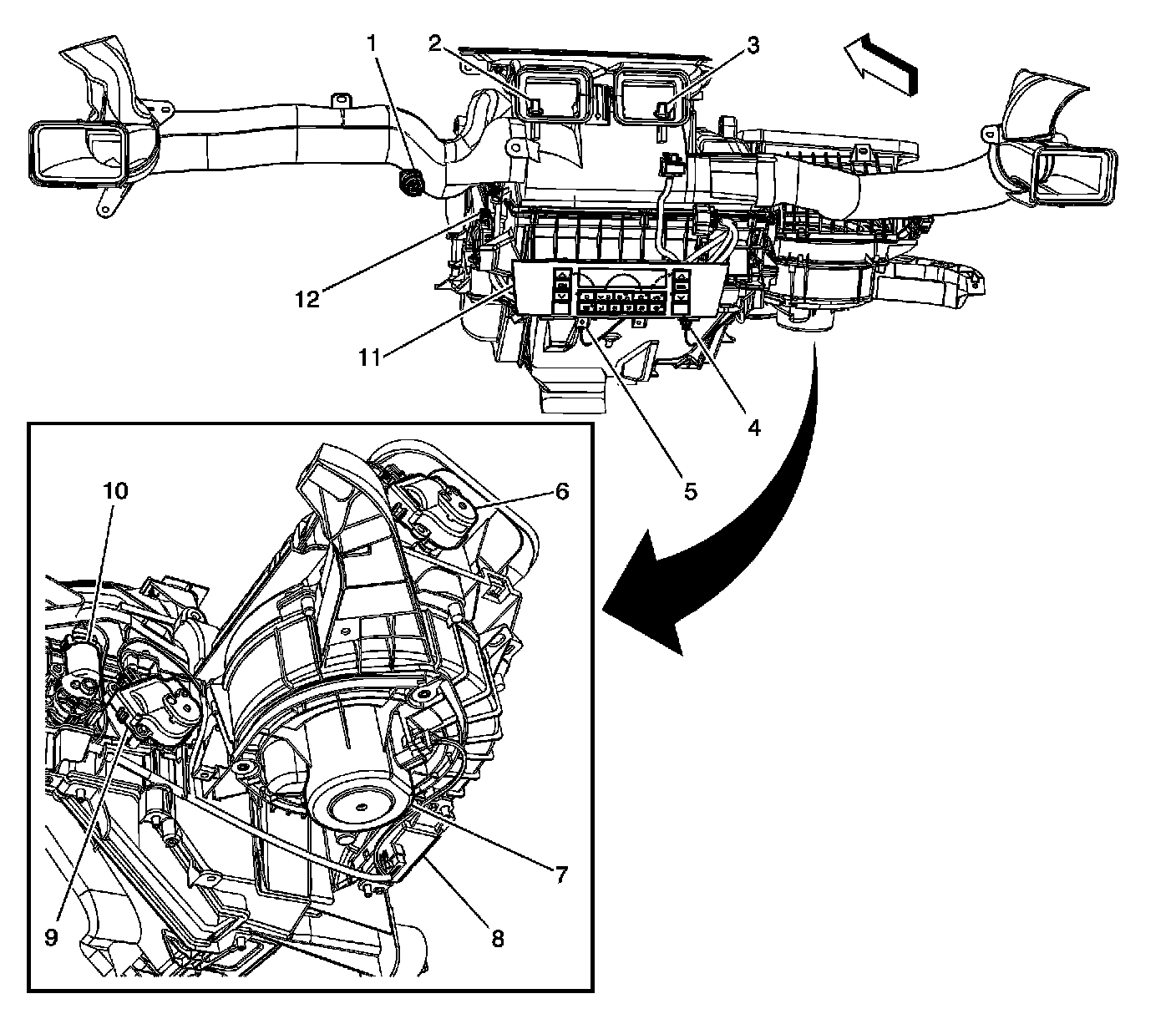

Interior HVAC Components




1 - Air Temperature Sensor - Inside
2 - Air Temperature Sensor - Upper Left
3 - Air Temperature Sensor - Upper Right
4 - Air Temperature Sensor - Upper Right
5 - Air Temperature Sensor - Upper Right
6 - Recirculation Actuator
7 - Blower Motor
8 - Blower Motor Control Processor
9 - Air Temperature Actuator - Right
10 - Motor Actuator
11 - HVAC Control Module
12 - Air Temperature Actuator - Left

Front of the I/P

Front of the I/P:

1 - Lamp Switch Assembly - Fog Lamp
2 - Instrument Panel Cluster (IPC)
3 - Ignition Switch
4 - Air Temperature Sensor - Inside
5 - Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (C67)
6 - Theft LED
7 - Driver Information Center (DIC)
8 - Radio
9 - HVAC Control Module
10 - Heated Seat Switch - Front Passenger
11 - Cigar Lighter
12 - Heated Seat Switch - Driver
13 - Steering Wheel Controls - Right
14 - Cruise Control Switch
15 - Voice Recorder / Cruise Switch Assembly
16 - Steering Wheel Controls - Left
17 - Turn Signal / Multifunction Switch
18 - I/P Dimmer Switch
19 - Lamp Switch Assembly - Interior Lamps
