Engine Compartment Views

Harness Routing Views

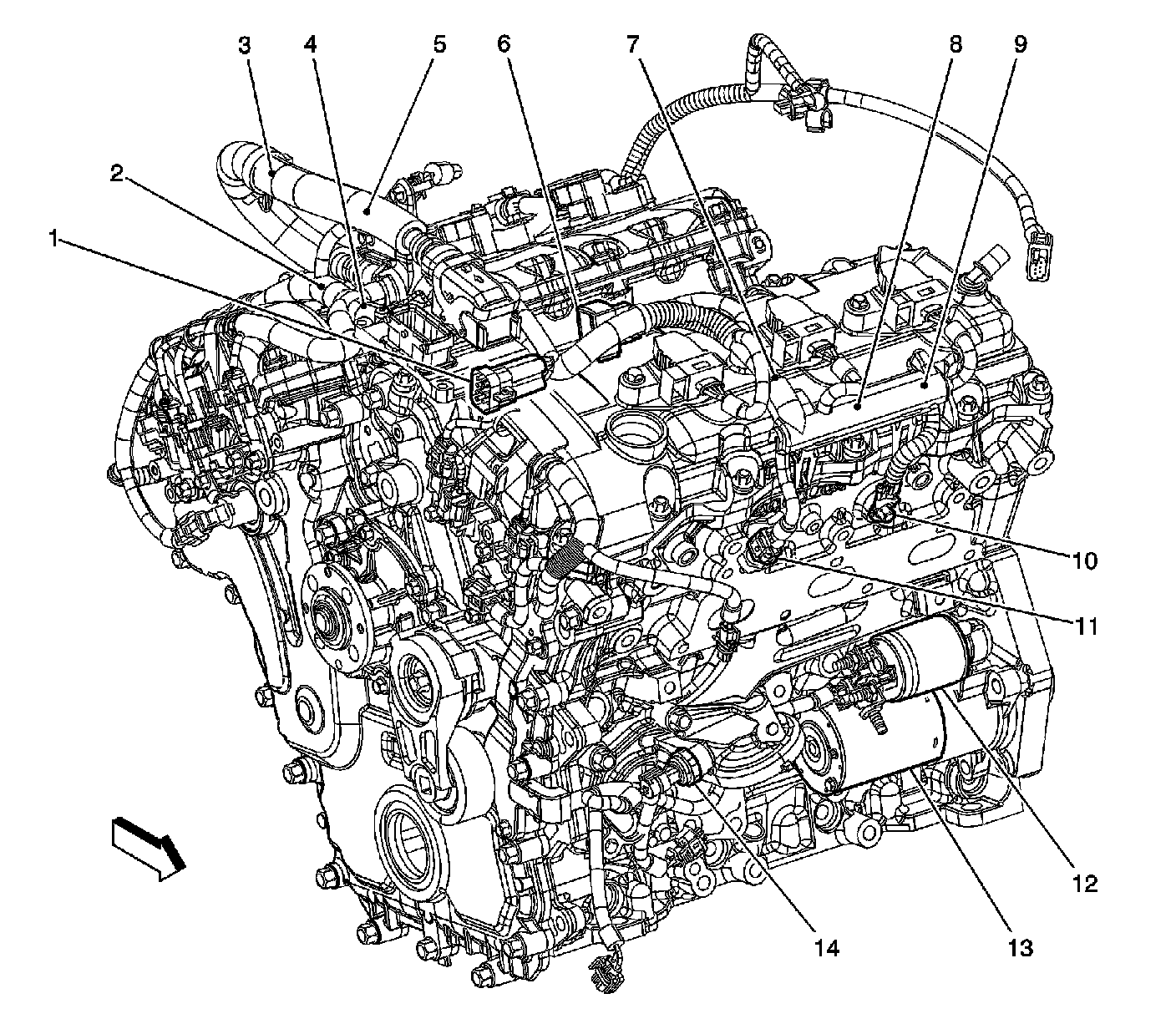

Front of the Engine (LY7)




1 - C107
2 - S121
3 - S120
4 - S110
5 - S119
6 - C109
7 - S103
8 - S131
9 - S133
10 - G131
11 - Engine Coolant Temperature (ECT) Sensor
12 - Starter Solenoid
13 - Starter
14 - Engine Oil Pressure (EOP) Sensor
