G103



Power and Grounding Component Views

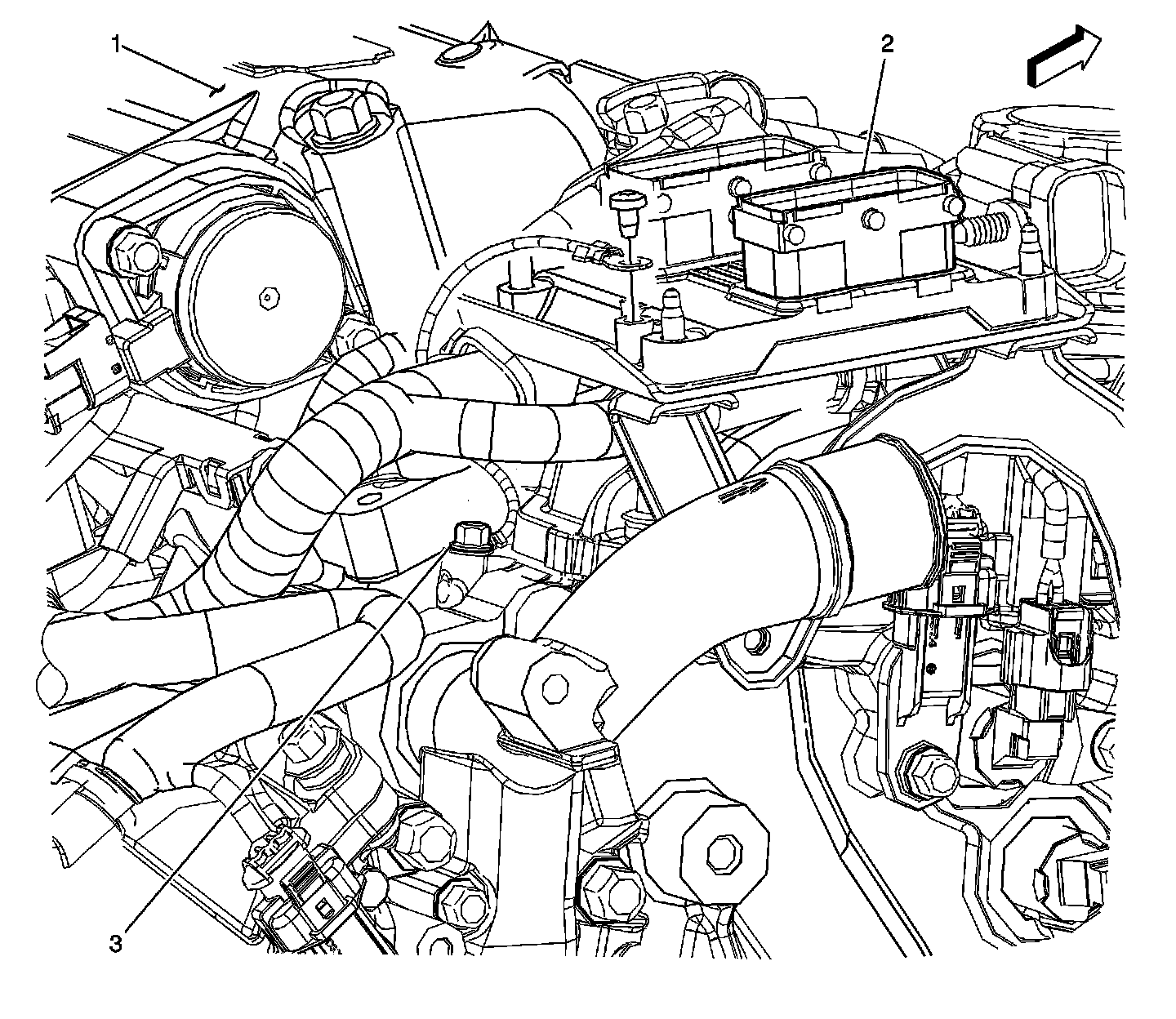

G103 (LY7)




1 - Engine
2 - Engine Control Module (ECM)
3 - G103
