Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

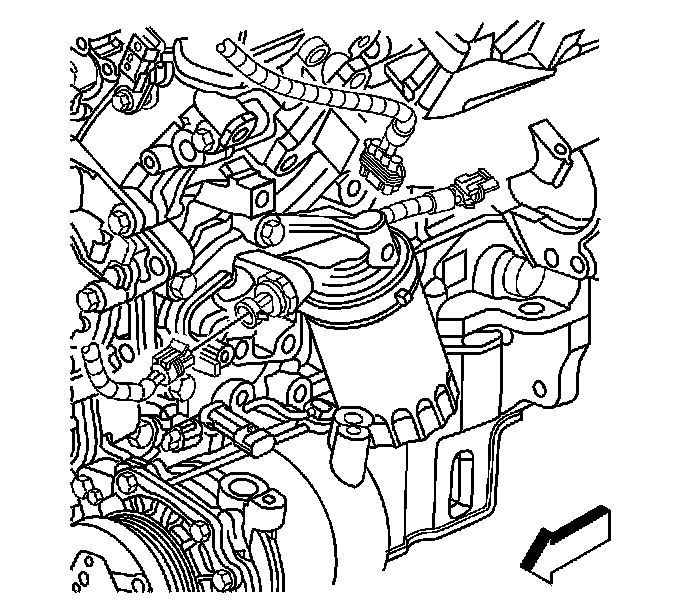

Removal Procedure

1. Turn the ignition OFF.




2. Disconnect the oil pressure sensor electrical connector.




3. Remove the oil pressure sensor.

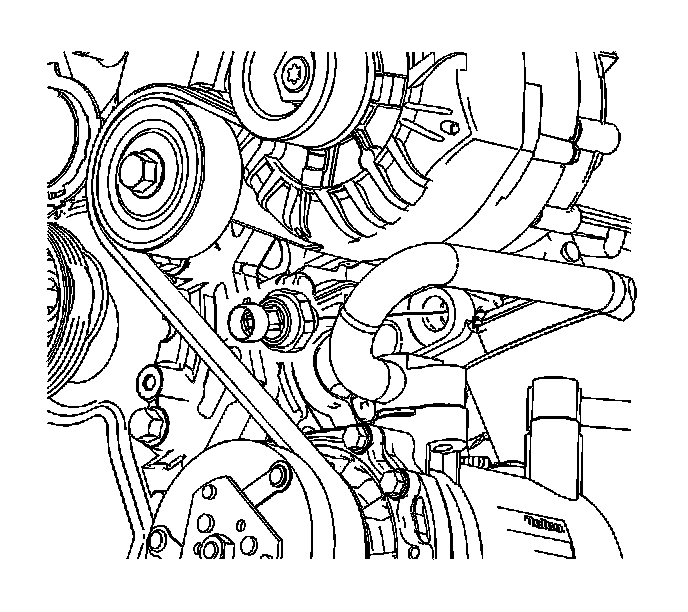

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the oil pressure sensor.

Tighten the oil pressure sensor to 20 N.m (15 lb ft).




2. Connect the oil pressure sensor electrical connector.
