Installation Procedure

IMPORTANT: When installing the negative battery cable, ensure that the cable eyelet is installed with the flat side down. Keep the crimped side facing upward.

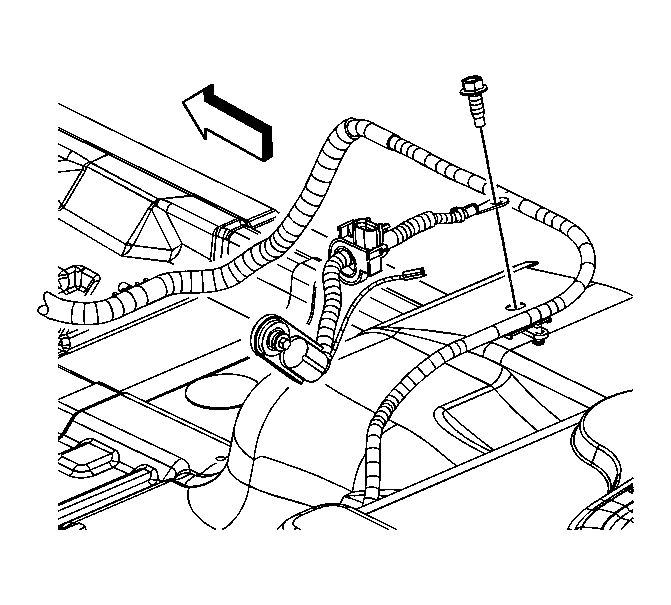

    Fig 1: Removing/Installing Negative Battery Cable
    GM1669905Courtesy of GENERAL MOTORS CORP.
  1. Place the negative battery cable eyelet over the hole in the floor pan.
    2. NOTE: Refer to Fastener Notice .
  2. Install the negative battery cable ground bolt.

    Tighten:  Tighten the bolt to 36 N.m (27 lb ft).

  3. Connect the body harness electrical connector to the battery current sensor.
  4. Connect the body harness electrical connector to the negative battery cable electrical connector.
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
