Front Door Latch

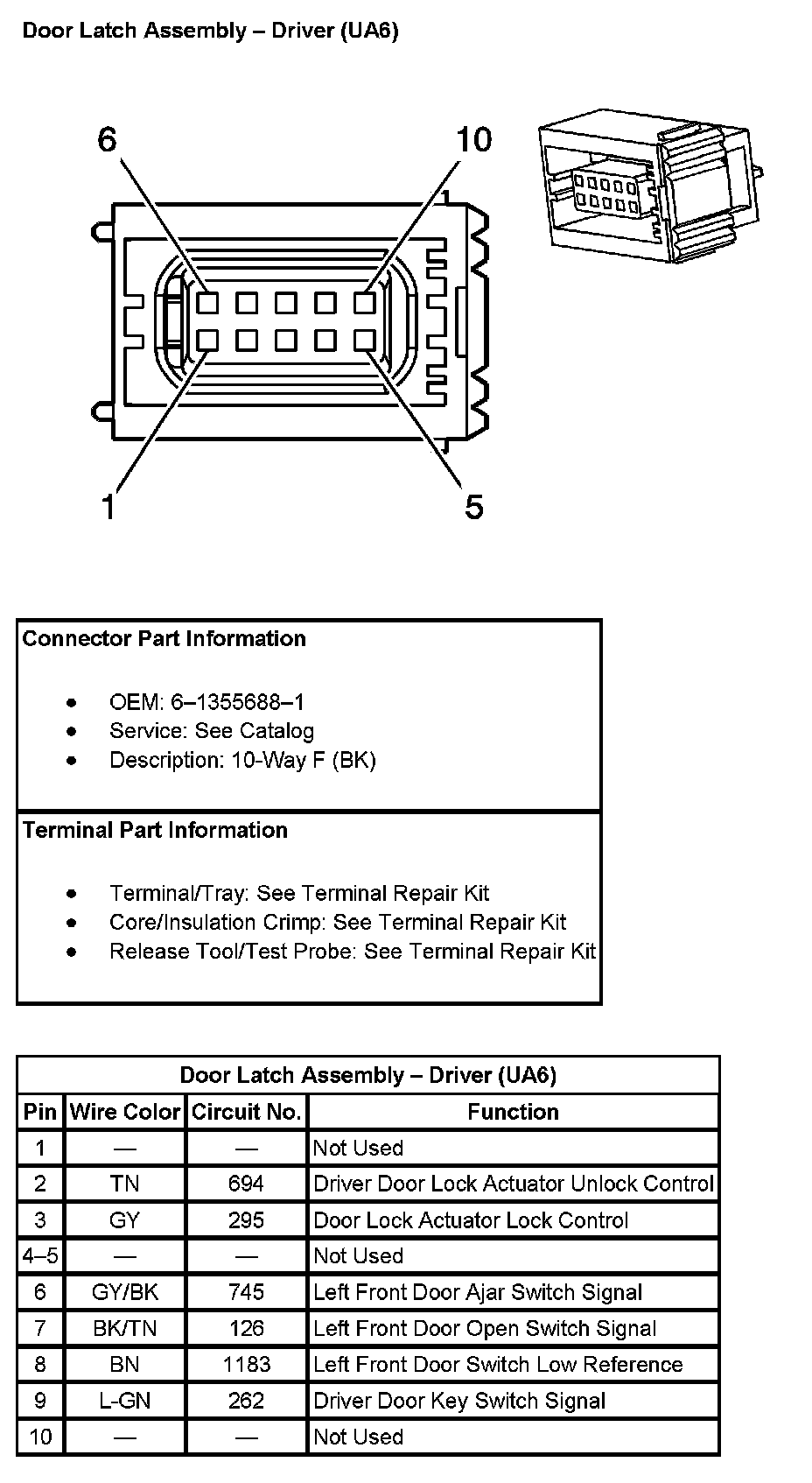

Door Latch Assembly - Driver (With RPO Code UA6):



Door Latch Assembly - Driver (With RPO Code UA6):

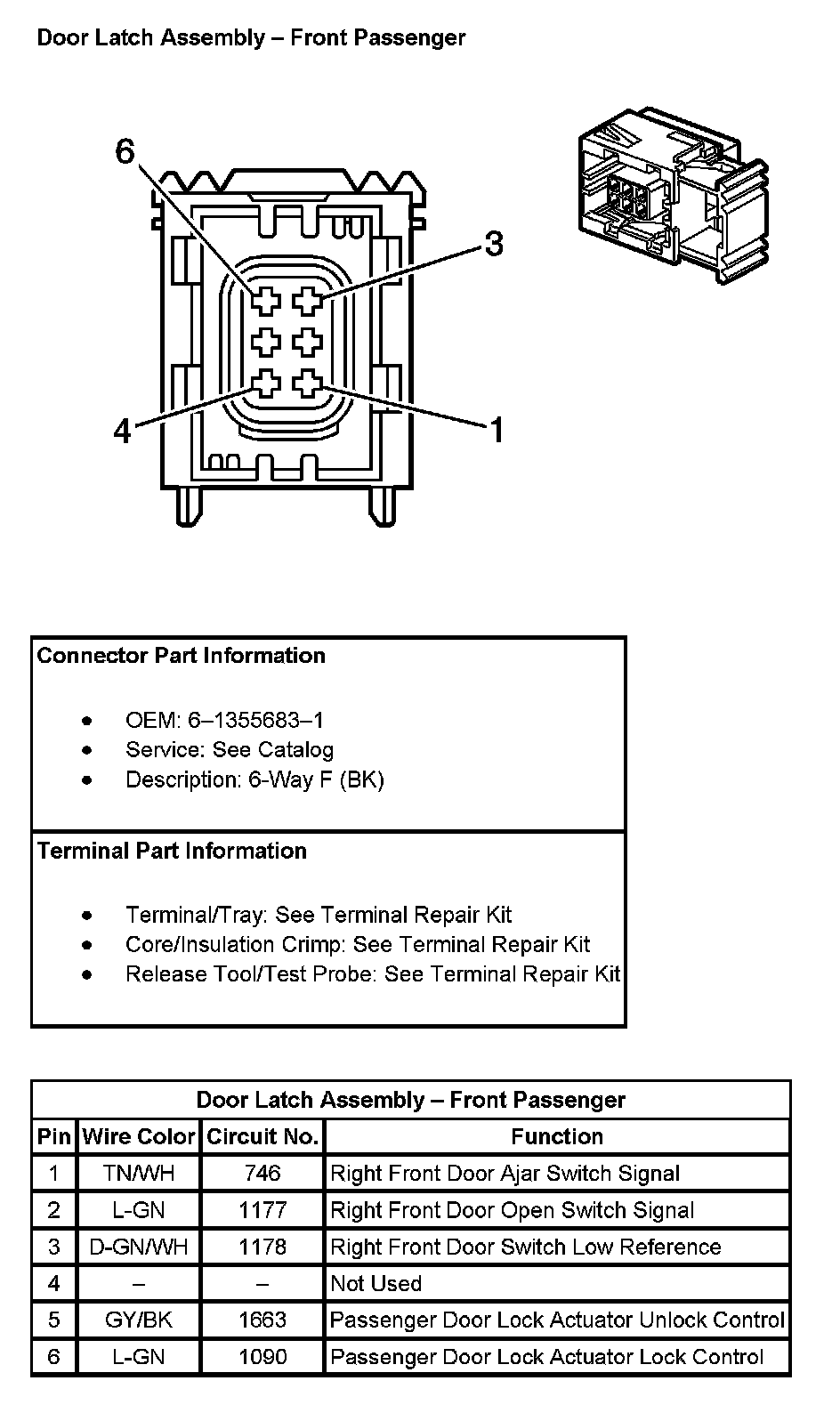

Door Latch Assembly - Front Passenger:

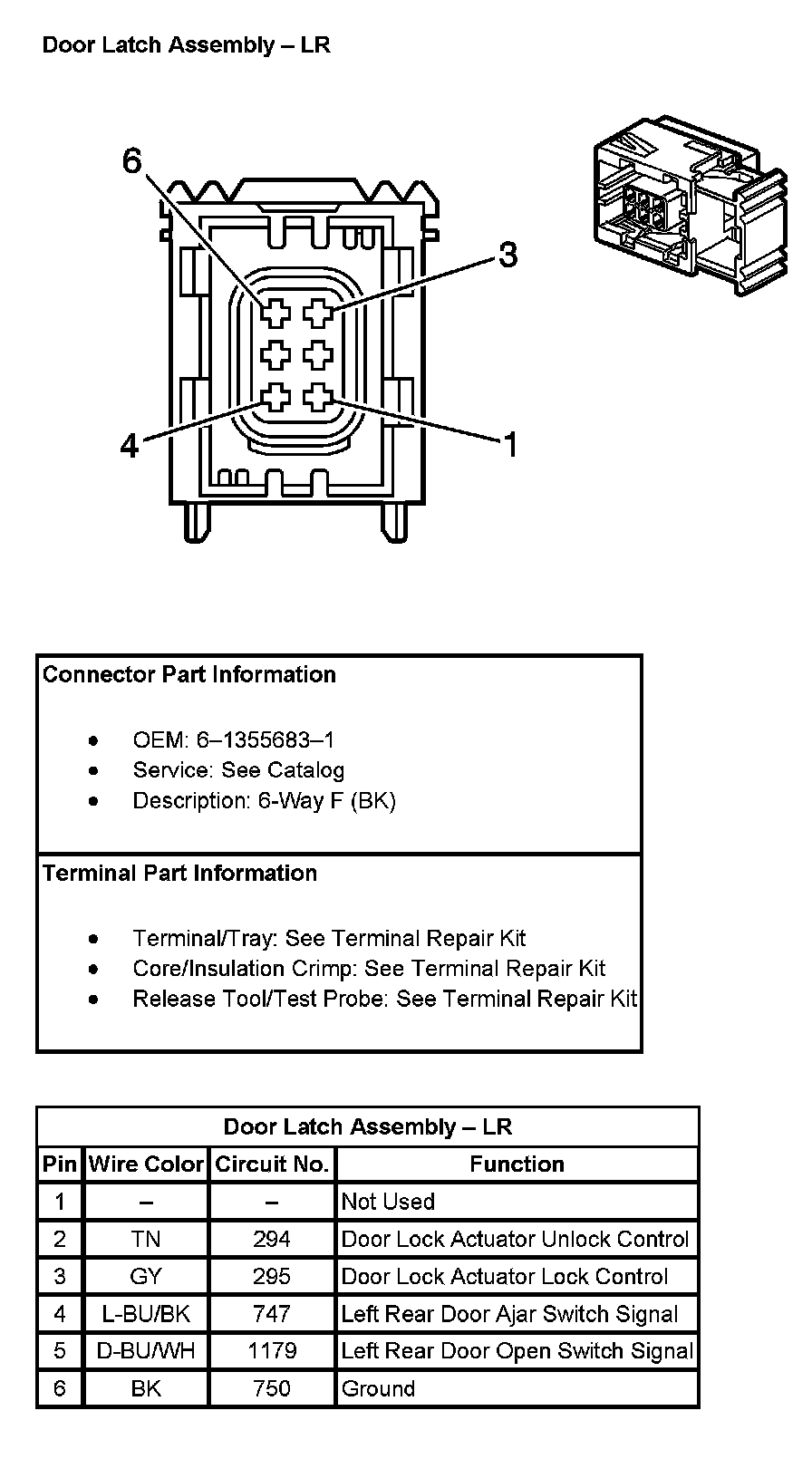

Door Latch Assembly - LR:

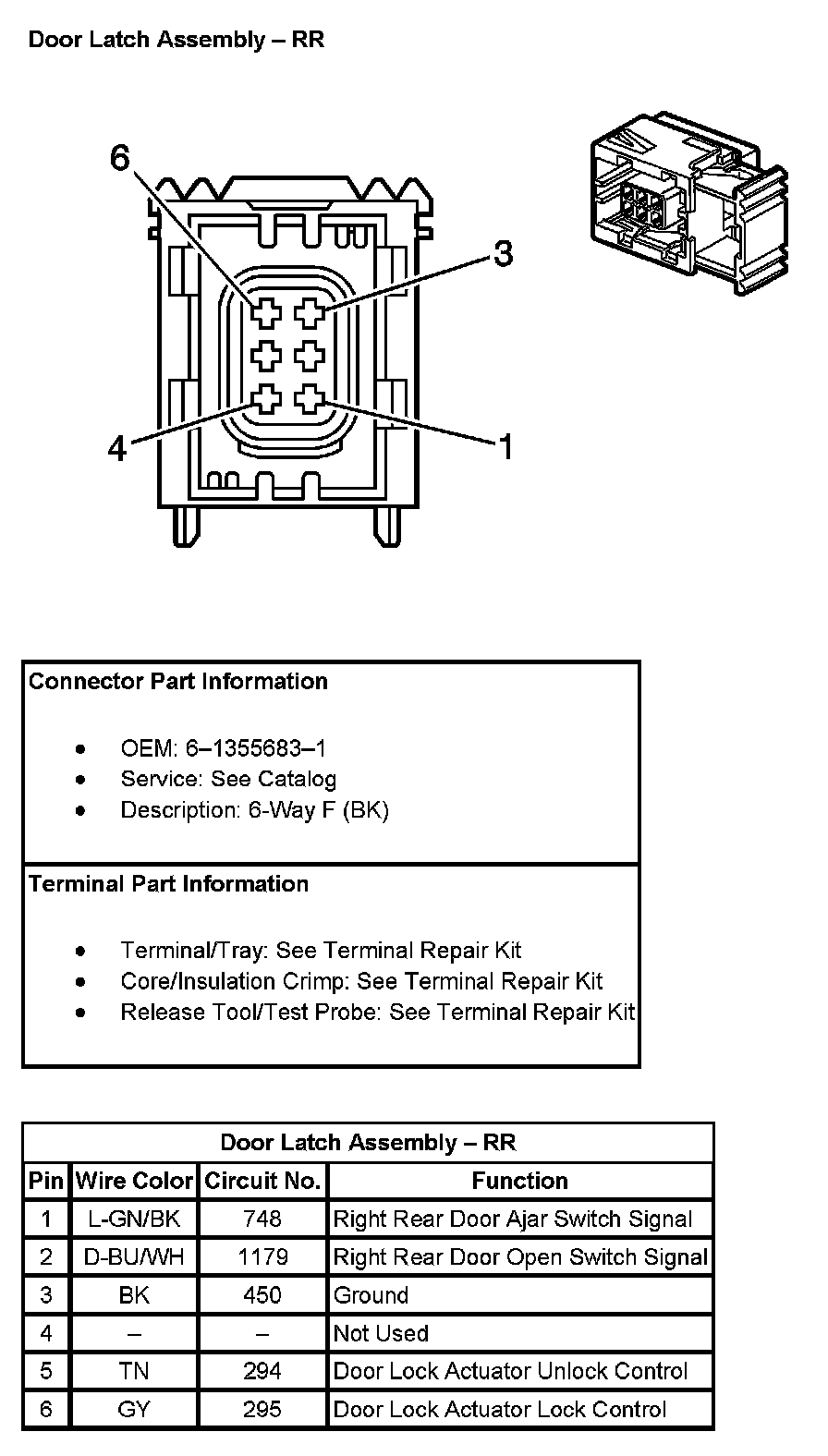

Door Latch Assembly - RR:
