Mirrors

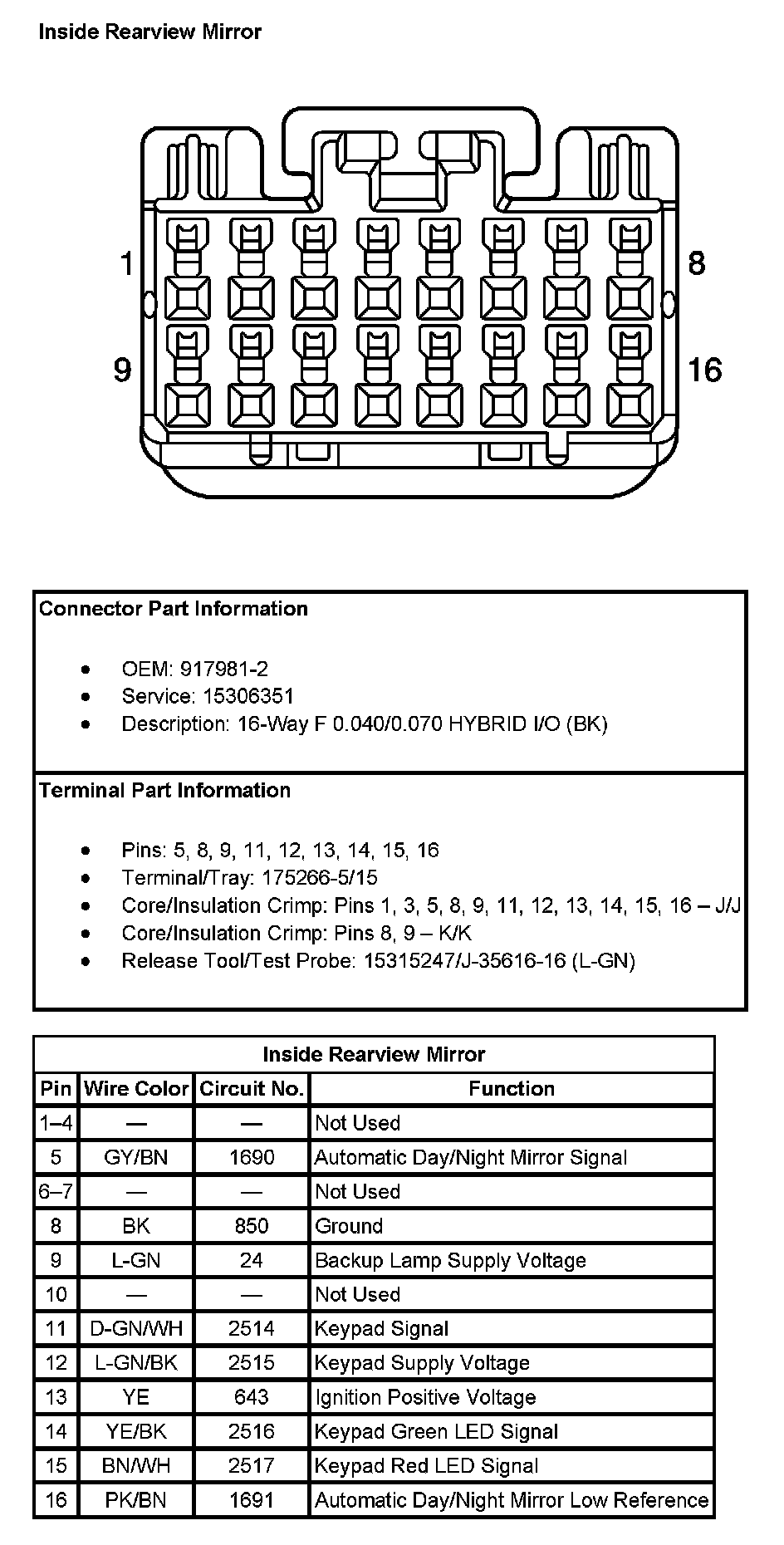

Inside Rearview Mirror:

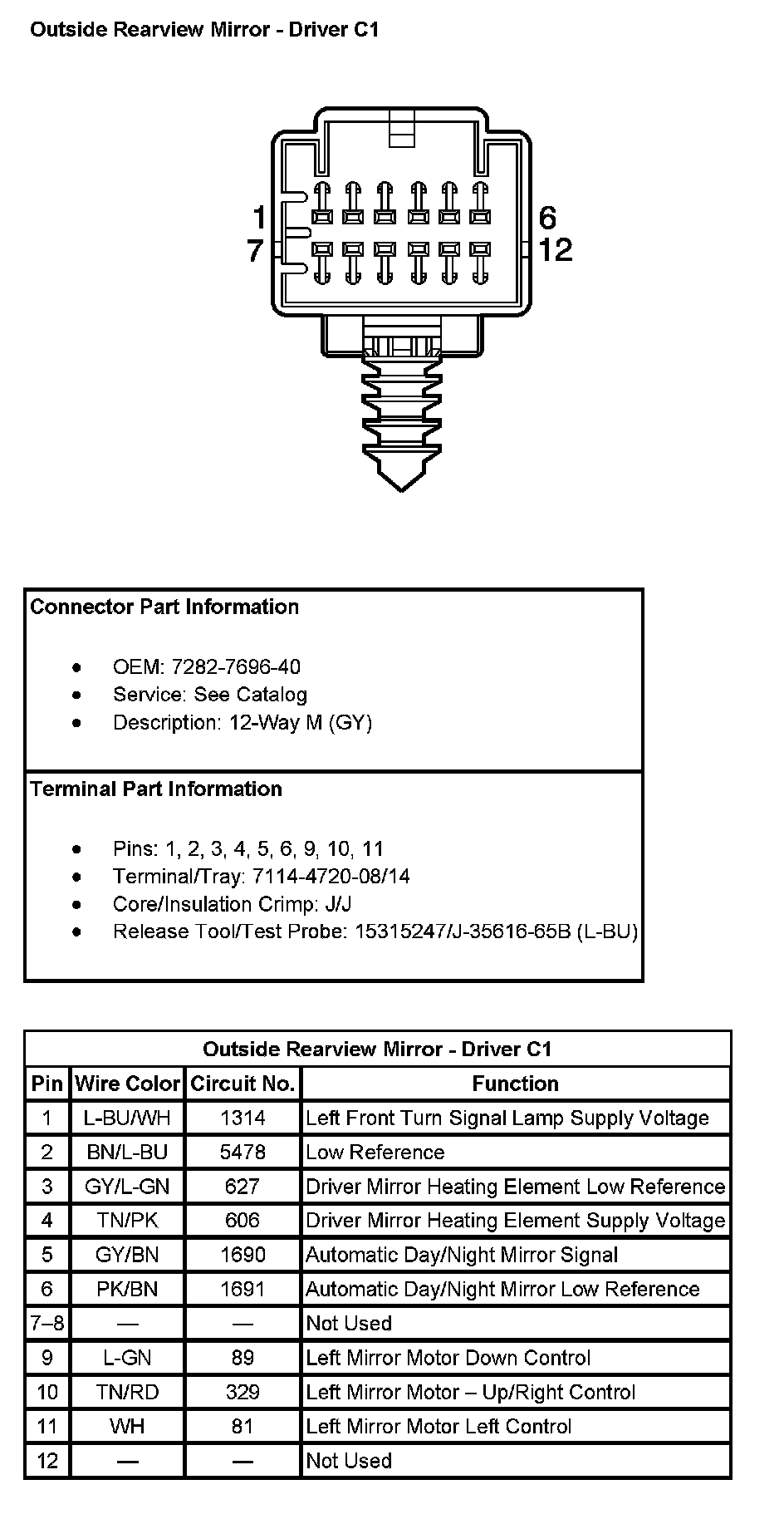

Outside Rearview Mirror - Driver C1:

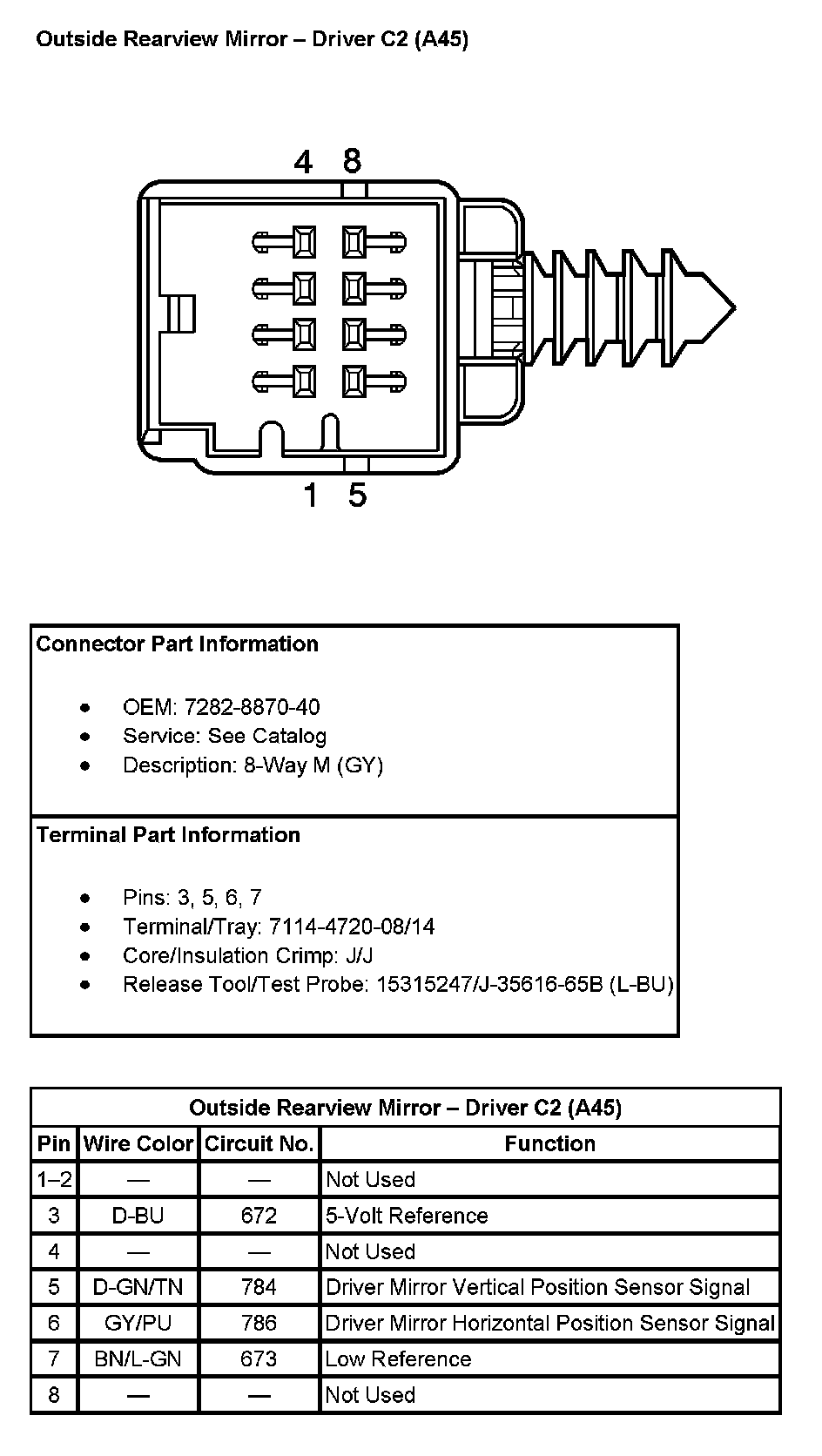

Outside Rearview Mirror - Driver C2 (With RPO Code A45):

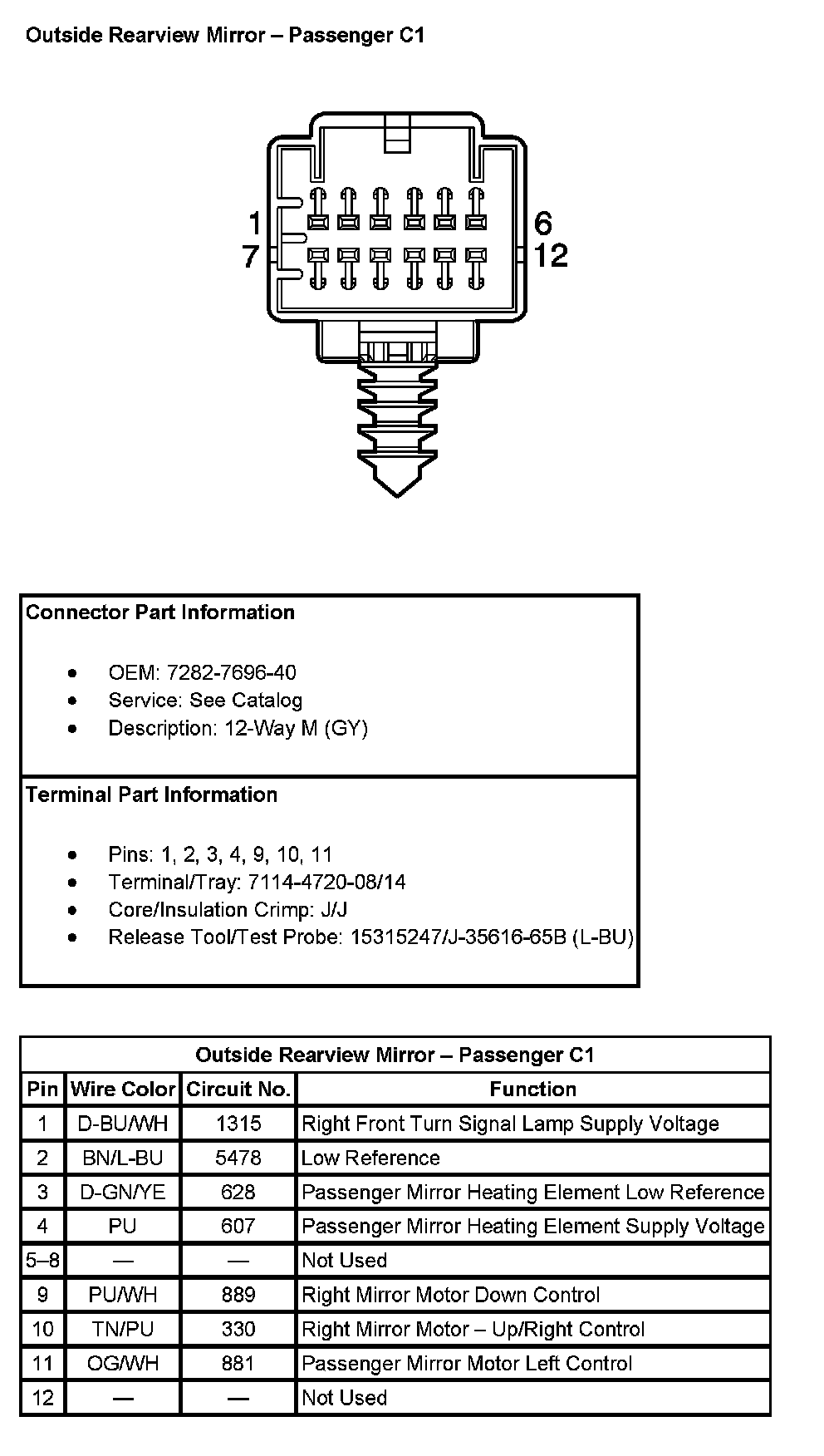

Outside Rearview Mirror - Passenger C1:

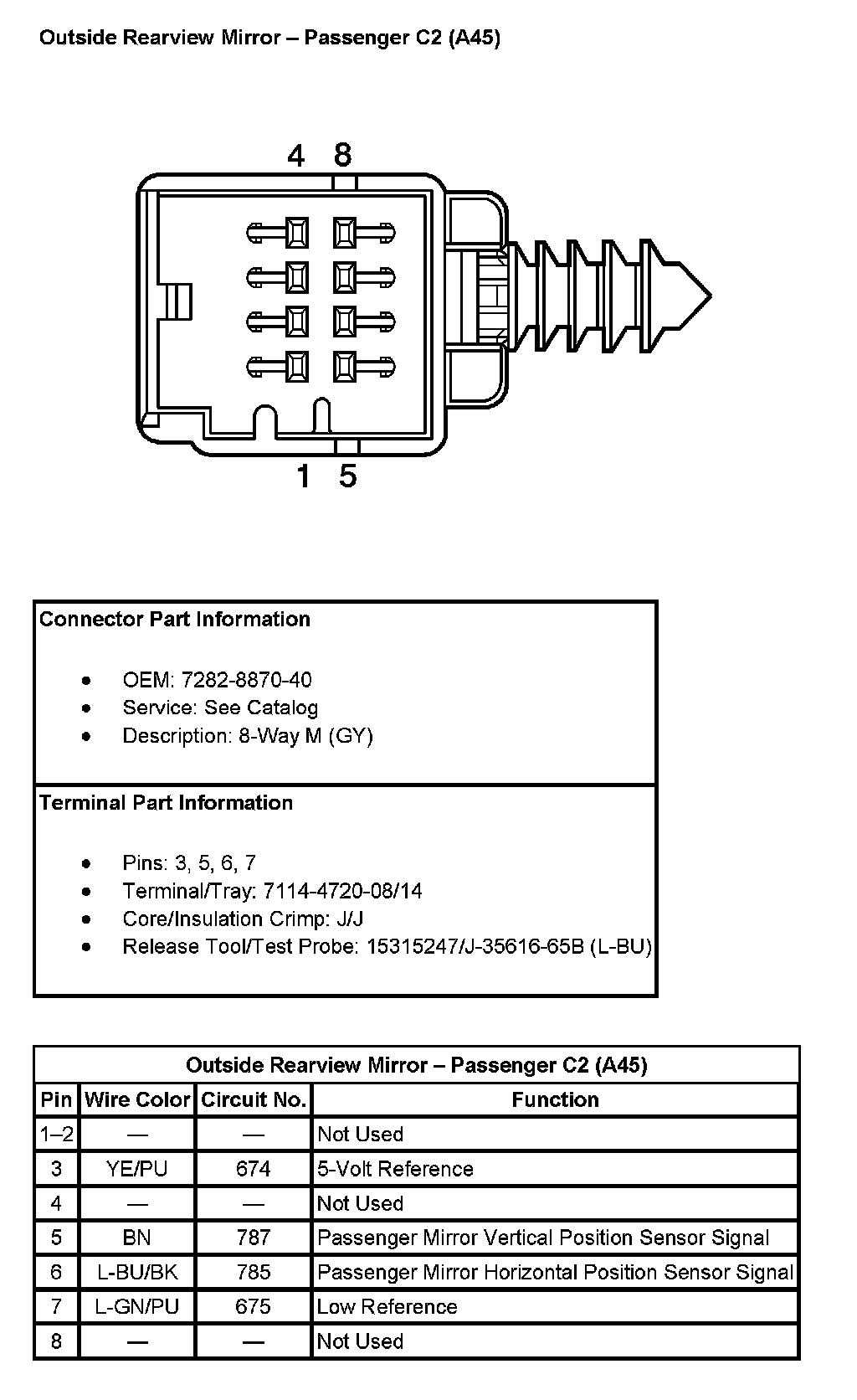

Outside Rearview Mirror - Passenger C2 (With RPO Code A45):
