Seat Temperature Switch

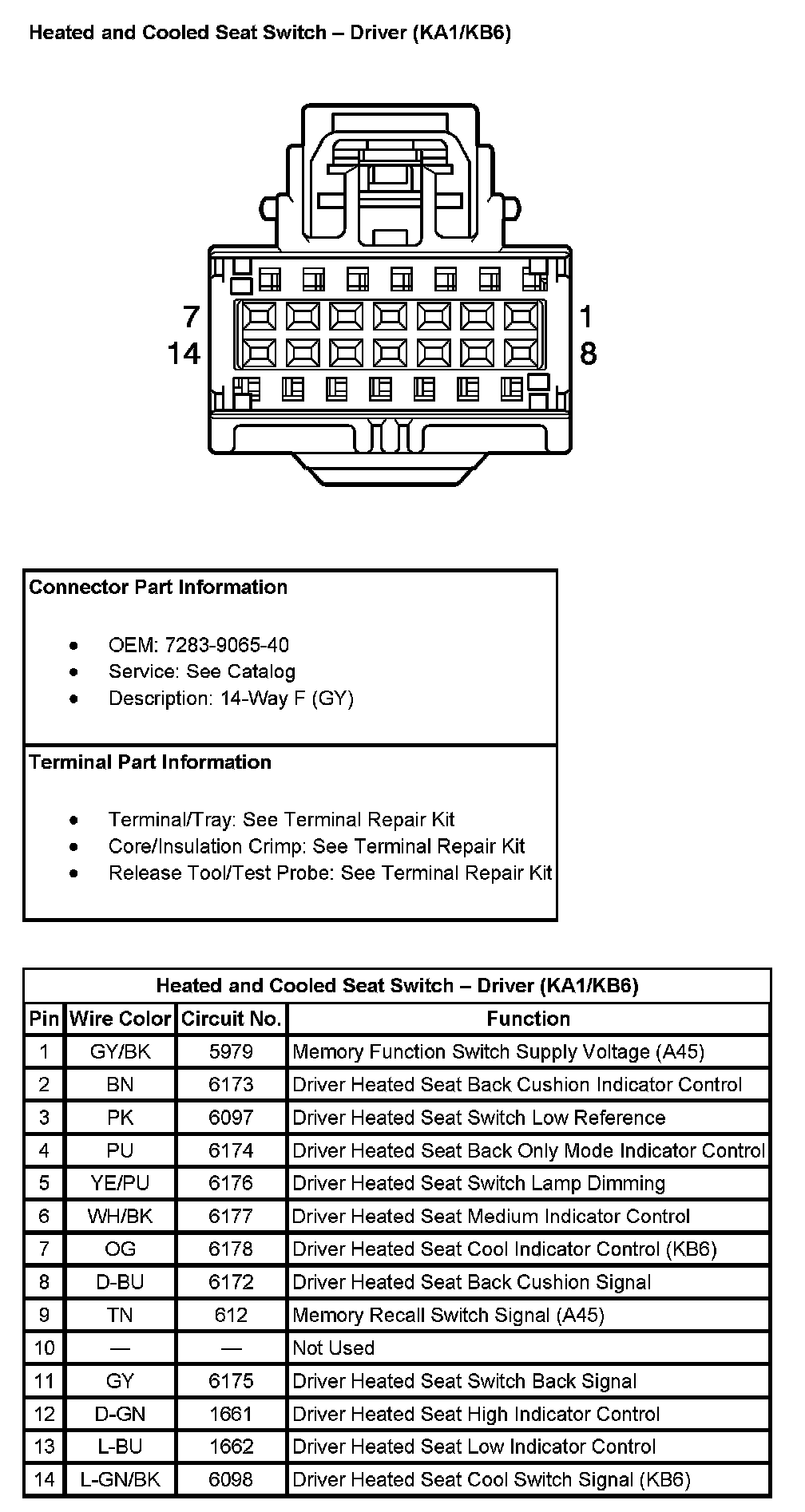

Heated And Cooled Seat Switch - Driver (With RPO Code KA1/KB6):

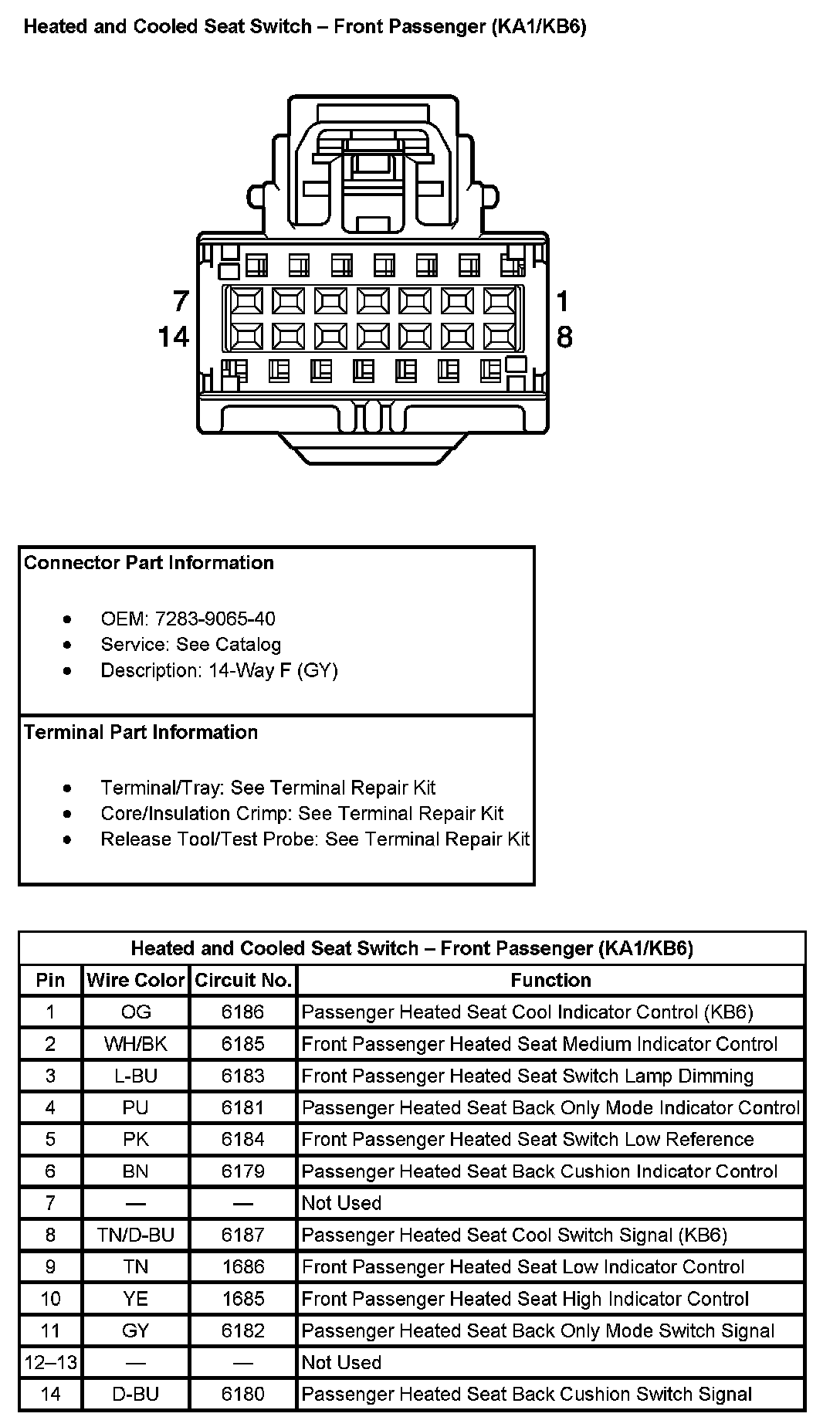

Heated And Cooled Seat Switch - Front Passenger (With RPO Code KA1/KB6):
