Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Solar Sensor >> Diagrams
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Solar Sensor: Diagrams

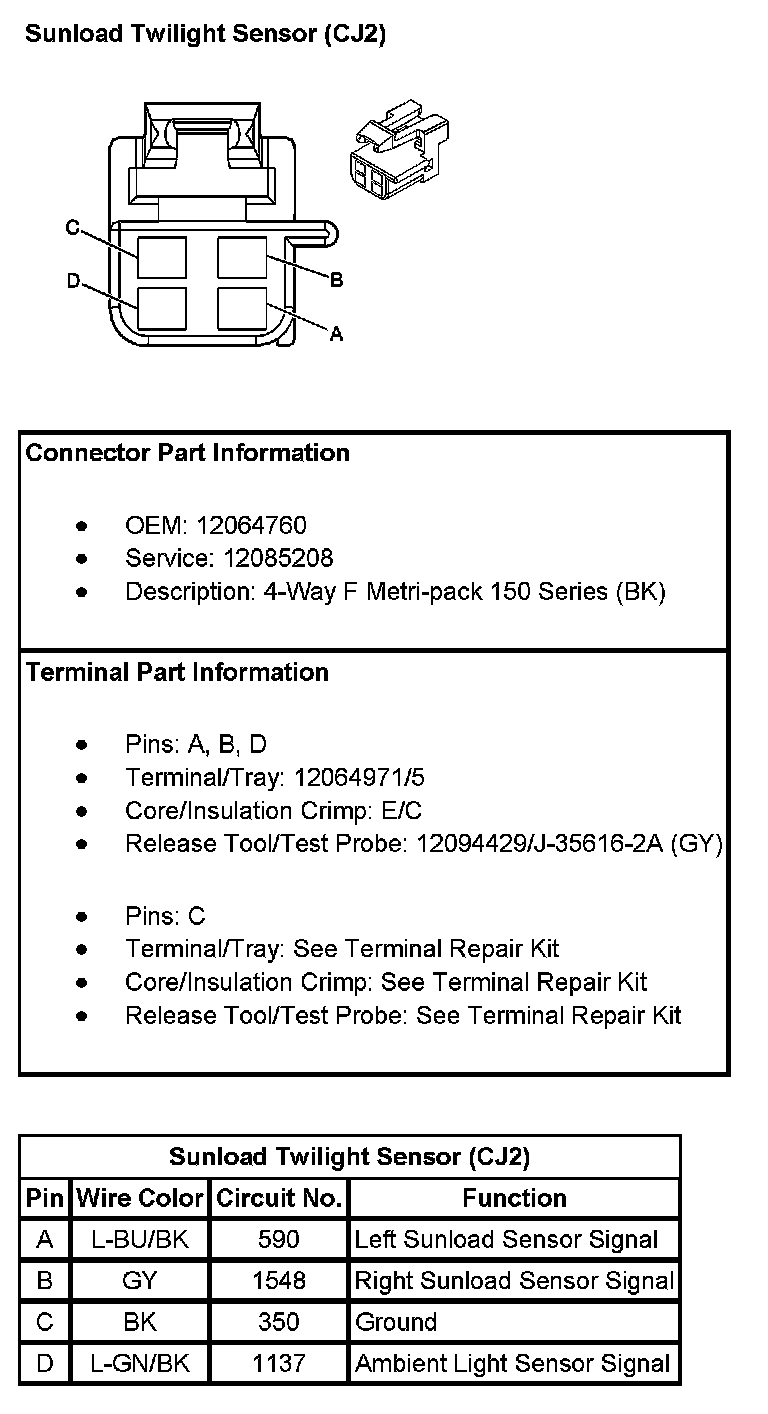

Sunload Twilight Sensor (With RPO Code CJ2):



Sunload Twilight Sensor (With RPO Code C67):
