Body Views

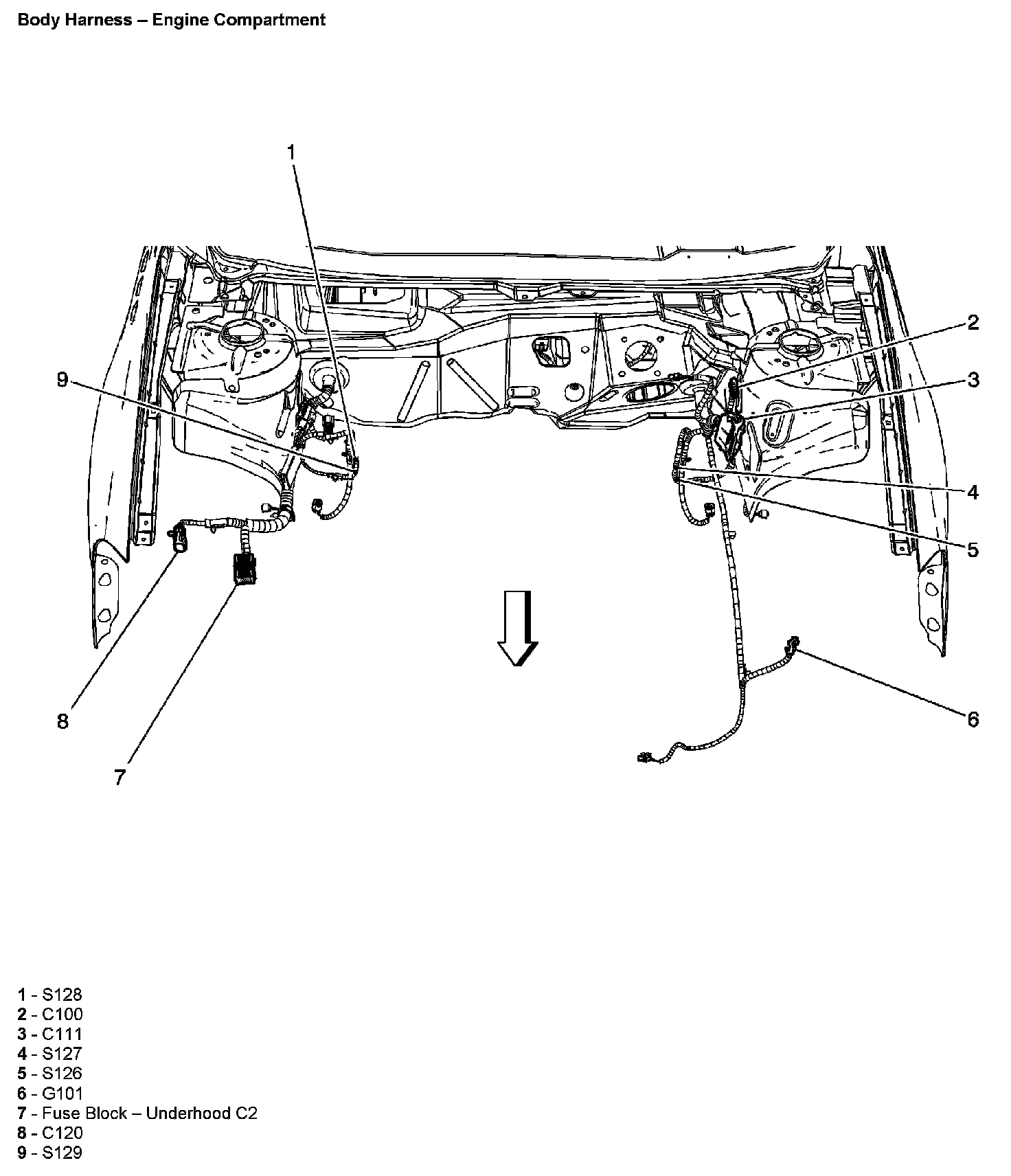

Body Harness - Engine Compartment:

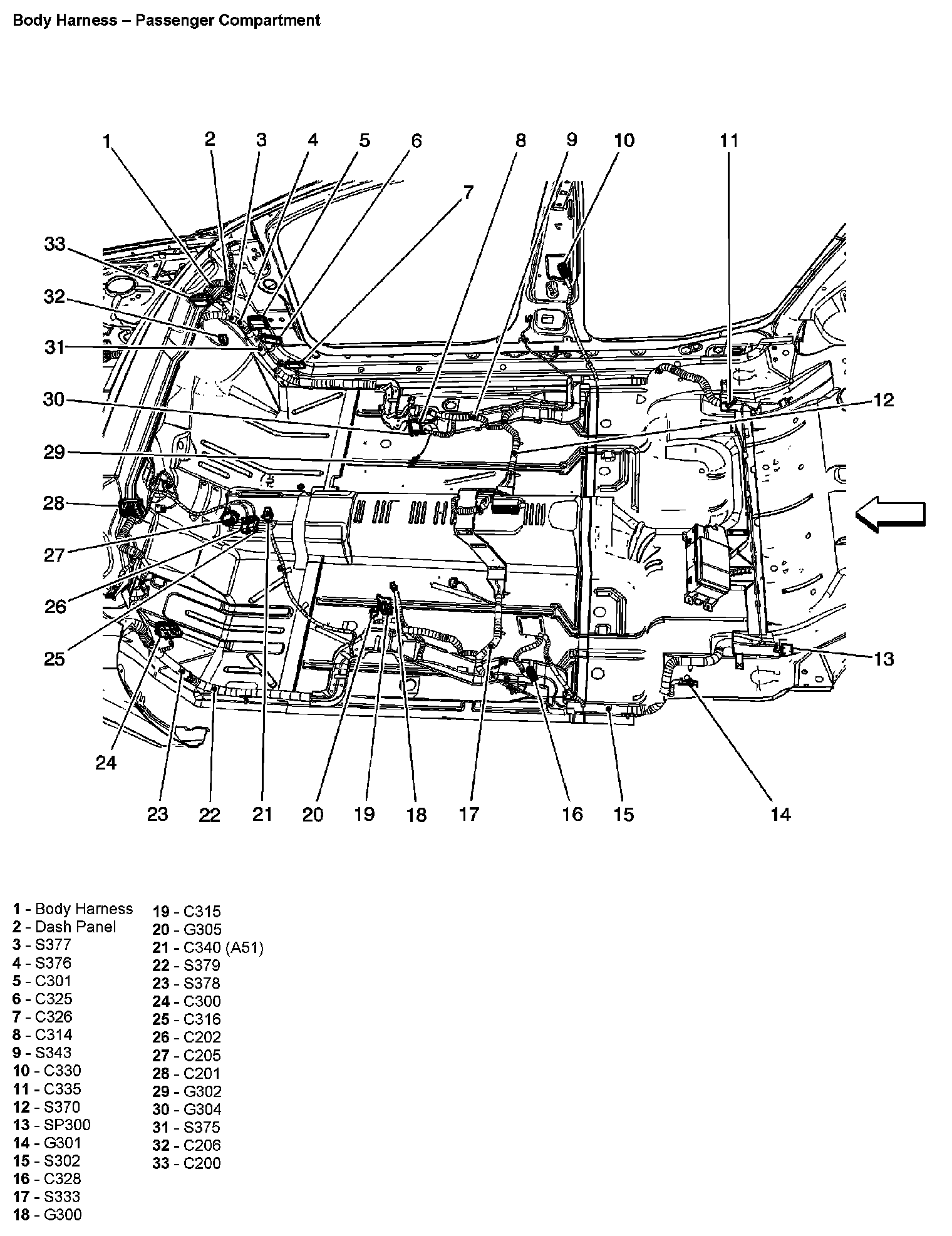

Body Harness - Passenger Compartment:

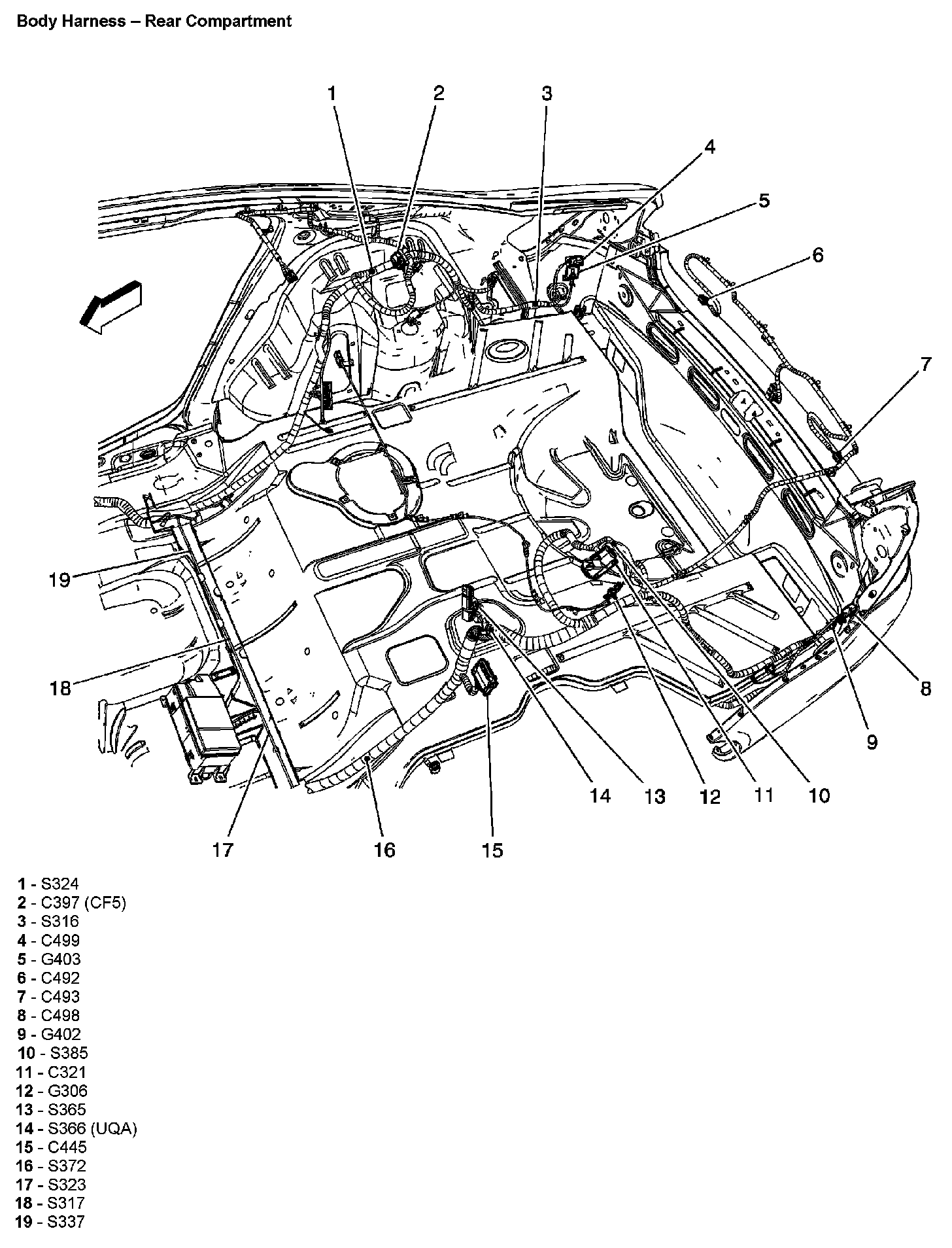

Body Harness - Rear Compartment:
