Underhood Fuse Block

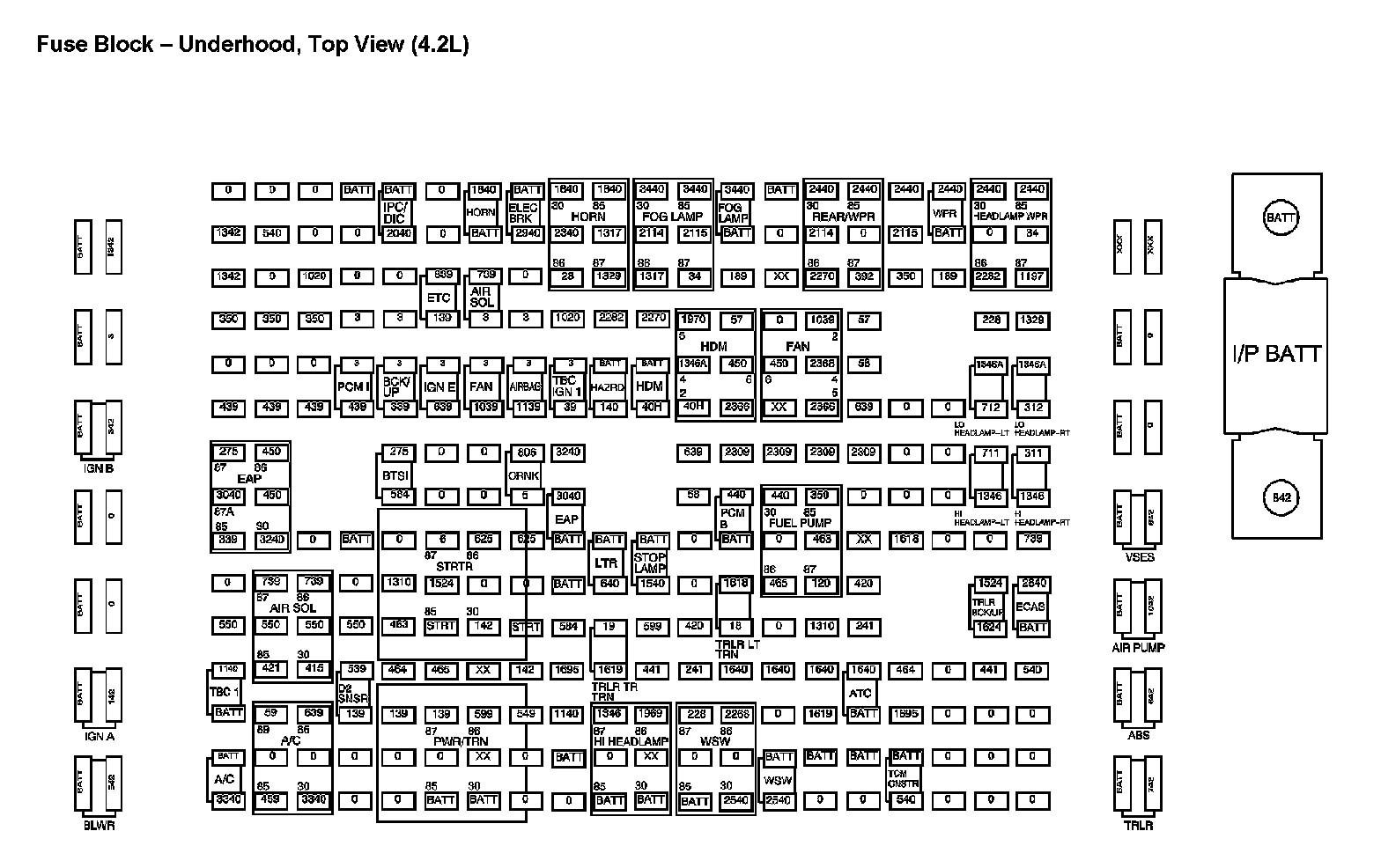

Fuse Block - Underhood, Top View (4.2L):

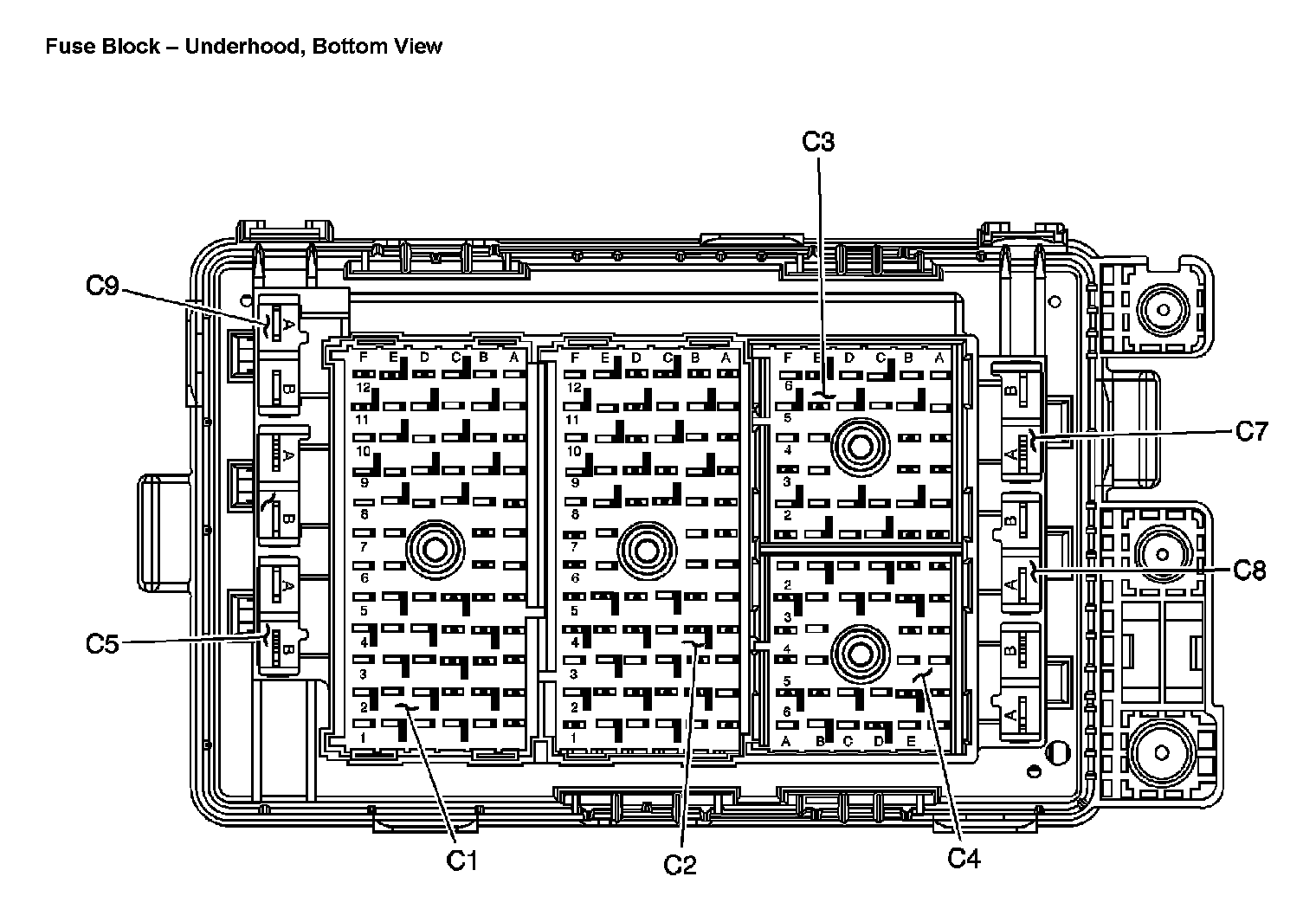

Fuse Block - Underhood, Bottom View:

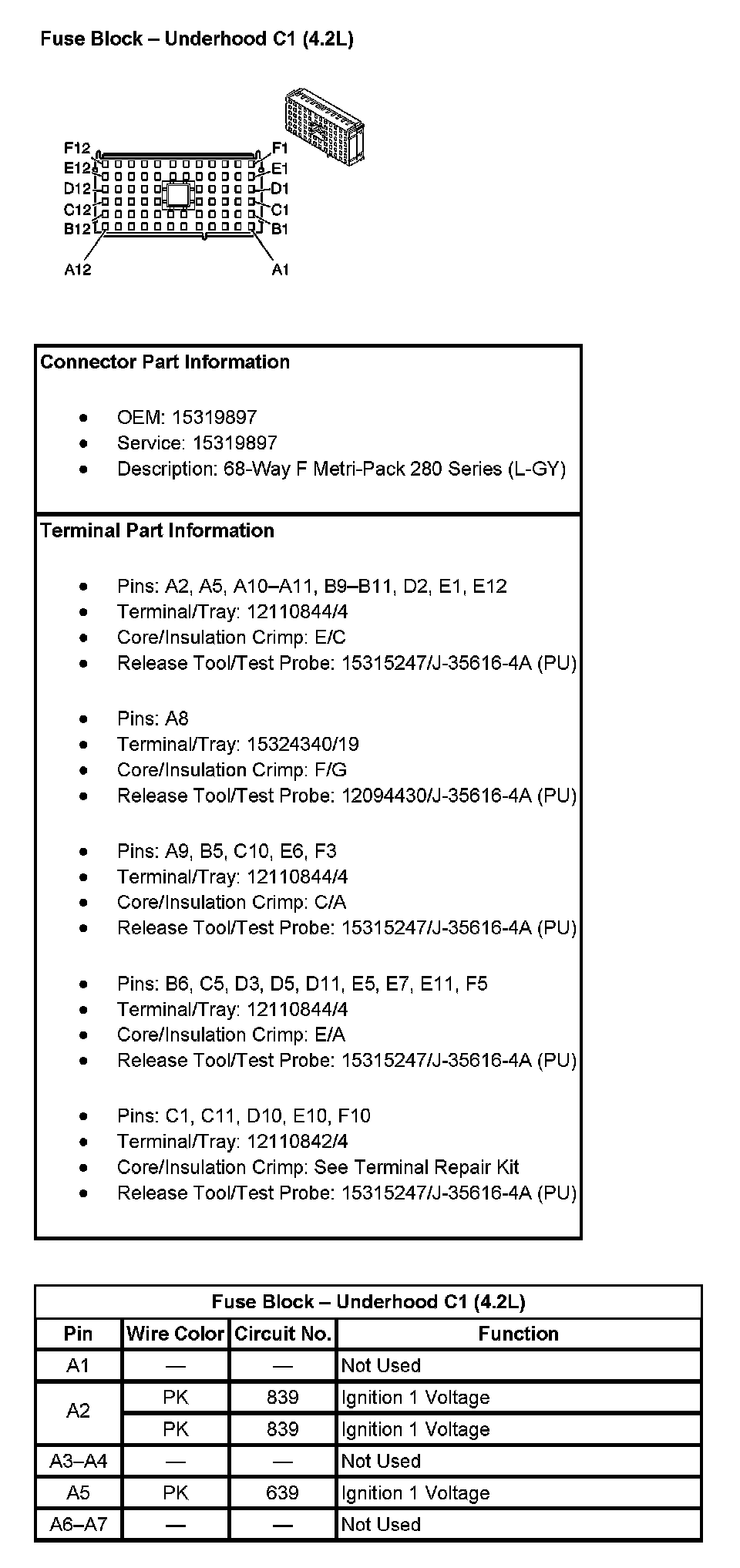

Fuse Block - Underhood C1 (4.2L):

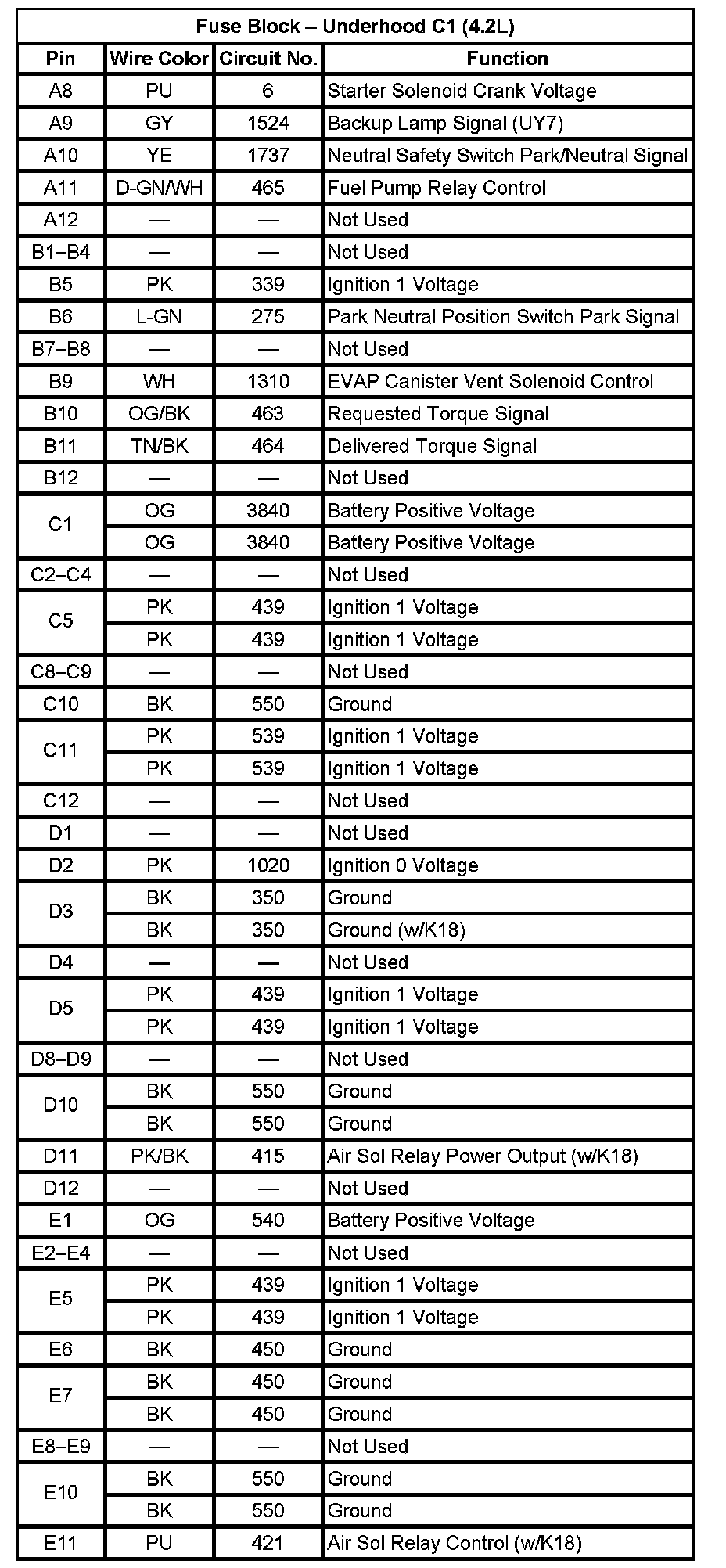

Fuse Block - Underhood C1 (4.2L):




Fuse Block - Underhood C1 (4.2L):

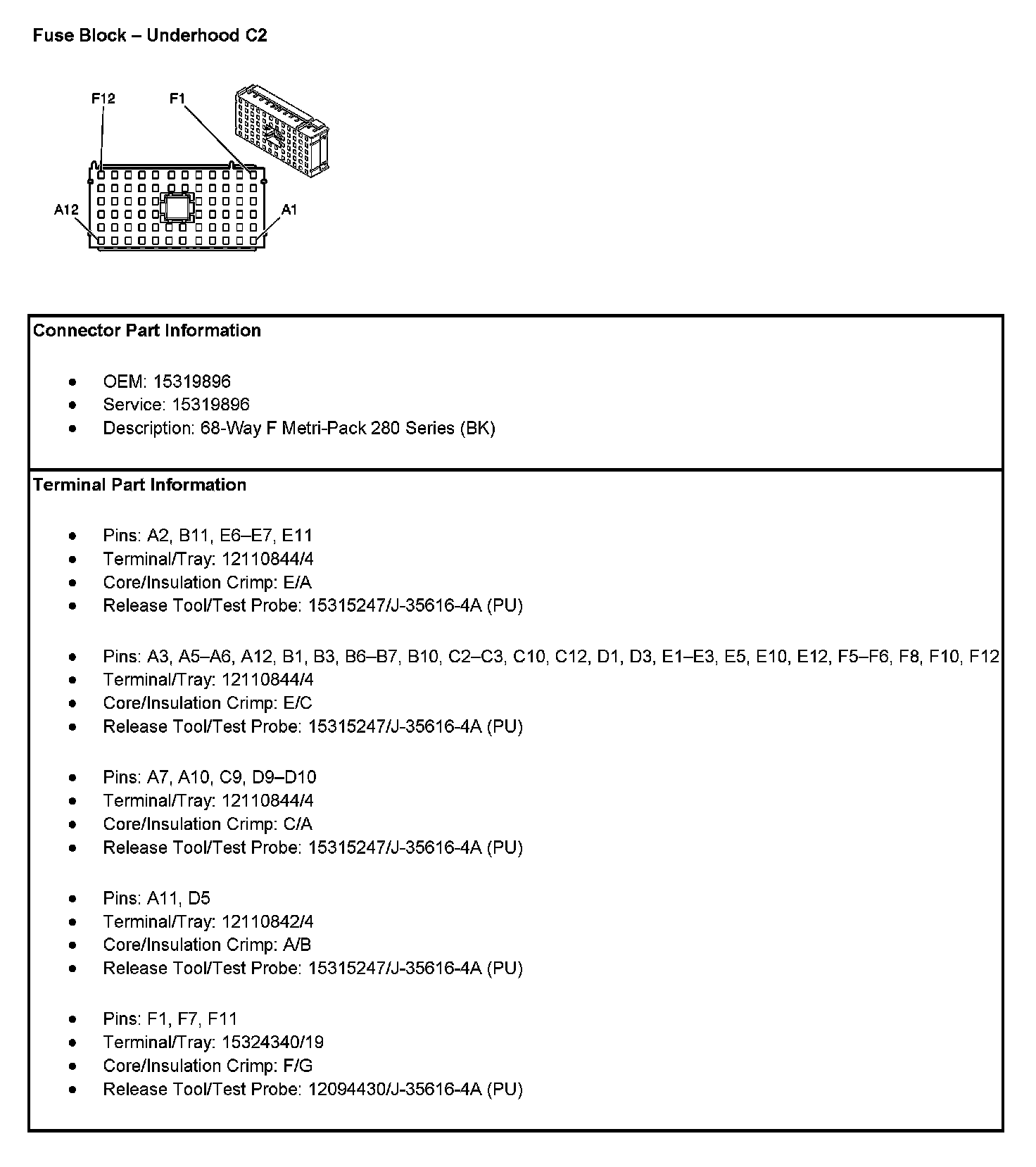

Fuse Block - Underhood C2:

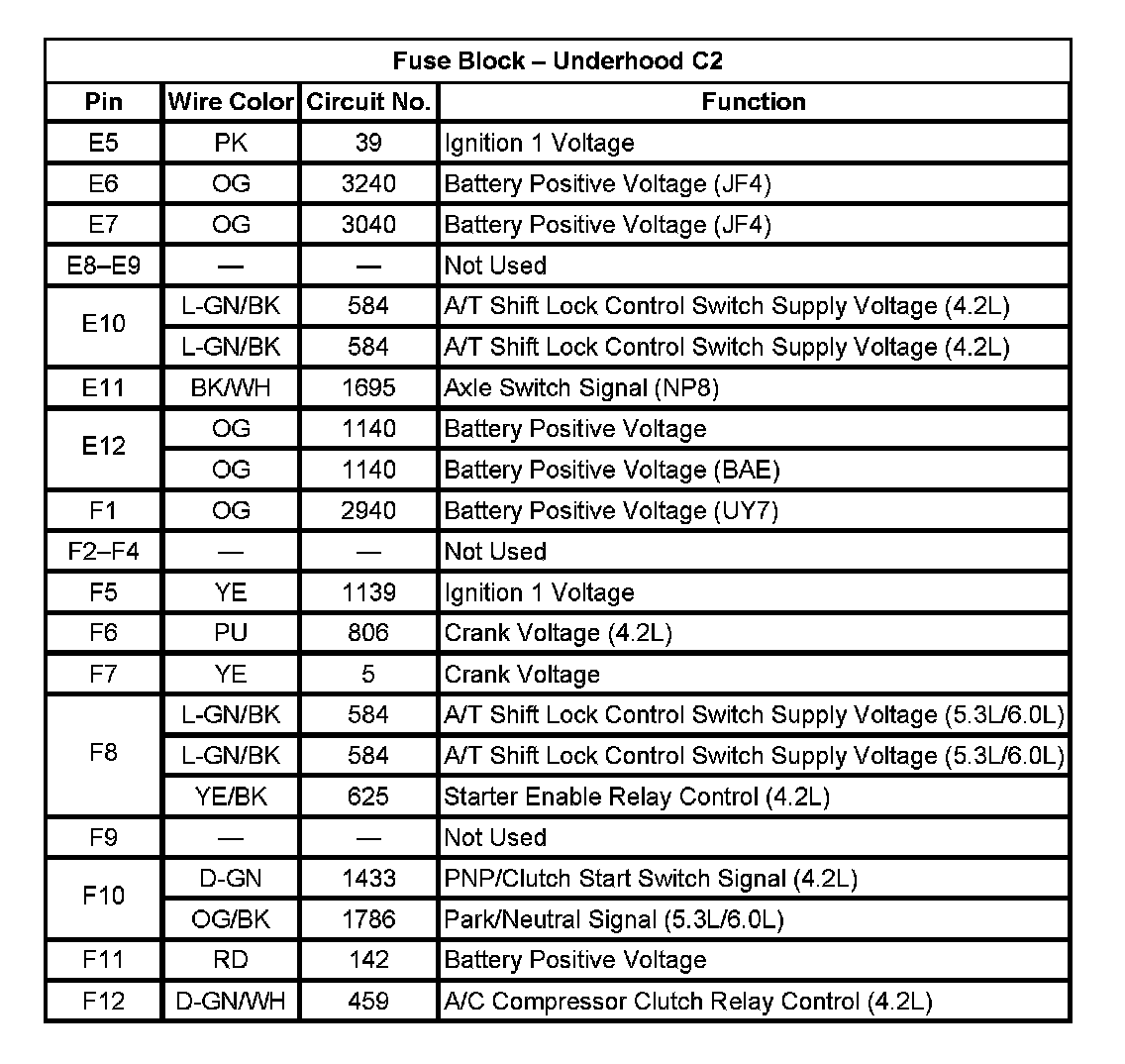

Fuse Block - Underhood C2:

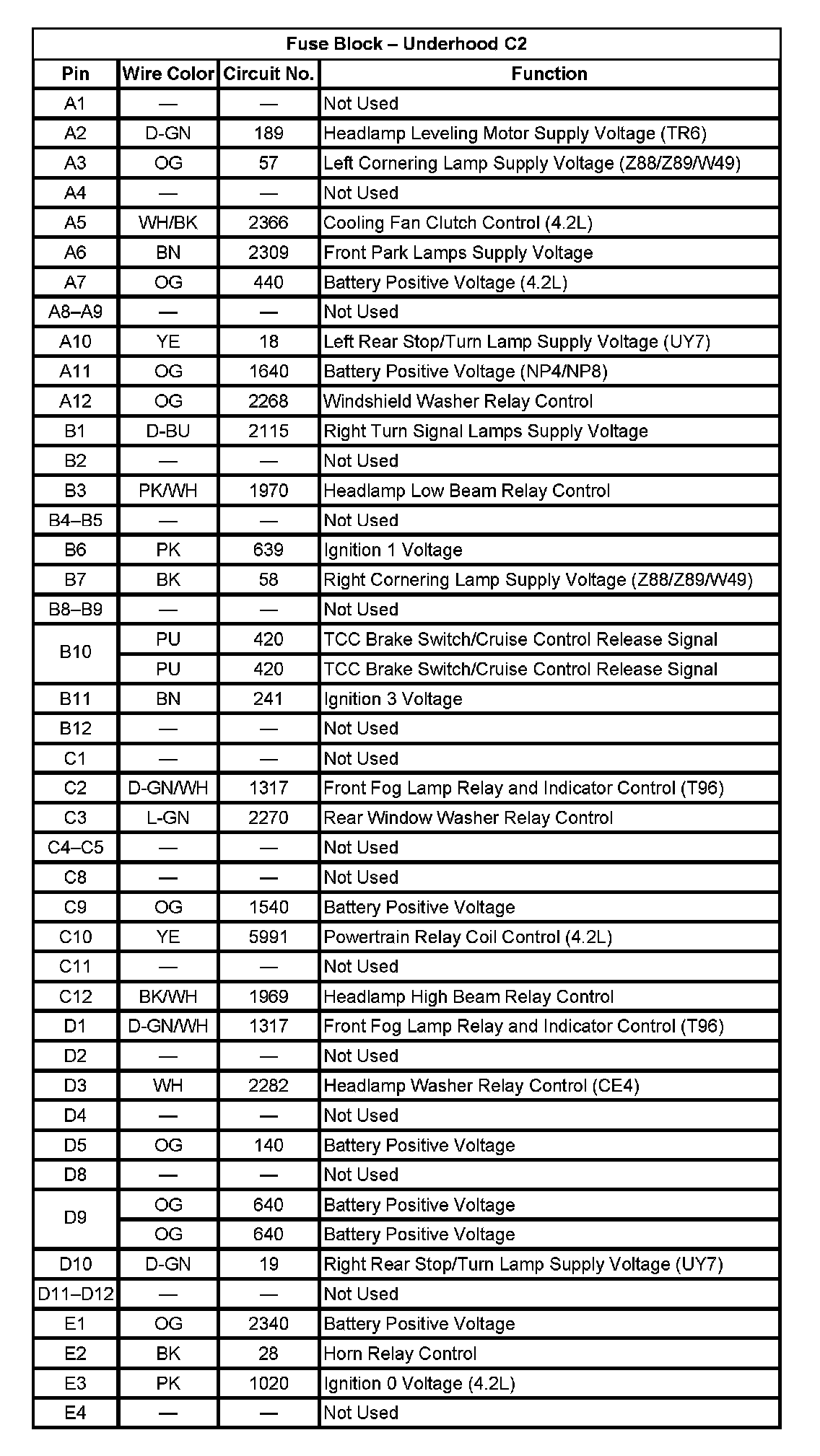

Fuse Block - Underhood C2:

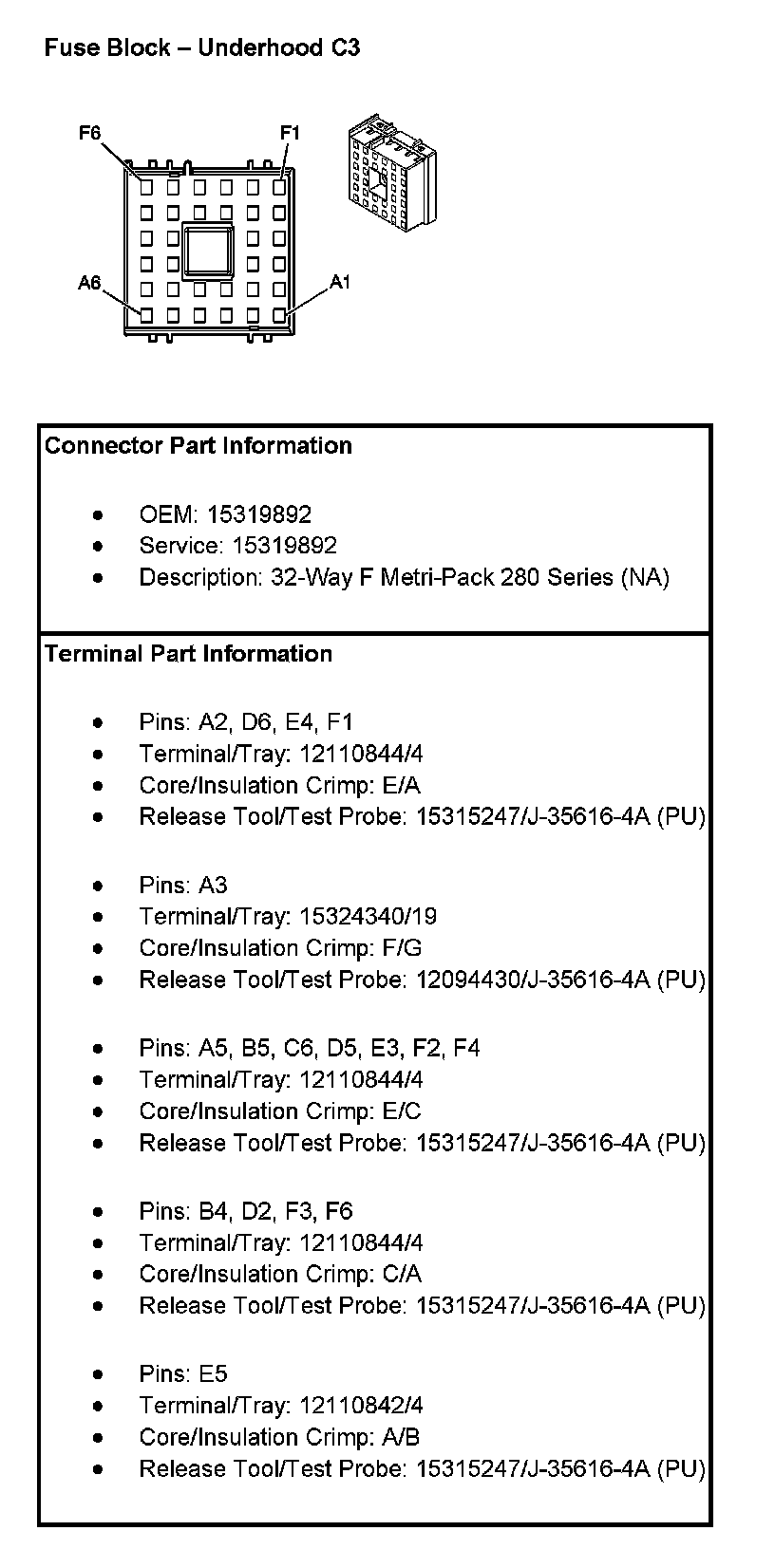

Fuse Block - Underhood C3:

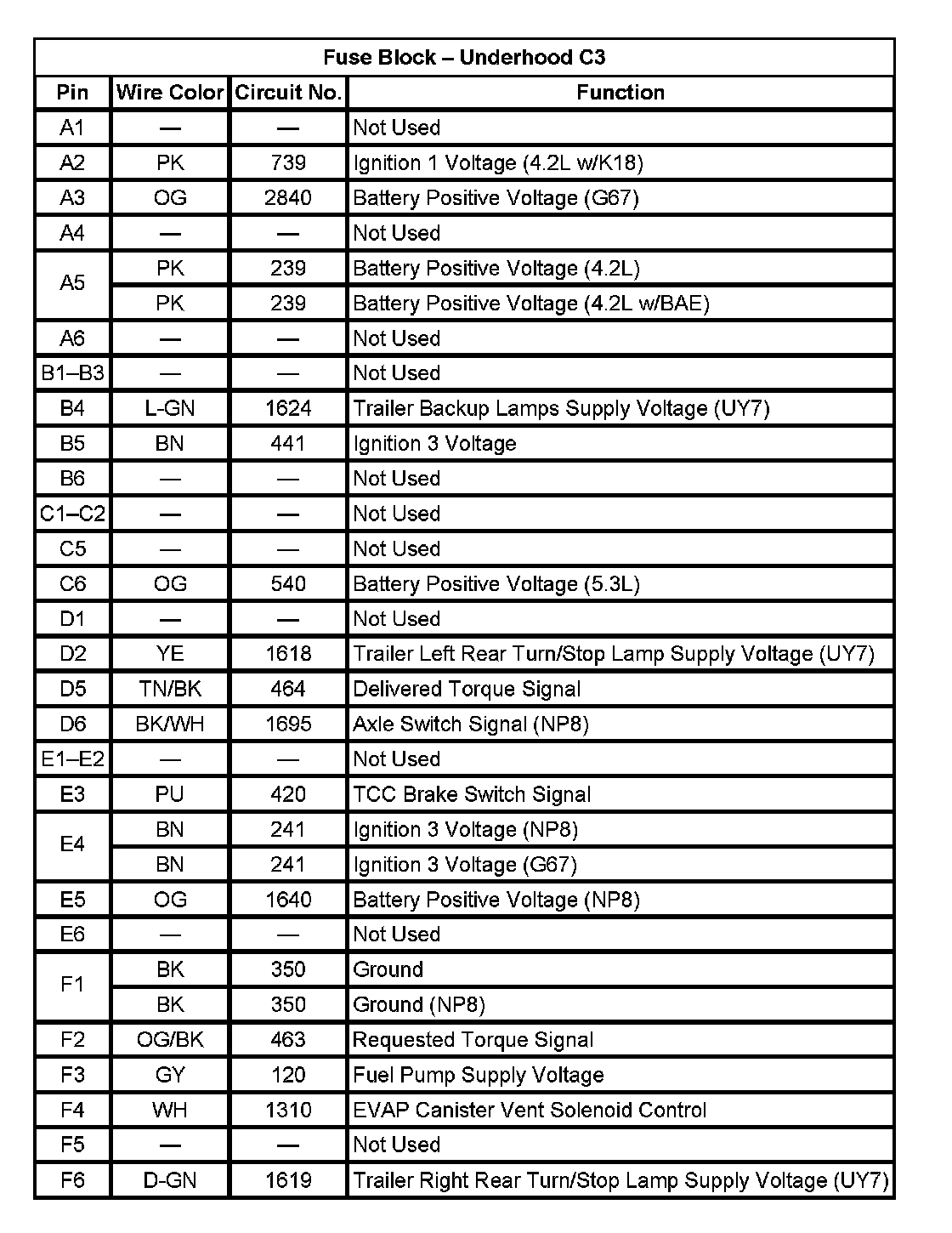

Fuse Block - Underhood C3:

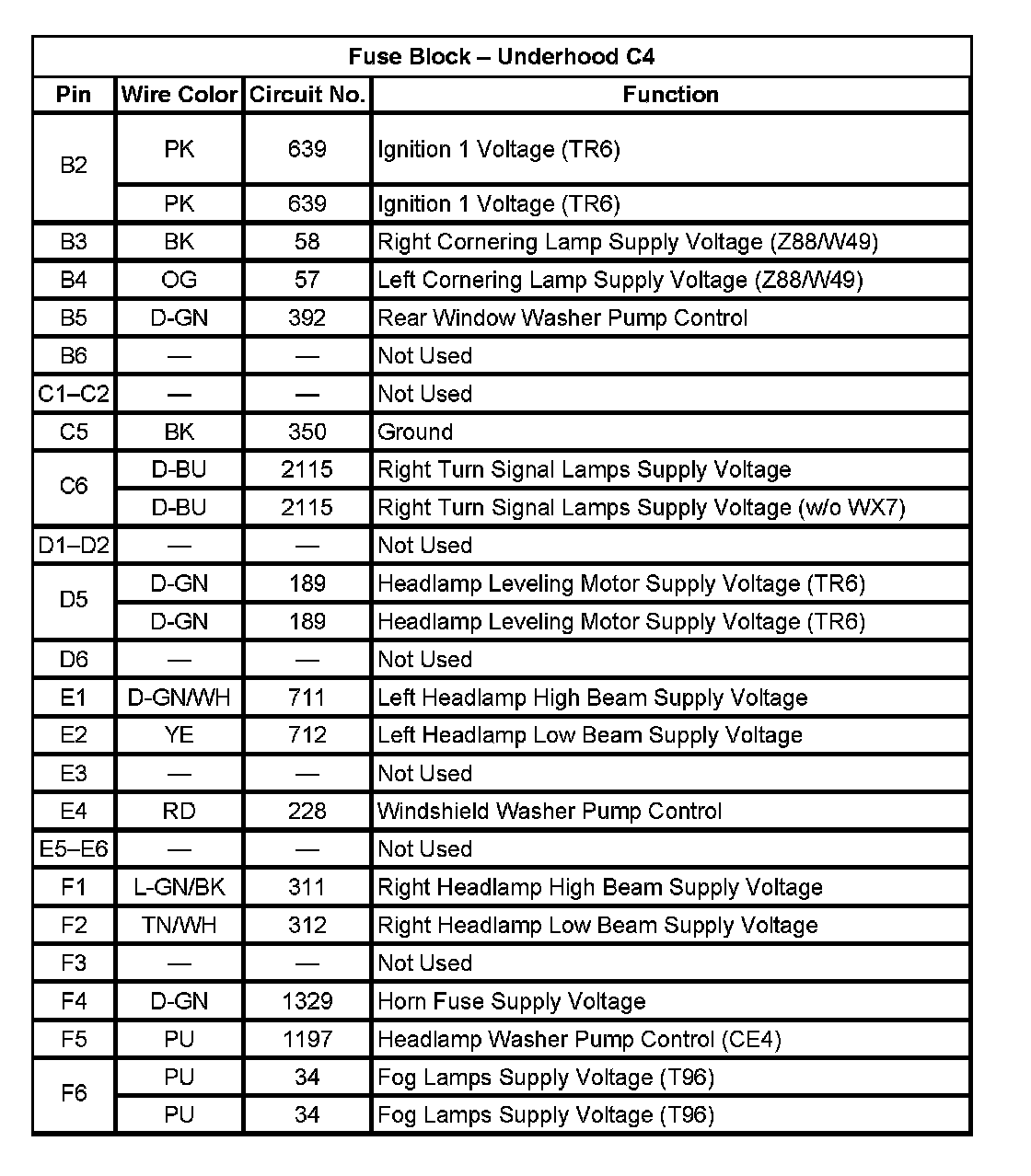

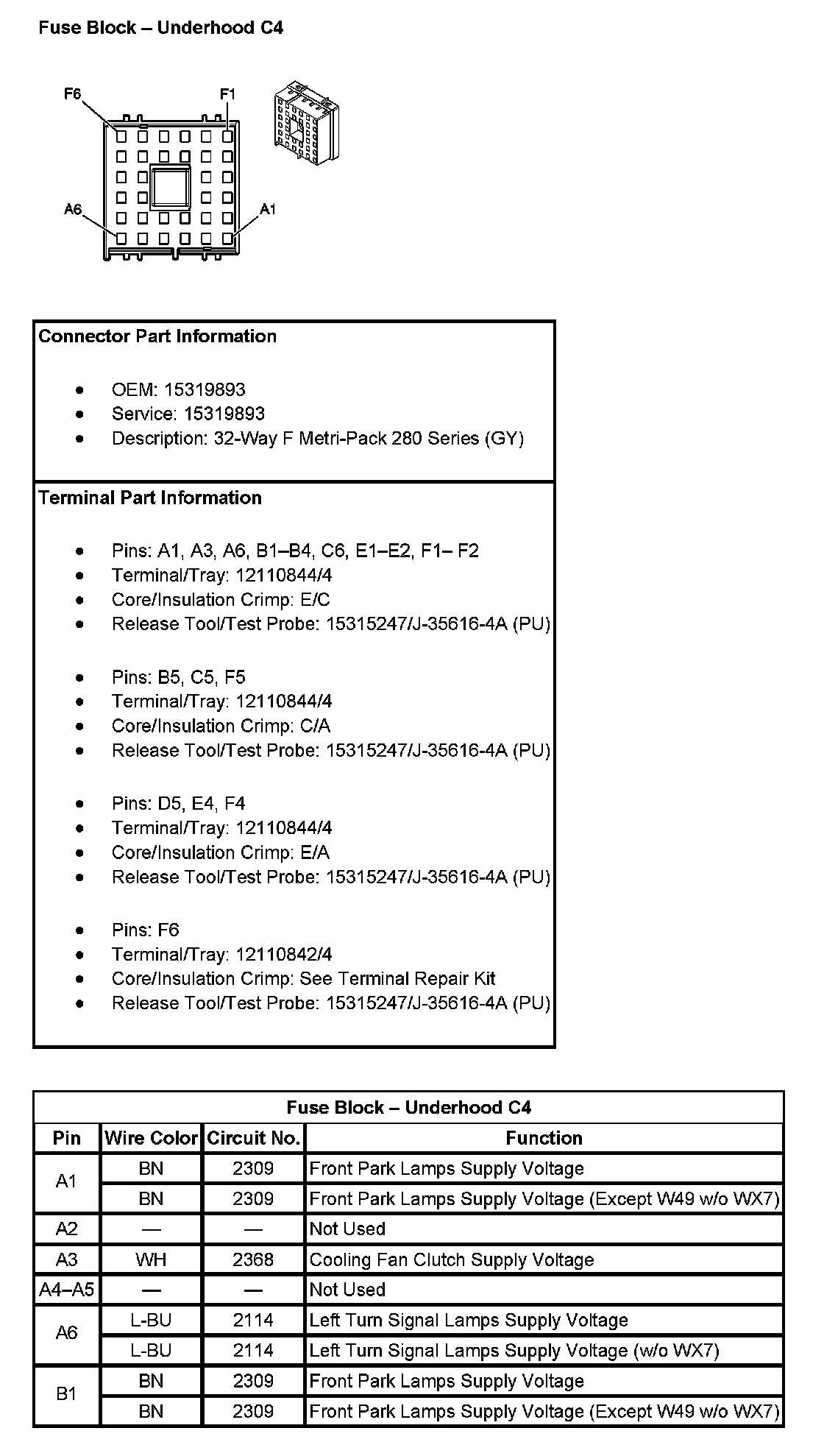

Fuse Block - Underhood C4 (Pin B2 To F6):




Fuse Block - Underhood C5:




Fuse Block - Underhood C7:




Fuse Block - Underhood C8:




Fuse Block - Underhood C9:
