Control Assembly: Locations

HVAC Component Views

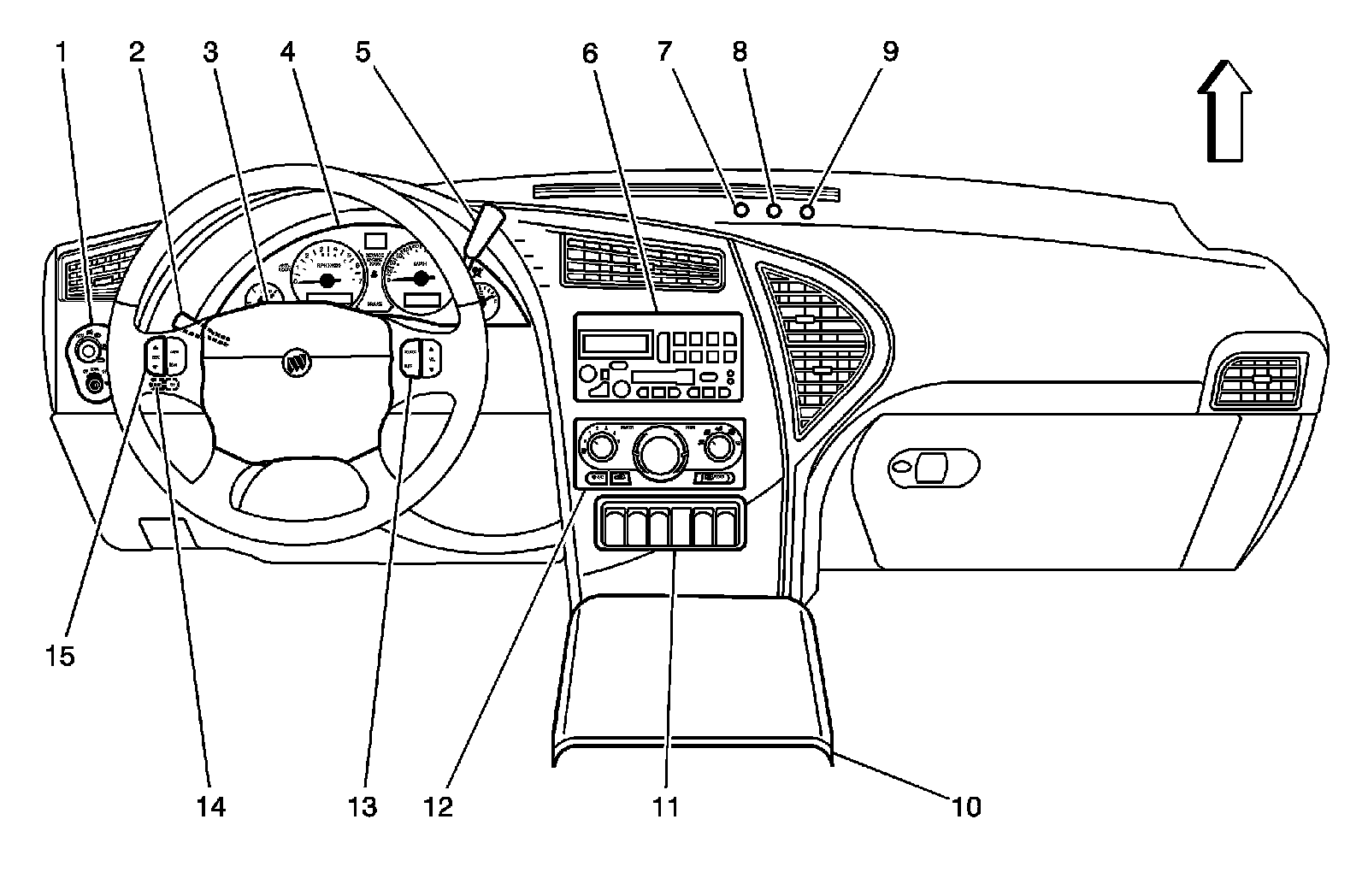

Instrument Panel




1 - Headlamp Switch
2 - Turn Signal/Multifunction Switch
3 - Hazard Switch
4 - Instrument Panel Cluster (IPC)
5 - Automatic Transmission Shift Lever
6 - Radio
7 - Theft Light Emitting Diode (LED) (UA6)
8 - Sunload Sensor
9 - Ambient Light Sensor
10 - Center Console
11 - I/P Switch Assembly
12 - HVAC Control Module
13 - Steering Wheel Control Switch Assembly - Right (UK3)
14 - Head Up Display (HUD) Switch (UV6) and Driver Information Center (DIC) Switch (UH9)
15 - Steering Wheel Control Switch Assembly - Left (UK3)
