Inflatable Restraint Components Views

Harness Routing Views

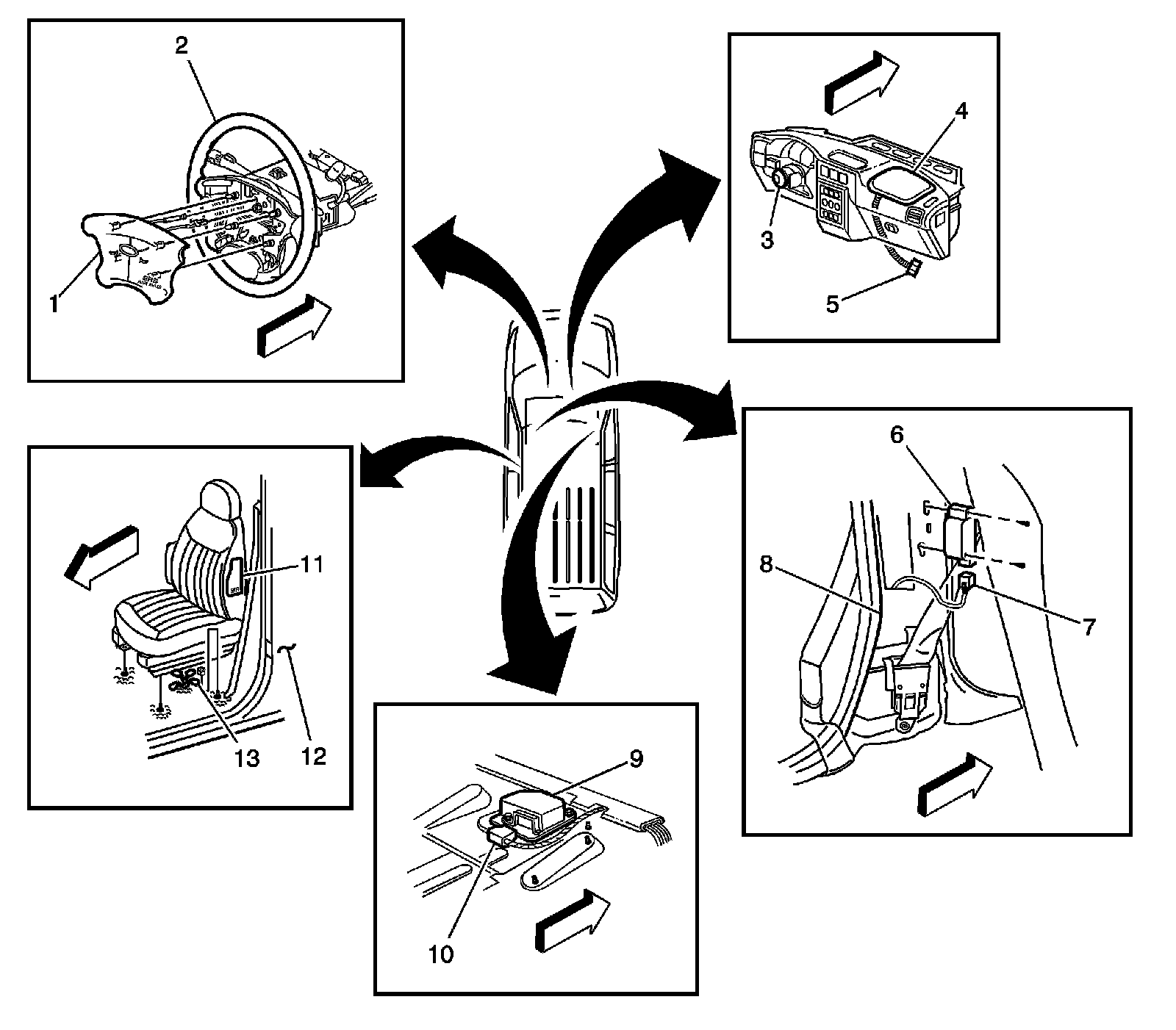

Inflatable Restraint Components




1 - Inflatable Restraint Steering Wheel Module (Includes Horn Contact)
2 - Steering Wheel
3 - Inflatable Restraint Steering Wheel Module Coil
4 - Inflatable Restraint I/P Module
5 - C218
6 - Inflatable Restraint Side Impact Sensor - Left (AJ7) (Right Similar)
7 - Inflatable Restraint Side Impact Sensor - Left Connector (AJ7) (Right Similar)
8 - Left B-Pillar
9 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
10 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
11 - Inflatable Restraint Side Impact Module - Left (AJ7) (Right Similar)
12 - Seat Belt Pretensioner - Left (Right Similar, but also includes Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor)
13 - Body Harness
