Liftgate Views

Harness Routing Views

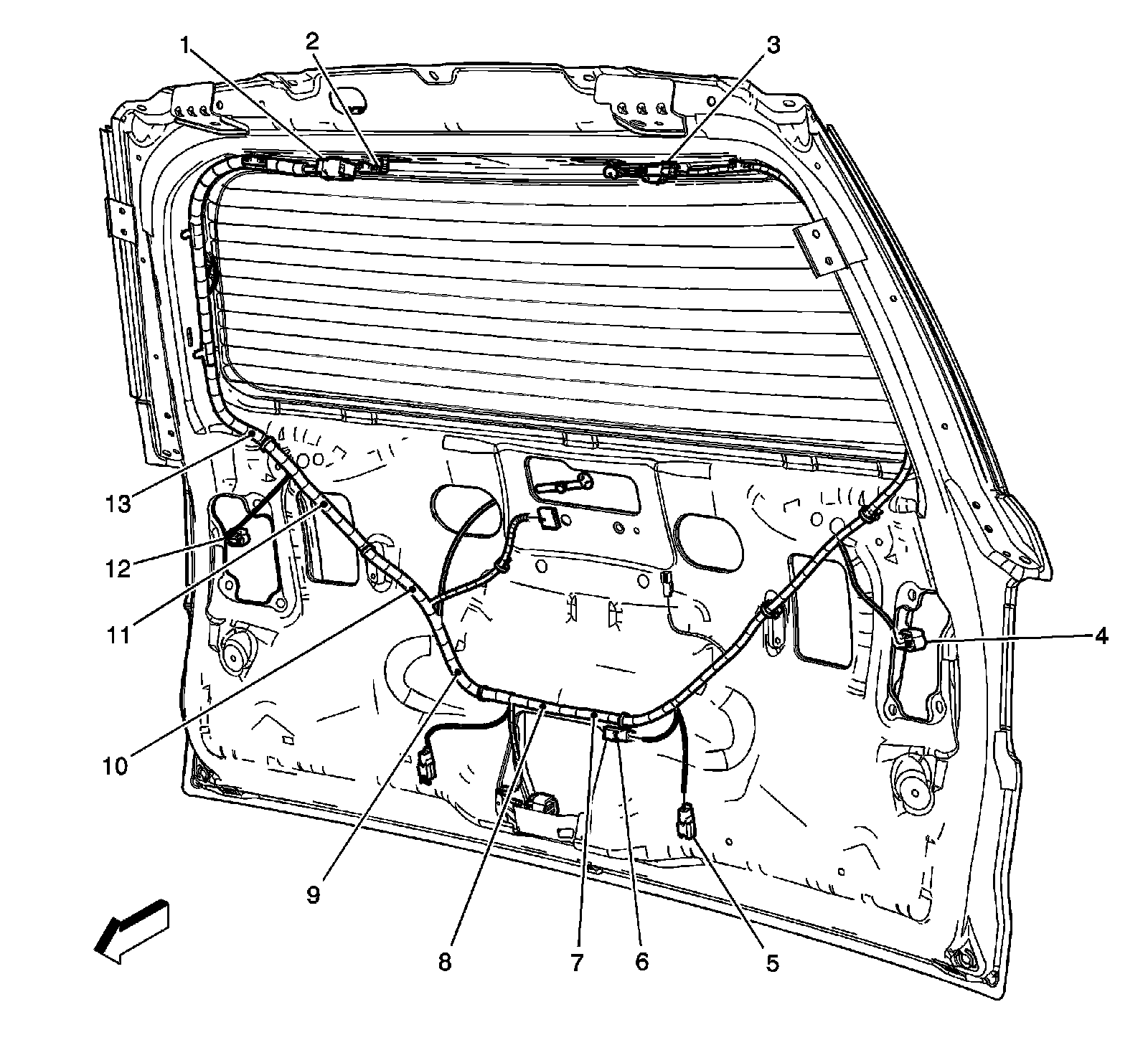

Liftgate Harness




1 - X903
2 - X901
3 - X911
4 - X931 (W49/Z88)
5 - Liftgate Switch Interior (E61) Connector
6 - Liftgate Switch Exterior Connector
7 - J911 (Z88)
8 - J915
9 - J905 (E61)
10 - J907 (E61)
11 - J913
12 - X920 (W49/Z88)
13 - J903 (WDA)
