Part 1
Component Connector End Views
Accelerator Pedal Position (APP) Sensor

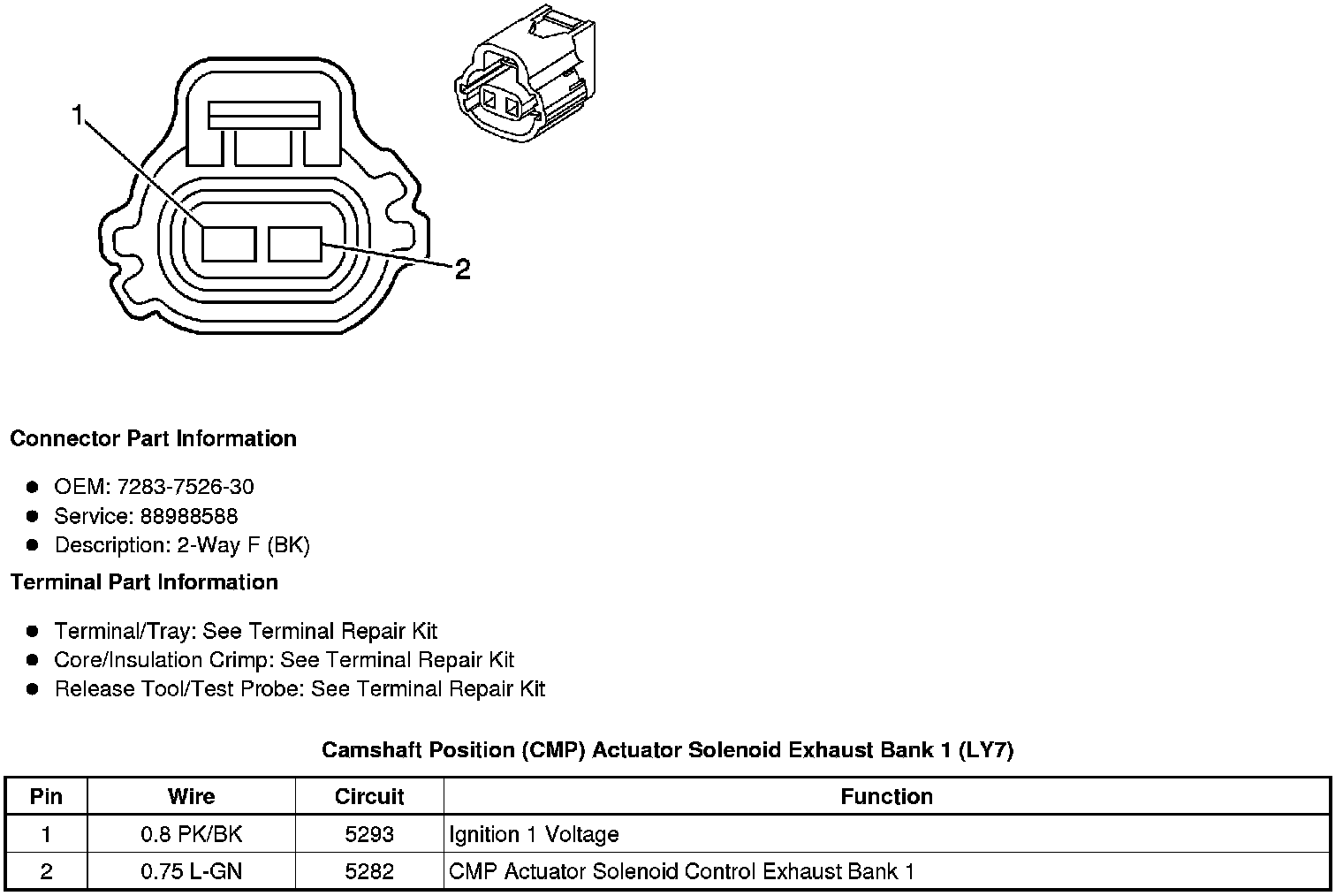

Camshaft Position (CMP) Actuator Solenoid Exhaust Bank 1 (LY7)

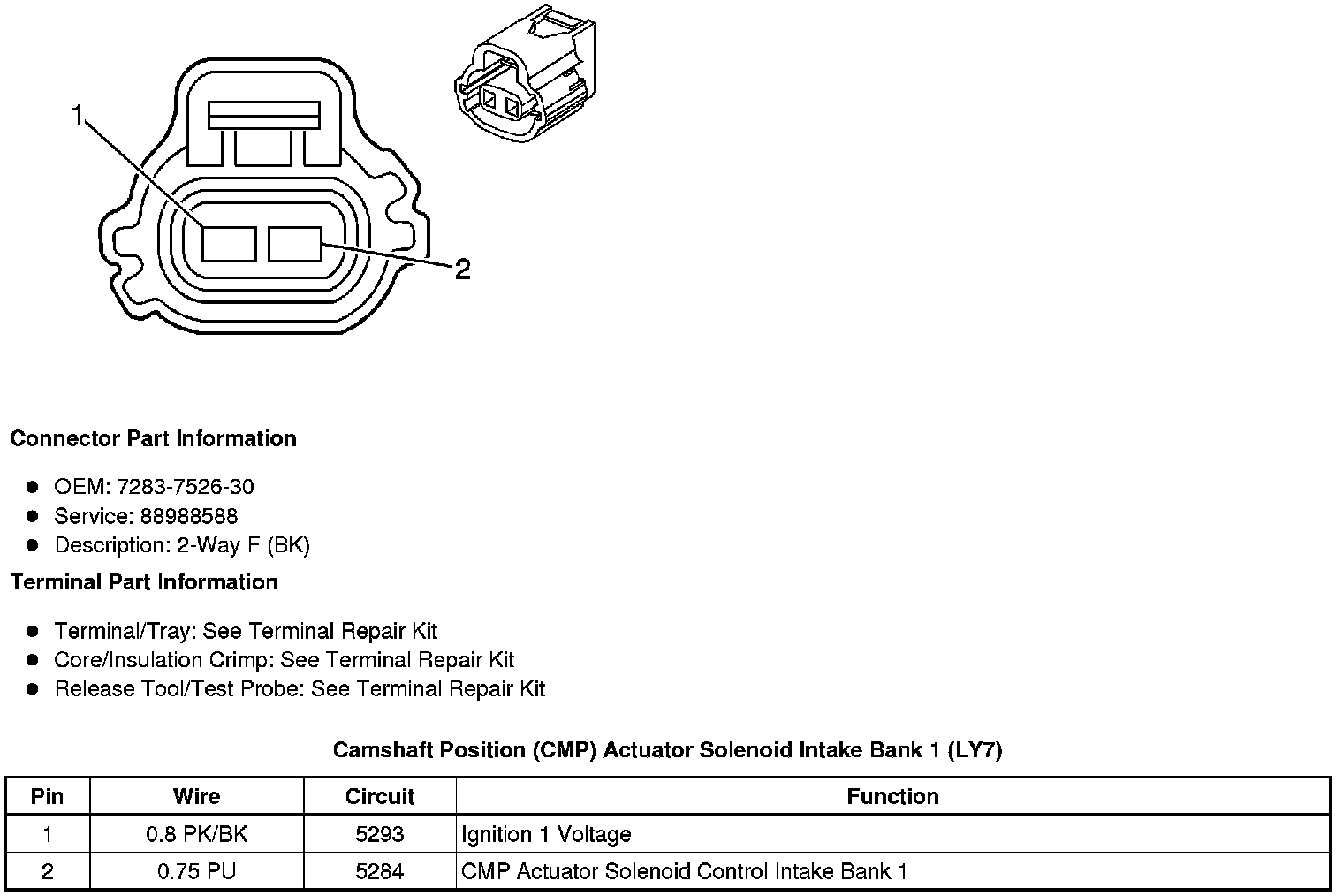

Camshaft Position (CMP) Actuator Solenoid Intake Bank 1 (LY7)
Camshaft Position (CMP) Actuator Solenoid Exhaust Bank 2 (LY7)

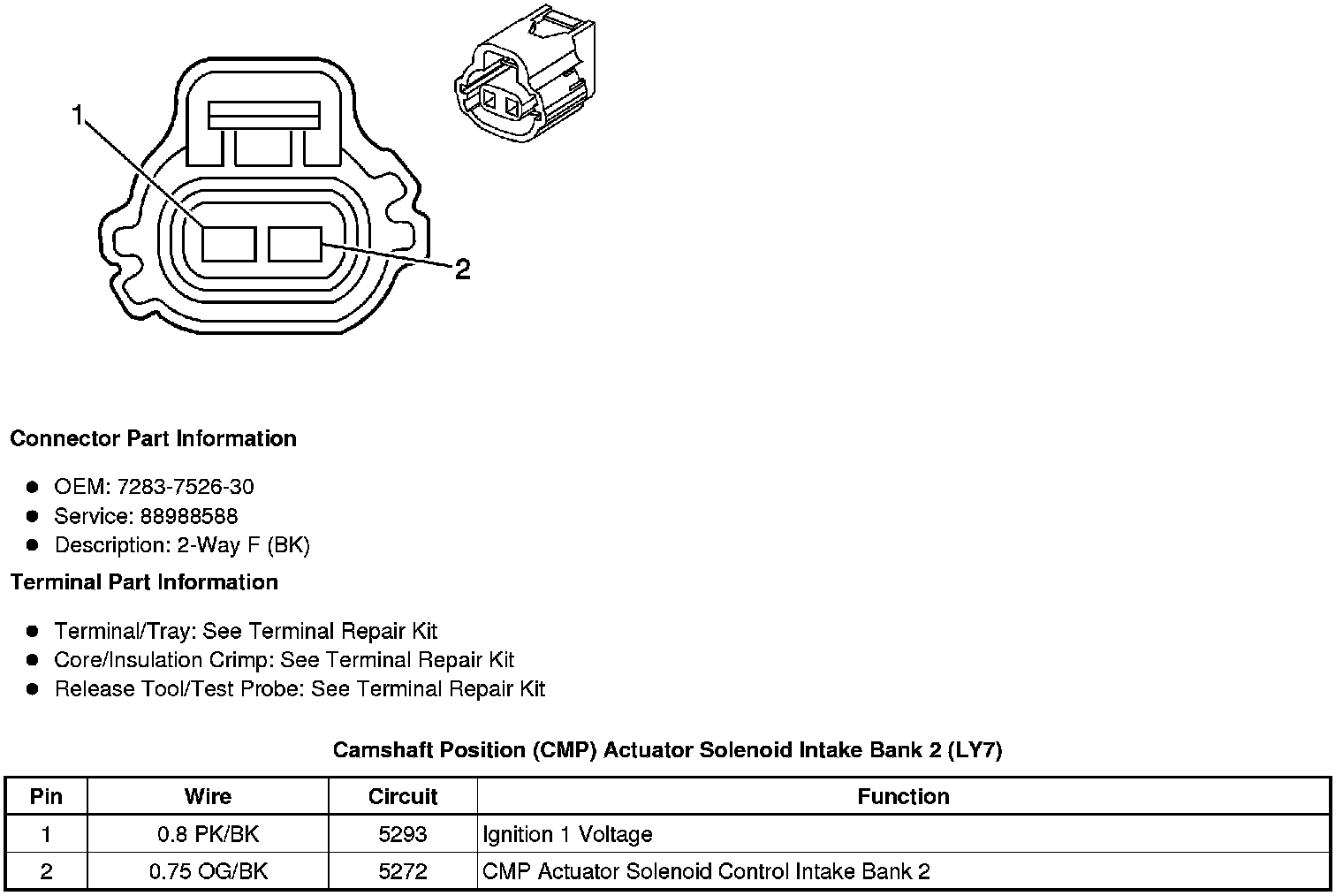

Camshaft Position (CMP) Actuator Solenoid Intake Bank 2 (LY7)

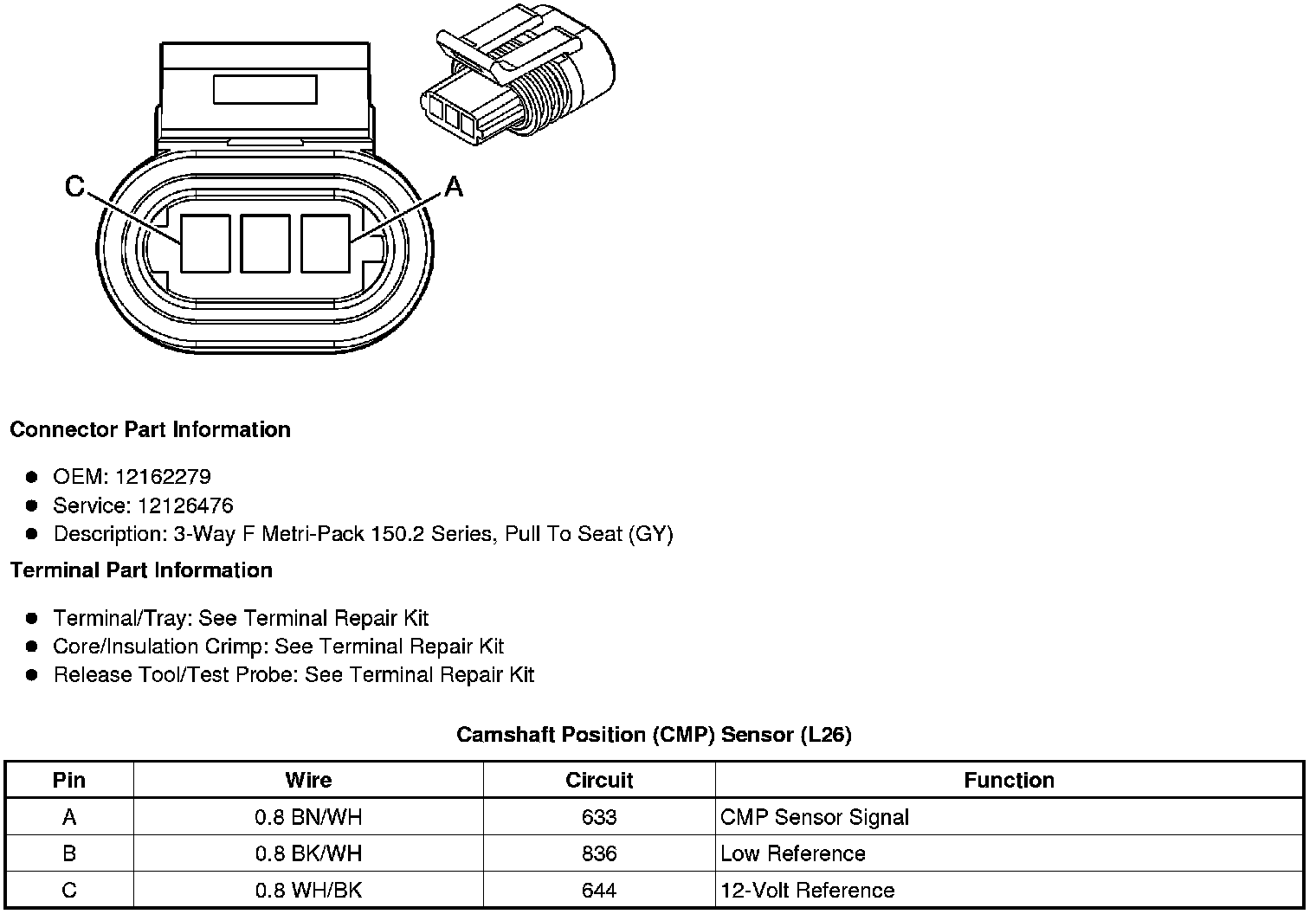

Camshaft Position (CMP) Sensor (L26)
Camshaft Position (CMP) Sensor (LS4)

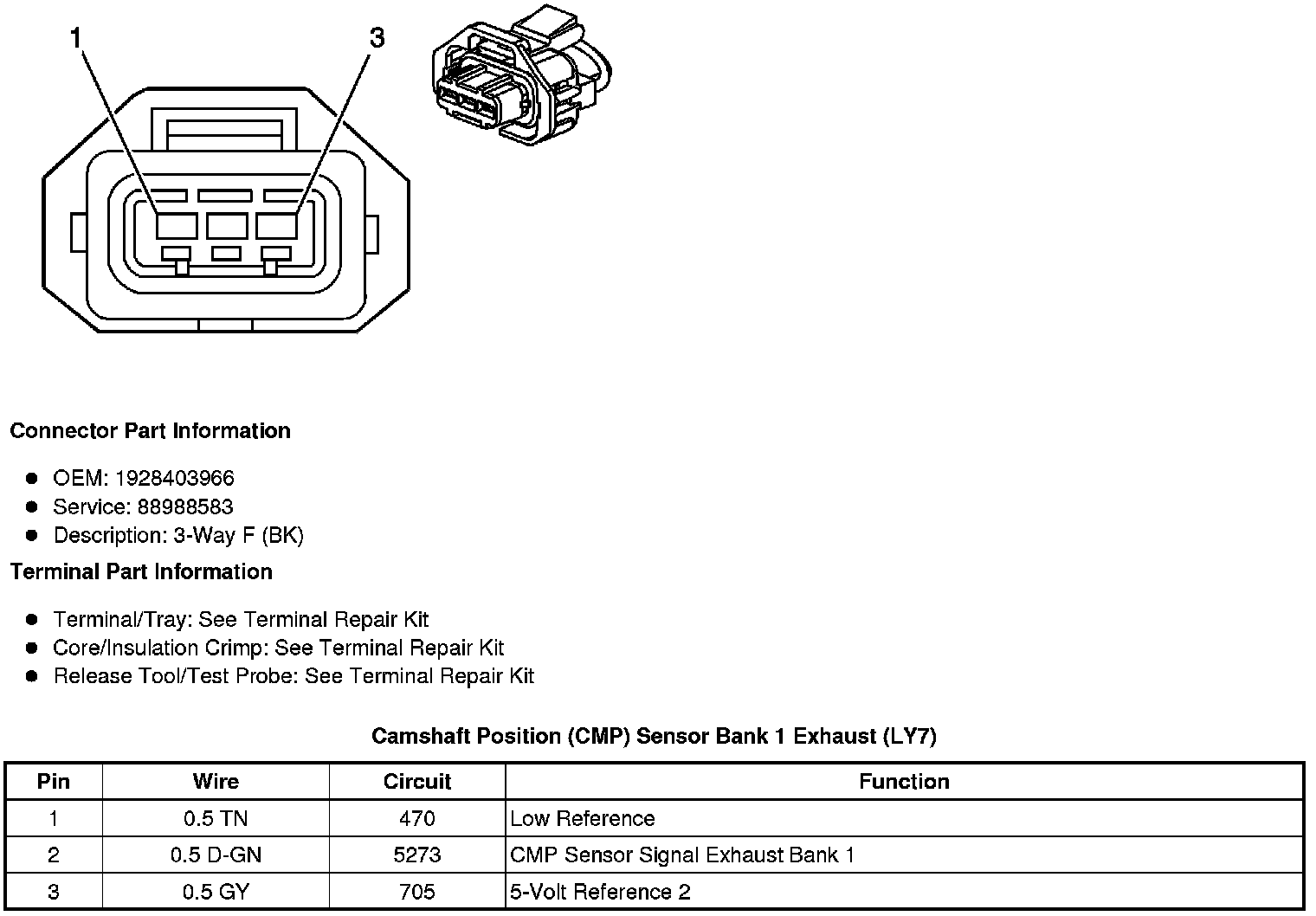

Camshaft Position (CMP) Sensor Bank 1 Exhaust (LY7)

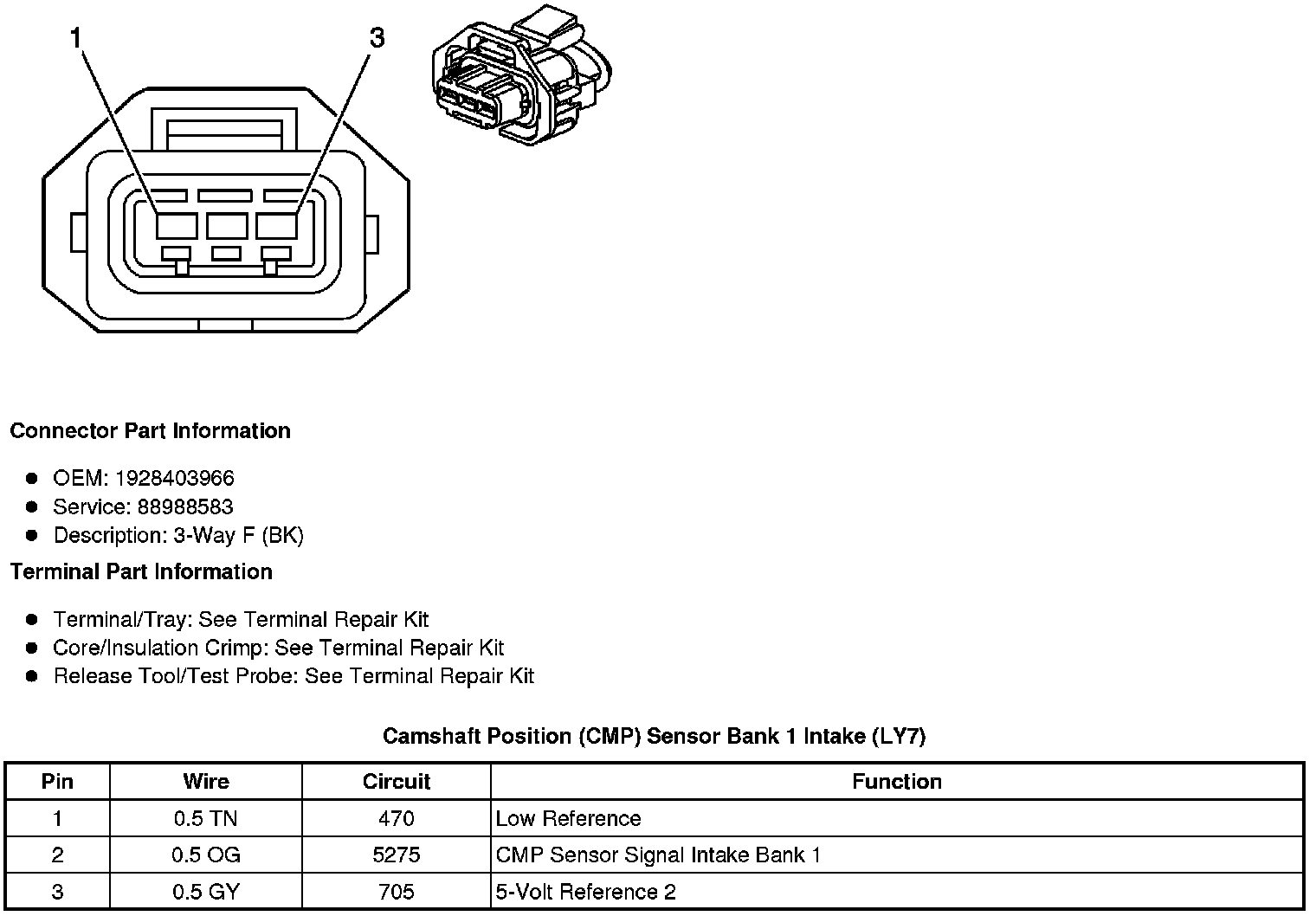

Camshaft Position (CMP) Sensor Bank 1 Intake (LY7)

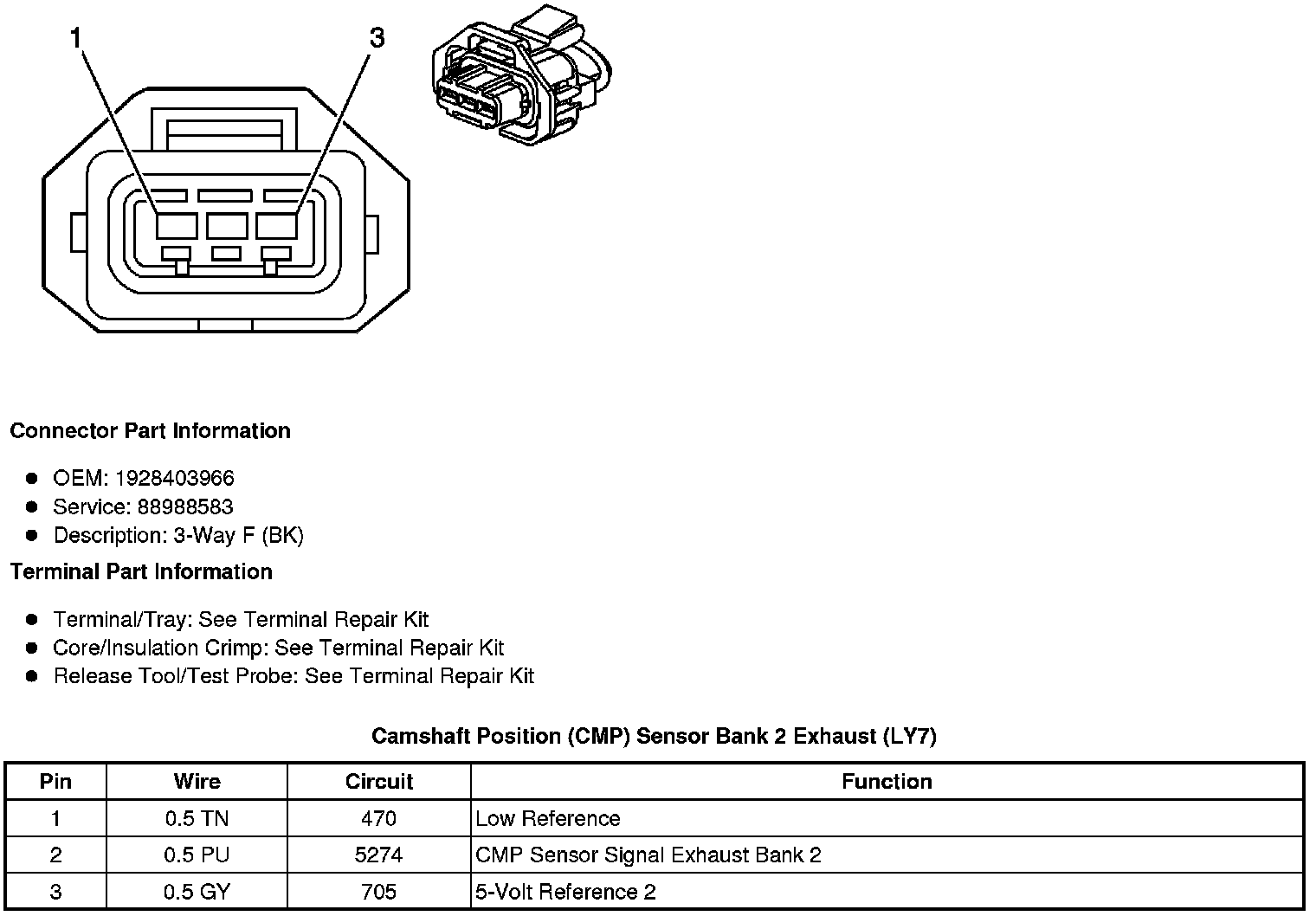

Camshaft Position (CMP) Sensor Bank 2 Exhaust (LY7)
Camshaft Position (CMP) Sensor Bank 2 Intake (LY7)
Crankshaft Position (CKP) Sensor (L26)
Crankshaft Position (CKP) Sensor (LS4)
Crankshaft Position (CKP) Sensor (LY7)

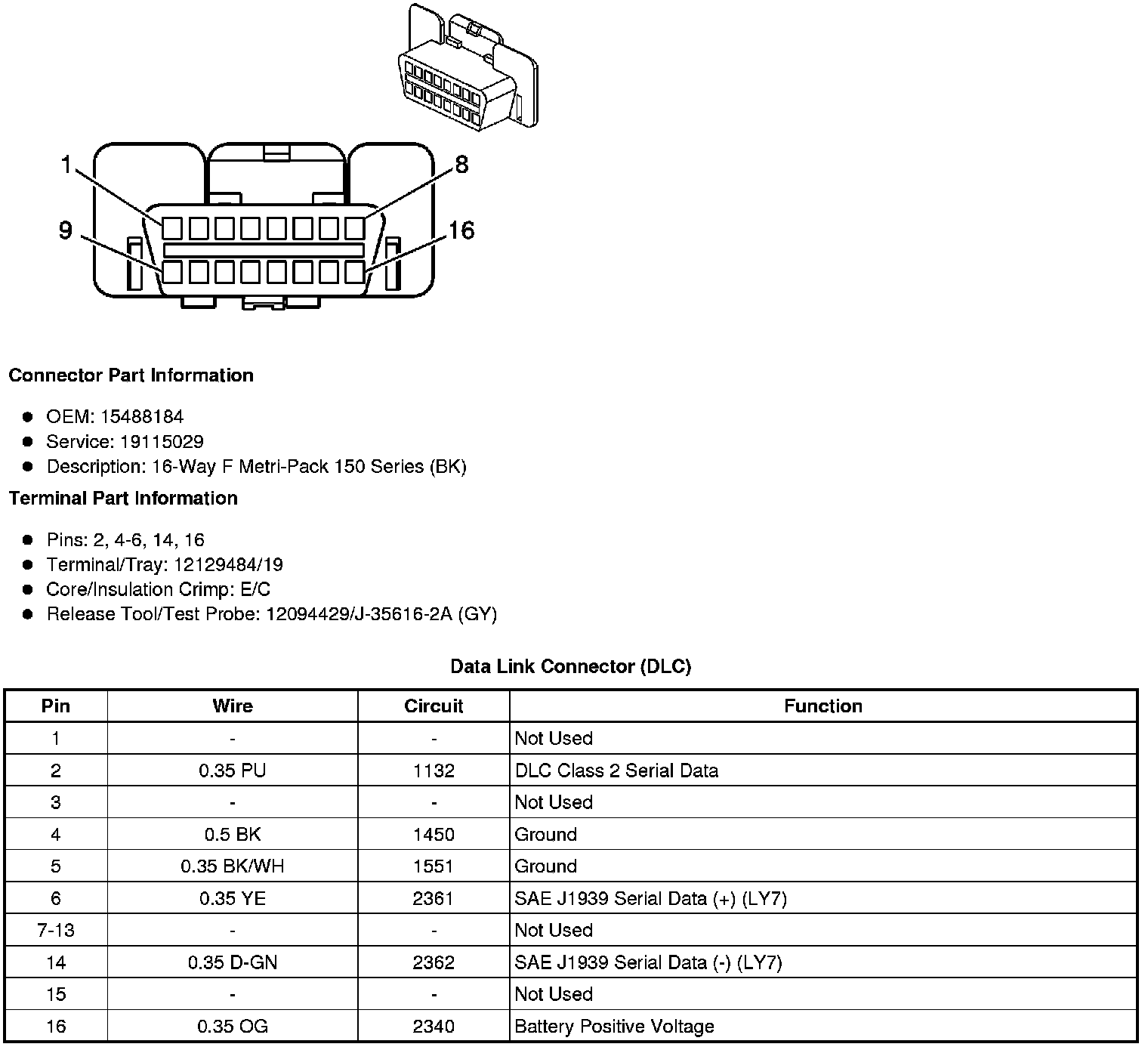

Data Link Connector (DLC)
Engine Control Module (ECM) X1 (LS4)
Engine Control Module (ECM) X1 (LY7)
Engine Control Module (ECM) X2 (LS4)
Engine Control Module (ECM) X2 (LY7)
Engine Control Module (ECM) X3 (LS4)
Engine Coolant Temperature (ECT) Sensor (L26)
Engine Coolant Temperature (ECT) Sensor (LS4)
Engine Coolant Temperature (ECT) Sensor (LY7)
