Impact Sensor



Component Connector End Views


Inflatable Restraint Front End Sensor - Left






Inflatable Restraint Front End Sensor - Right

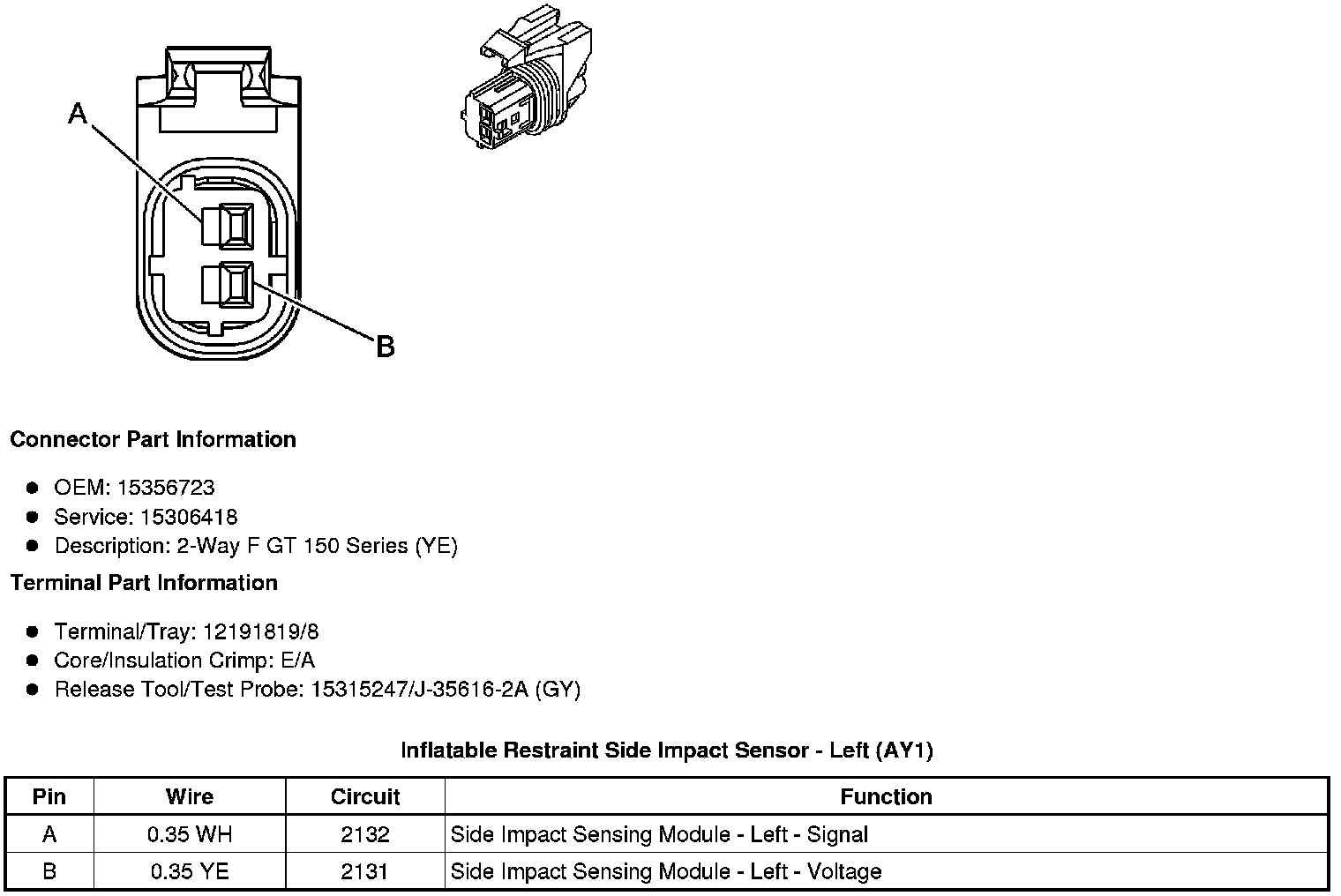

Inflatable Restraint Side Impact Sensor - Left (AY1)

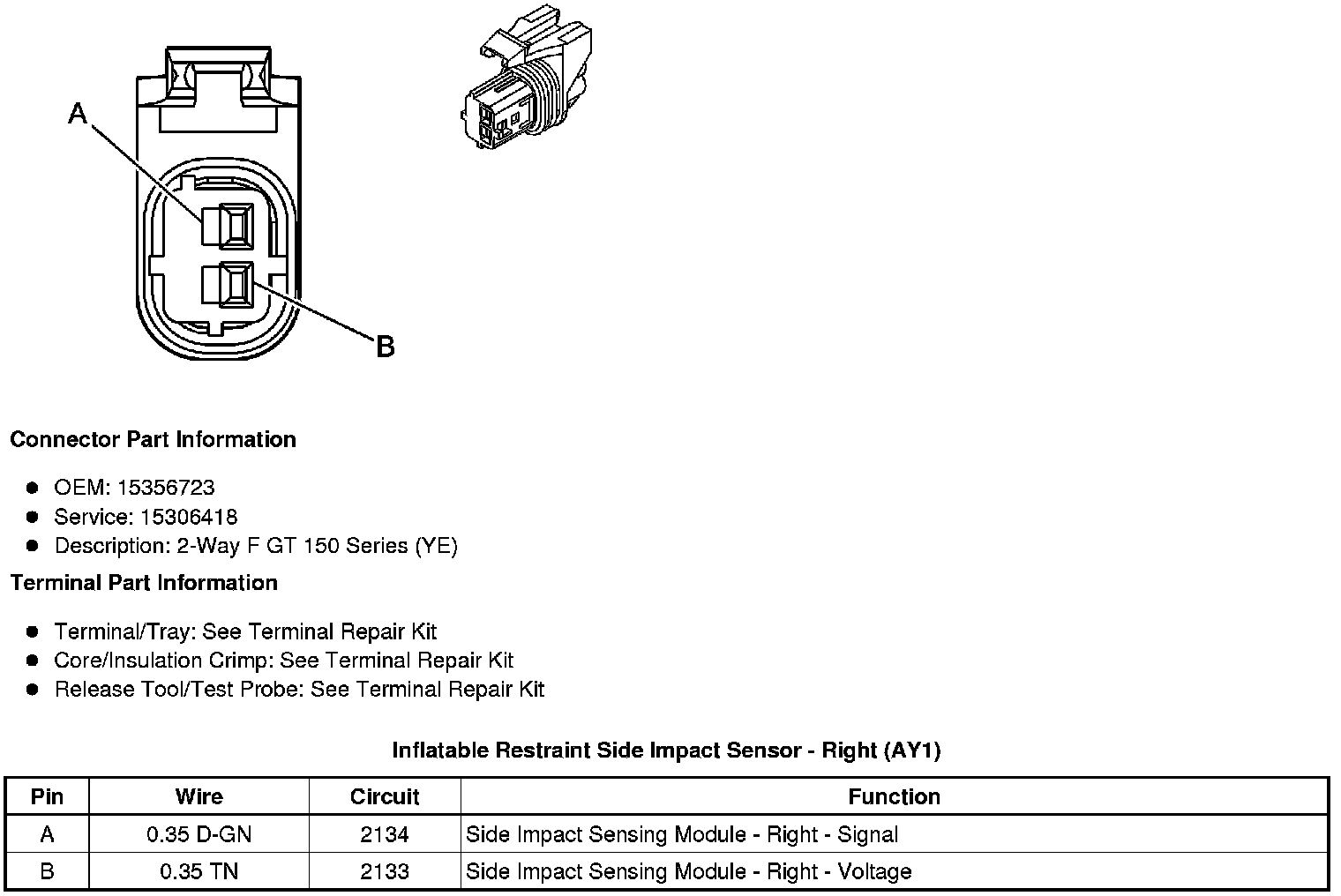

Inflatable Restraint Side Impact Sensor - Right (AY1)
