Compressor HVAC: Locations

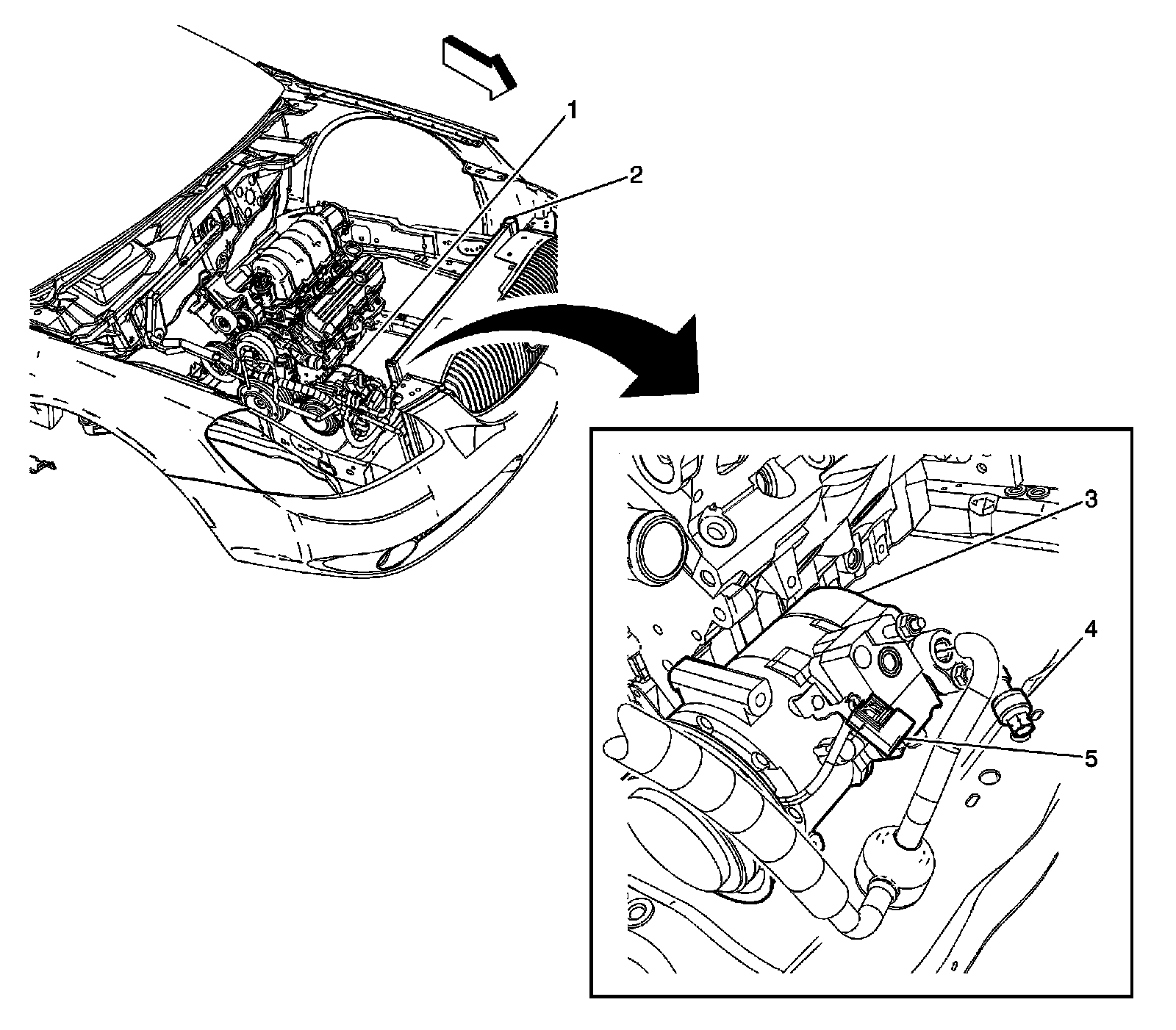

Front of Vehicle/Engine Compartment Component Views

Front Engine Compartment




1 - A/C Compressor
2 - A/C Condensor
3 - A/C Compressor
4 - A/C Refrigerant Pressure Sensor
5 - A/C Compressor Clutch Connector
