Fuse Block: Locations

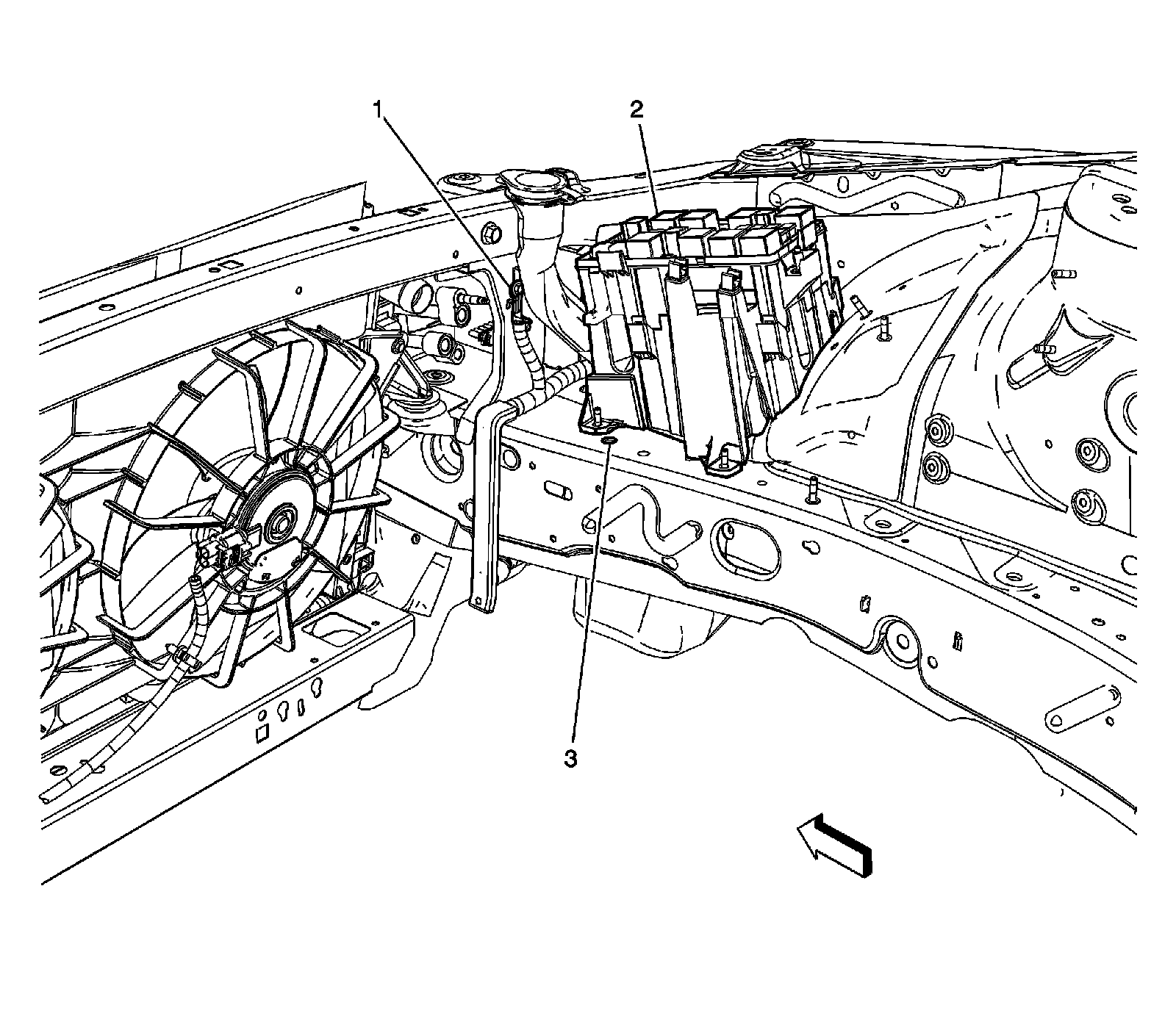

Right Front of the Engine Compartment




1 - G104
2 - Fuse Block - Underhood
3 - G111

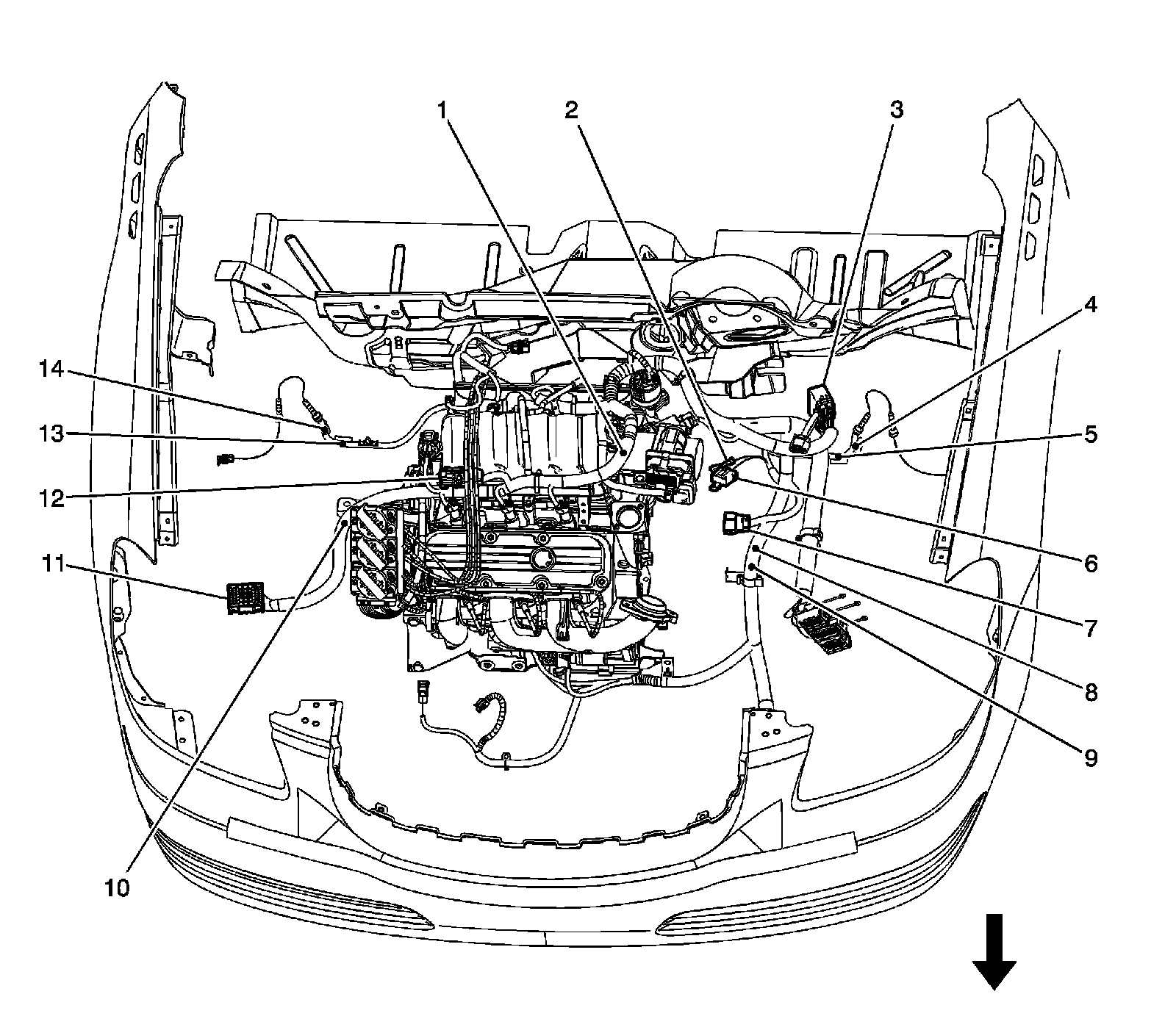

Engine Harness Routing (L26/3.8L)




1 - J109
2 - G114
3 - X111 Engine Harness to Body Harness
4 - J114
5 - J113
6 - G100
7 - Automatic Transmission Connector
8 - J106
9 - J108
10 - J101
11 - Fuse Block-Underhood X3
12 - X110 Engine Harness to Ignition Control Module Harness
13 - J115
14 - J116
