Power Distribution Relay: Locations



Electrical Center Identification Views

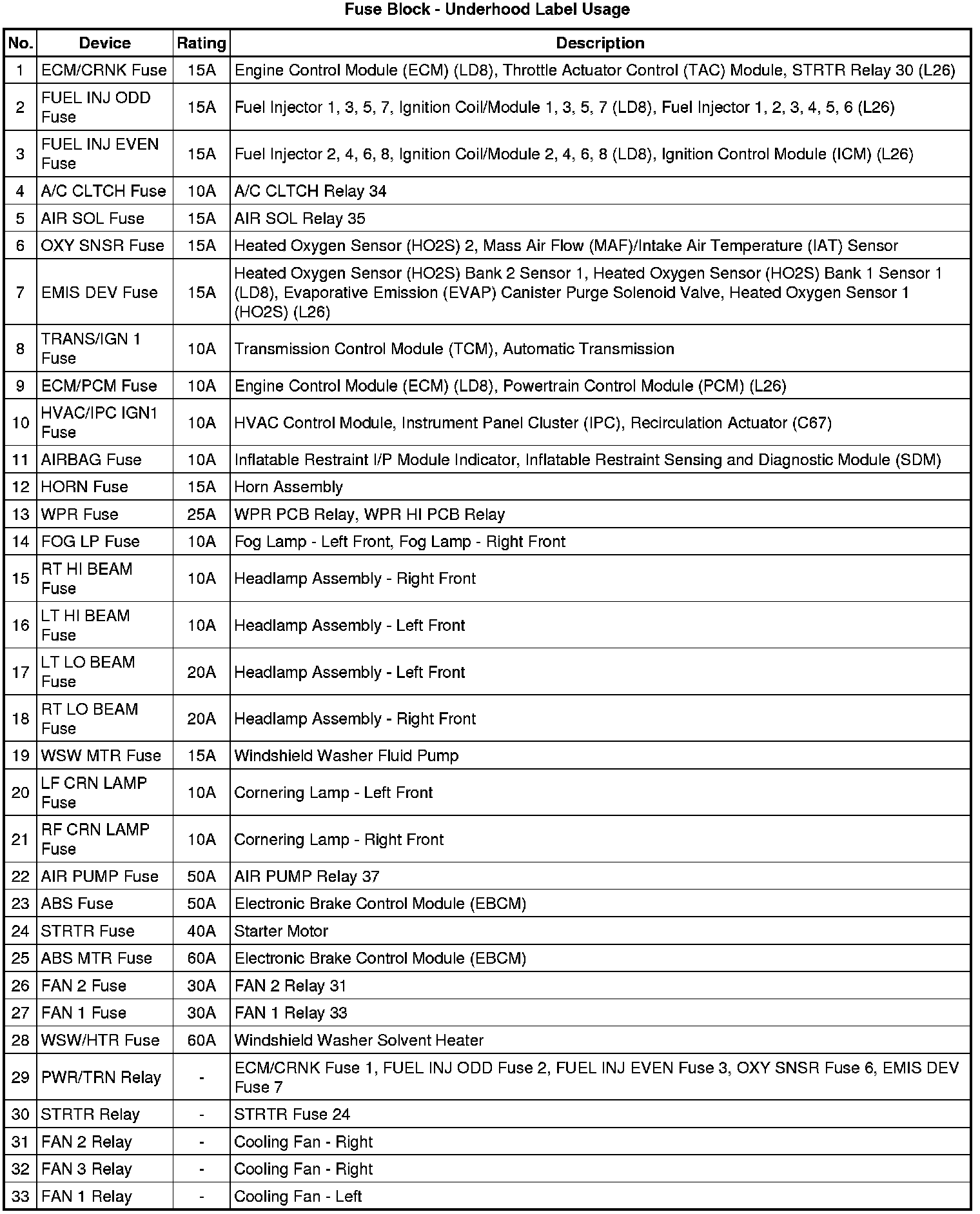

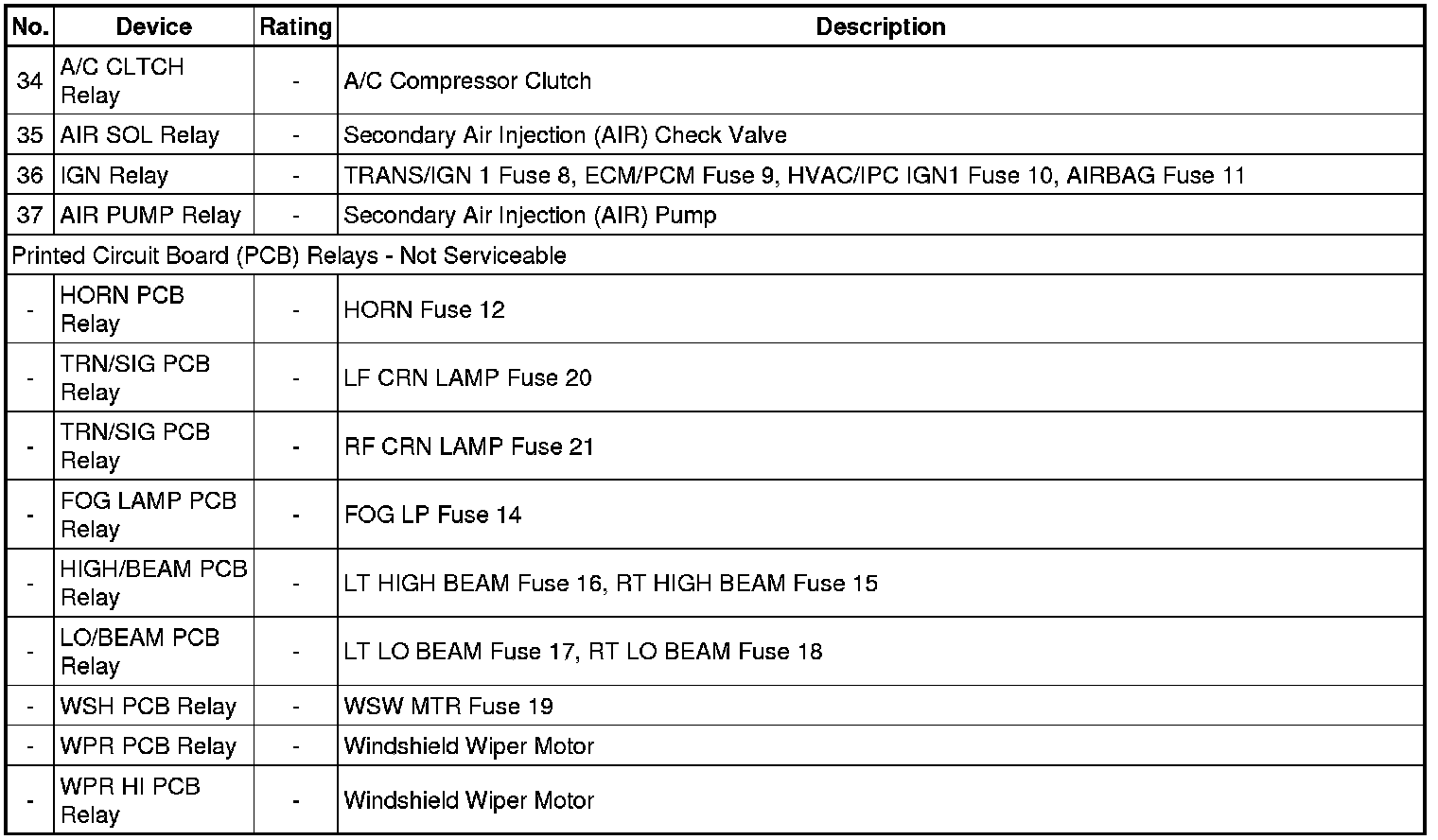

Fuse Block - Underhood Label
