Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Wiring Systems And Power Management - Introduction
>>
Schematic and Routing Diagrams
>>
Power Moding Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Moding Schematics

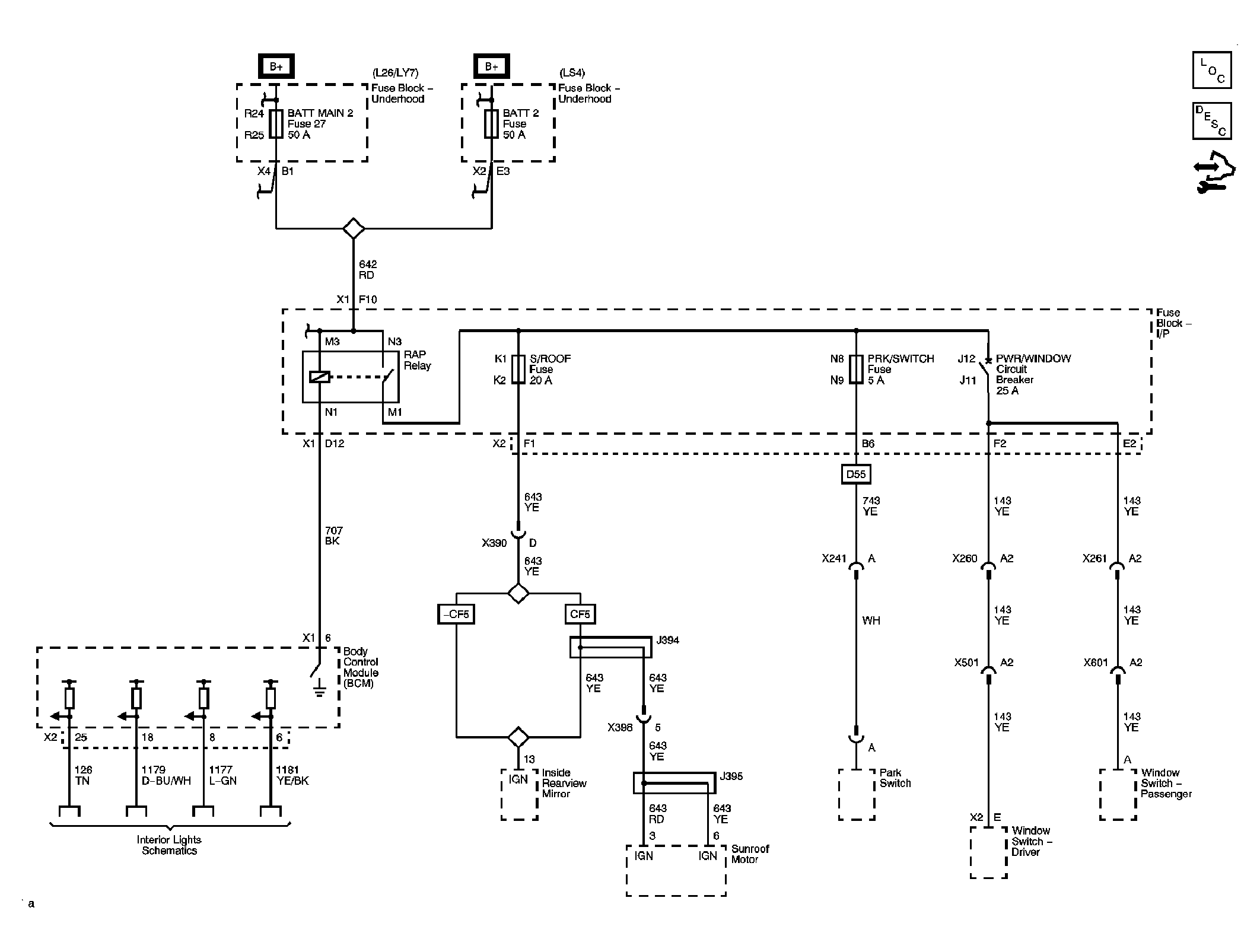

Fig 1: Power Moding Schematic
Courtesy of GENERAL MOTORS CORP.
