I/P Fuse Block




Electrical Center Identification Views

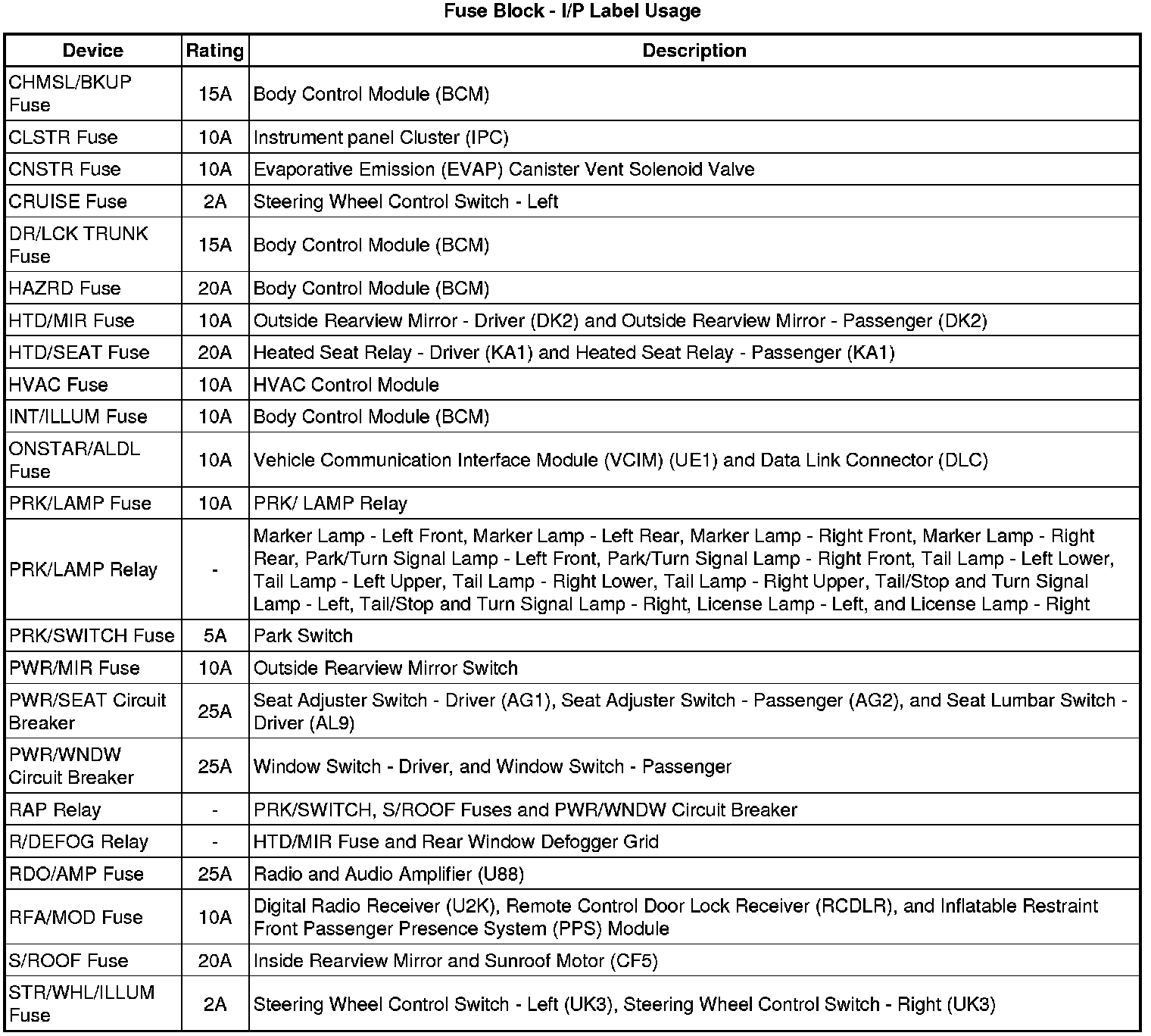

Fuse Block - I/P Label









Fuse Block - I/P Top View





Fuse Block - I/P Bottom View

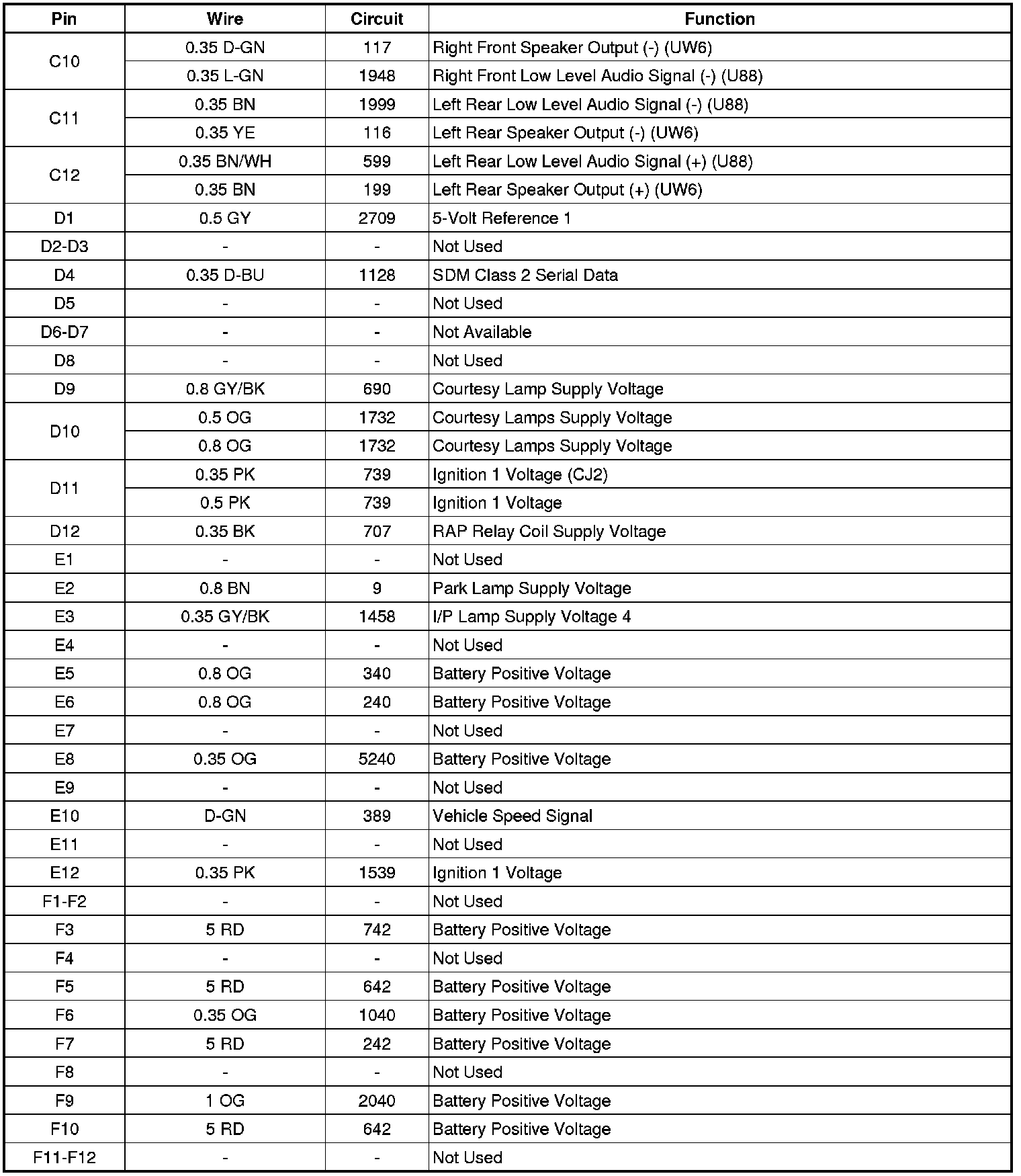

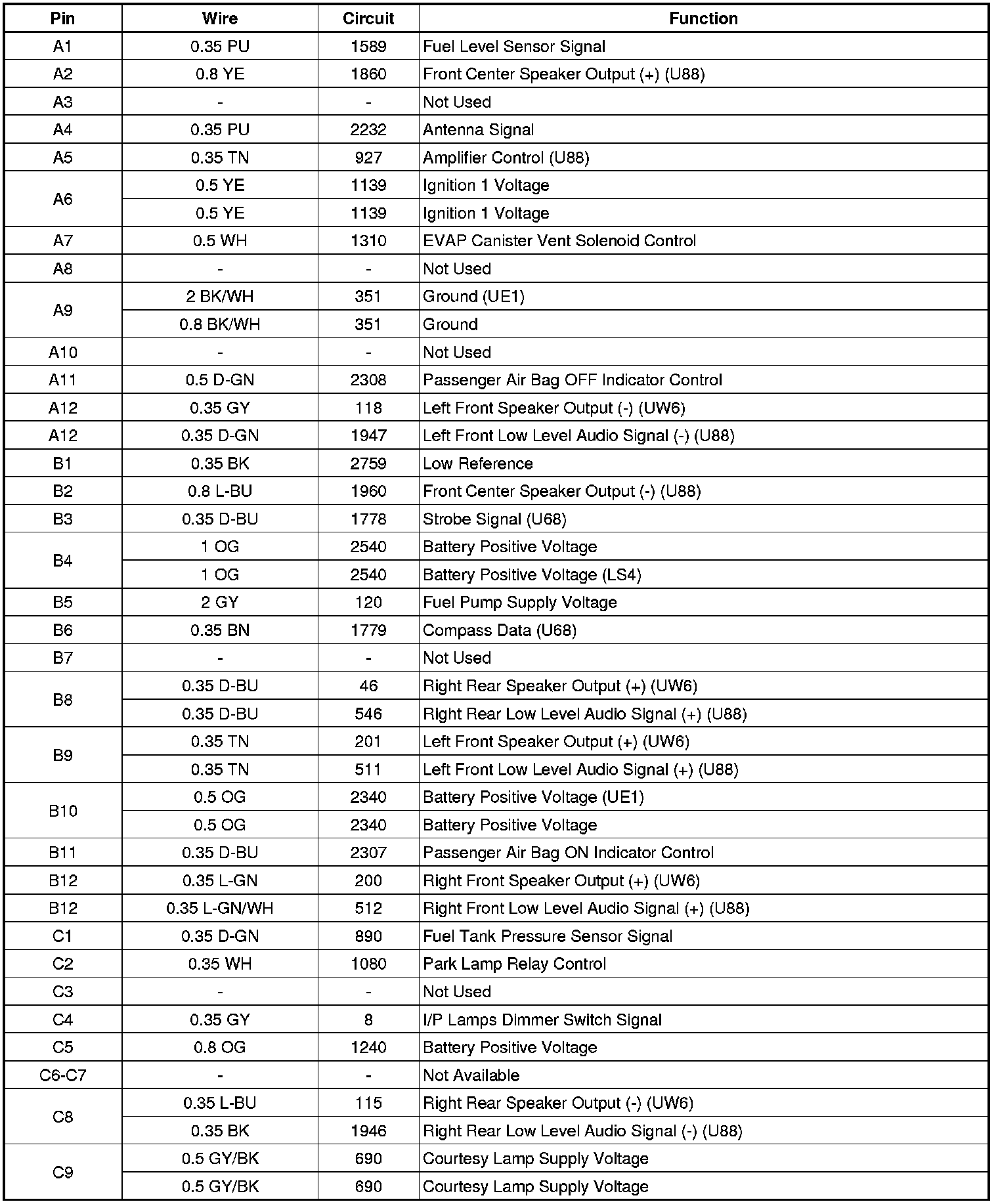

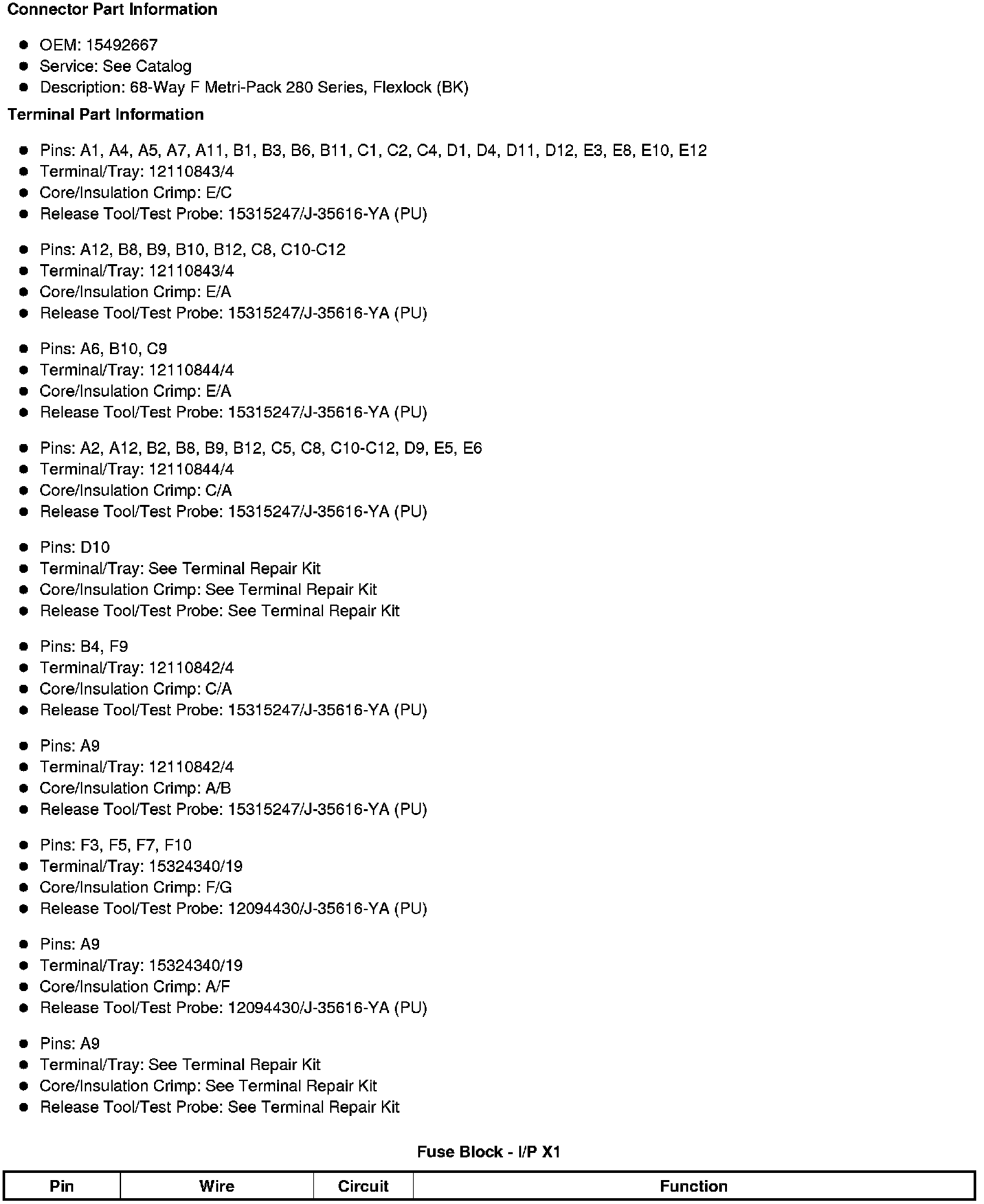

Fuse Block - I/P X1

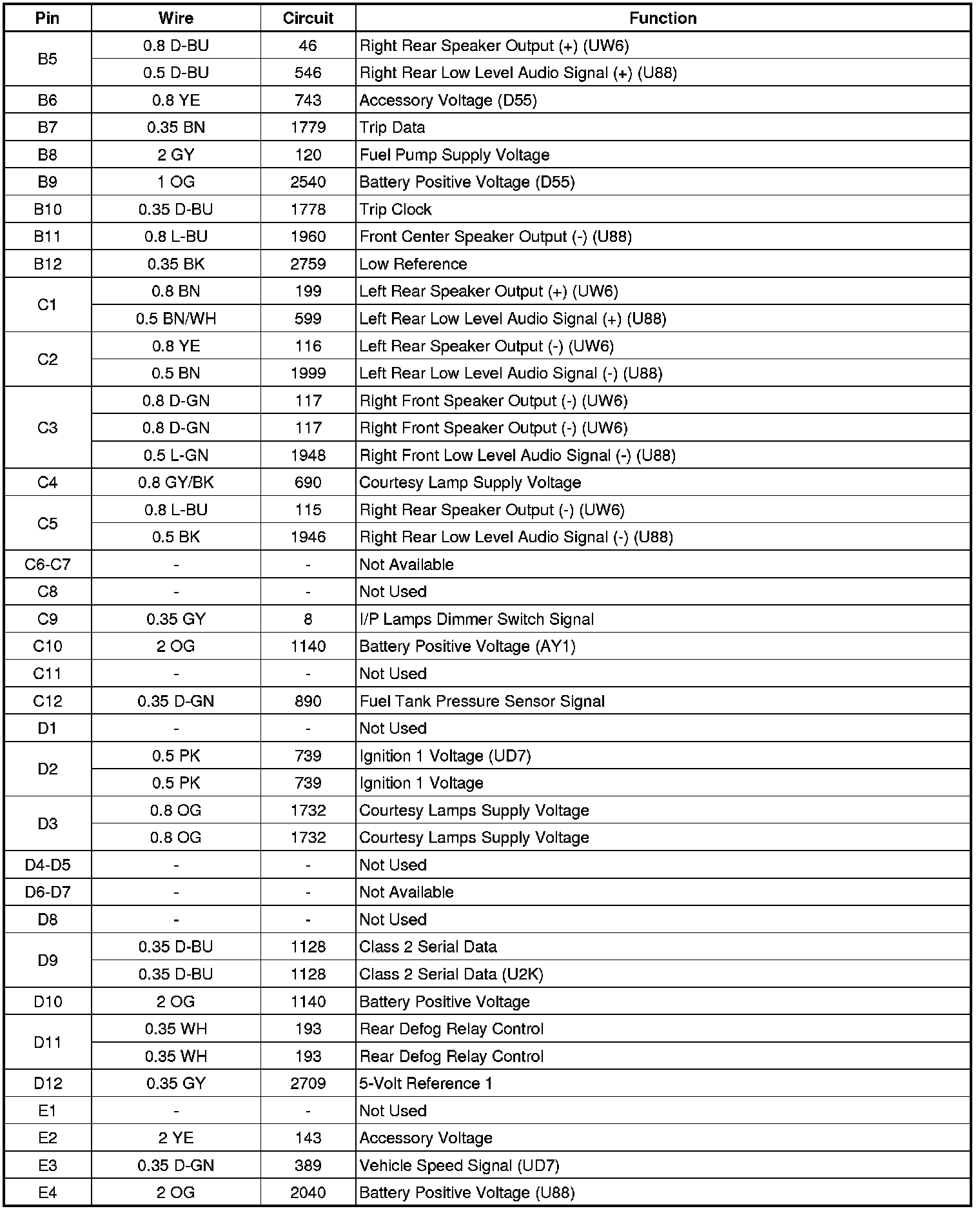

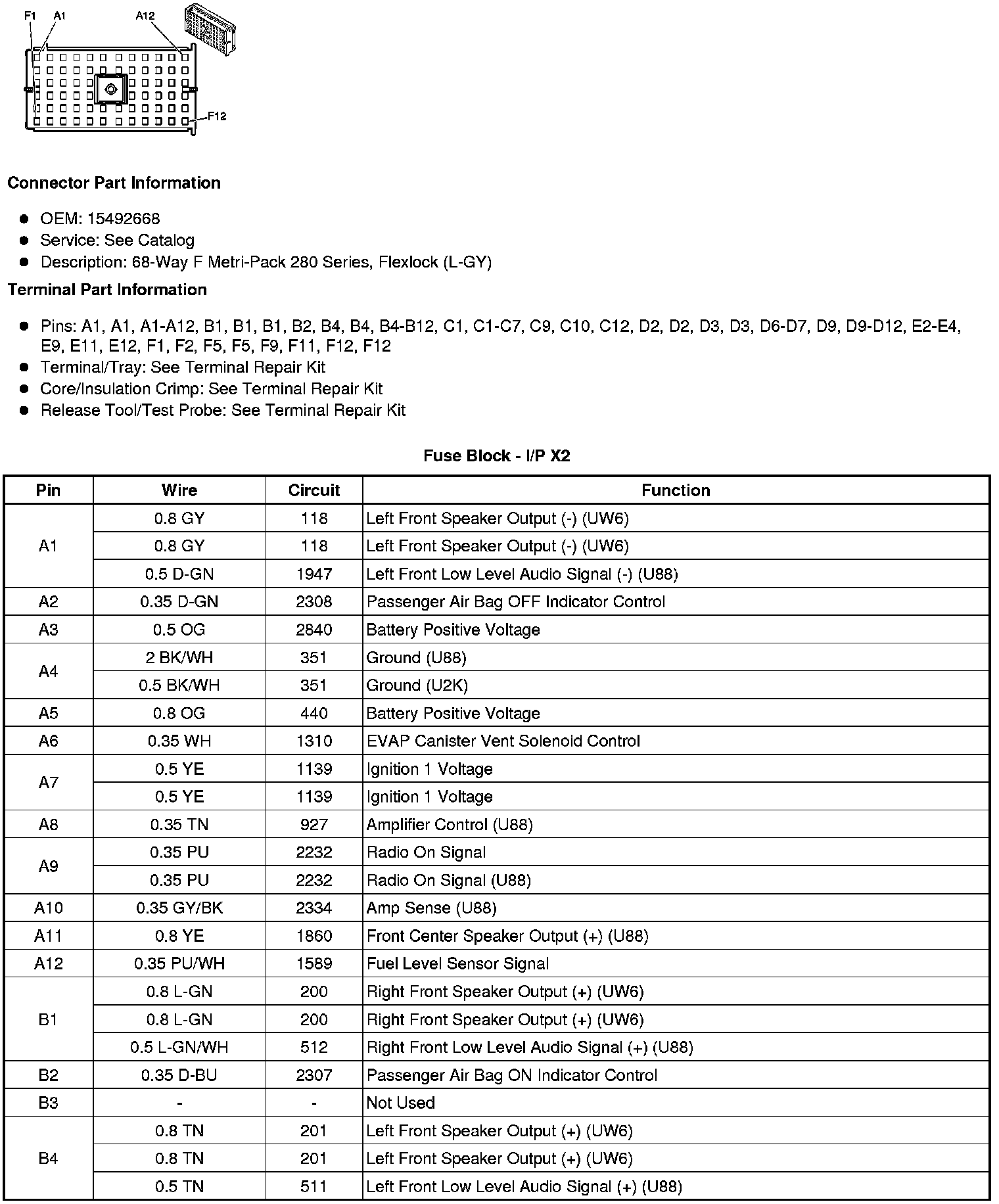

Fuse Block - I/P X2
