Underhood Fuse Block Components

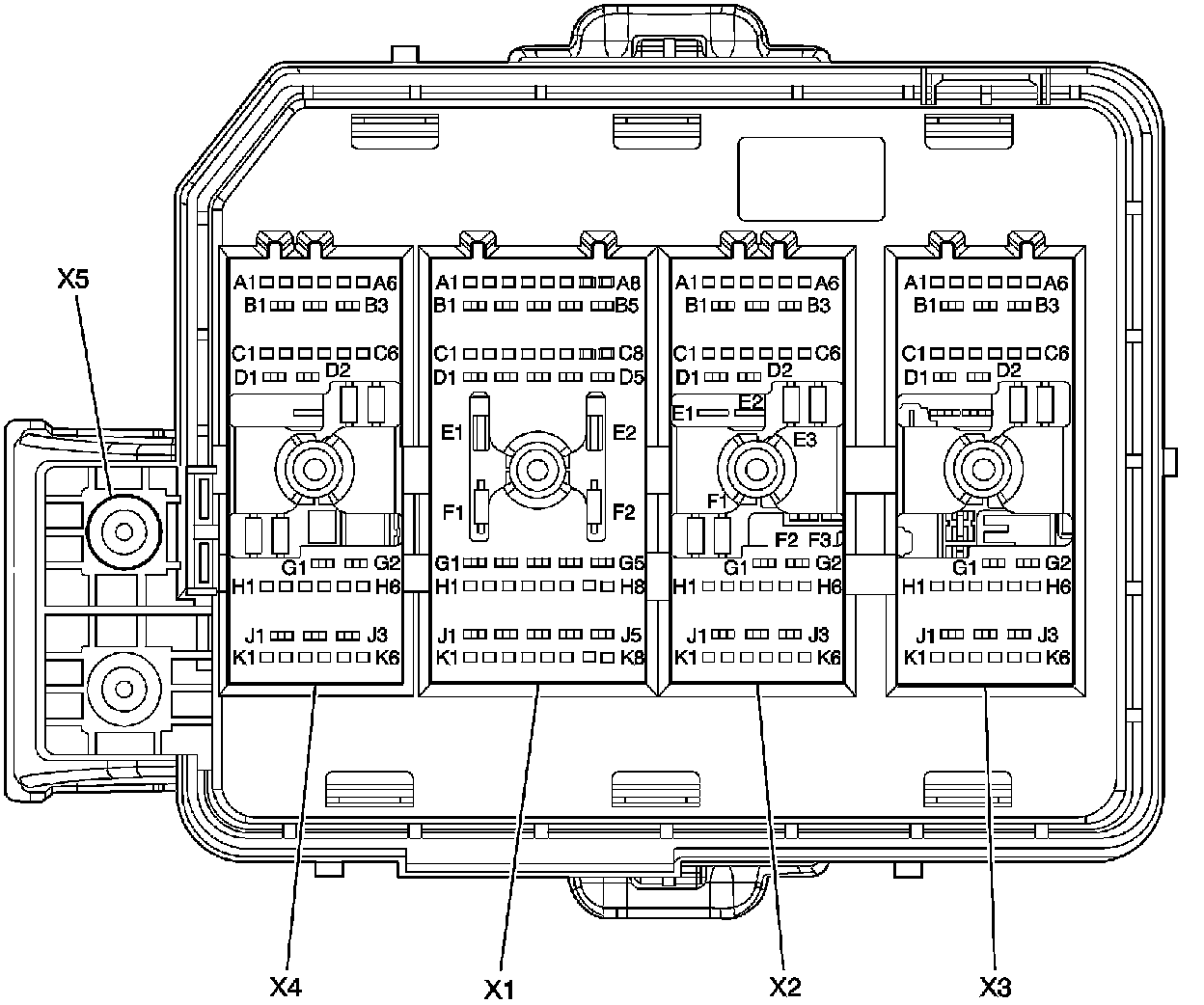

Electrical Center Identification Views

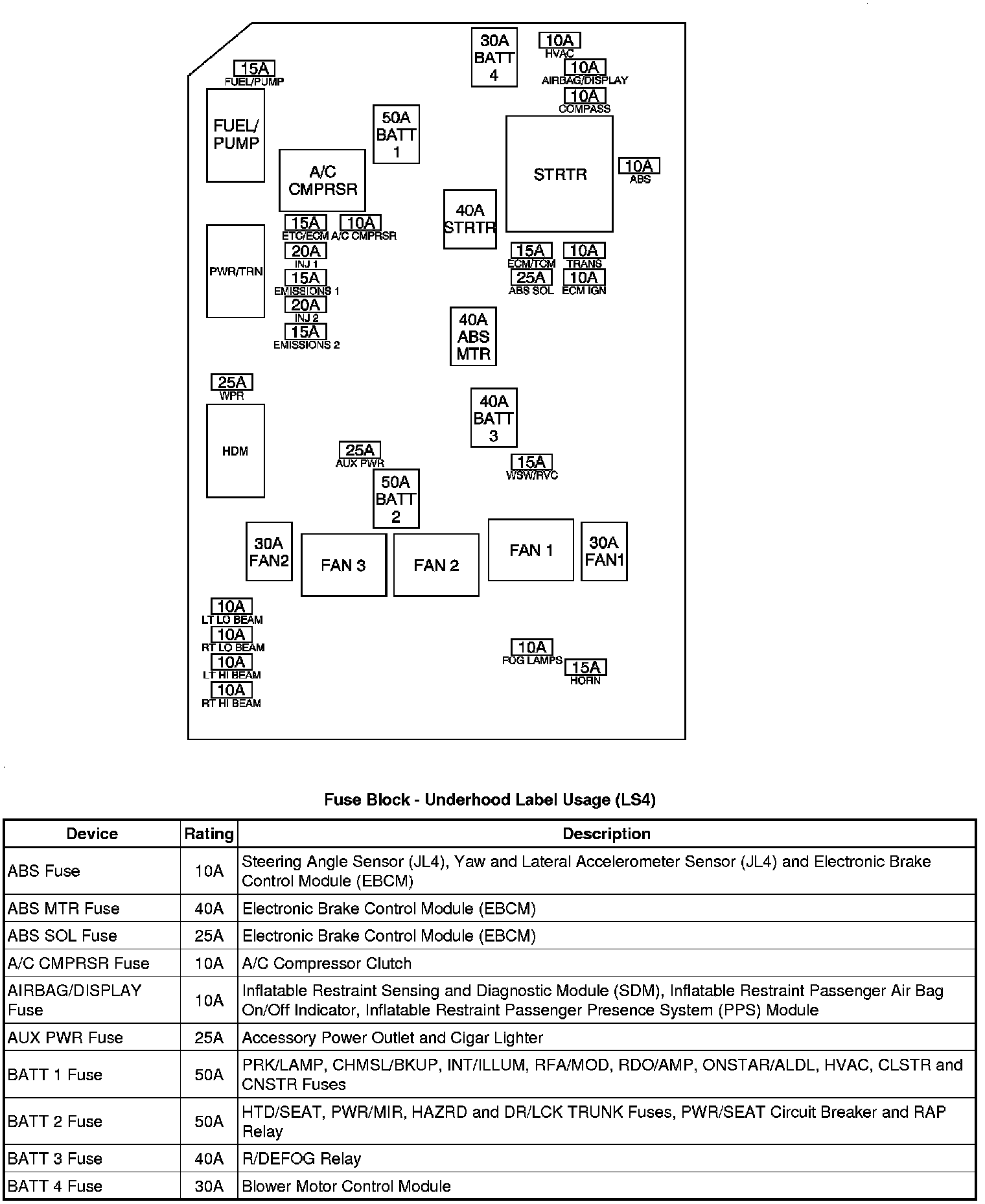

Fuse Block - Underhood Label (LS4)

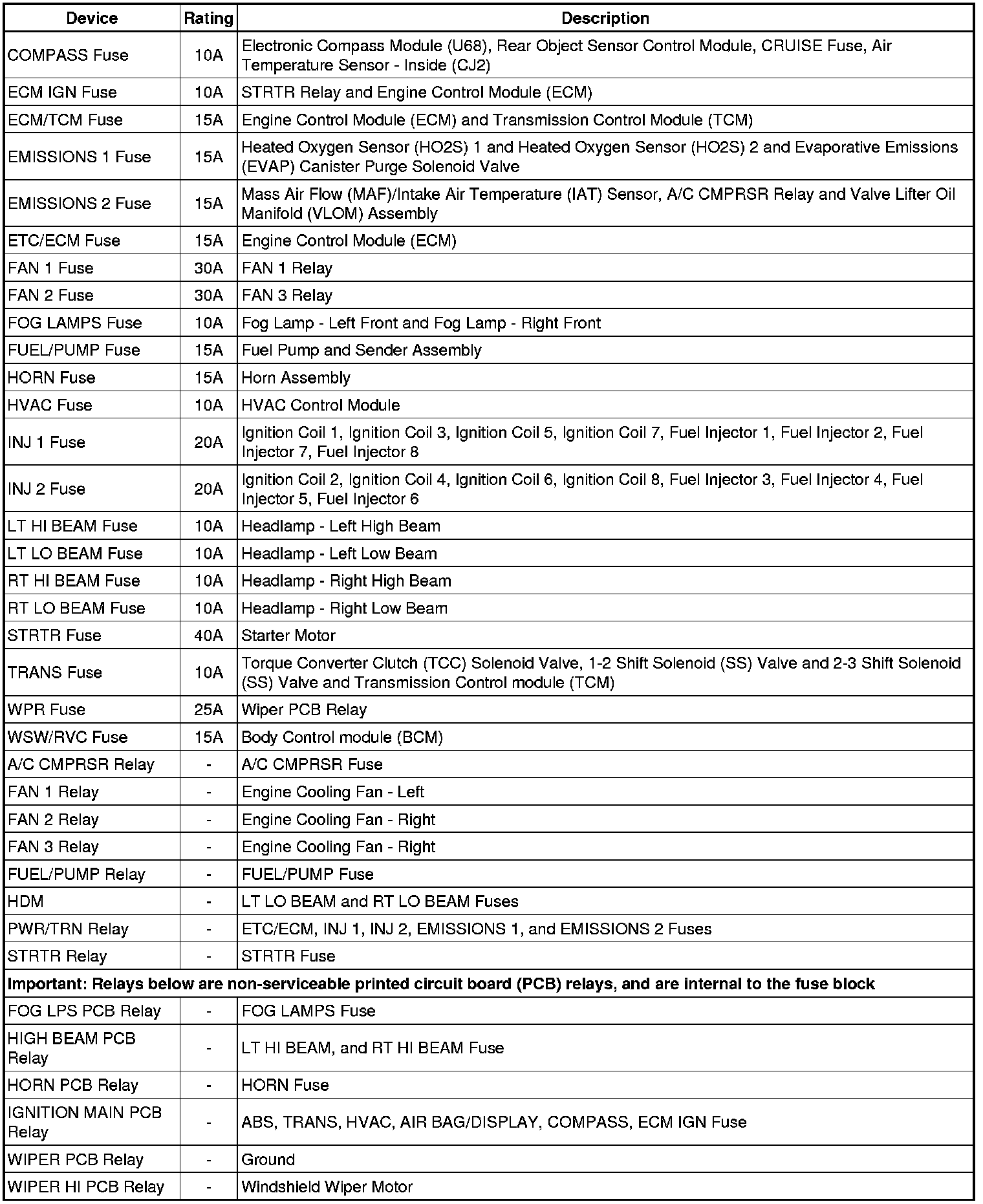

Fuse Block - Underhood Top View (LS4)





Fuse Block - Underhood Bottom View (LS4)

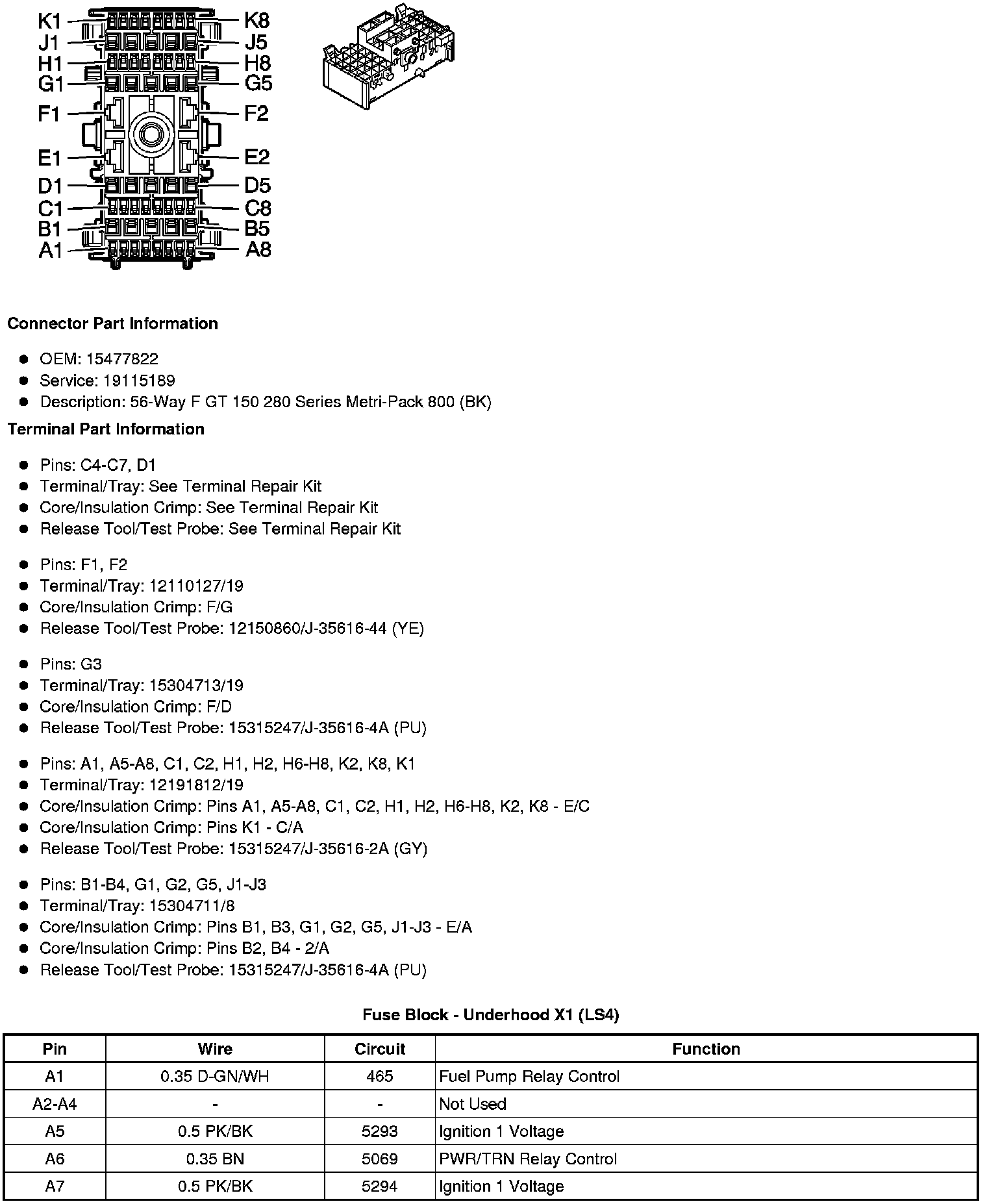

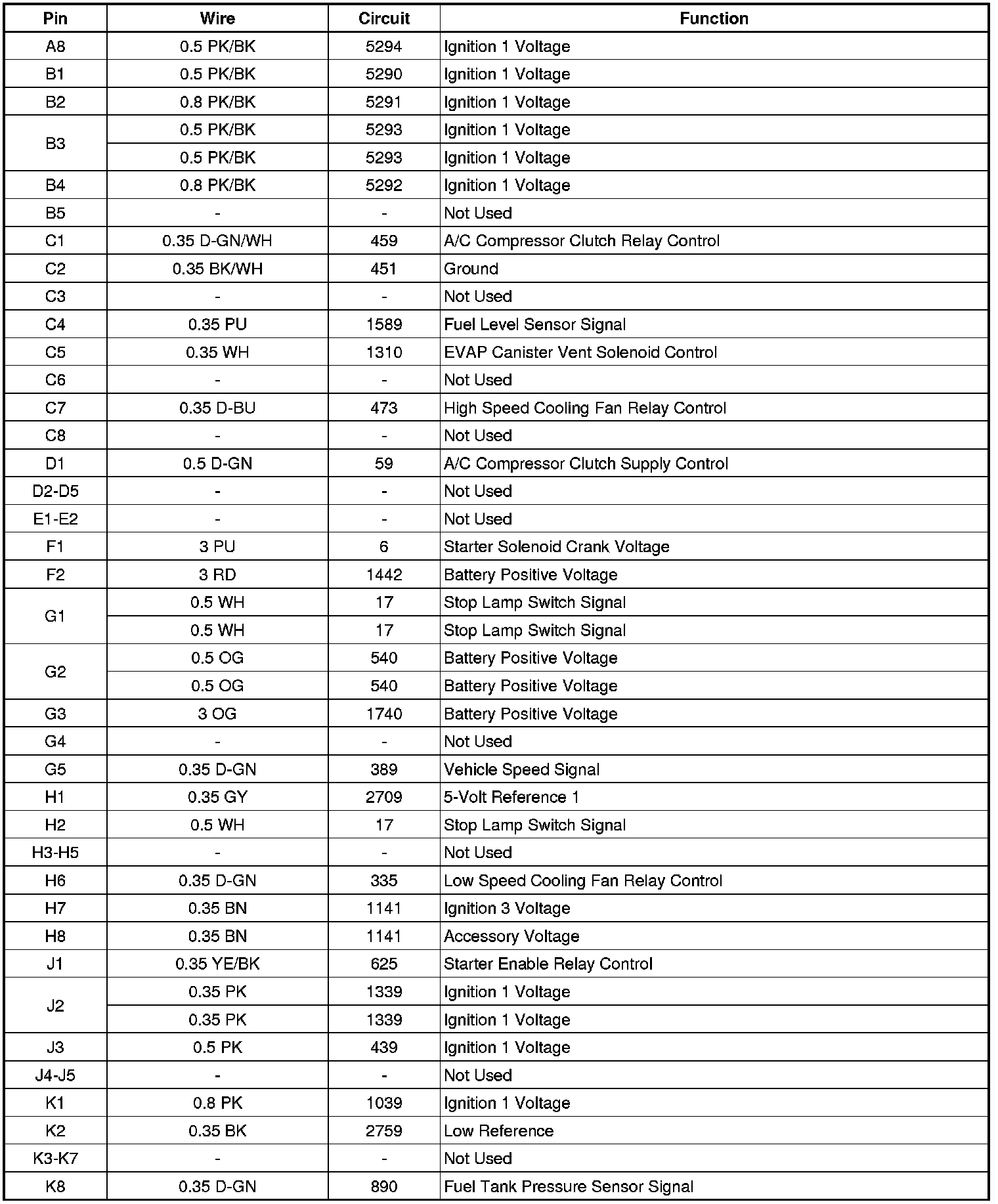

Fuse Block - Underhood X1 (LS4)

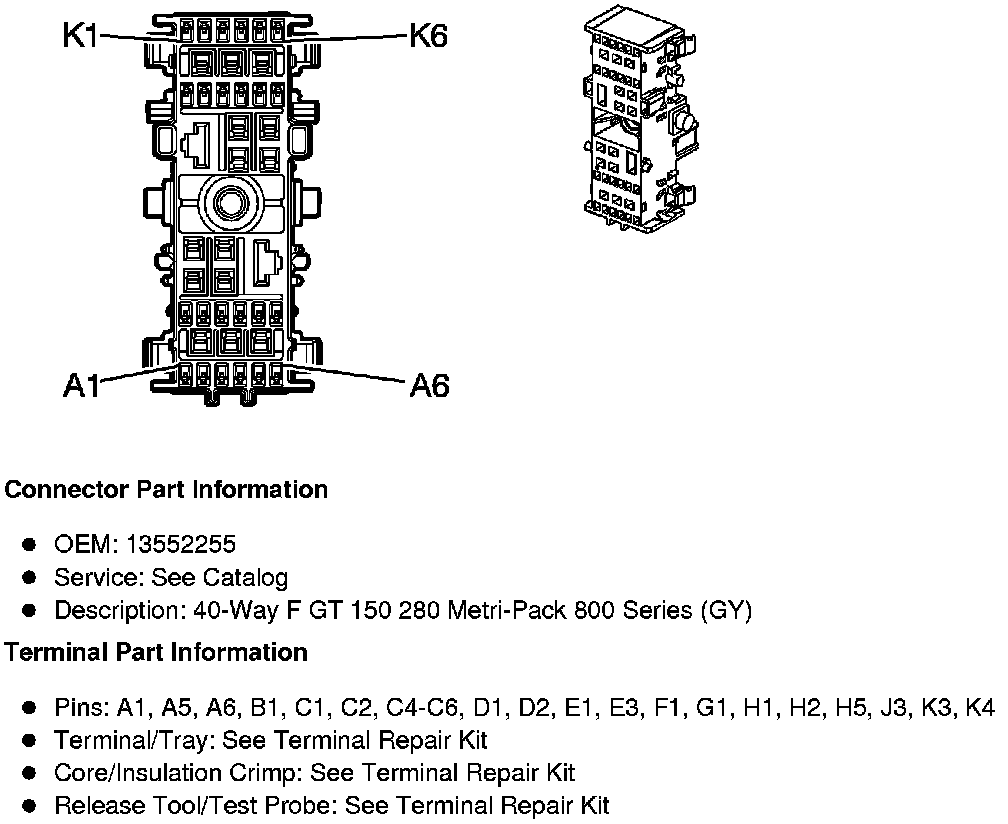

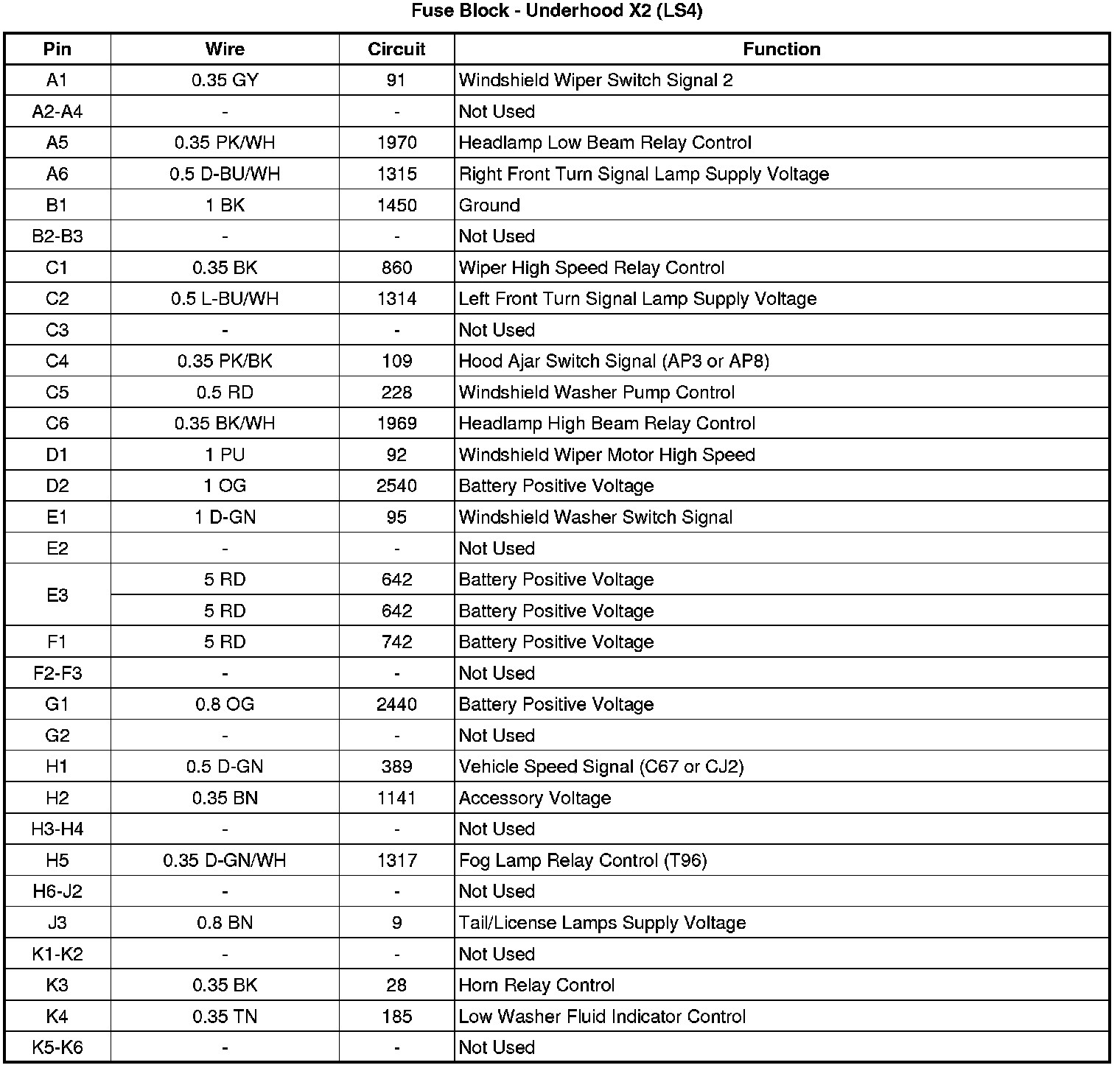

Fuse Block - Underhood X2 (LS4)

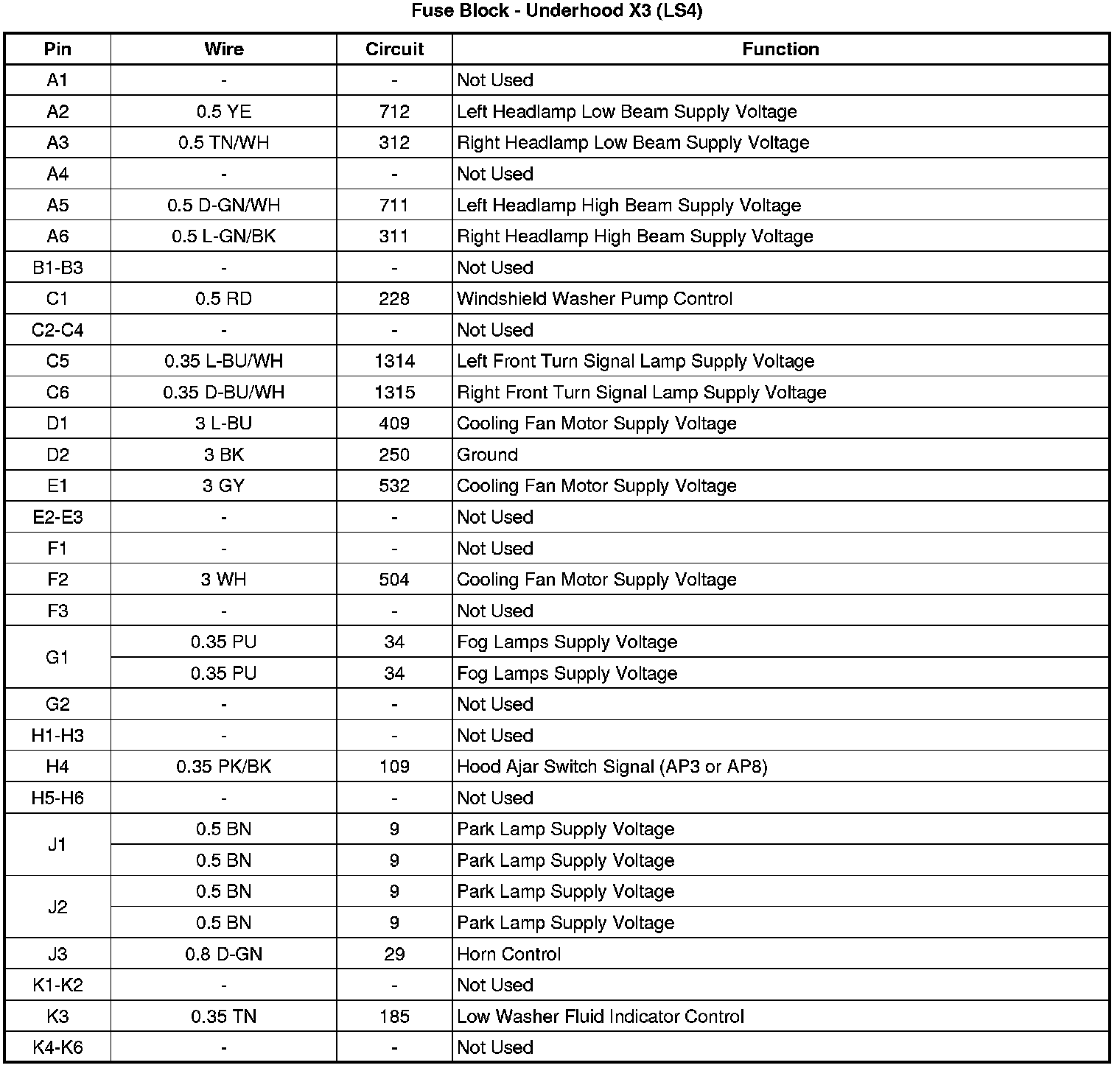

Fuse Block - Underhood X3 (LS4)

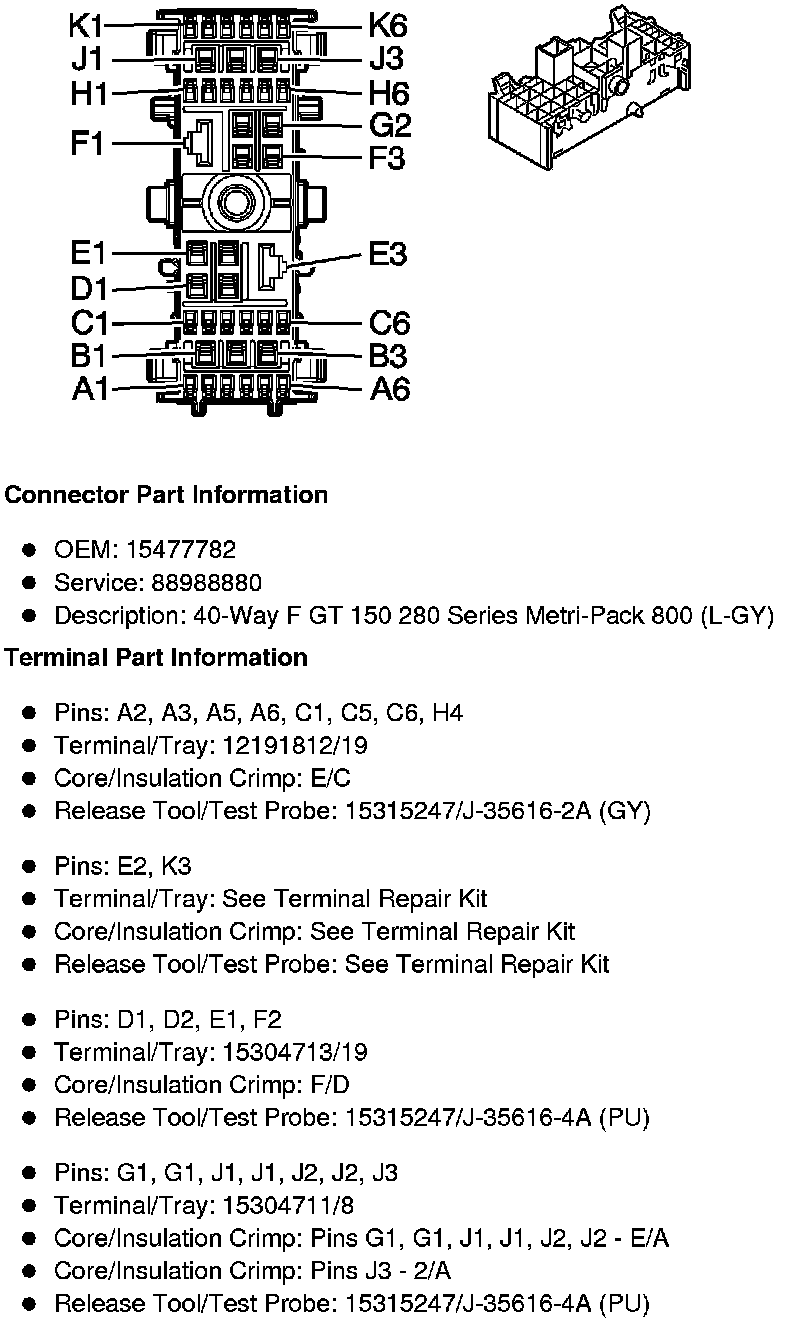

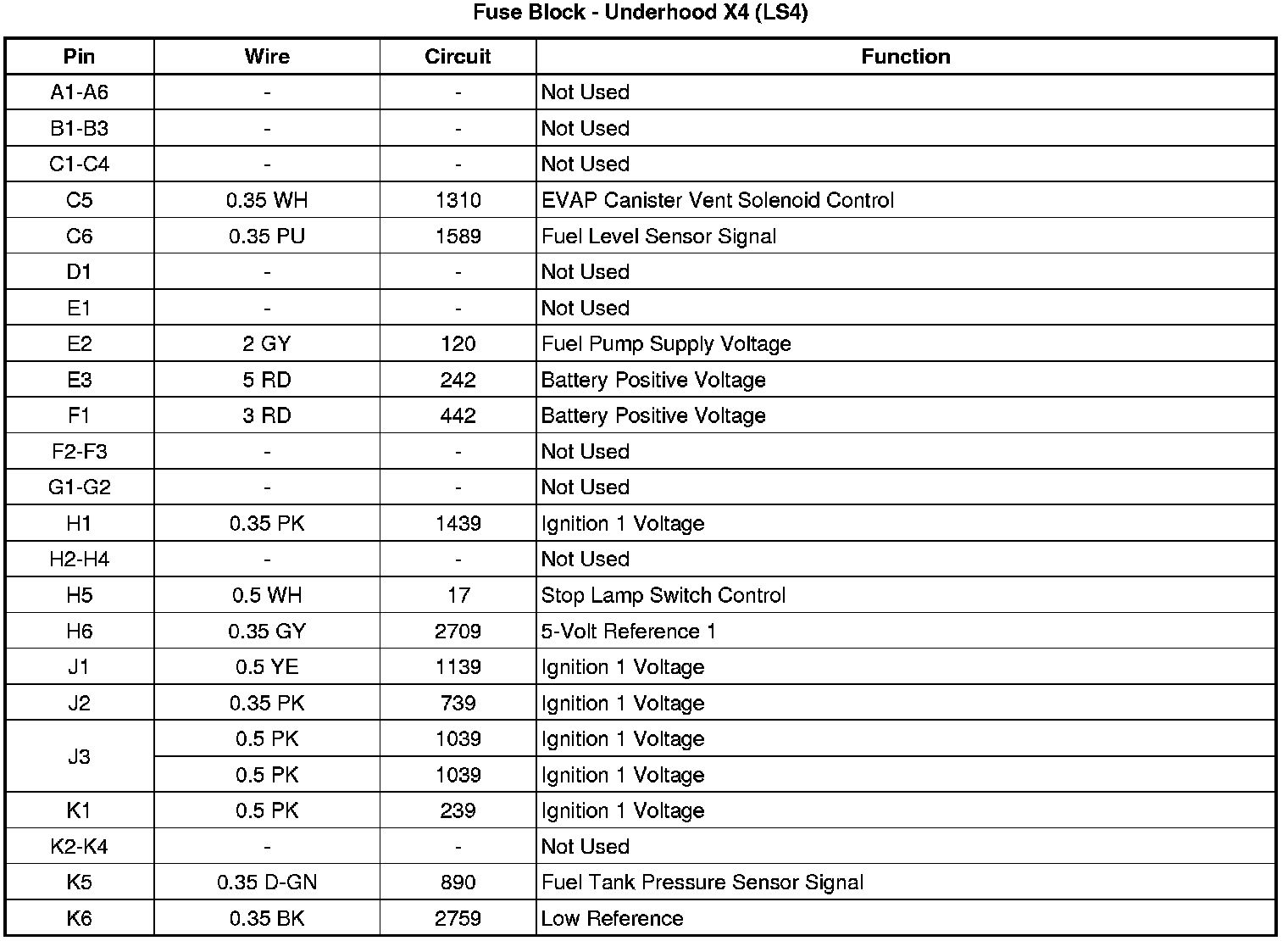

Fuse Block - Underhood X4 (LS4)









Fuse Block - Underhood X5 (LS4)
