Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor Replacement

Removal Procedure




1. Remove the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (Service and Repair).
2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector (2).

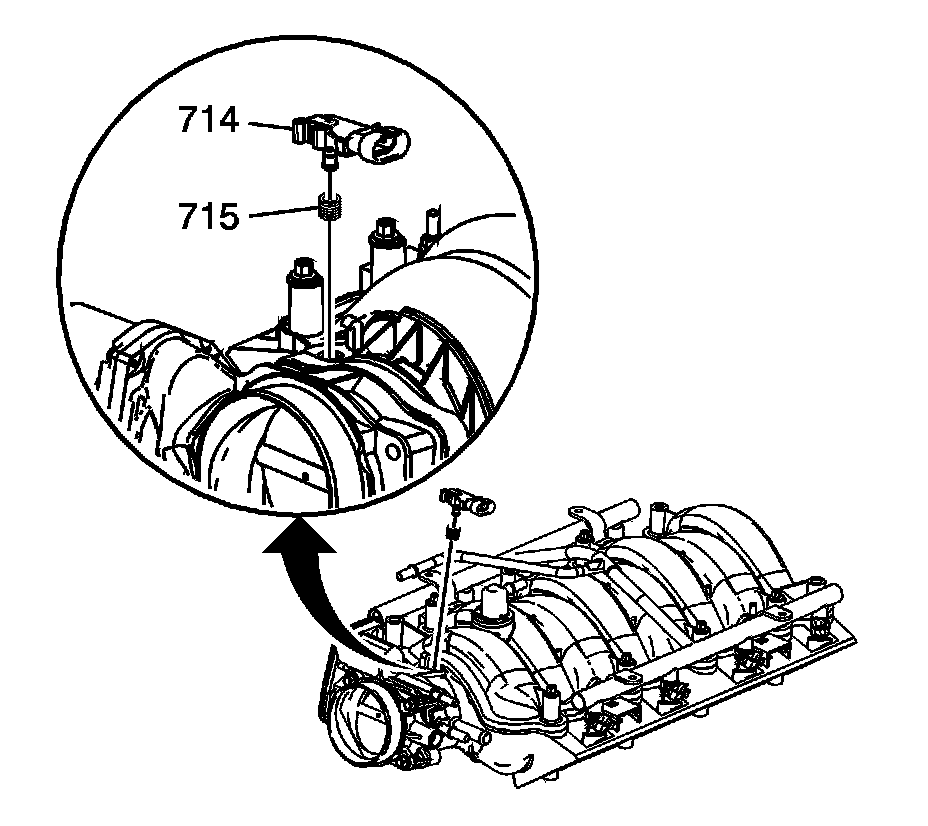

3. Remove the MAP sensor (714) from the intake manifold.
4. Remove the MAP sensor grommet (715), if required.

Installation Procedure




1. Lubricate the MAP sensor grommet with clean engine oil, if required.
2. Install the MAP sensor grommet (715) , if required.
3. Install the MAP sensor (714).




4. Connect the MAP sensor electrical connector (2).
5. Install the engine sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (Service and Repair).
