Mirrors




Component Connector End Views

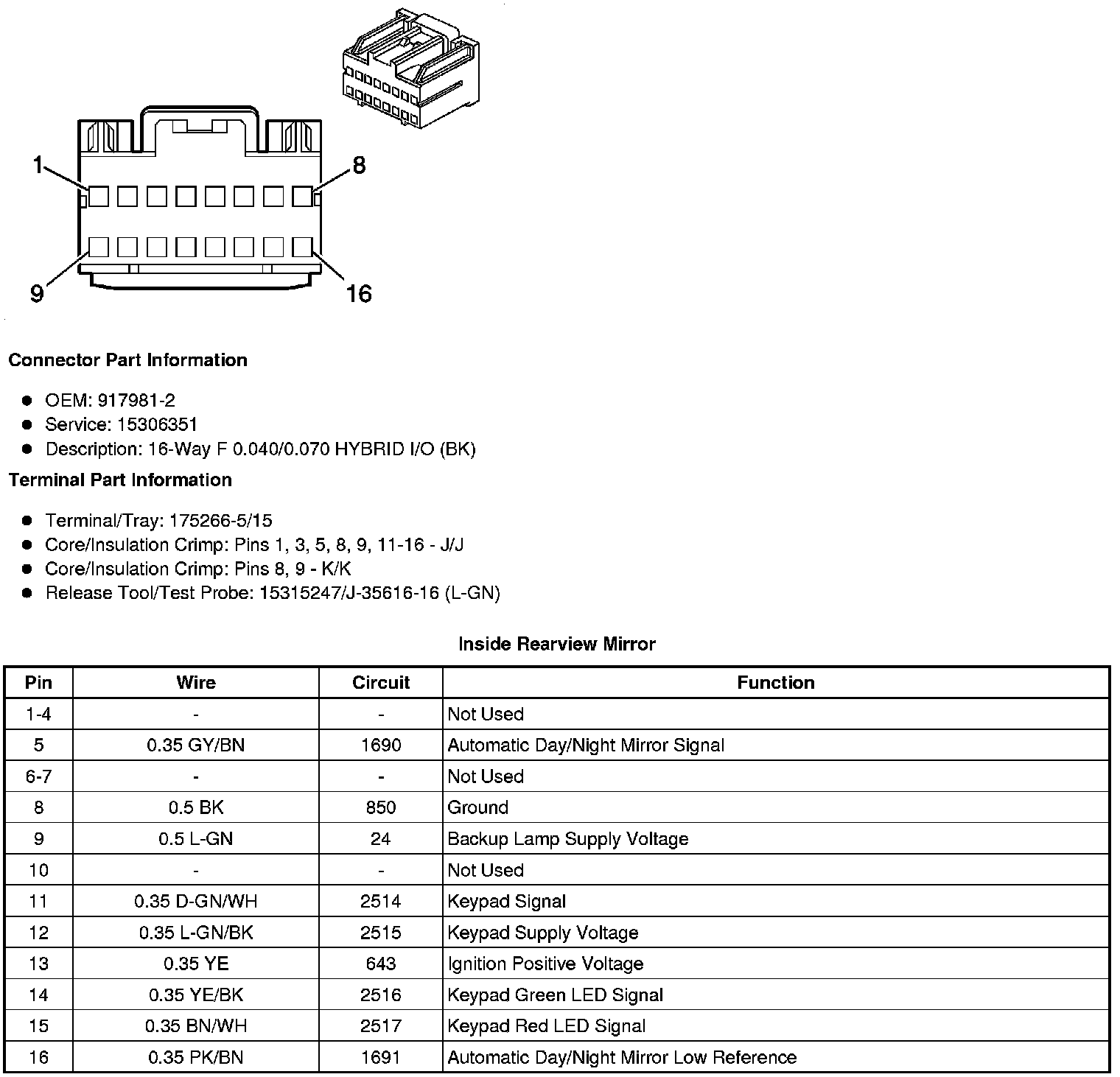

Inside Rearview Mirror

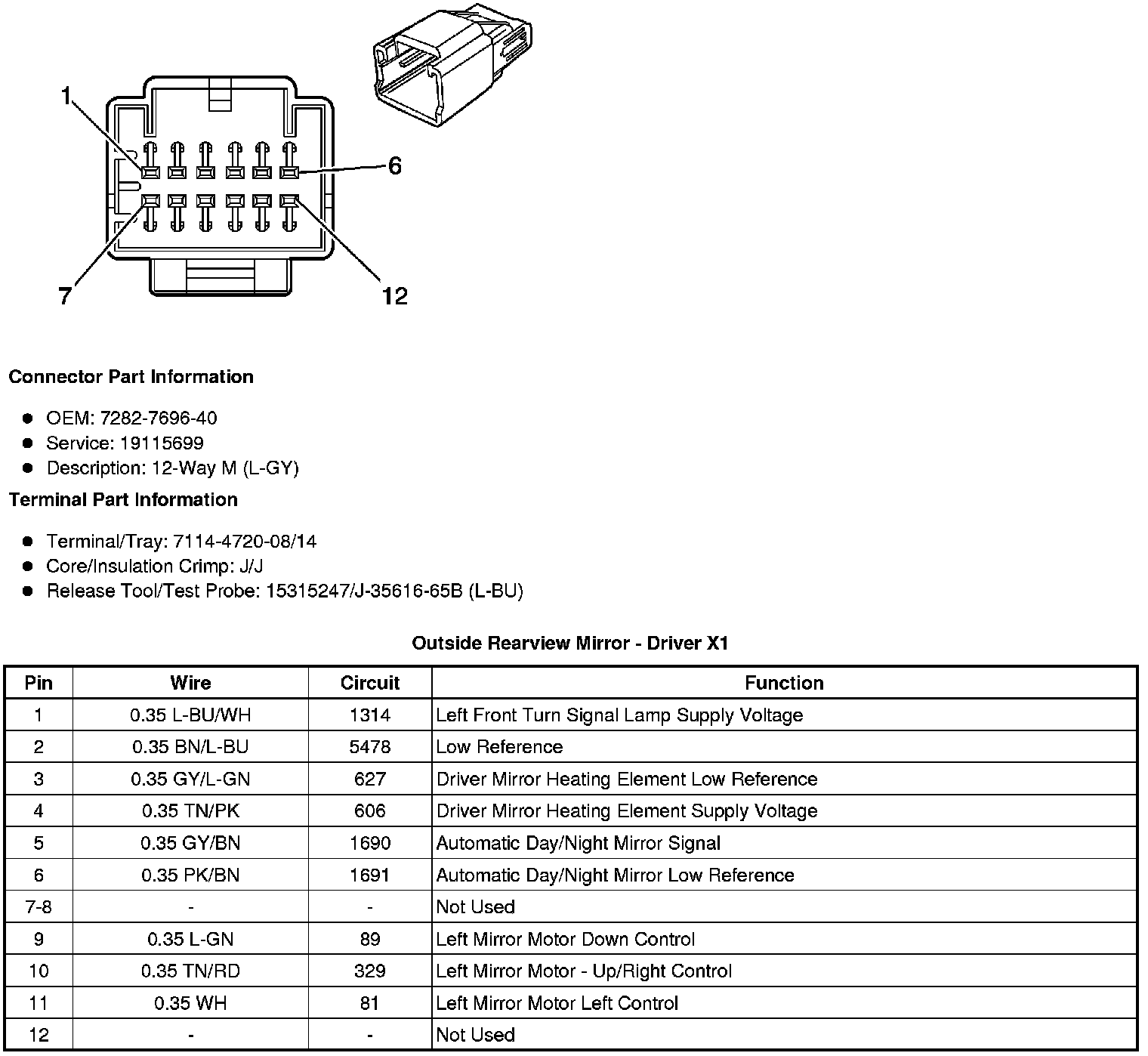

Outside Rearview Mirror - Driver X1

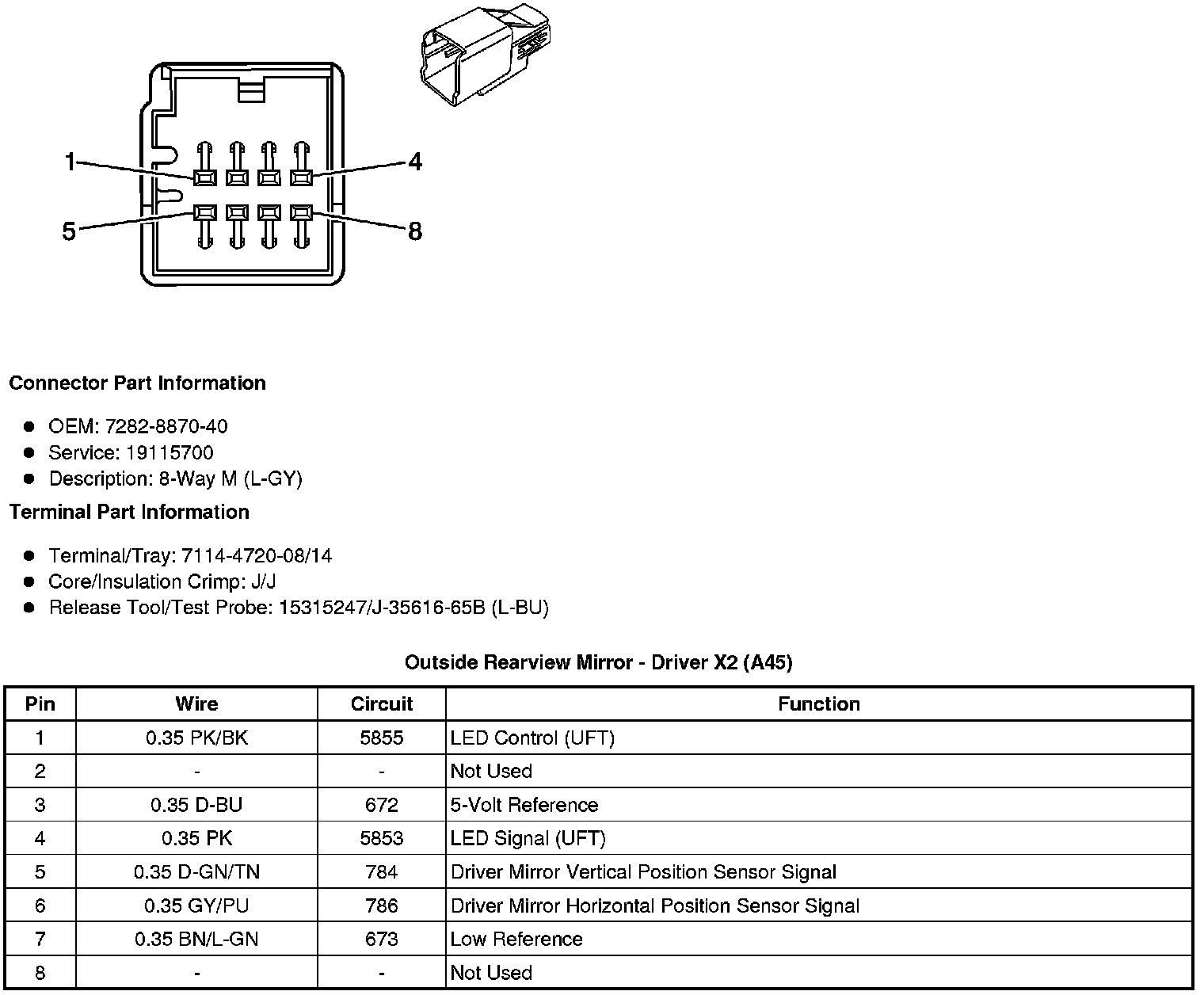

Outside Rearview Mirror - Driver X2 (A45)

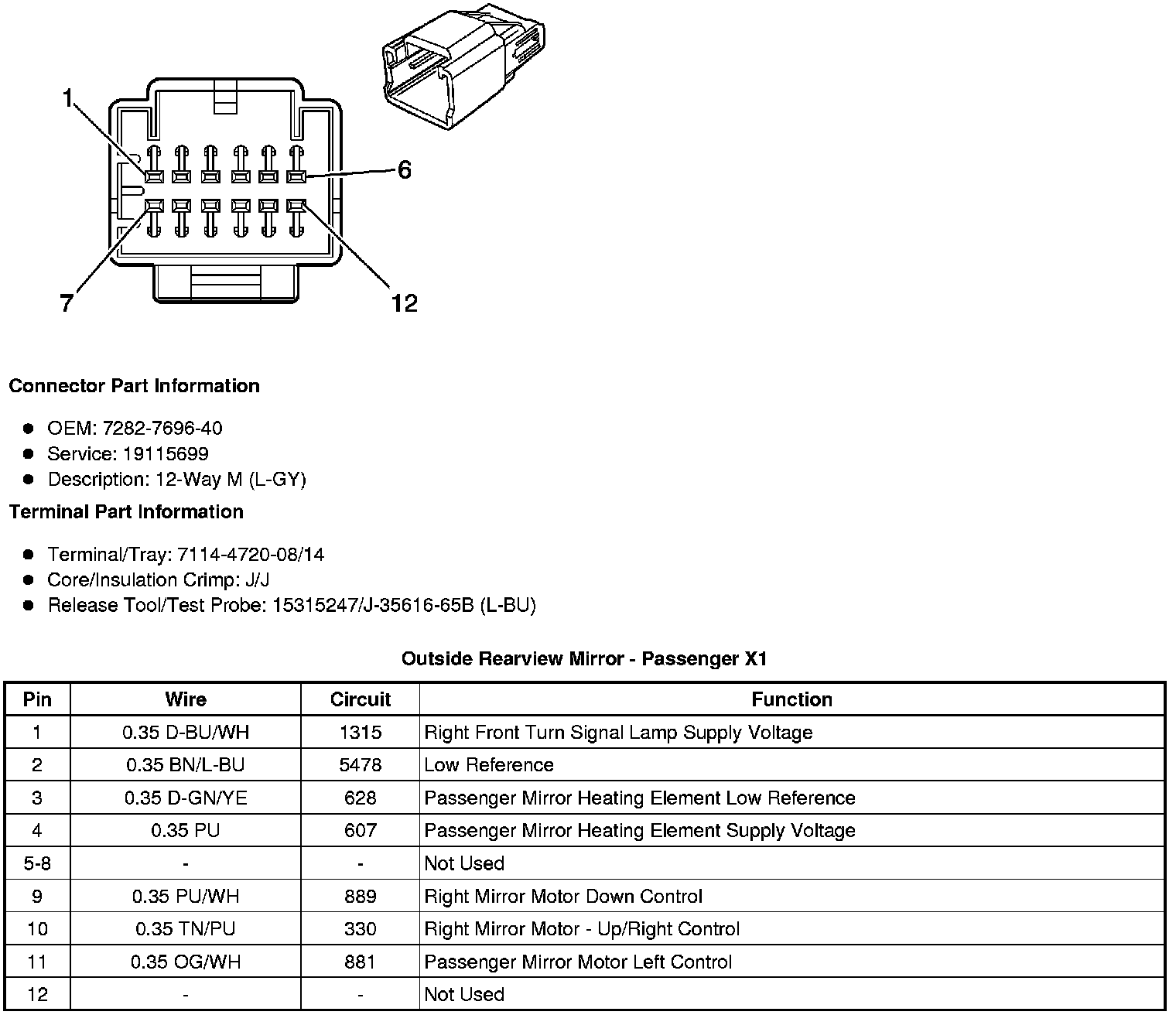

Outside Rearview Mirror - Passenger X1






Outside Rearview Mirror - Passenger X2 (A45)
