Parking Assist Distance Sensor




Component Connector End Views

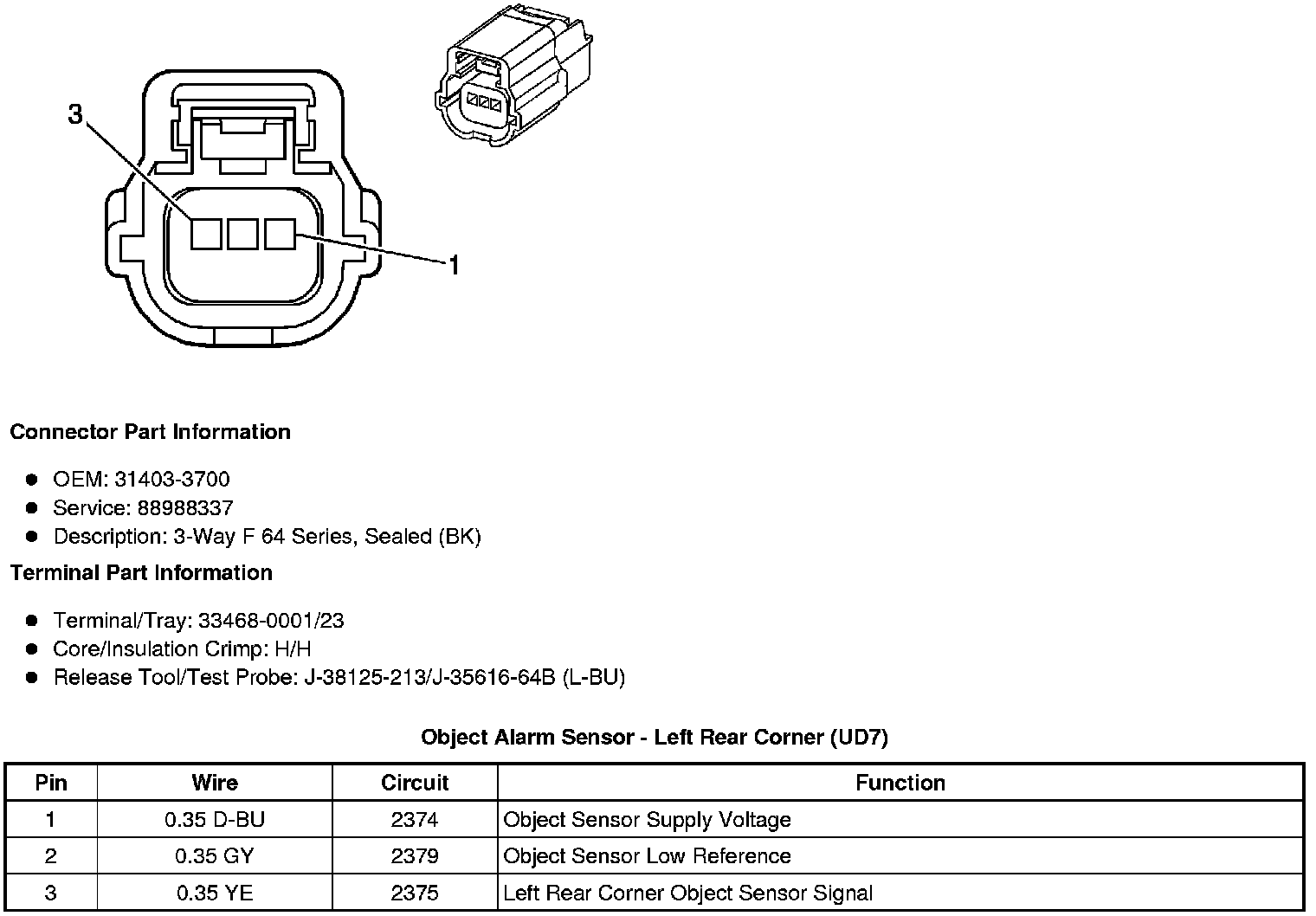

Object Alarm Sensor - Left Rear Corner (UD7)






Object Alarm Sensor - Left Rear Middle (UD7)

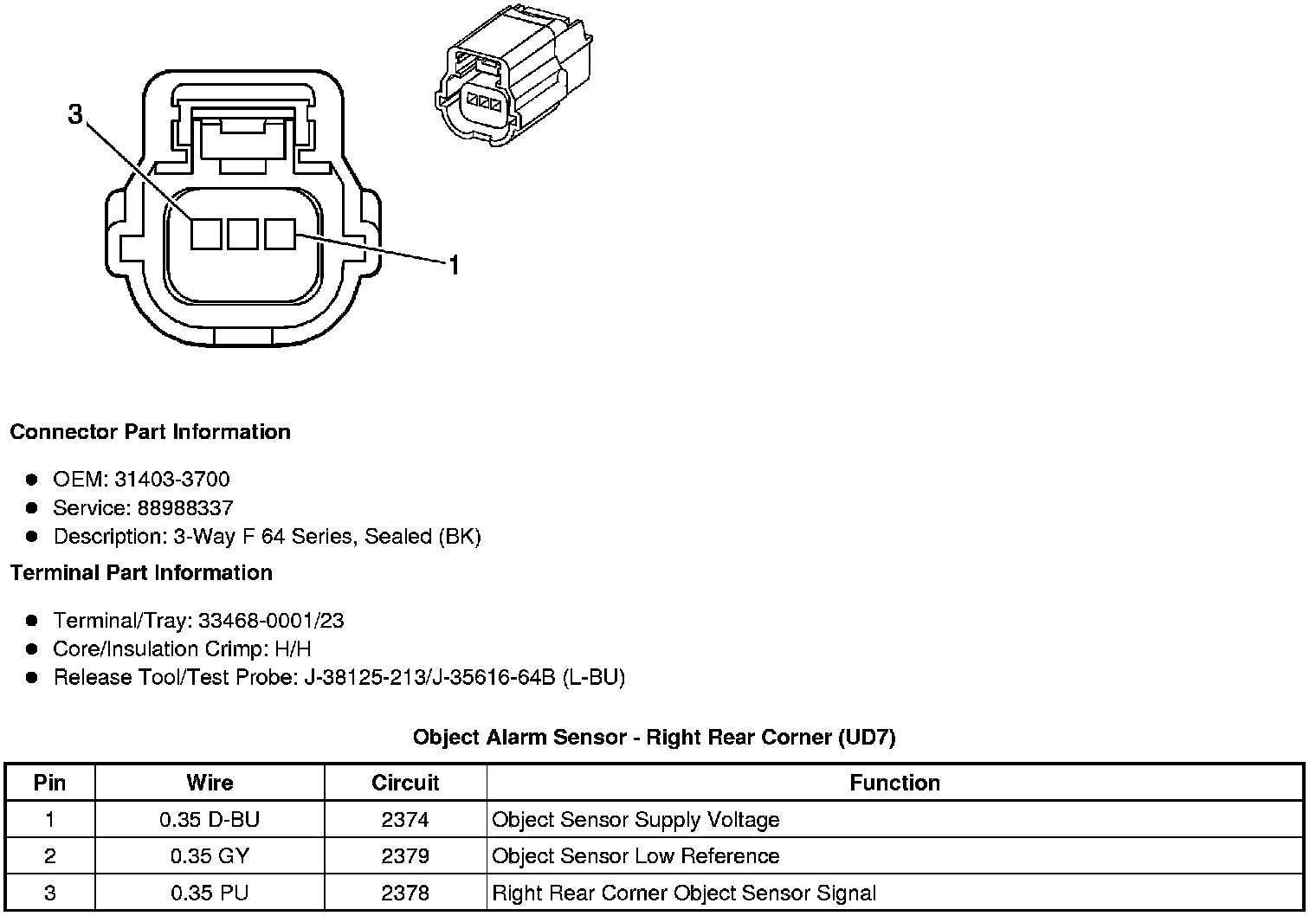

Object Alarm Sensor - Right Rear Corner (UD7)

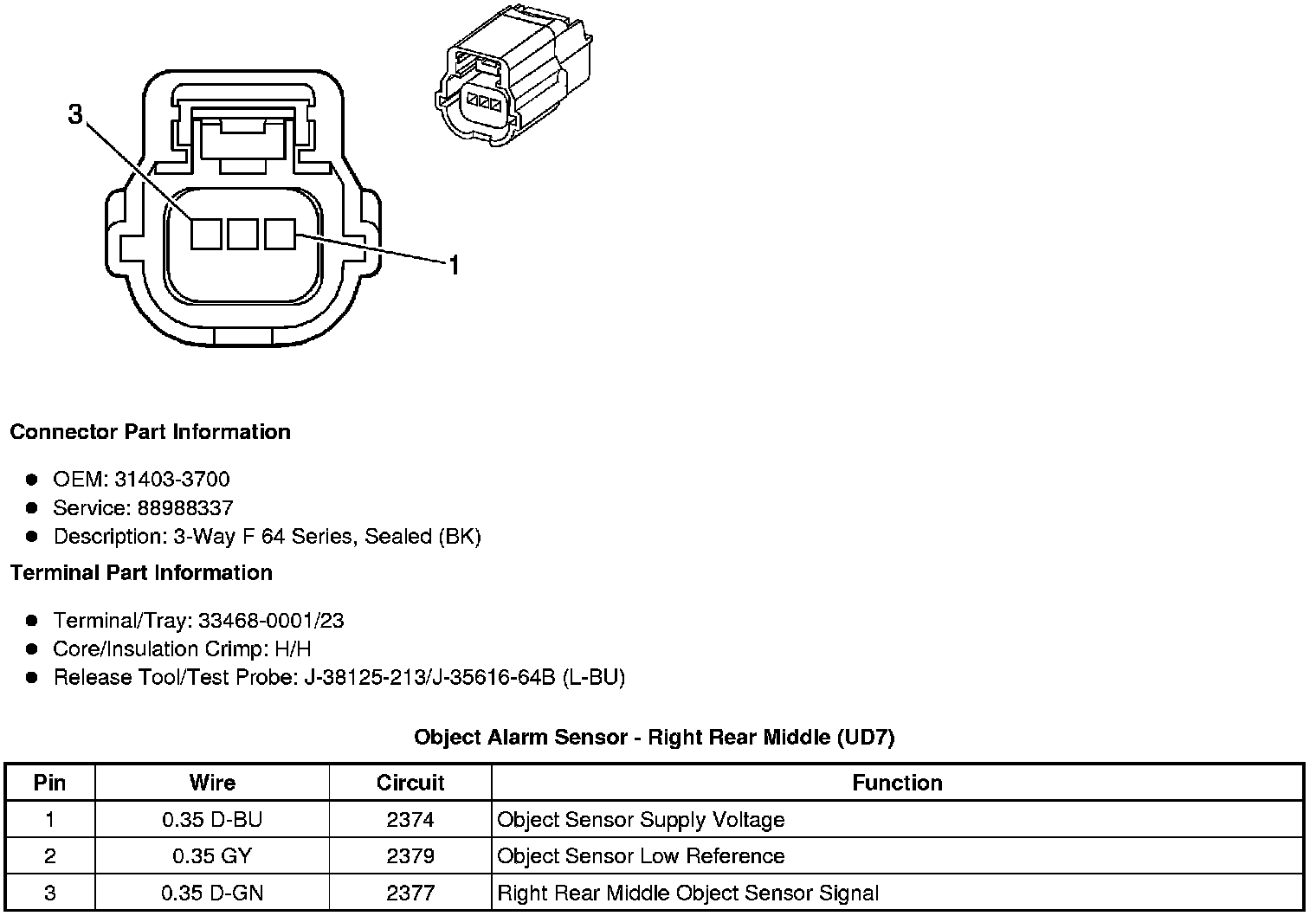

Object Alarm Sensor - Right Rear Middle (UD7)

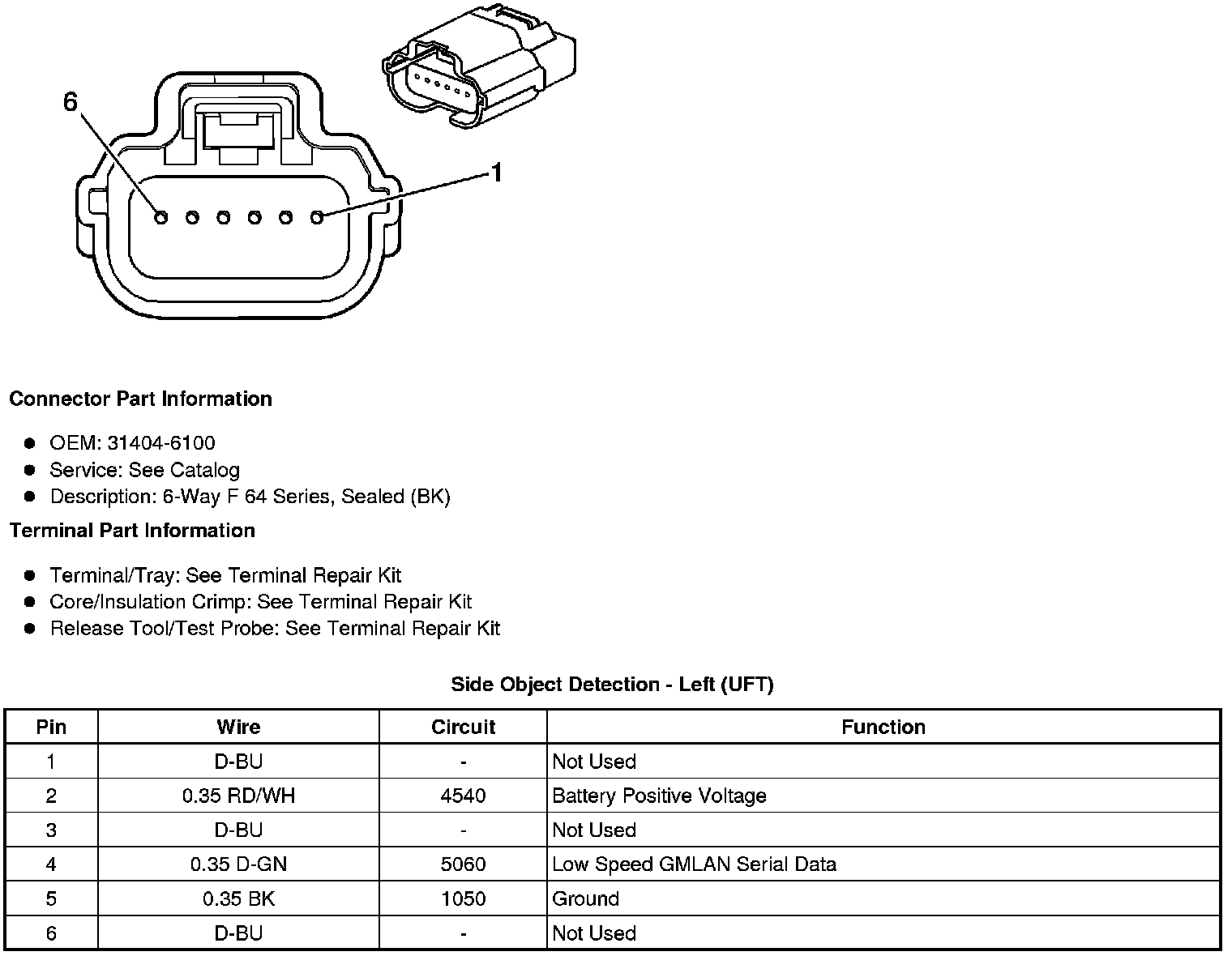

Side Object Detection - Left (UFT)

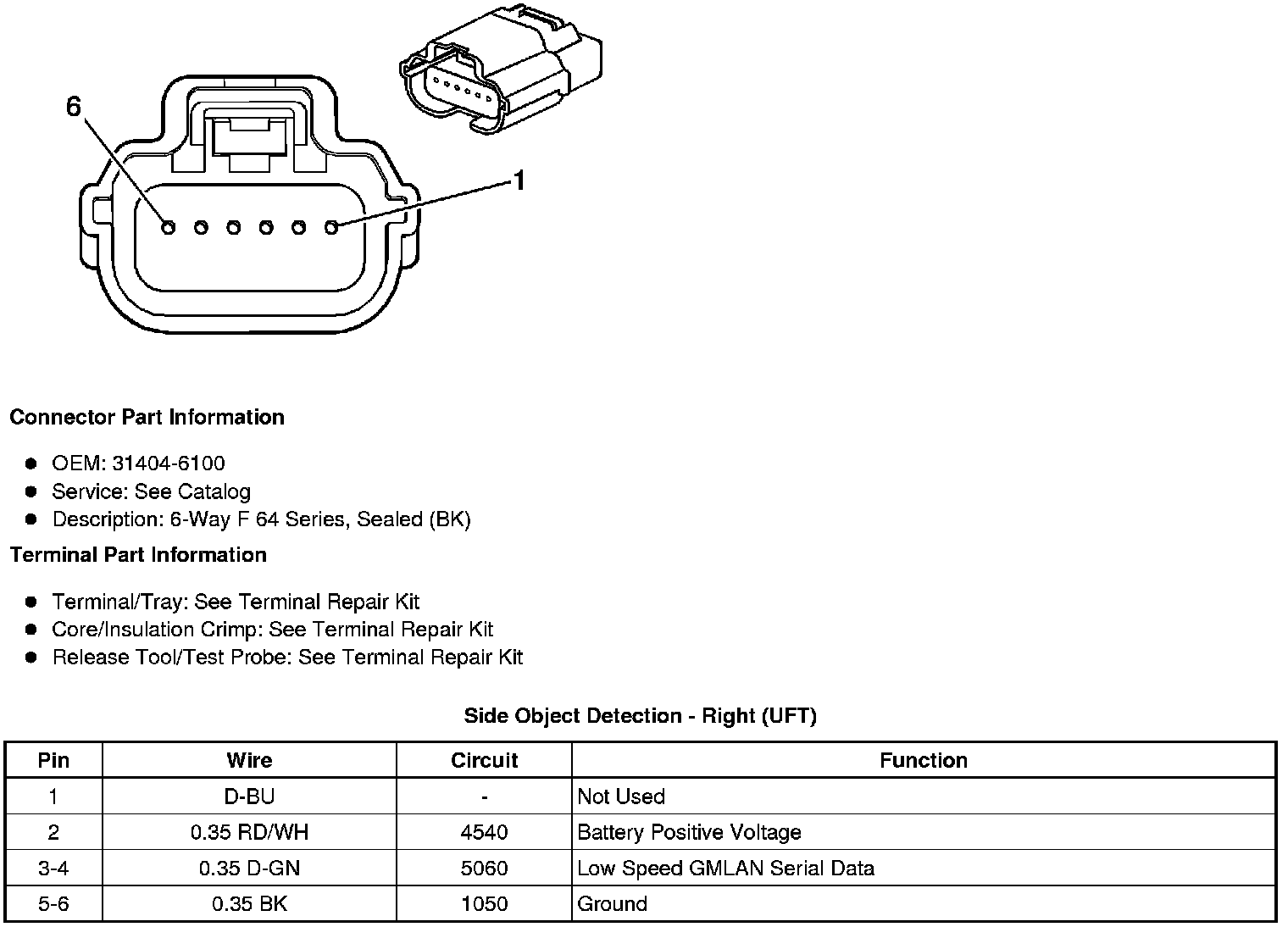

Side Object Detection - Right (UFT)
