Rear Fuse Block
Electrical Center Identification Views

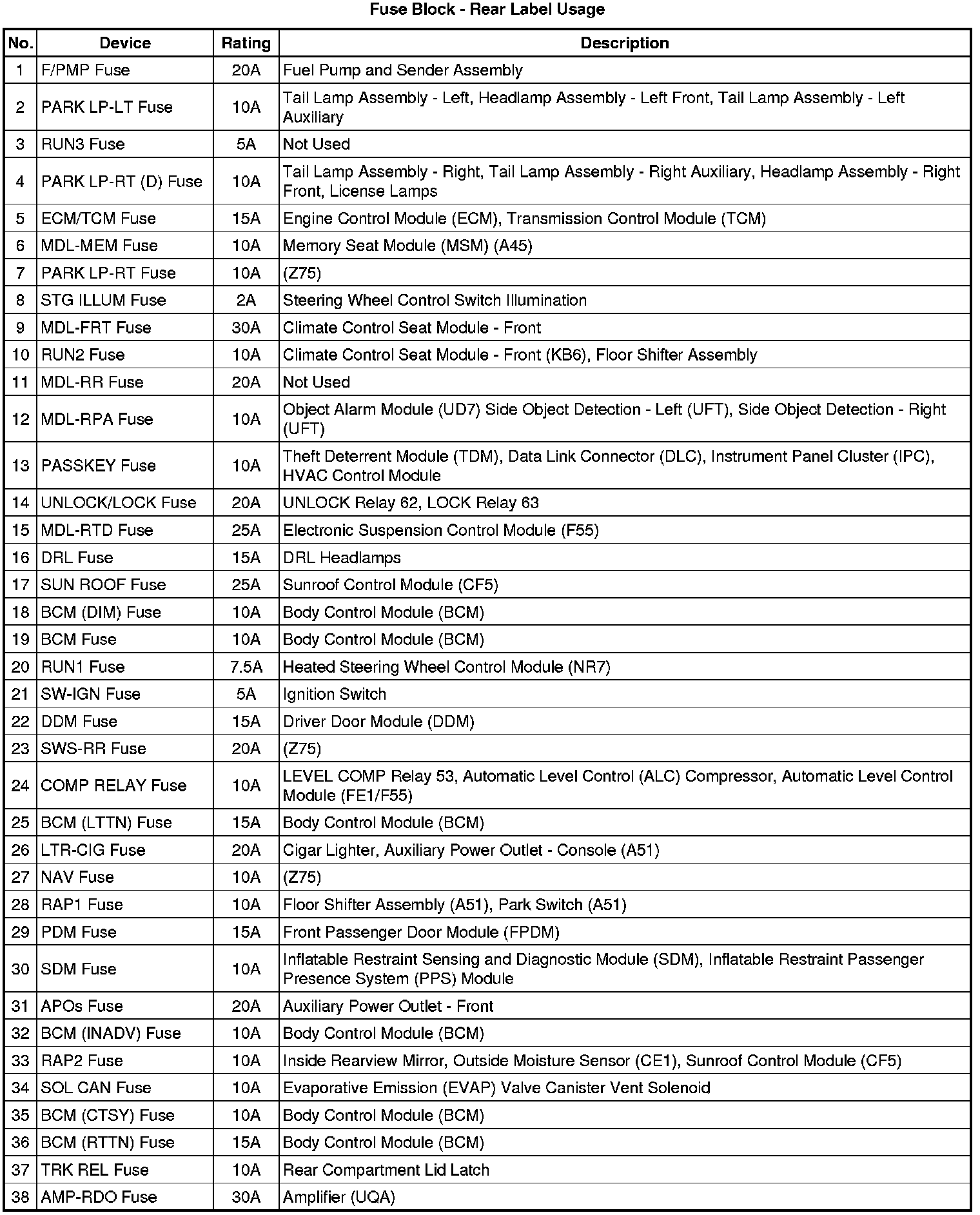

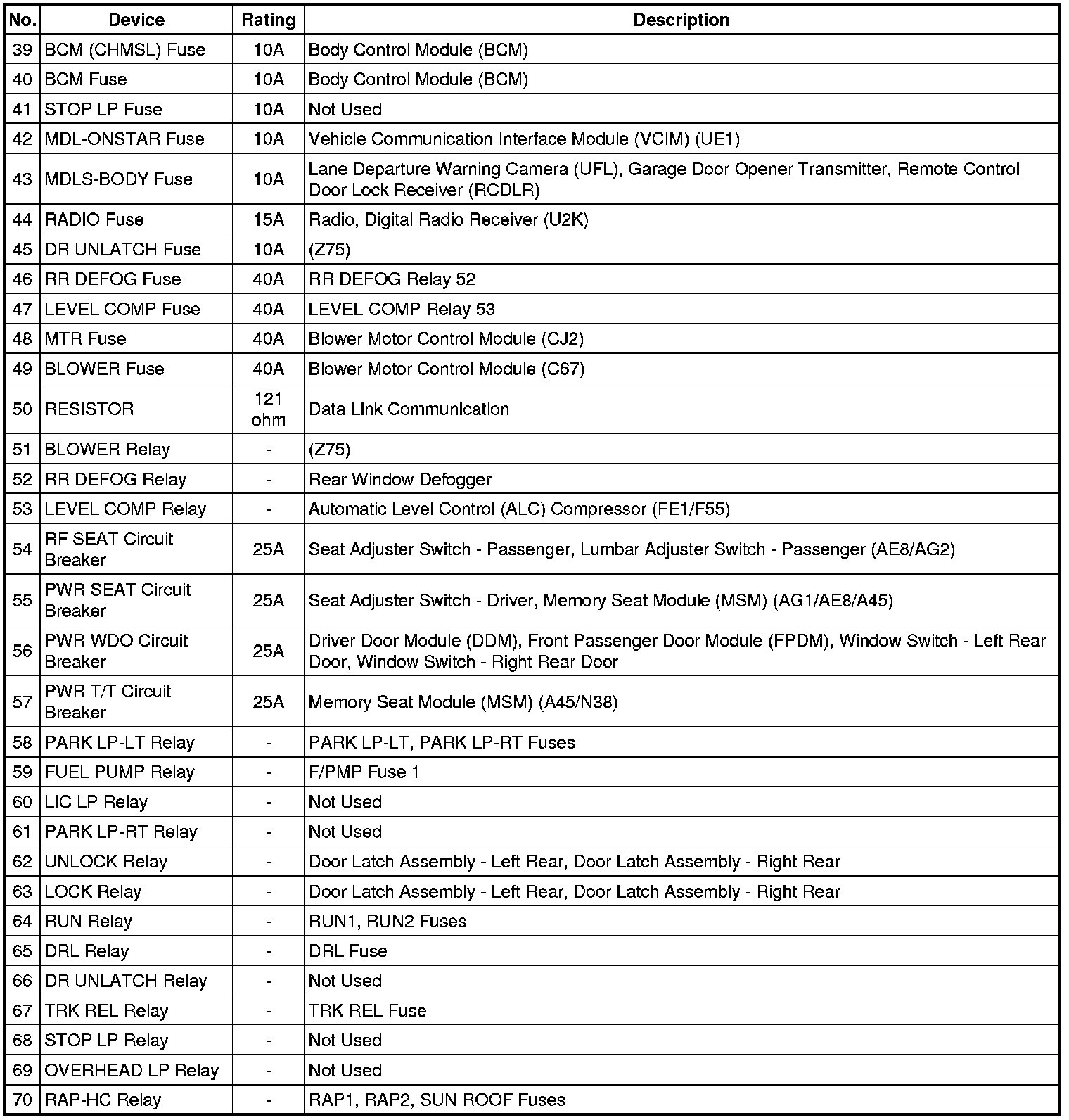

Fuse Block - Rear Label

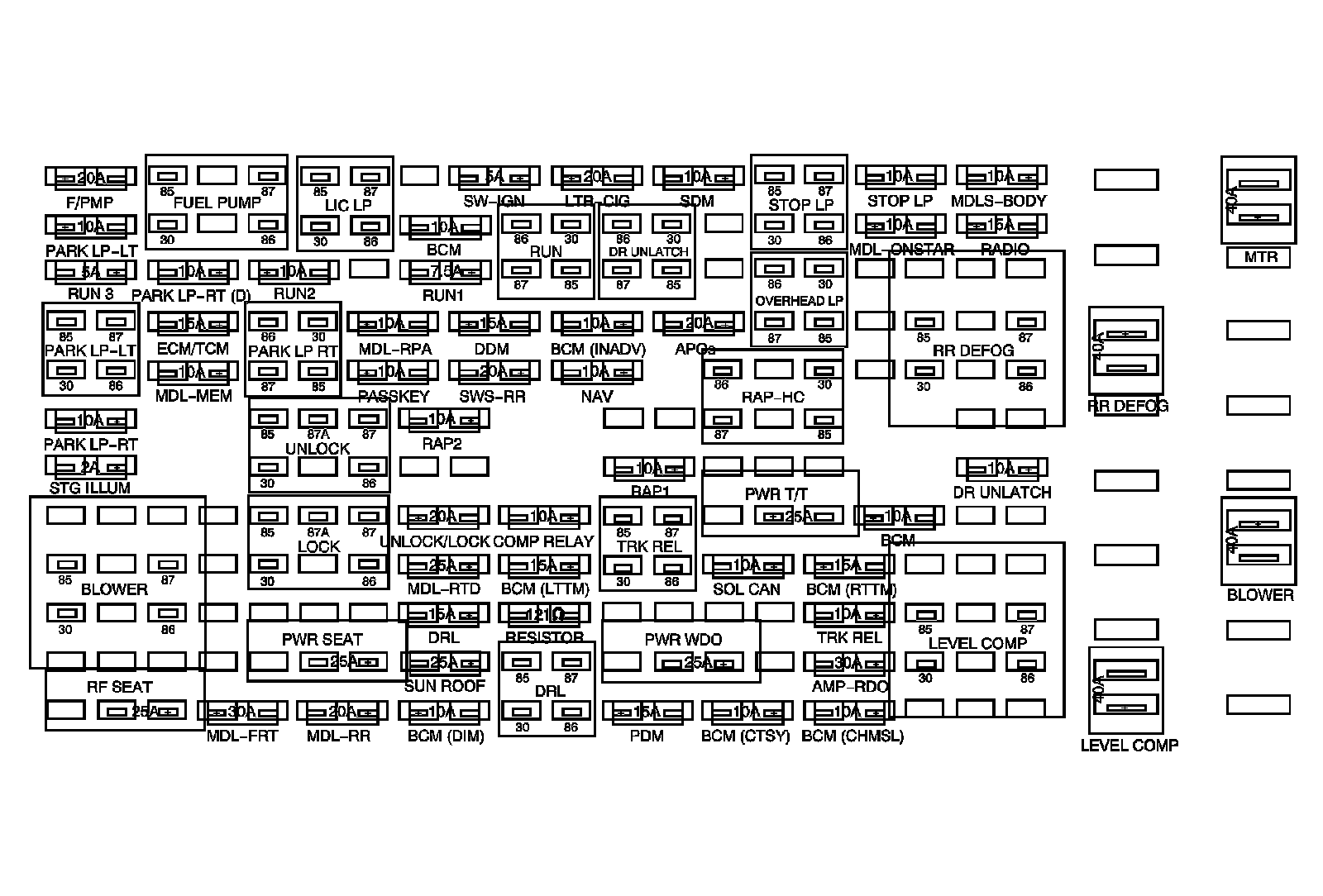

Fuse Block - Rear Top View
Fuse Block - Rear Bottom View

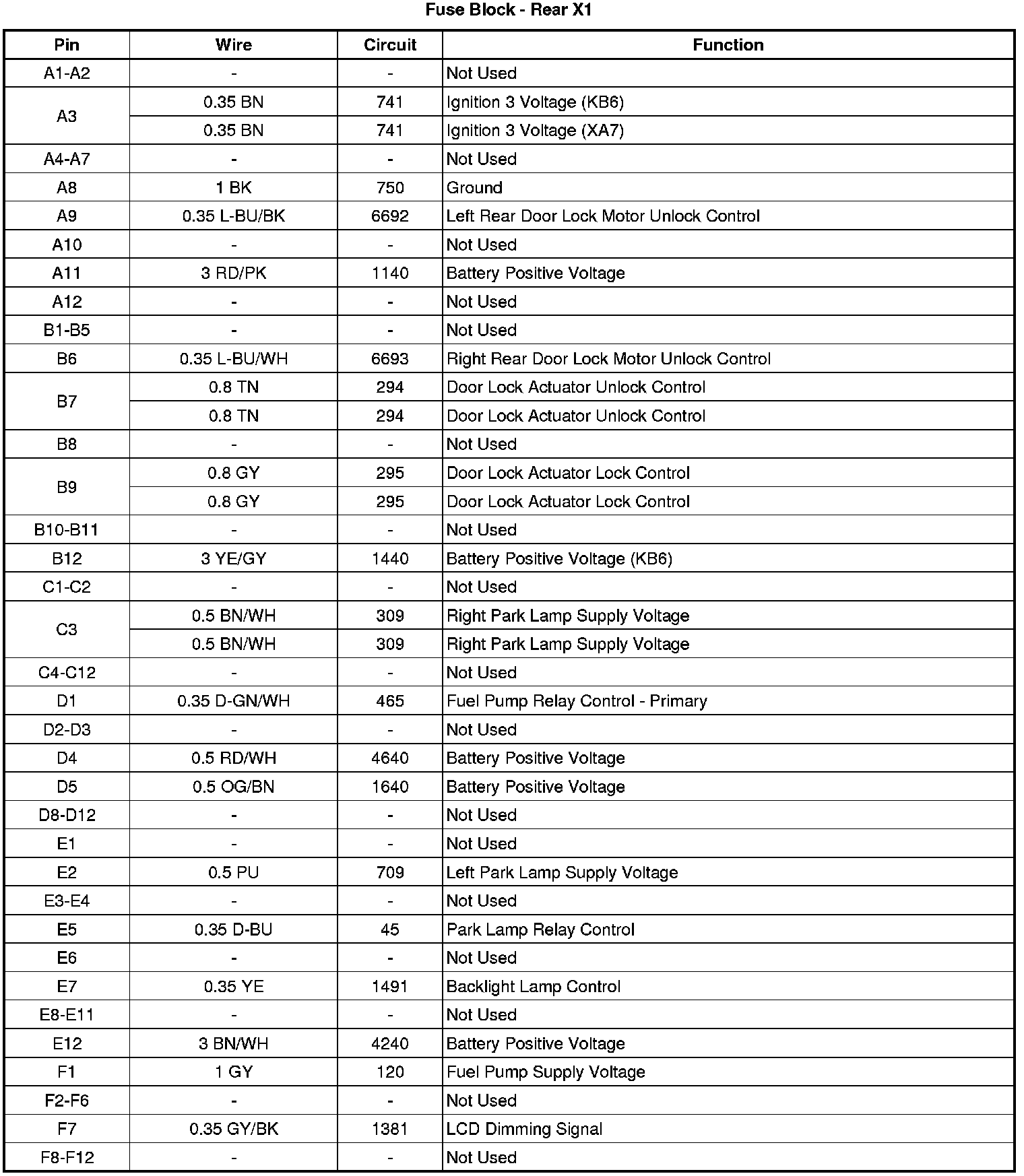

Fuse Block - Rear X1

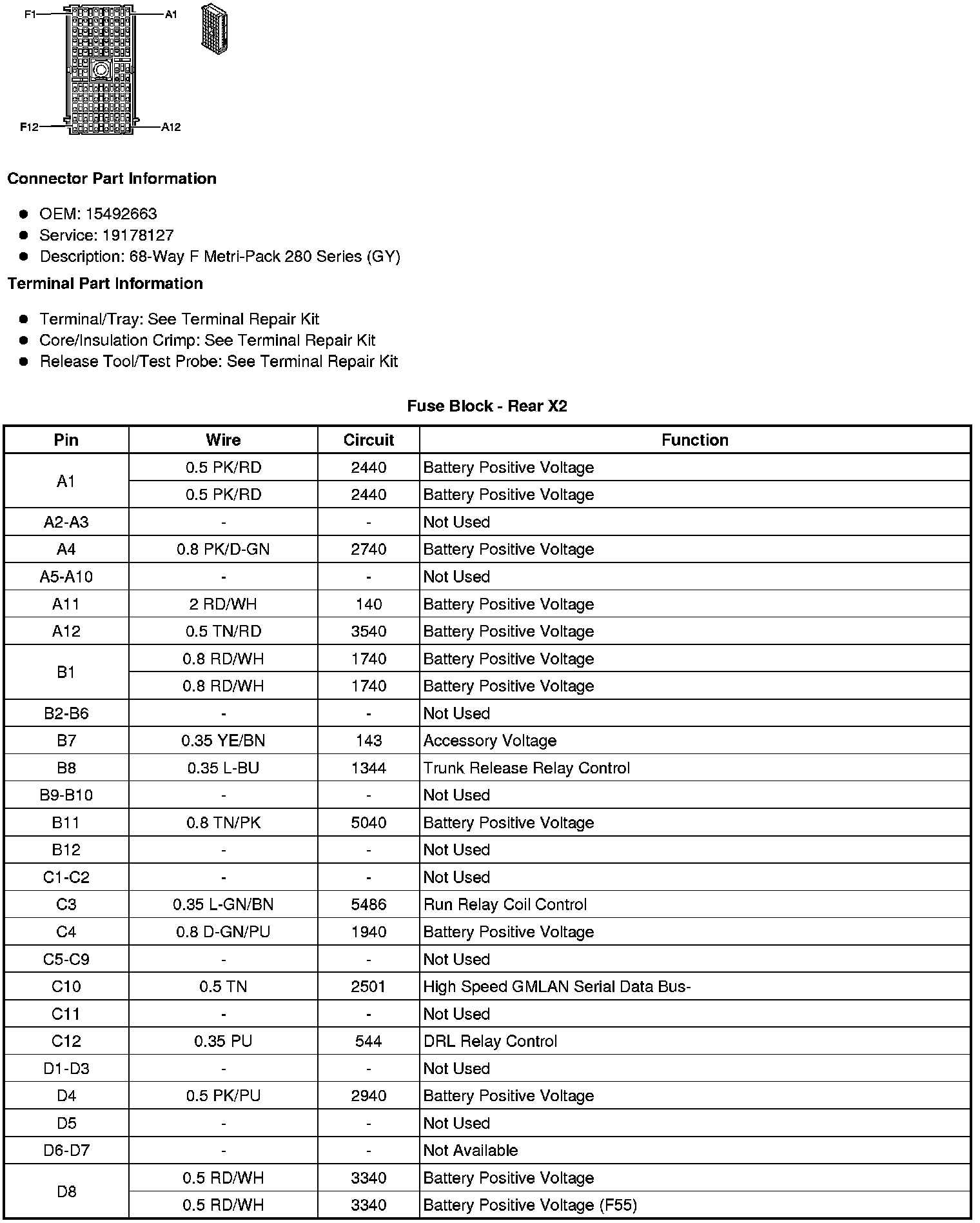

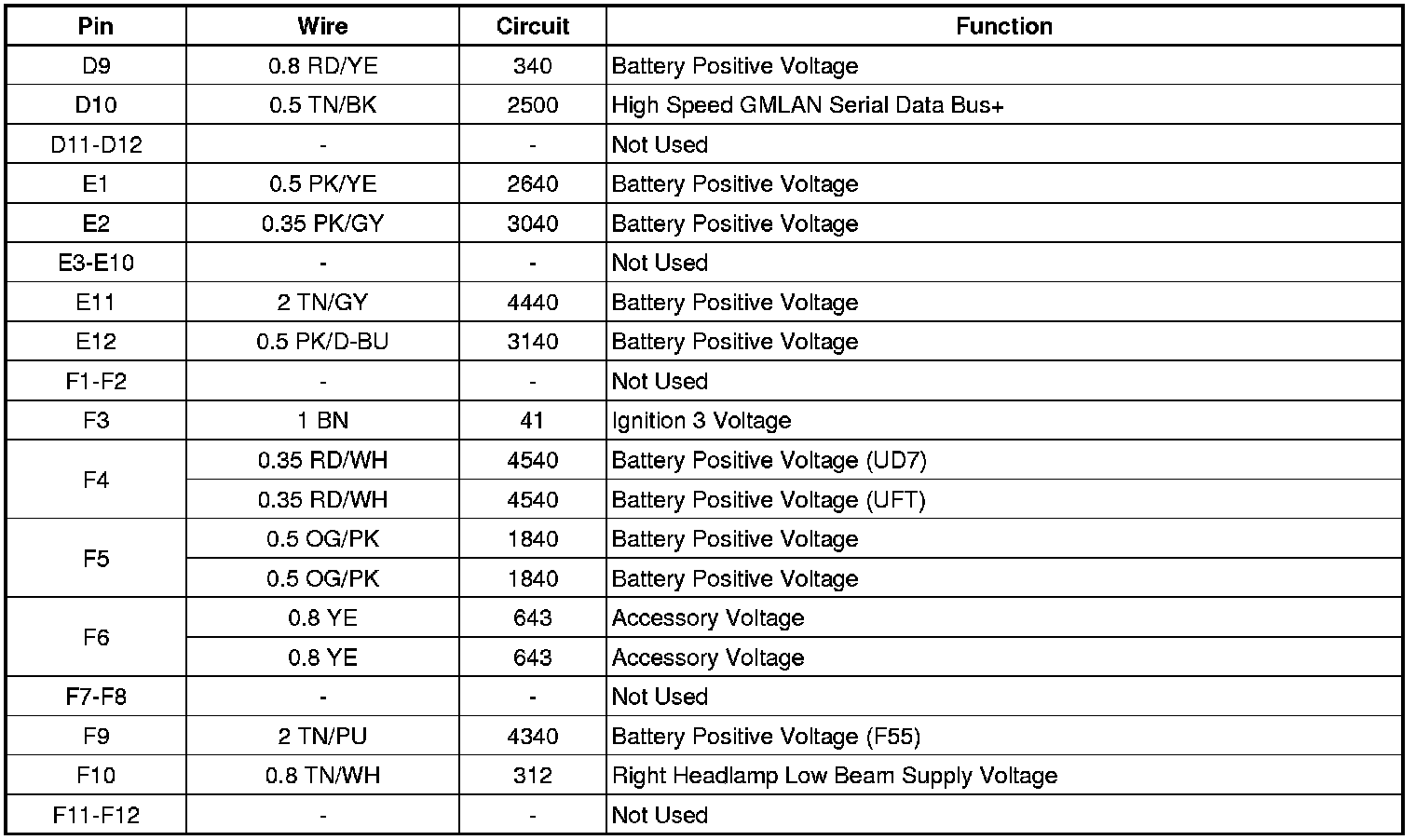

Fuse Block - Rear X2

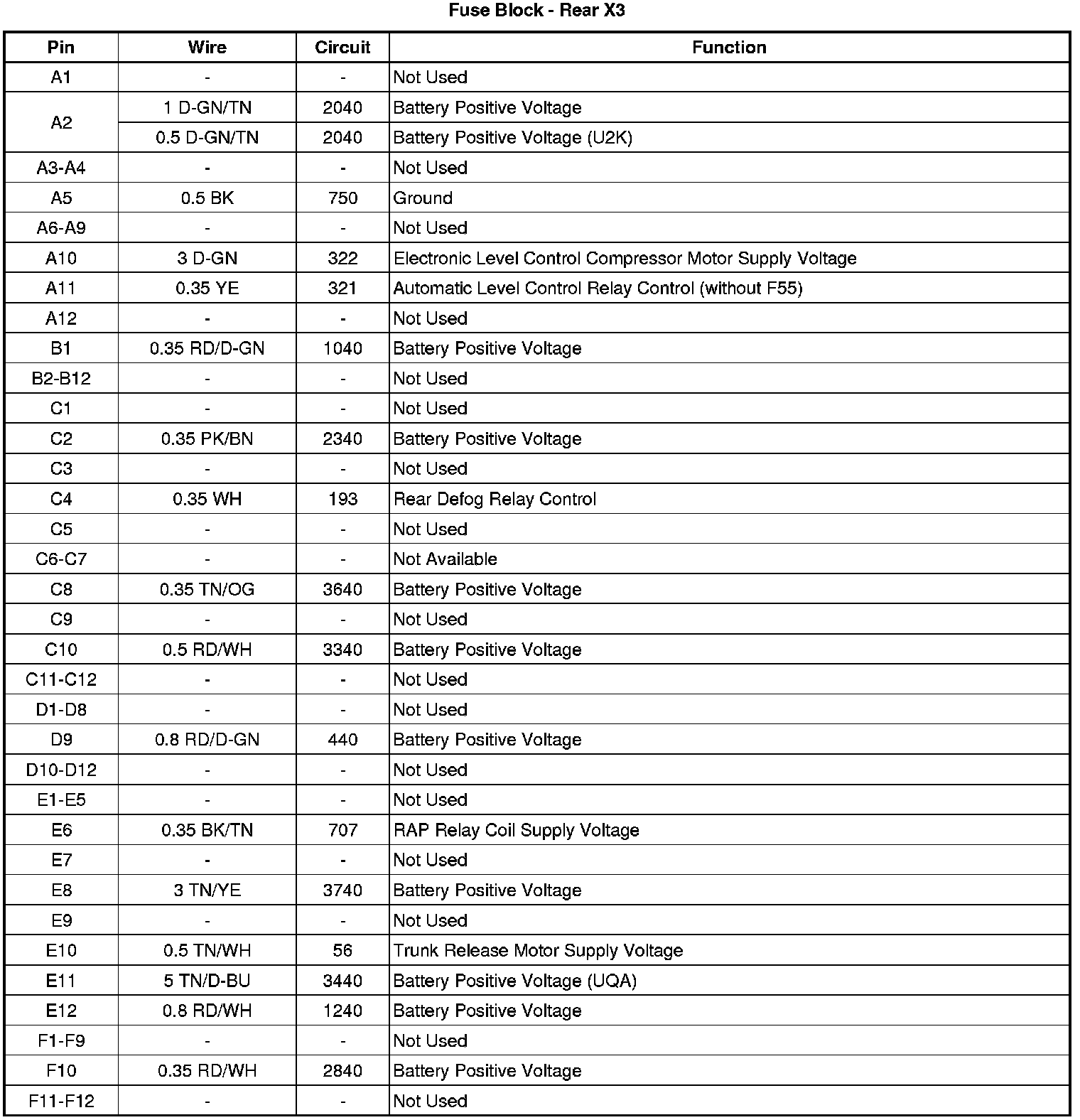

Fuse Block - Rear X3
Fuse Block - Rear X4
Fuse Block - Rear X5
Fuse Block - Rear X6 (To Battery)
Fuse Holder - Digital Video Disc (DVD) Control Module
