Lower Controls Assembly Installation

Lower Controls Assembly Installation




1. Place the lower controls assembly over the forward support studs.

Note: The bolts (958) without the flange are located next to the oil transfer plate.

2. Hand start the bolts (534, 958) into the channel plate.
3. Install the two nuts (955) on the forward support studs.

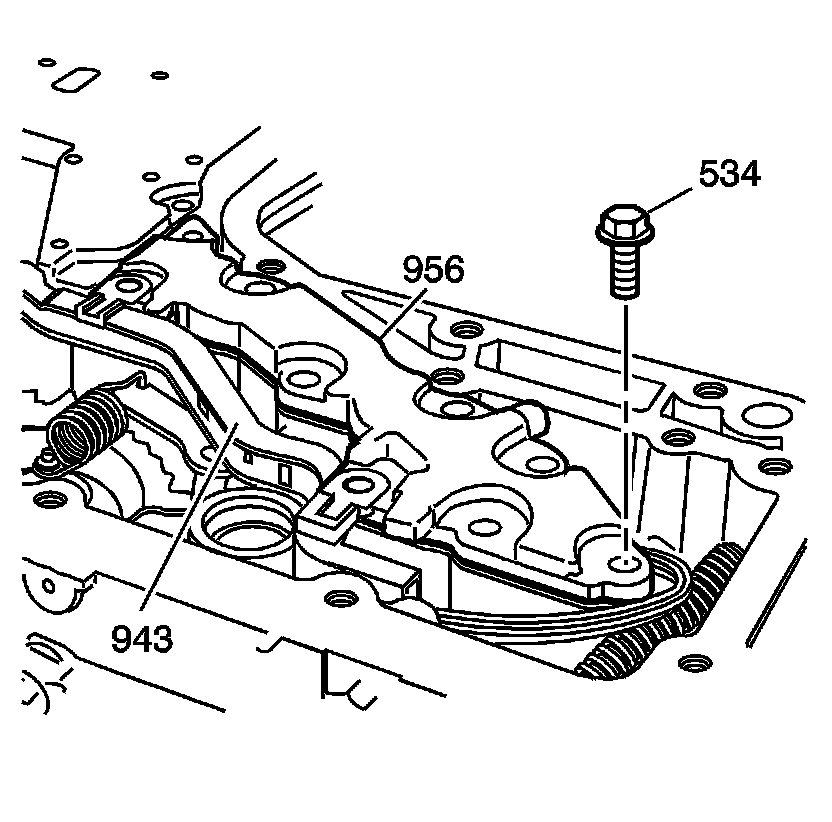

4. Place the oil transfer plate (956) over the open gasket area.
5. Position the lower control valve body wire harness retaining clips (943).

Caution: Refer to Fastener Caution (Fastener Caution).

6. Hand start the bolts (534) to hold the oil transfer plate (956) in place with the lower control valve body wire harness retaining clips (943) attached properly, then tighten the bolts and nuts (534) to 8-14 Nm (6-10 lb ft).
