Rear Window Sunshade Control Module

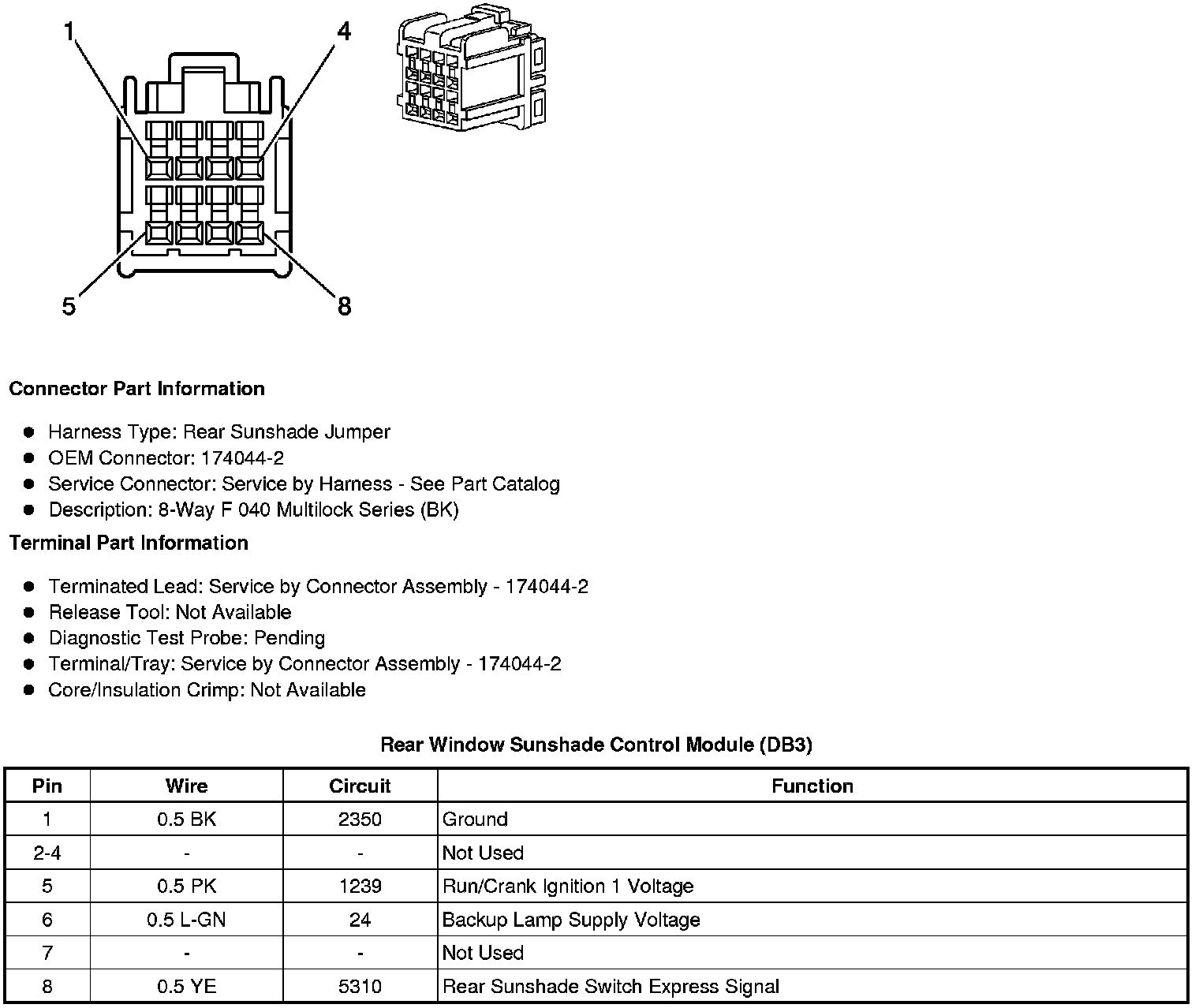

Component Connector End Views

Rear Window Sunshade Control Module (DB3)
