Map Light
Component Connector End Views

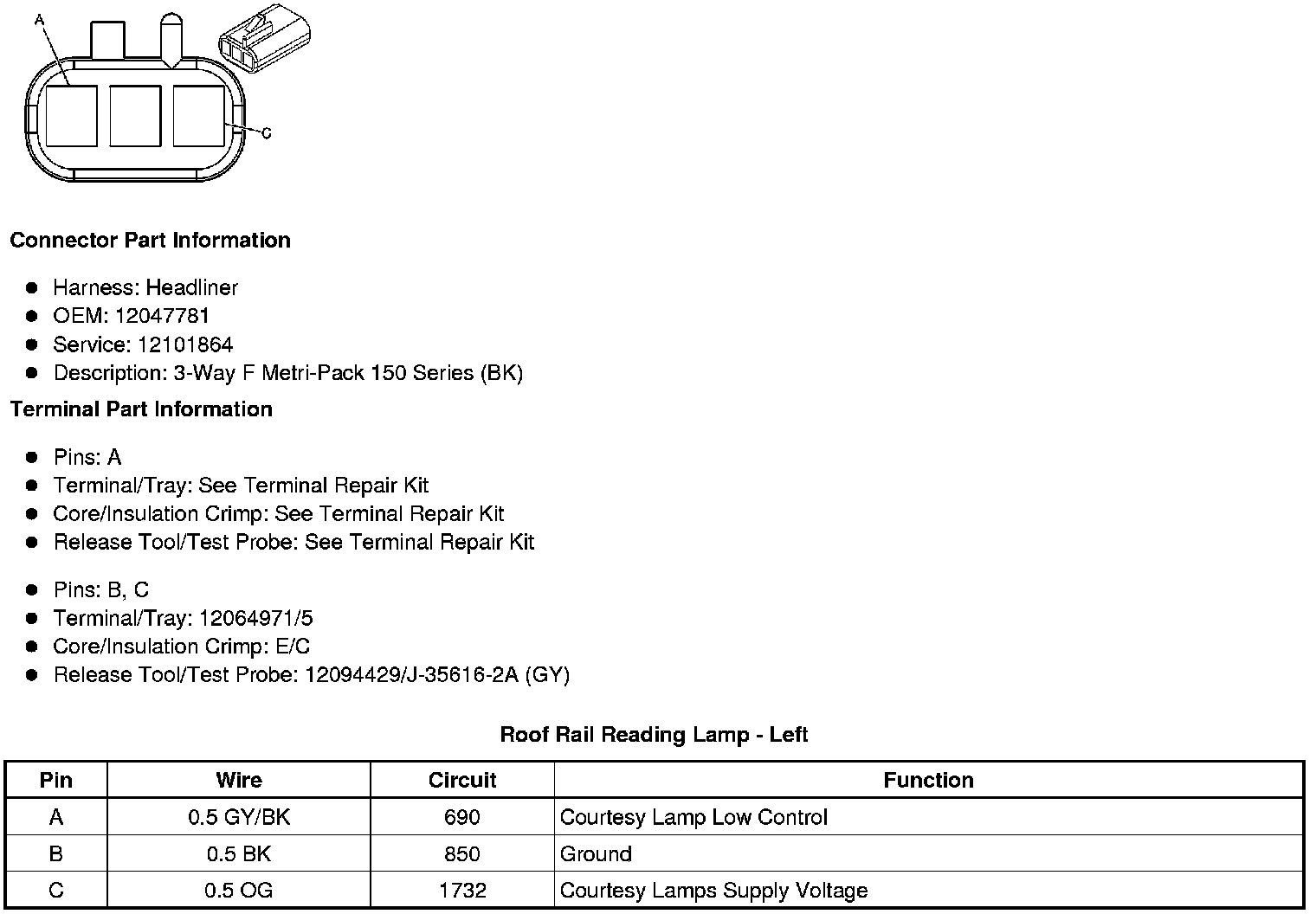

Roof Rail Reading Lamp - Left

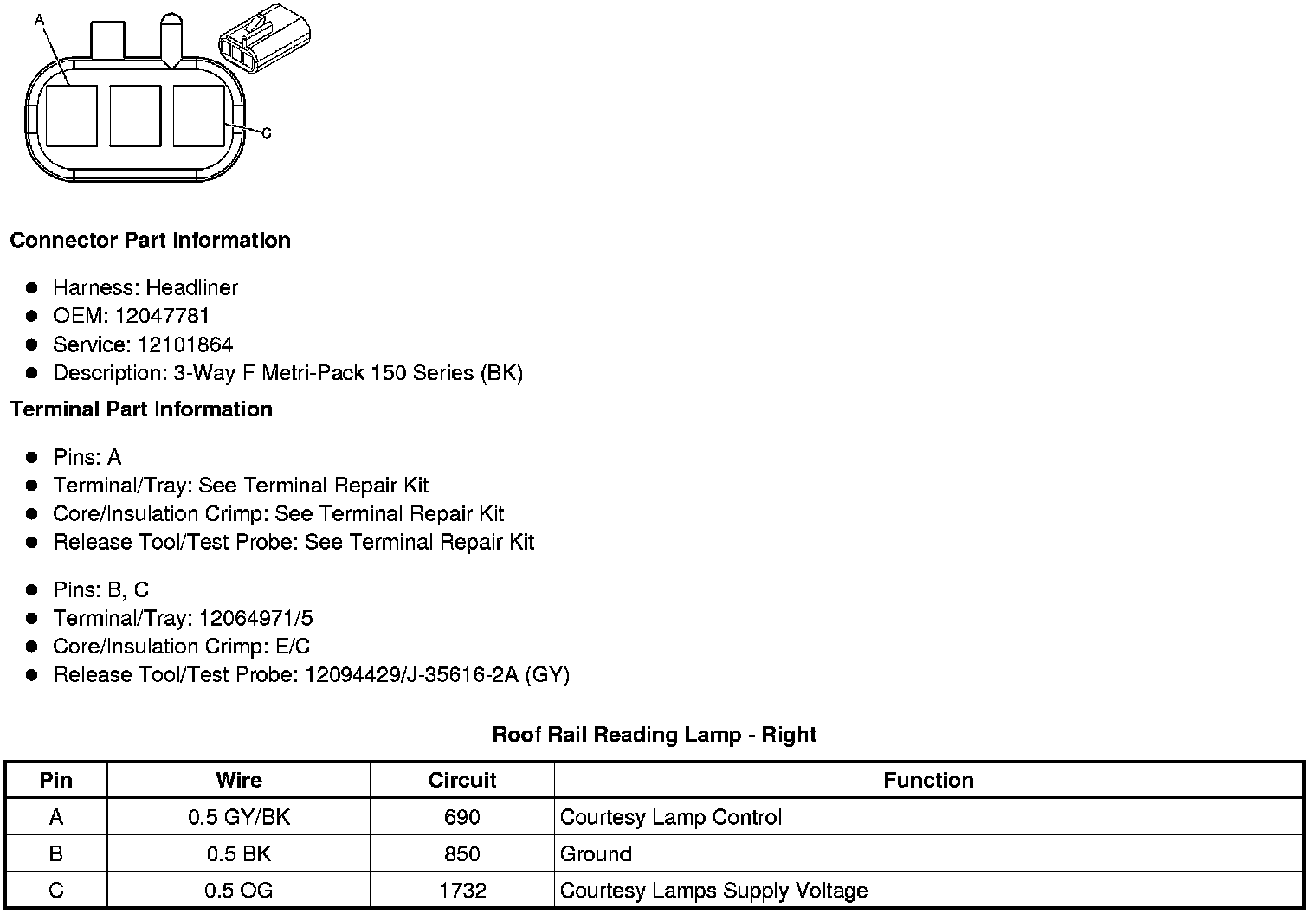

Roof Rail Reading Lamp - Right
